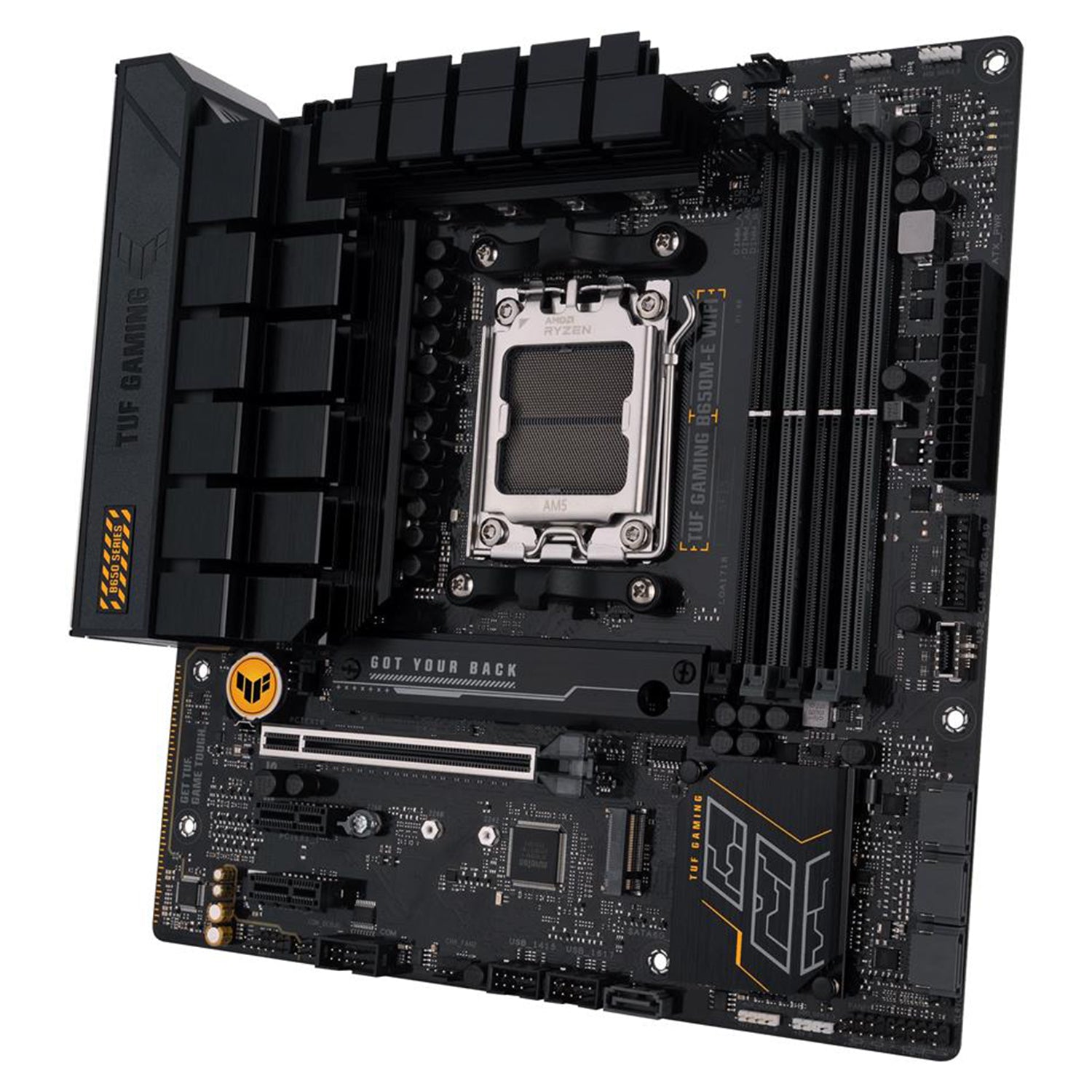

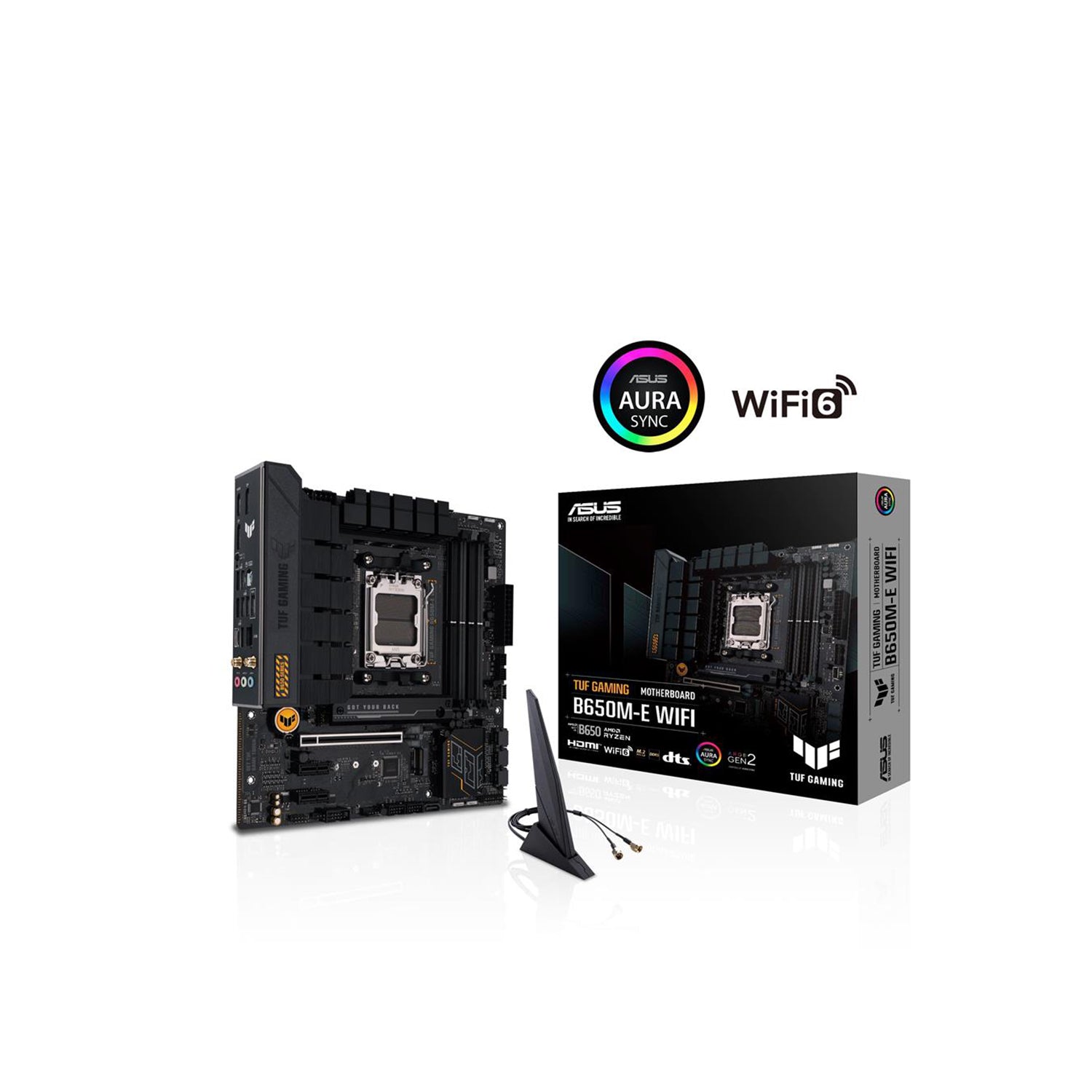

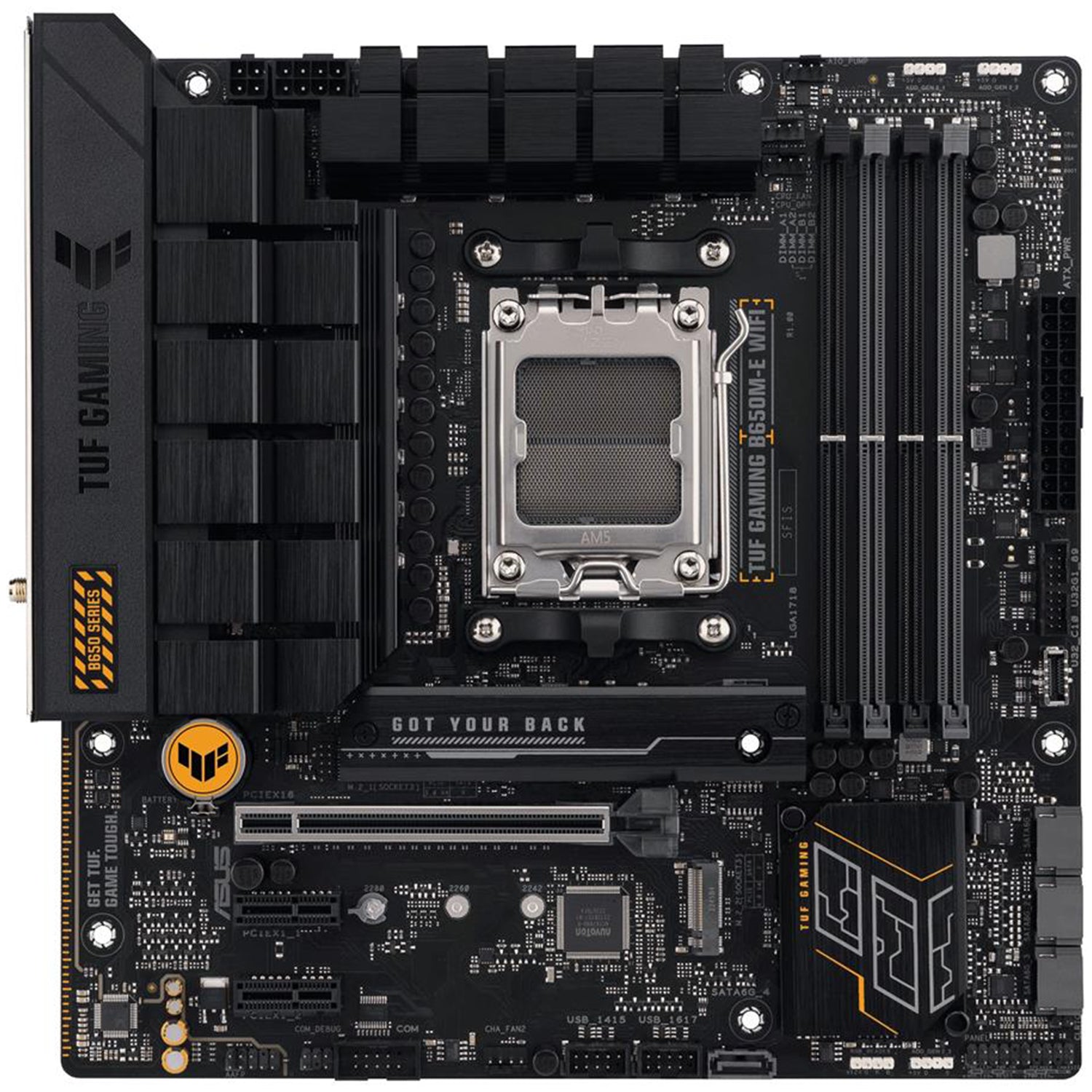

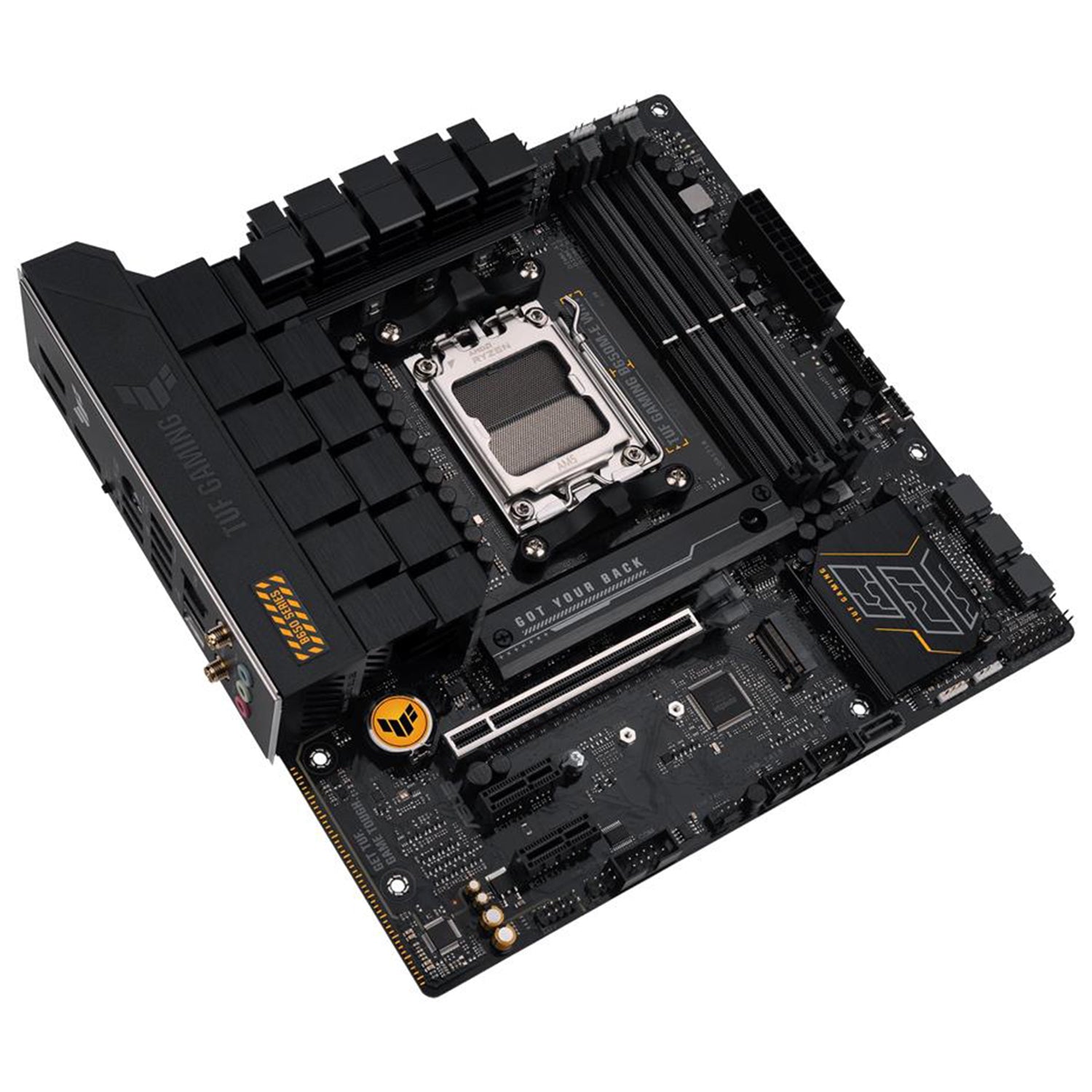

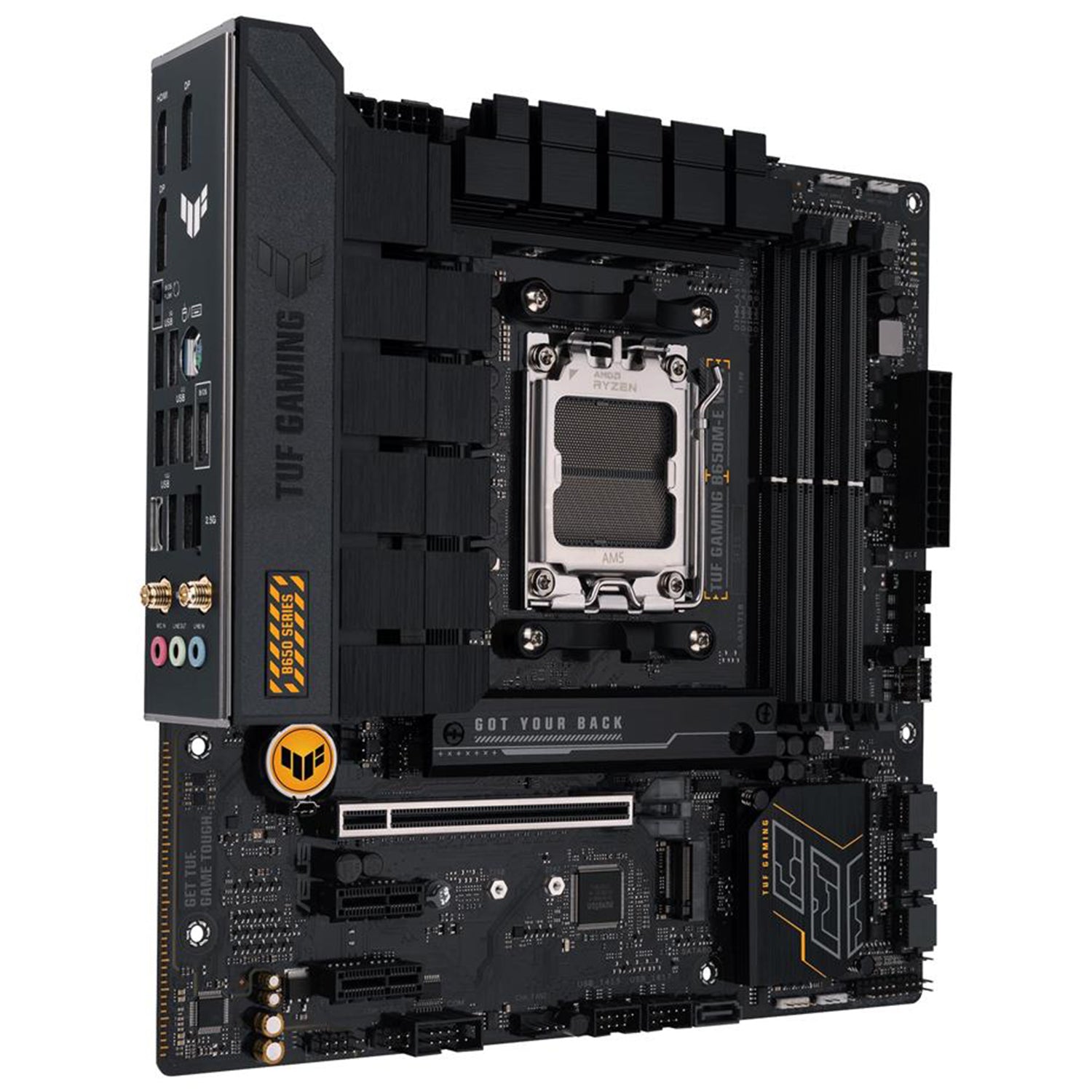

ASUS TUF Gaming B650M-E WIFI Motherboard mATX - Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors, 192GB DDR5 Max Memory, AM5 Socket, HDMI / DisplayPort

About

Description

Rock-Solid-Performance: TUF GAMING B650 motherboards offer robust power delivery, advanced cooling, and support for high-speed memory and storage, making them ideal for AMD's latest high-core-count CPUs.

DRAM Overclocking Performance: TUF GAMING B650 motherboards provide advanced memory tuning options, unlocking the full potential of both high-speed and entry-level DDR5 modules.

PCle 5.0 Support: TUF GAMING B650 motherboards offer a PCIe 5.0 M.2 slot for ultra-fast 128 Gbps data transfers and support NVMe RAID configurations for maximum storage speeds.

Immersive Gaming: TUF GAMING B650 motherboards deliver a high-performance gaming experience with ultra-fast networking, immersive audio for FPS, and customizable RGB lighting for a personalized setup.

Addressable Gen 2 RGB Header: Three addressable Gen 2 RGB headers support up to 500 LEDs, enabling synchronized Aura Sync lighting across your system while remaining compatible with older Aura Sync devices.

Two-Way AI Noise Cancelation: ASUS's exclusive utility uses deep-learning technology to eliminate background noise, ensuring crystal-clear voice communication during gaming and calls.

💯 𝐅𝐑𝐄𝐄 𝐃𝐄𝐋𝐈𝐕𝐄𝐑𝐘 | 🚚 𝐐𝐔𝐈𝐂𝐊 𝐒𝐇𝐈𝐏 | ☎ 𝐆𝐑𝐄𝐀𝐓 𝐂𝐔𝐒𝐓𝐎𝐌𝐄𝐑'𝐒 𝐒𝐔𝐏𝐏𝐎𝐑𝐓

Characteristics

Brand ASUS

Model TUF GAMING B650M-E WIFI

Socket AM5 Socket

Chipset ‎ AMD B650

Form factor micro-ATX (24.4 cm x 24.4 cm)

Interface 2 x PCIe 4.0 x1 slots

Storage 2 x M.2 slots and 4 x SATA 6G

Processor brand AMD

Processor type AMD Ryzen

Processor generation AMD Ryzen 9000 Series/ 8000 Series/ 7000 Series Processors

Memory type DDR5

Number of dimm memory slots 4 X DIMM Memory Slots

Maximum memory Maximum 192GB

Wireless - bluetooth Wi-Fi 6, 1x1 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band - BLUETOOTH v5.2

Operating system Support For Windows 11 / Windows 10 64-Bit

Ethernet 1 x Realtek 2.5Gb Ethernet (TUF LANGuard)

I/o ports Fan and Cooling related- 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 2 x 4-pin Chassis Fan headers / Power Related- 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 1 x 4-pin +12V Power connector / Storage Related- 2 x M.2 slots (Key M), 4 x SATA 6Gb/s ports / USB- 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C), 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports / Miscellaneous- 3 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x 20-3 pin System Panel header with Chassis intrude function

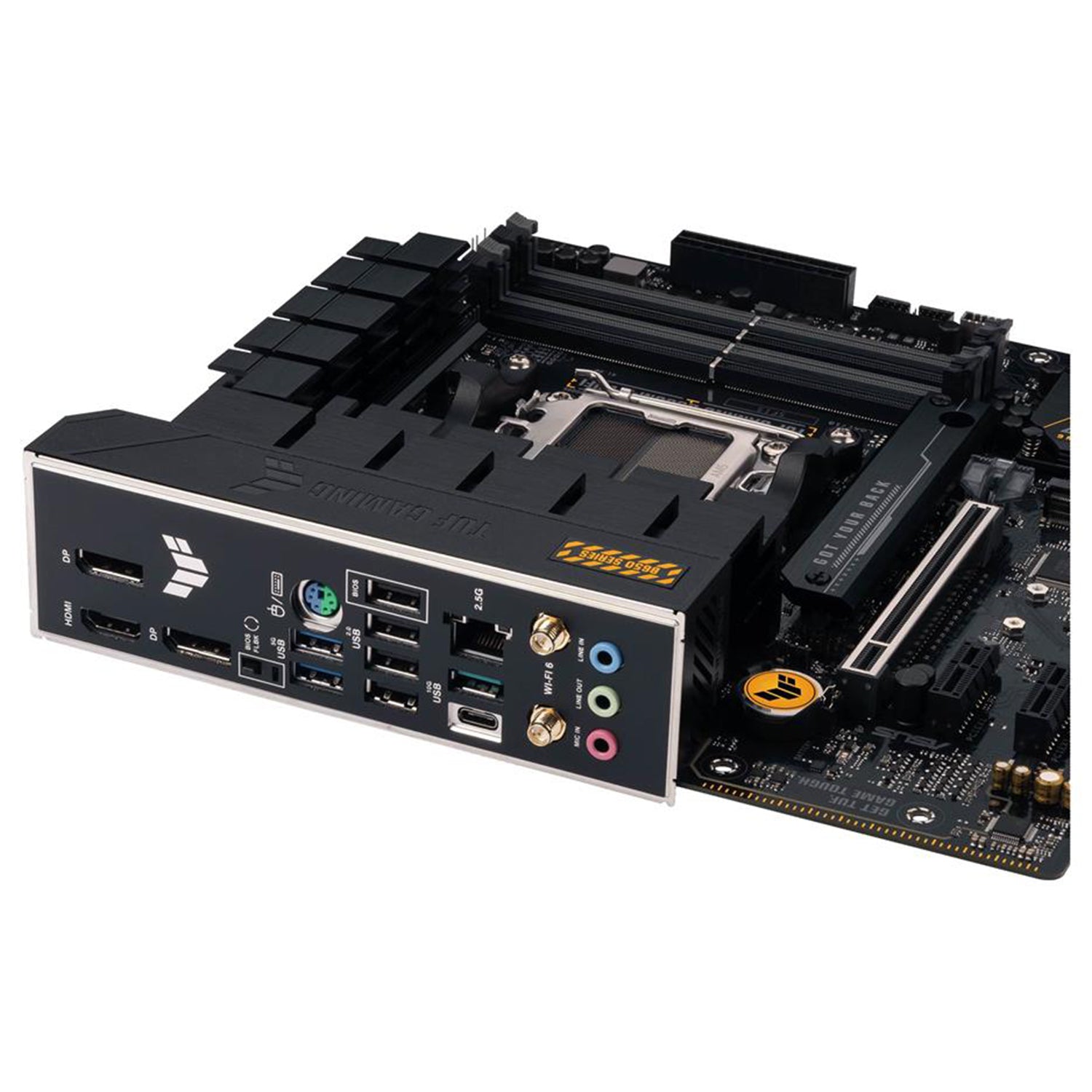

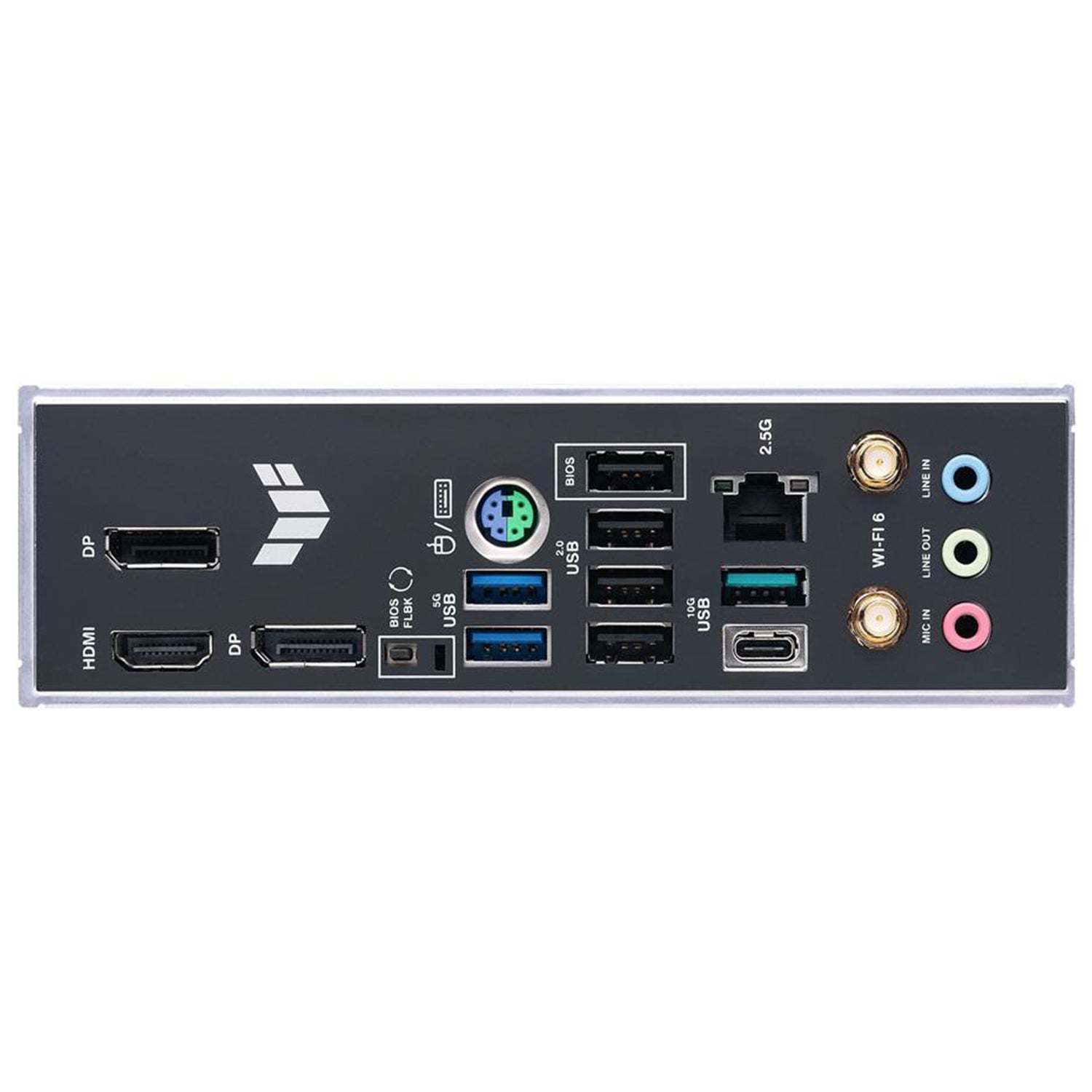

Back panel i/o ports 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C), 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A), 2 x DisplayPort, 1 x HDMI port, 1 x Wi-Fi Module, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks, 1 x BIOS FlashBack button, 1 x PS/2 Keyboard/Mouse combo port

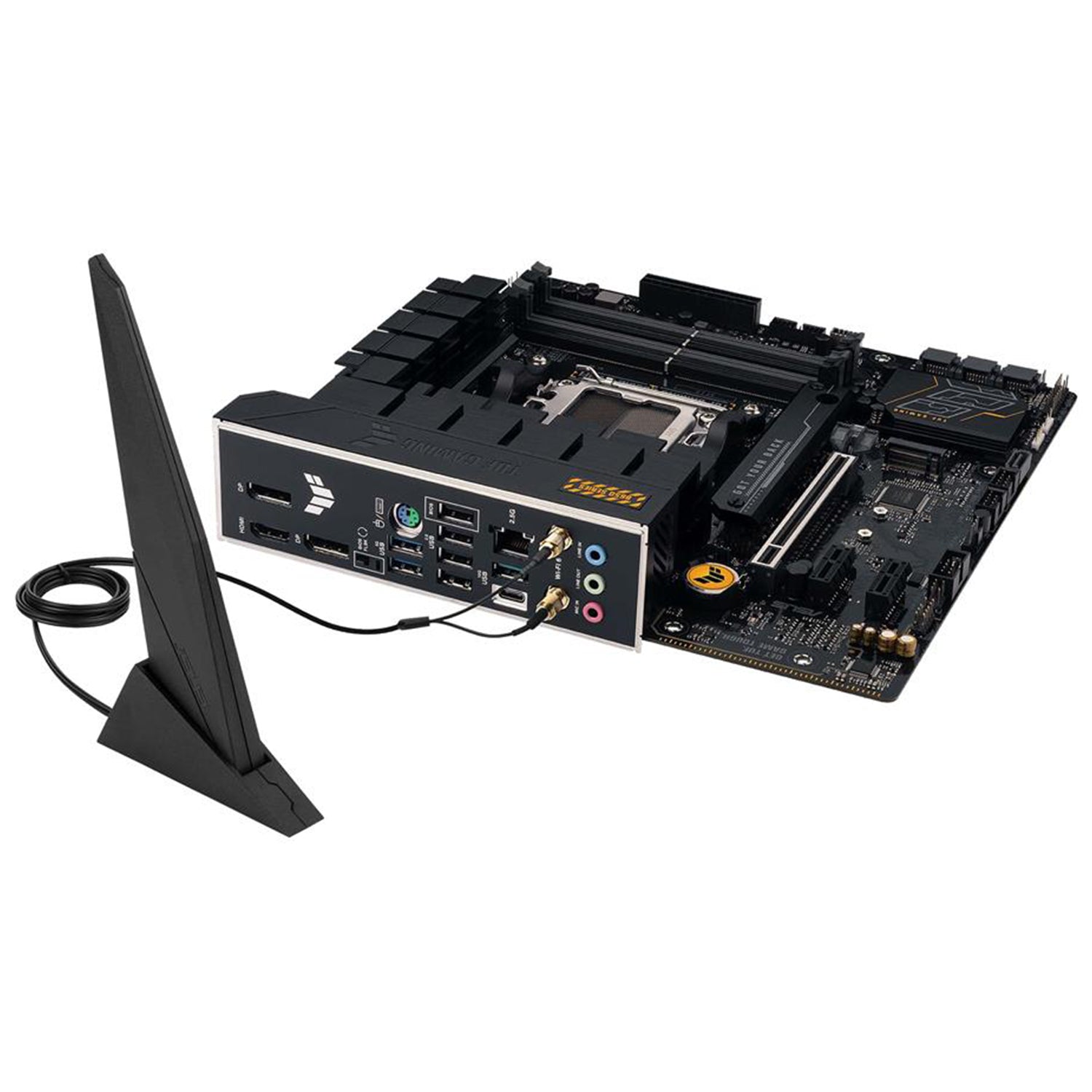

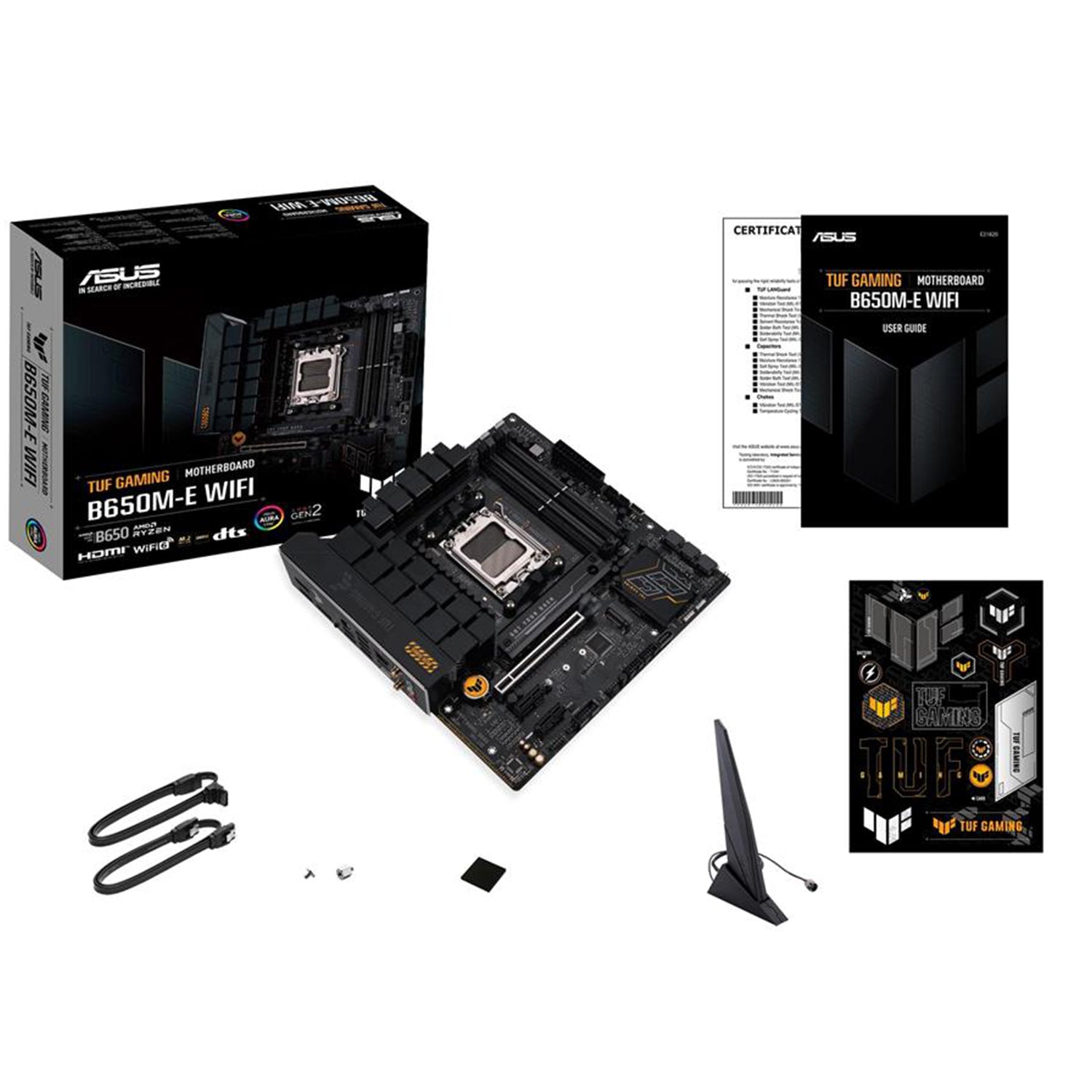

Accessories Cables - 2 x SATA 6Gb/s cables / Miscellaneous - 1 x ASUS Wi-Fi moving antennas, 1 x TUF Gaming sticker, 1 x M.2 Rubber Package, 1 x Screw package for M.2 SSD / Documentation - 1 x TUF Certification card, 1 x User guide

Usb ports FRONT USB : 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C), 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports / REAR USB : 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C), 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A)

Limited manufacturer warranty 2 Years

Description

Rock-Solid-Performance: TUF GAMING B650 motherboards offer robust power delivery, advanced cooling, and support for high-speed memory and storage, making them ideal for AMD's latest high-core-count CPUs.

DRAM Overclocking Performance: TUF GAMING B650 motherboards provide advanced memory tuning options, unlocking the full potential of both high-speed and entry-level DDR5 modules.

PCle 5.0 Support: TUF GAMING B650 motherboards offer a PCIe 5.0 M.2 slot for ultra-fast 128 Gbps data transfers and support NVMe RAID configurations for maximum storage speeds.

Immersive Gaming: TUF GAMING B650 motherboards deliver a high-performance gaming experience with ultra-fast networking, immersive audio for FPS, and customizable RGB lighting for a personalized setup.

Addressable Gen 2 RGB Header: Three addressable Gen 2 RGB headers support up to 500 LEDs, enabling synchronized Aura Sync lighting across your system while remaining compatible with older Aura Sync devices.

Two-Way AI Noise Cancelation: ASUS's exclusive utility uses deep-learning technology to eliminate background noise, ensuring crystal-clear voice communication during gaming and calls.

💯 𝐅𝐑𝐄𝐄 𝐃𝐄𝐋𝐈𝐕𝐄𝐑𝐘 | 🚚 𝐐𝐔𝐈𝐂𝐊 𝐒𝐇𝐈𝐏 | ☎ 𝐆𝐑𝐄𝐀𝐓 𝐂𝐔𝐒𝐓𝐎𝐌𝐄𝐑'𝐒 𝐒𝐔𝐏𝐏𝐎𝐑𝐓

NEW

ASUS TUF Gaming B650M-E WIFI Motherboard mATX - Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors, 192GB DDR5 Max Memory, AM5 Socket, HDMI / DisplayPort

Regular price: $138.99
Sale price: $138.99
