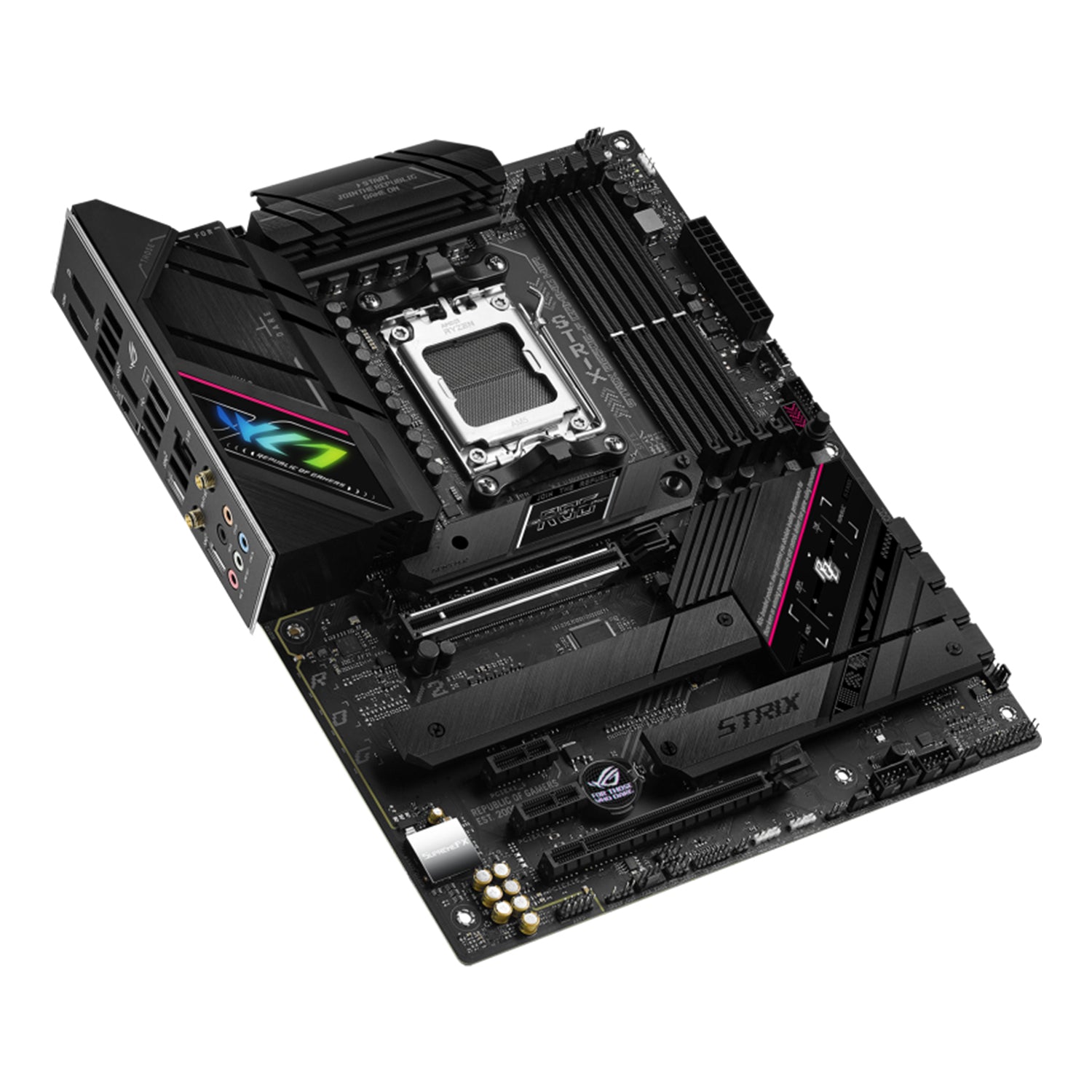

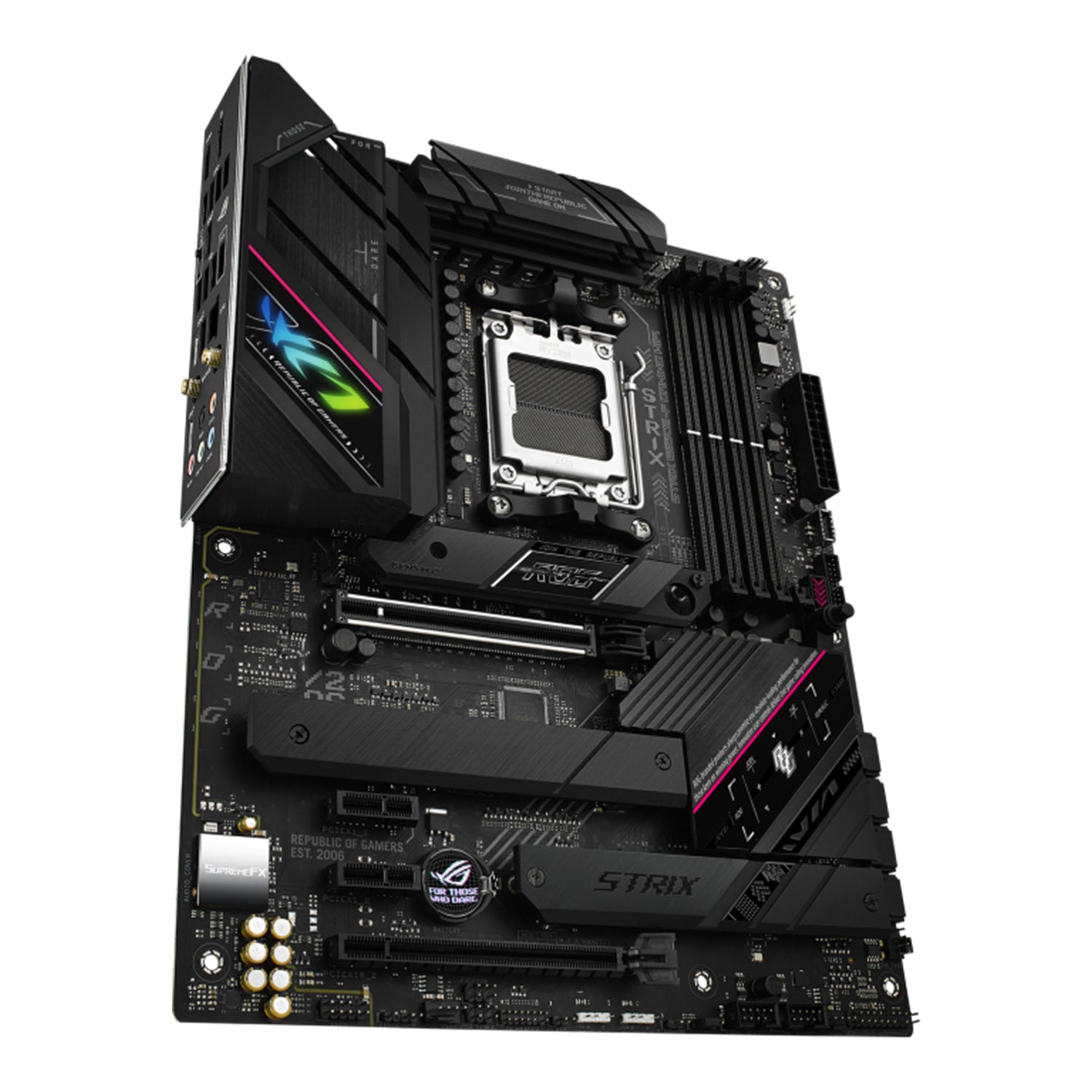

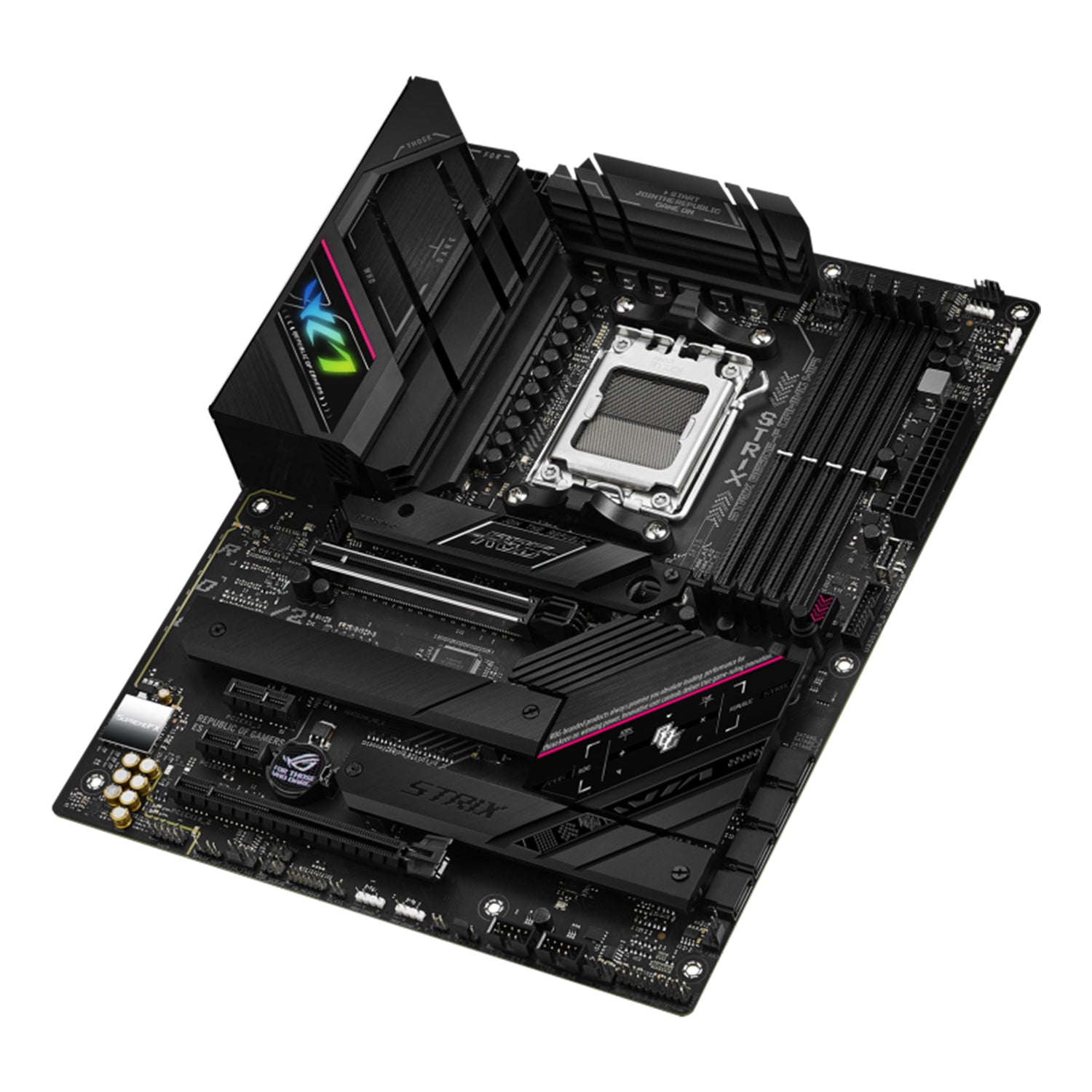

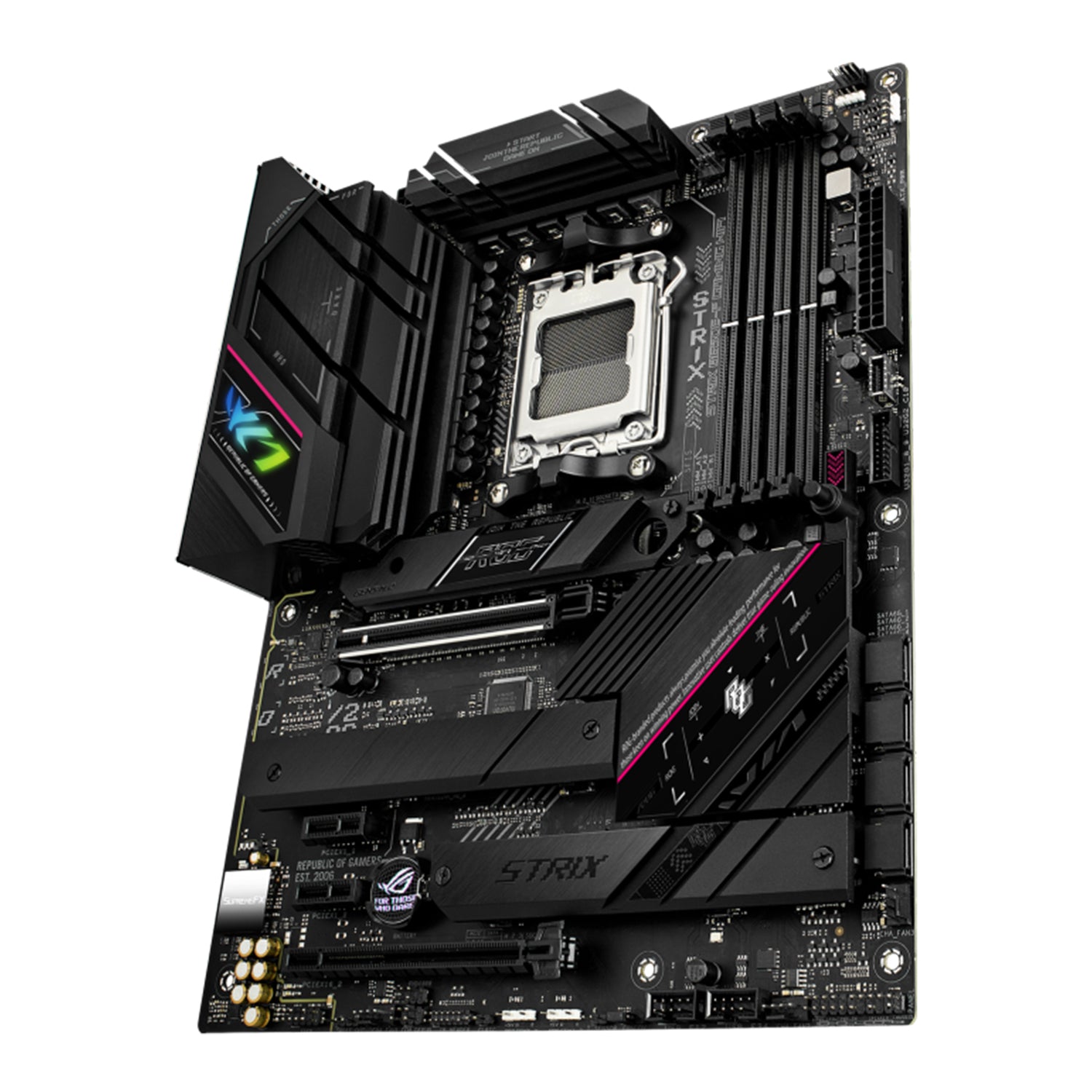

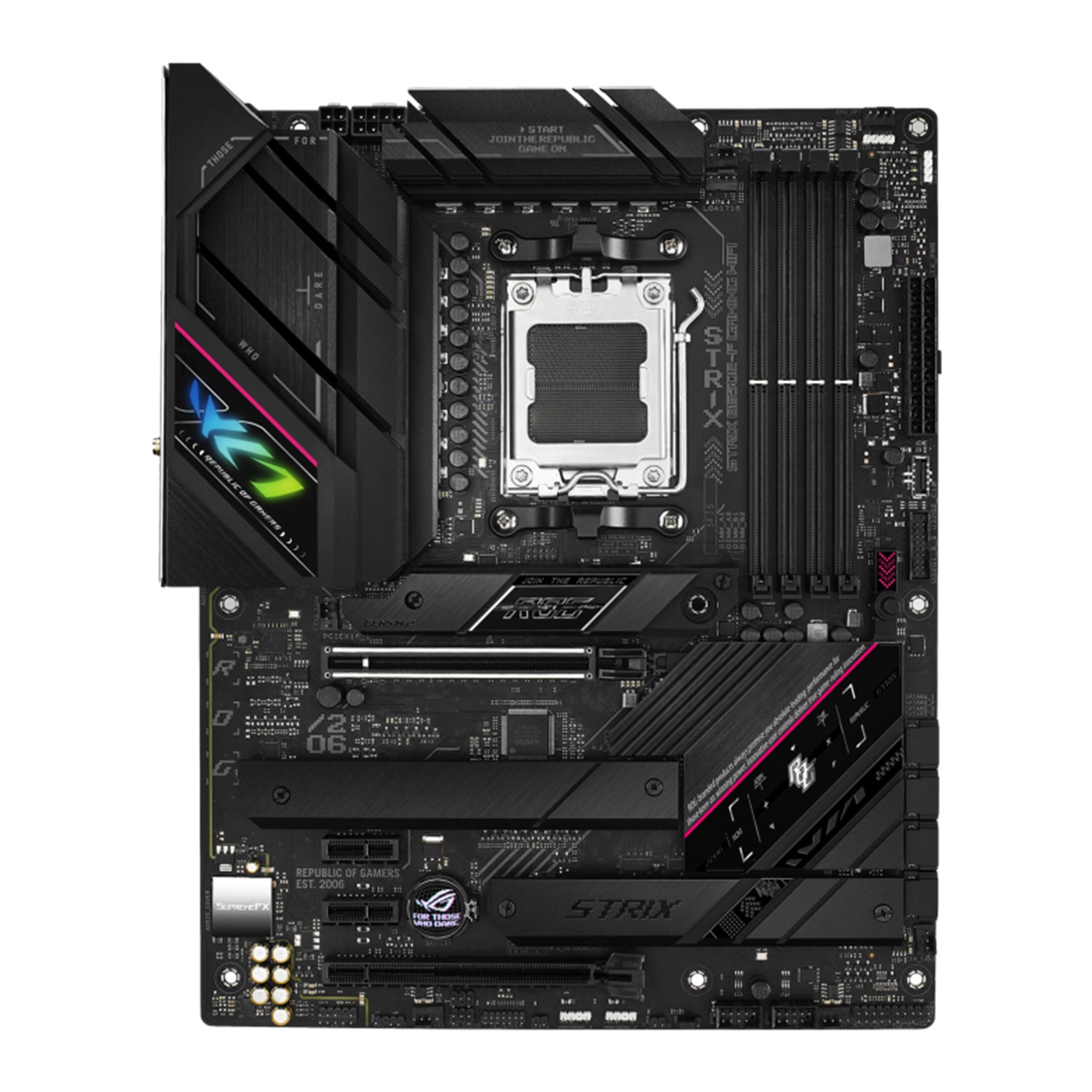

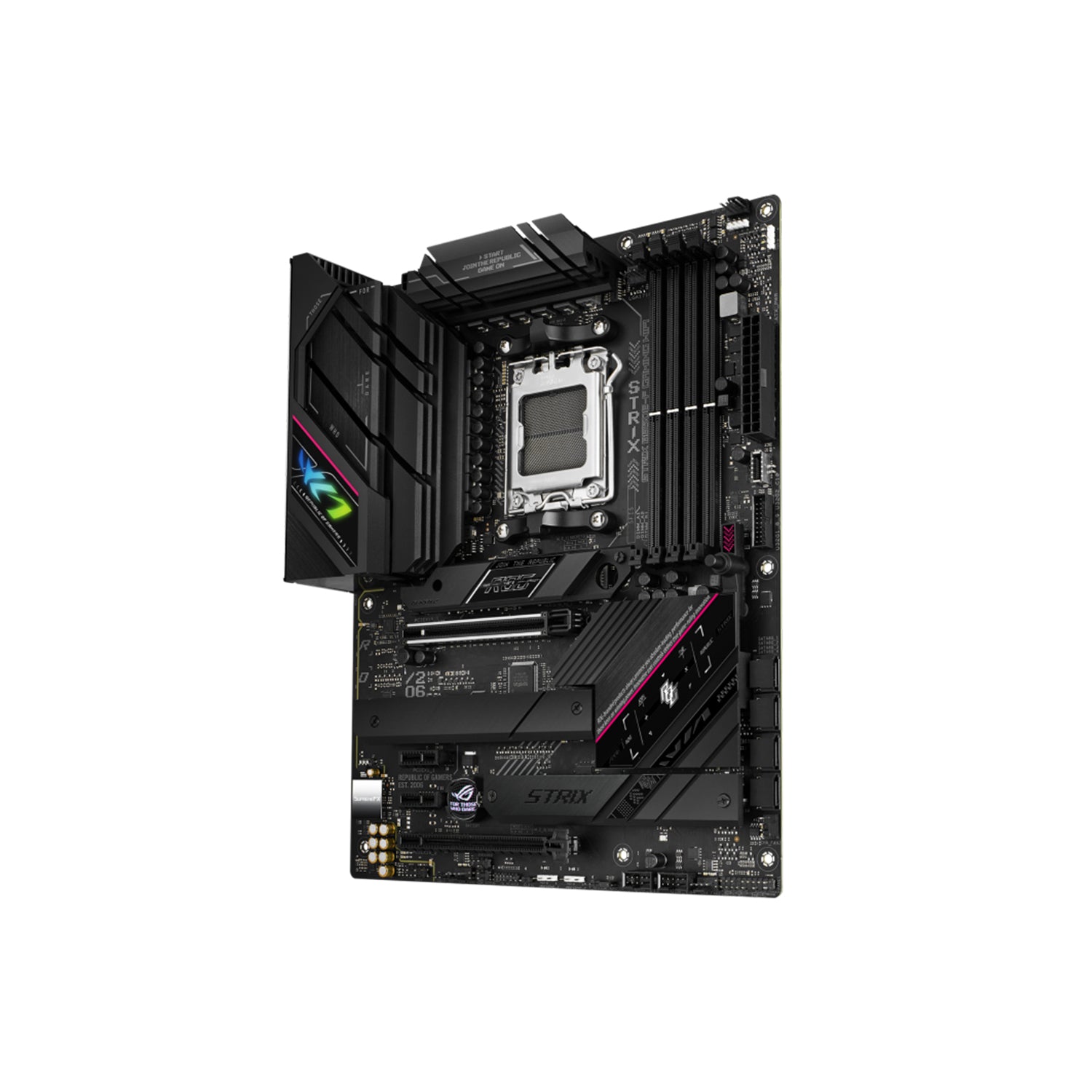

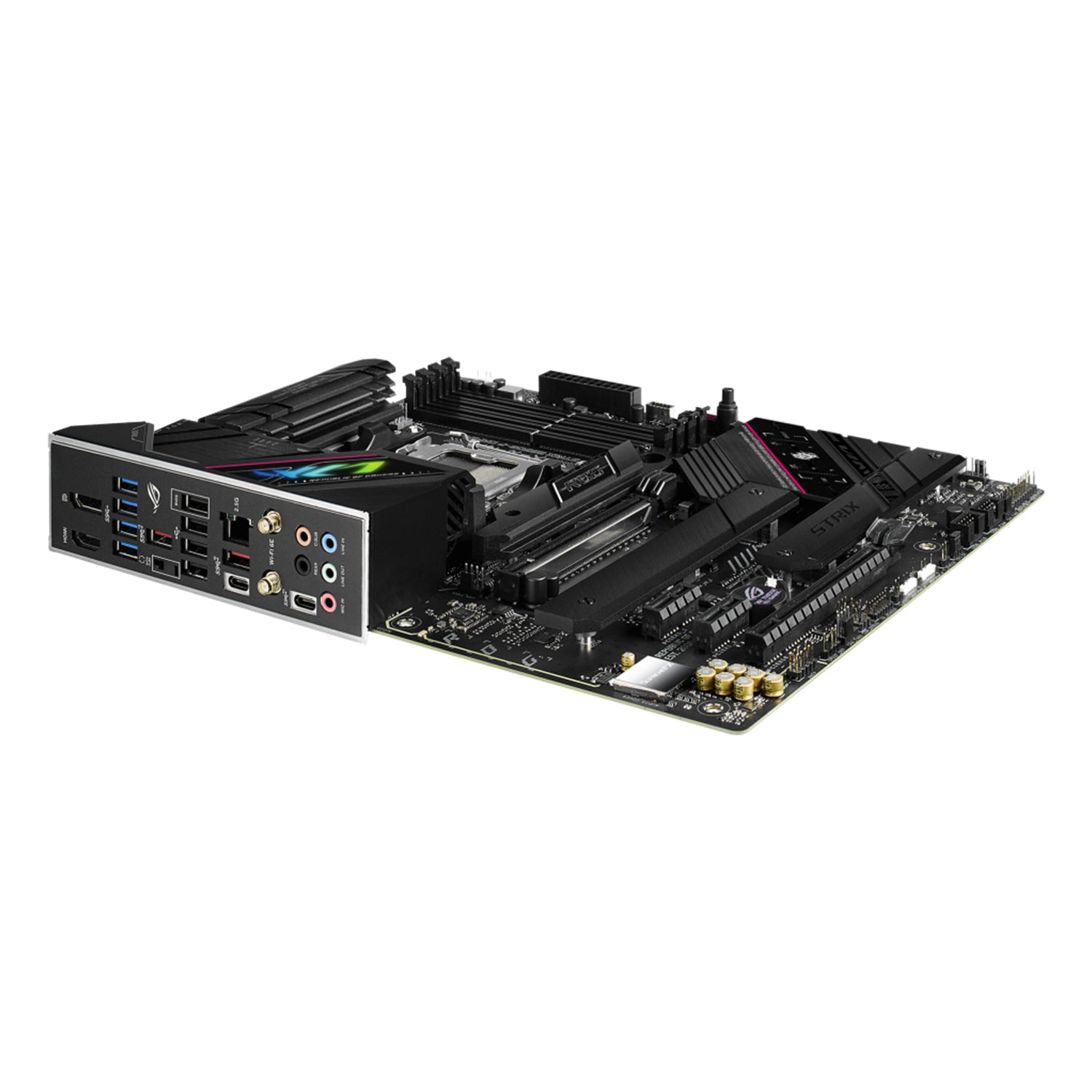

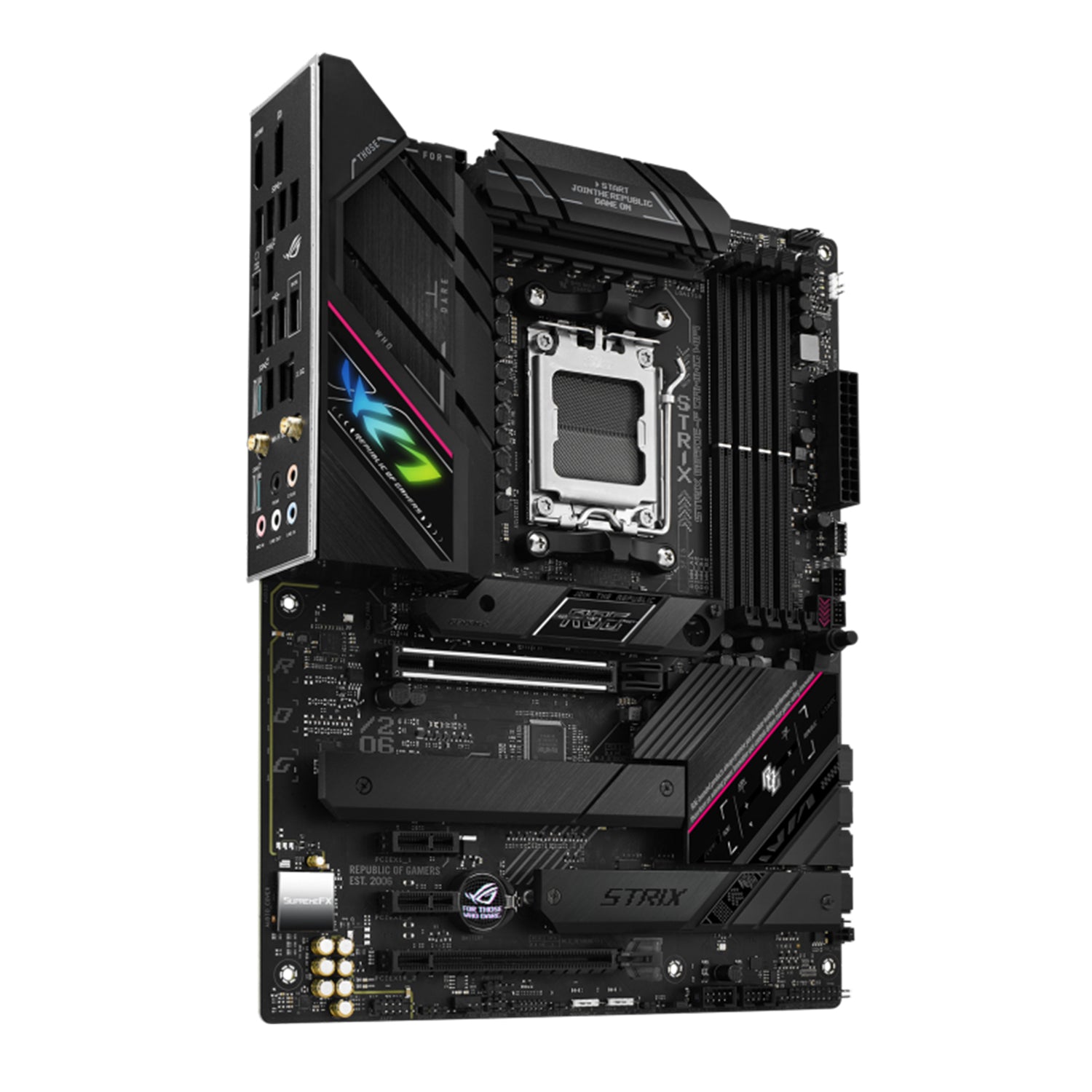

ASUS ROG STRIX B650E-F Gaming WIFI Motherboard, ATX - Support AMD Ryzen 9000/8000/7000 Series Desktop Processor, WiFi 6E With Aura Sync RGB lighting, HDMI / Display Port

About

Description

AMD Socket AM5: Ready for AMD Socket AM5 for AMD Ryzen 9000, 8000 and 7000 Series Desktop Processors.

Robust Power Solution:12 + 2 power stages with 8 + 4 pin ProCool power connectors, high-quality alloy chokes, and durable capacitors to support multi-core processors.

DIY-Friendly Design:PCIe Slot Q-release, M.2 Q-Latch, Pre-mounted I/O shield, and BIOS FlashBack button.

Optimized Thermal Design:Massive VRM heatsinks with strategically cut airflow channels and high conductivity thermal pads.

Intuitive Software: Easy-to-use UEFI BIOS dashboard, Armoury Crate RGB and device manager, and bundled 60-day AIDA64 Extreme trial.

Immersive Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS Sound Unbound and Sonic Studio III.

💯 𝐅𝐑𝐄𝐄 𝐃𝐄𝐋𝐈𝐕𝐄𝐑𝐘 | 🚚 𝐐𝐔𝐈𝐂𝐊 𝐒𝐇𝐈𝐏 | ☎ 𝐆𝐑𝐄𝐀𝐓 𝐂𝐔𝐒𝐓𝐎𝐌𝐄𝐑'𝐒 𝐒𝐔𝐏𝐏𝐎𝐑𝐓

Characteristics

Brand ‎ ASUS

Model ‎ROG STRIX B650E-F GAMING WIFI

Socket AMD AM5 Socket

Chipset AMD B650

Form factor ATX Form Factor (12 inch x 9.6 inch)

Interface 1 x PCIe 4.0 x16 slot, 2 x PCIe 4.0/3.0 x1 slots

Storage 3 x M.2 slot(s) and 4 x SATA 6Gb/s

Processor brand AMD

Processor type AMD Ryzen

Processor model AM5 Socket for AMD Ryzen 9000& 8000 & 7000 Desktop Processorss

Memory type DDR5

Number of memory slots 4 X DIMM Slots

Maximum memory supported 192 GB

Wireless & bluetooth Wi-Fi 6E, 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) - Bluetooth v5.2

Ethernet 1 x Intel 2.5Gb Ethernet

Expansion slots AMD Ryzen 9000/7000 - 1 x PCIe 5.0 x16 slot, AMD Ryzen 8000 - 1 x PCIe 4.0 x16 slot (support x8/x4 mode), AMD B650 Chipset - 1 x PCIe 4.0 x16 slot (supports x4 mode) / 2 x PCIe 4.0/3.0 x1 slots

Internal i/o ports Fan and Cooling related - 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 4 x 4-pin Chassis Fan headers \ Power related - 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 1 x 4-pin +12V Power connector \ Storage related - 3 x M.2 slots (Key M), 4 x SATA 6Gb/s ports \ Miscellaneous - 3 x Addressable Gen 2 headers, 1 x AURA RGB header, 1 x Clear CMOS header, 1 x CPU Over Voltage jumper, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x 20-3 pin System Panel header with Chassis intrude function, 1 x Thermal Sensor header, 1 x Thunderbolt header, 1 x COM_DEBUGheader

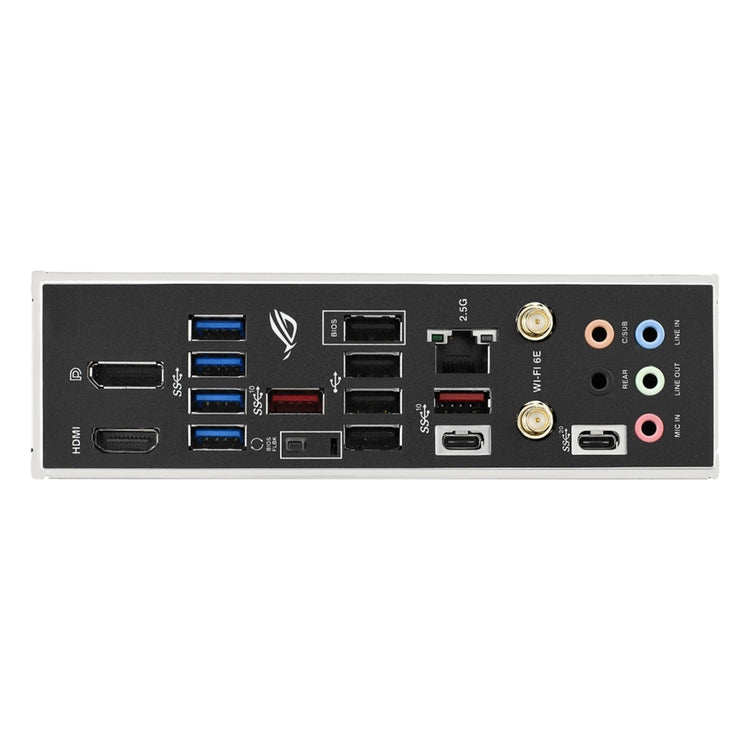

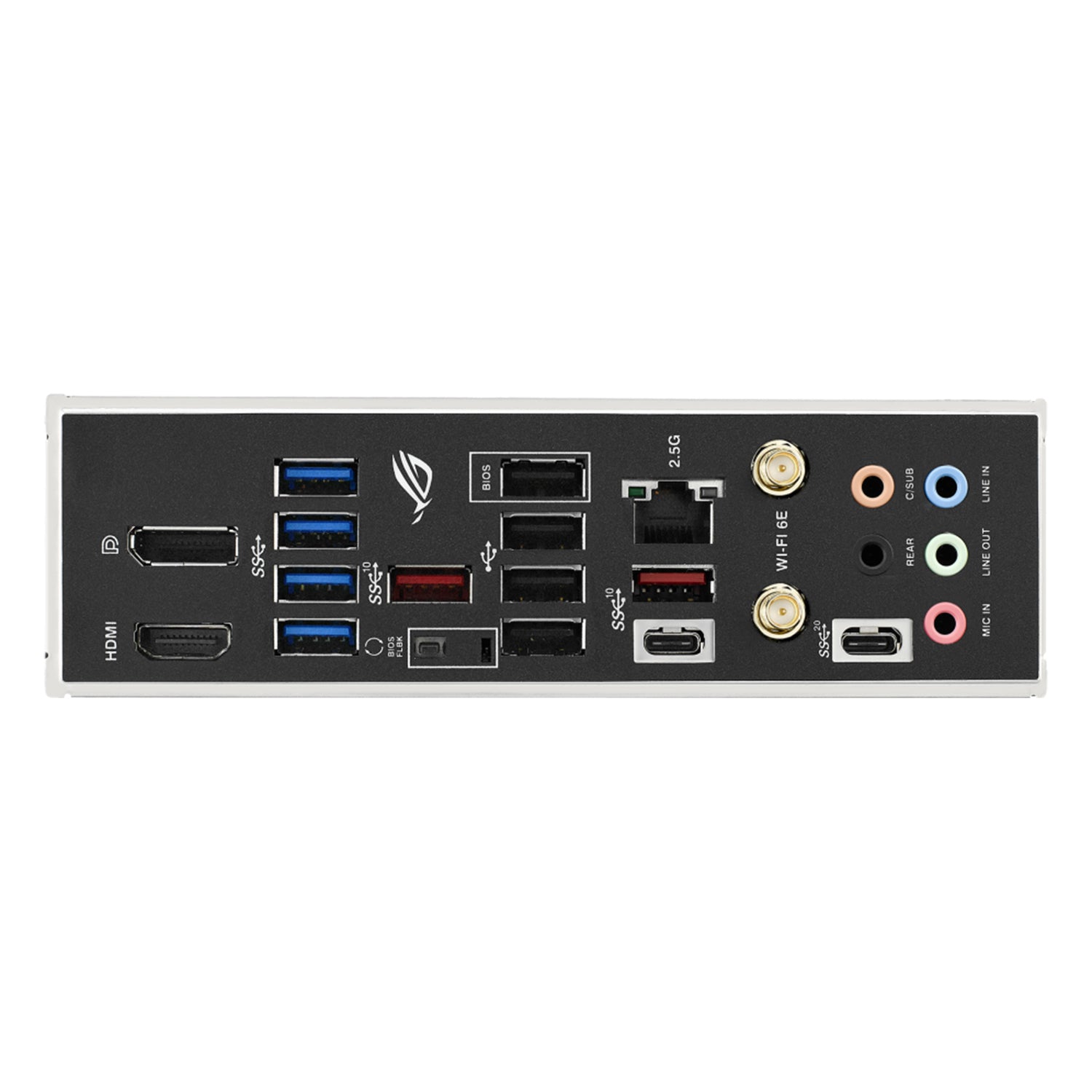

Back panel i/o ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C), 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C), 4 x USB 3.2 Gen 1 ports (4 x Type-A), 4 x USB 2.0 ports (4 x Type-A), 1 x DisplayPort, 1 x HDMI port, 1 x Wi-Fi Module, 1 x Intel I225-V 2.5Gb Ethernet port, 5 x Audio jacks , 1 x BIOS FlashBack button

Usb Front Ports - 1 x USB 3.2 Gen 2 connector (supports USB Type-C), 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers supports additional 4 USB 2.0 ports / Rear Ports - 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C), 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C), 4 x USB 3.2 Gen 1 port (4 x Type-A), 4 x USB 2.0 ports (4 x Type-A)

Video outputs Integrated Graphics Processor 1 x DisplayPort 1.2 1 x HDMI 2.1(4K@60HZ)

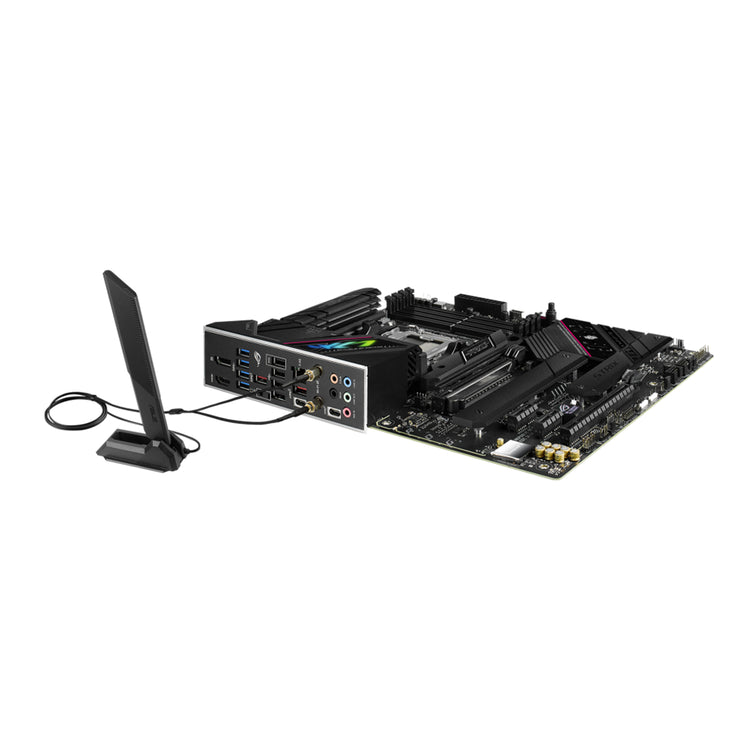

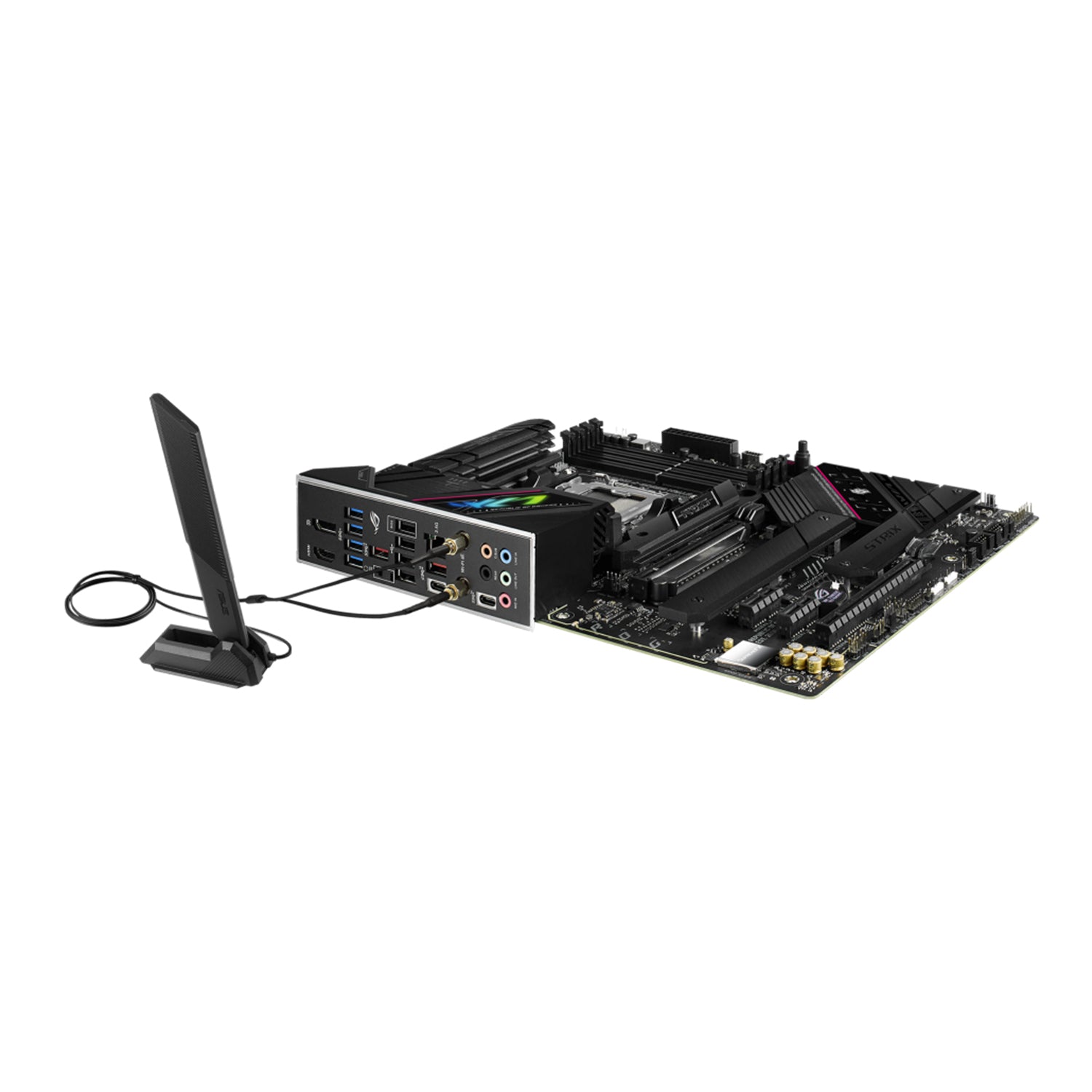

Accessories 2 x SATA 6Gb/s cables , 1 x Thermal pad for M.2, 1 x ASUS Wi-Fi moving antennas, 1 x Cable ties pack, 1 x M.2 Q-Latch package, 1 x ROG key chain, 1 x ROG Strix stickers, 1 x ROG Strix thank you card, 2 x M.2 Rubber Packages, 1 x User guide

Special features Extreme Engine Digi+ - 5K Black Metallic Capacitors / ASUS Q-Design - M.2 Q-Latch, PCIe Slot Q-Release, Q-LED, Q-DIMM, Q-Slot / ASUS Thermal Solution - M.2 heatsink, VRM heatsink design / ASUS EZ DIY - BIOS FlashBack button, BIOS FlashBack LED, ProCool, Pre-mounted I/O shield, SafeSlot, SafeDIMM / AURA Sync - AURA RGB header, Addressable Gen 2 headers

Operating system Support For Window 11 64-Bit

Limited manufacturer warranty 2 Years

Description

AMD Socket AM5: Ready for AMD Socket AM5 for AMD Ryzen 9000, 8000 and 7000 Series Desktop Processors.

Robust Power Solution:12 + 2 power stages with 8 + 4 pin ProCool power connectors, high-quality alloy chokes, and durable capacitors to support multi-core processors.

DIY-Friendly Design:PCIe Slot Q-release, M.2 Q-Latch, Pre-mounted I/O shield, and BIOS FlashBack button.

Optimized Thermal Design:Massive VRM heatsinks with strategically cut airflow channels and high conductivity thermal pads.

Intuitive Software: Easy-to-use UEFI BIOS dashboard, Armoury Crate RGB and device manager, and bundled 60-day AIDA64 Extreme trial.

Immersive Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS Sound Unbound and Sonic Studio III.

💯 𝐅𝐑𝐄𝐄 𝐃𝐄𝐋𝐈𝐕𝐄𝐑𝐘 | 🚚 𝐐𝐔𝐈𝐂𝐊 𝐒𝐇𝐈𝐏 | ☎ 𝐆𝐑𝐄𝐀𝐓 𝐂𝐔𝐒𝐓𝐎𝐌𝐄𝐑'𝐒 𝐒𝐔𝐏𝐏𝐎𝐑𝐓
