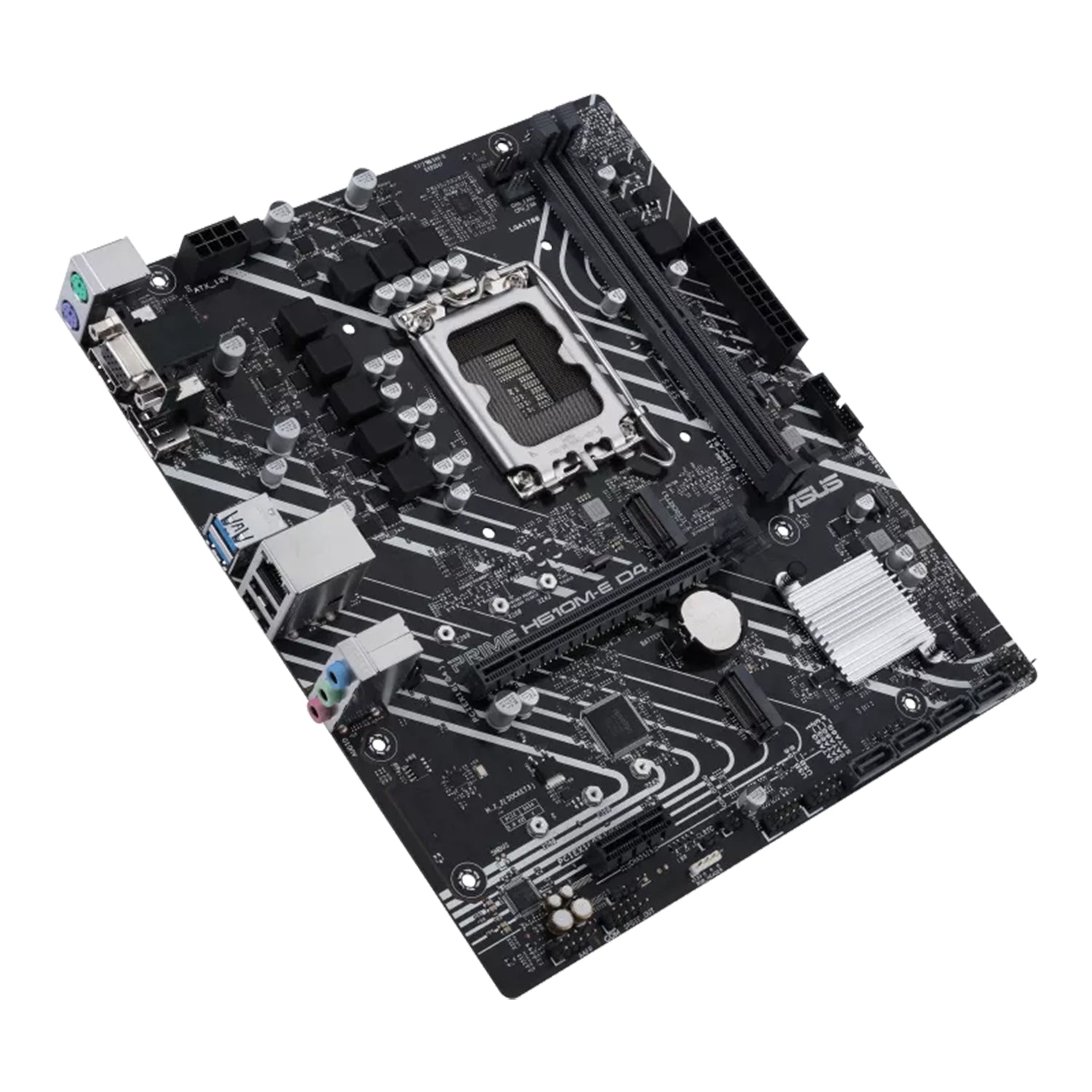

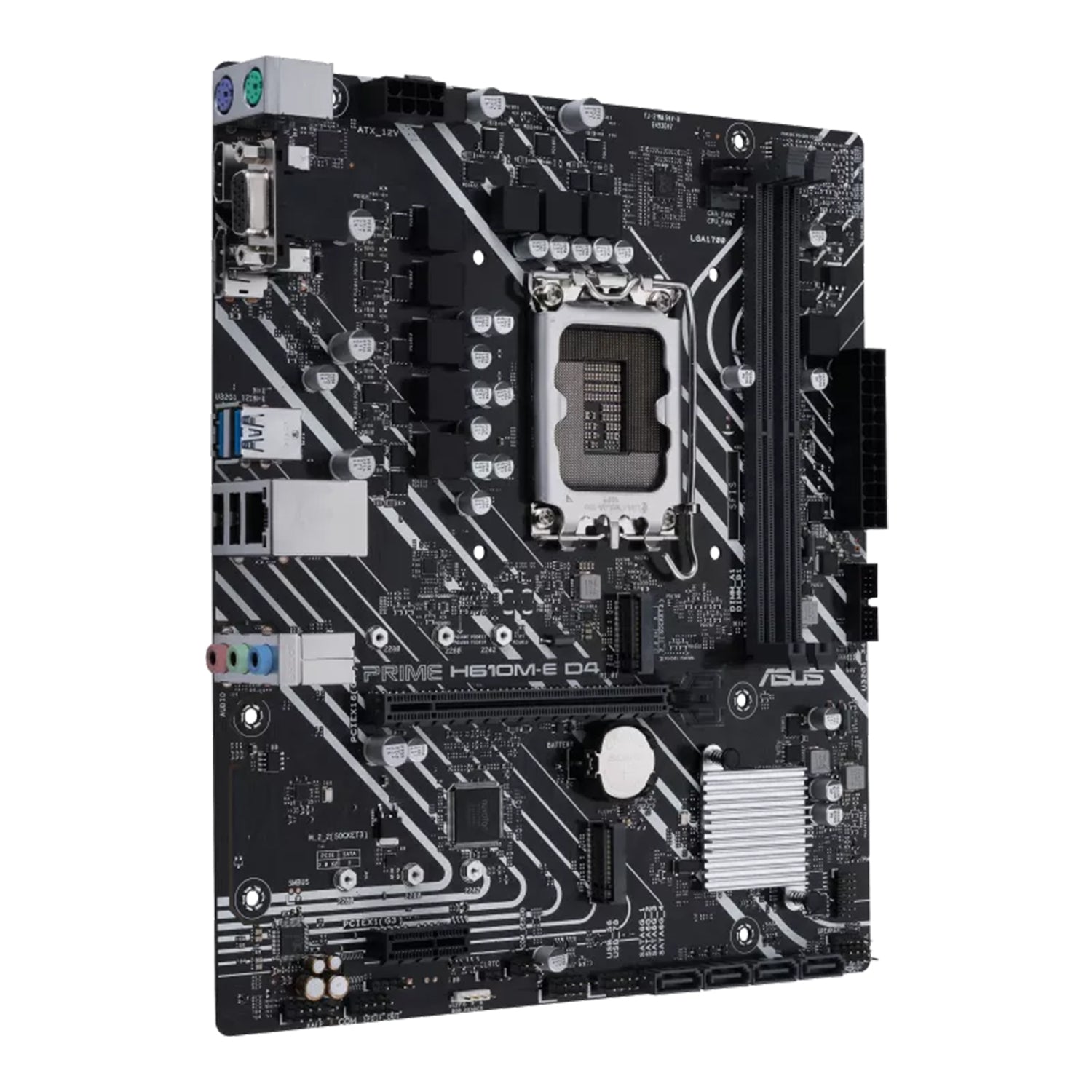

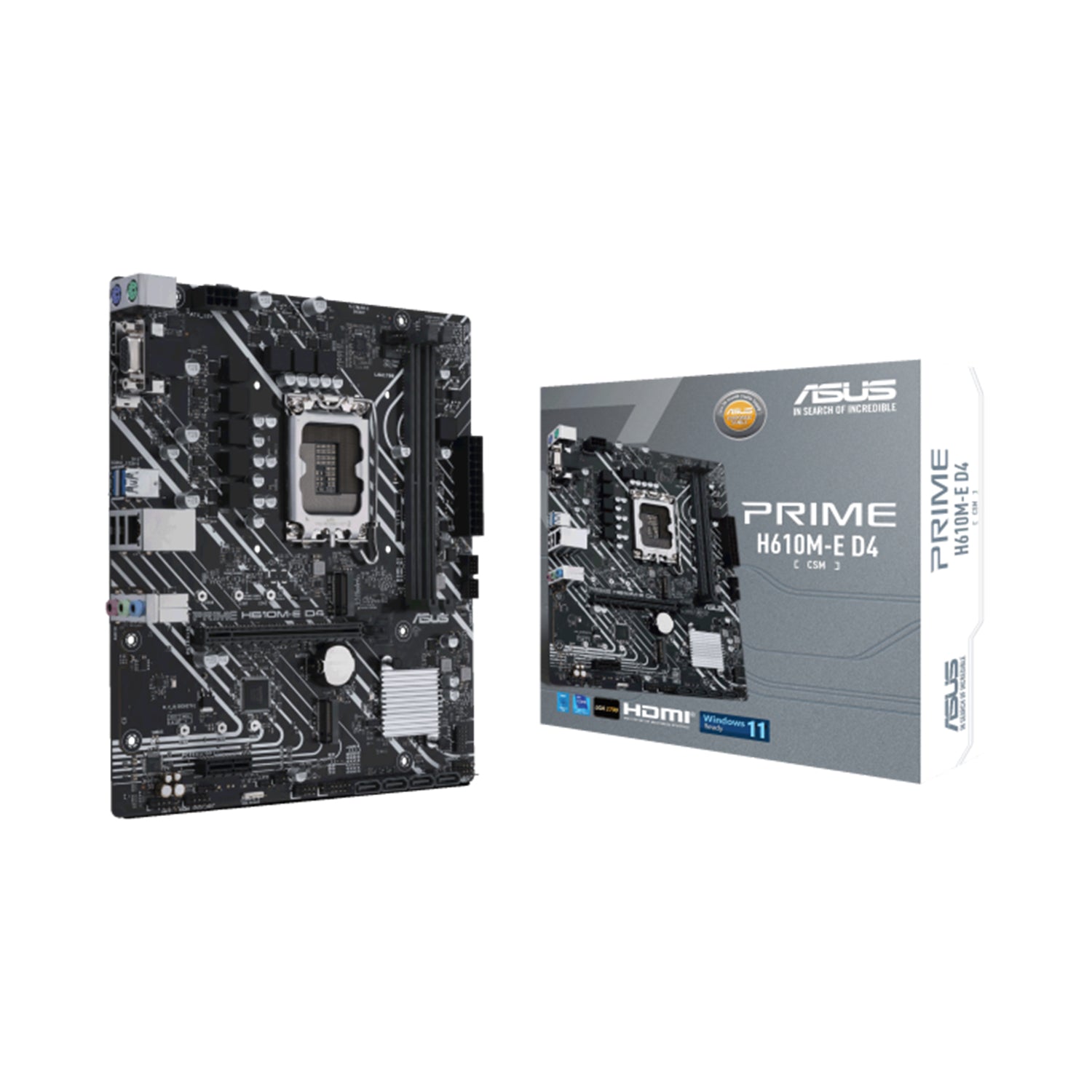

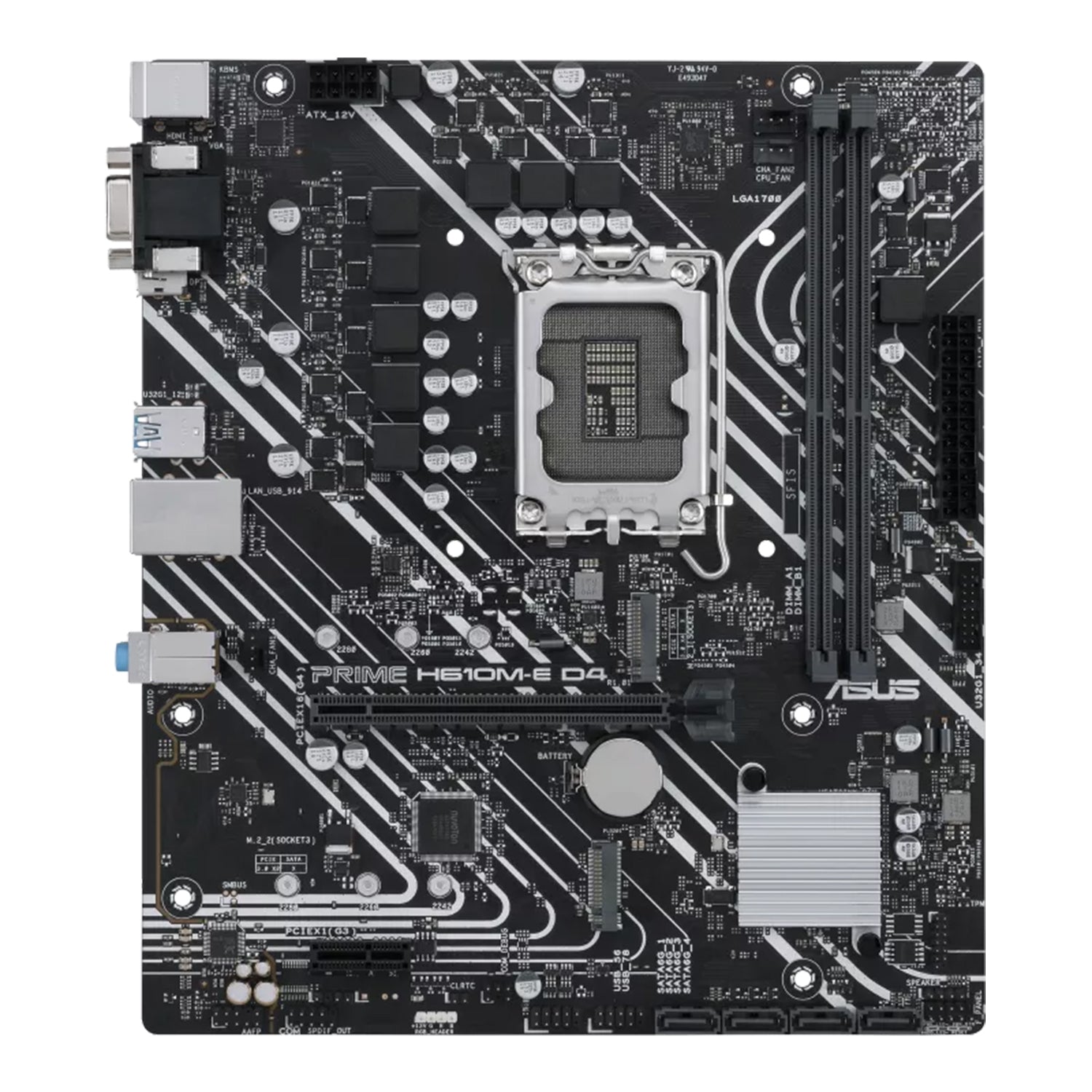

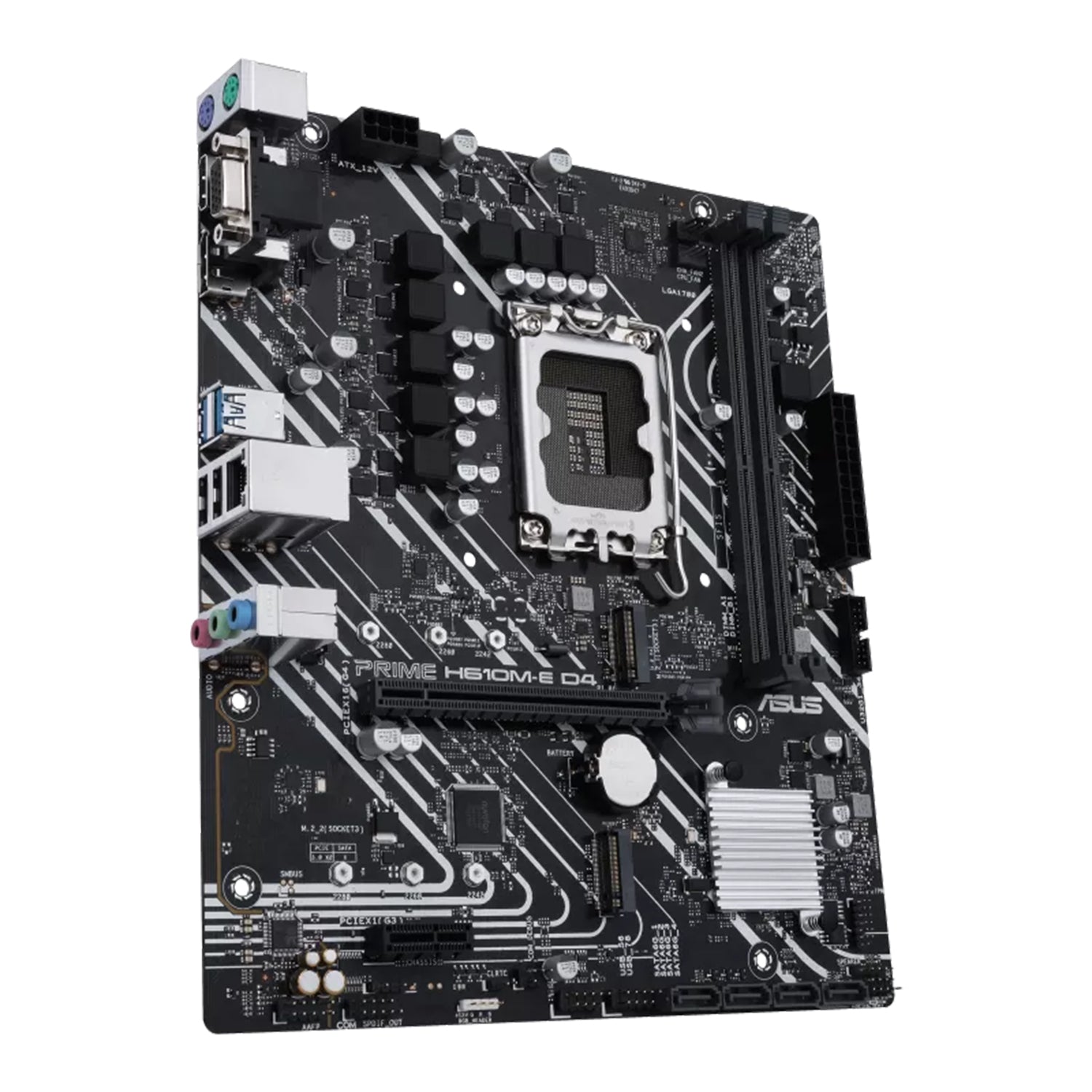

ASUS PRIME H610M-E-CSM Motherboard - Support 14th/13th/12th Gen Intel Processors, DIY Friendly With PCIe 4.0, 64GB DDR4 Max Memory, HDMI / Display Port

About

Description

PRIME H610M-E D4-CSM: Intel LGA 1700 socket, Ready for 14th, 13th & 12th Gen Intel processors.

Flexibility: The ASUS Prime H610 motherboard offers flexible tuning tools to optimize system performance for enhanced productivity.

DIY-Friendly Design: The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.

Optimized Thermal Design:Massive VRM heatsinks with strategically cut airflow channels and high conductivity thermal pads.

PCIe 4.0: Prime H610 motherboards support 14th, 13th, and 12th Gen Intel Core CPUs with PCIe® 4.0 for high-speed, high-performance builds.

Cooler by design: Prime H610 series feature comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.

💯 𝐅𝐑𝐄𝐄 𝐃𝐄𝐋𝐈𝐕𝐄𝐑𝐘 | 🚚 𝐐𝐔𝐈𝐂𝐊 𝐒𝐇𝐈𝐏 | ☎ 𝐆𝐑𝐄𝐀𝐓 𝐂𝐔𝐒𝐓𝐎𝐌𝐄𝐑'𝐒 𝐒𝐔𝐏𝐏𝐎𝐑𝐓

Characteristics

Brand ‎ ASUS

Model ‎PRIME H610M-E D4-CSM

Socket LGA 1700

Chipset Intel H610 Chipset

Form factor mATX Form Factor (24.4 cm x 21.1 cm)

Storage 2 x M.2 slot(s) and 4 x SATA 6Gb/s

Processor brand Intel

Processor model Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors

Memory type DDR4

Number of memory slots 2 X DIMM Slots

Maximum memory supported 64 GB

Expansion slots 1 x PCIe 4.0 x16 slot, 1 x PCIe 3.0 x1 slot

Internal i/o ports Fan and Cooling related - 1 x 4-pin CPU Fan header, 2 x 4-pin Chassis Fan headers / Power related - 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector / Storage related - 2 x M.2 slots (Key M), 4 x SATA 6Gb/s ports / USB - 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports / Miscellaneous - 1 x RGB header, 1 x Clear CMOS header, 1 x Front Panel Audio header (AAFP), 1 x COM Port header, 1 x S/PDIF Out header, 1 x Speaker header, 1 x SPI TPM header (14-1pin), 1 x 10-1 pin System Panel header

Back panel i/o ports 2 x USB 3.2 Gen 1 ports (2 x Type-A), 2 x USB 2.0 ports (2 x Type-A), 1 x DisplayPort, 1 x D-Sub port, 1 x HDMI port, 1 x Realtek 1Gb Ethernet port, 3 x Audio jacks, 1 x PS/2 Keyboard (purple) port, 1 x PS/2 Mouse (green) port

Usb Front Ports - 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports / Rear Ports- 2 x USB 3.2 Gen 1 ports (2 x Type-A), 2 x USB 2.0 ports (2 x Type-A)

Ethernet 1 x Realtek 1Gb Ethernet

Special features ASUS 5X PROTECTION III - DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, Stainless-Steel Back I/O / ASUS Q-Design - Q-DIMM, Q-Slot / ASUS Thermal Solution - Aluminum heatsink design / ASUS Lighting Control - RGB header

Accessories 2 x SATA 6Gb/s cables, 1 x I/O Shield, 1 x M.2 SSD screw package, 1 x Support DVD, 1 x ACC Express Activation Key Card, 1 x User guide

Operating system Support For Window 11 64-Bit / Window 10 64-Bit

Limited manufacturer warranty 2 Years

Description

PRIME H610M-E D4-CSM: Intel LGA 1700 socket, Ready for 14th, 13th & 12th Gen Intel processors.

Flexibility: The ASUS Prime H610 motherboard offers flexible tuning tools to optimize system performance for enhanced productivity.

DIY-Friendly Design: The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.

Optimized Thermal Design:Massive VRM heatsinks with strategically cut airflow channels and high conductivity thermal pads.

PCIe 4.0: Prime H610 motherboards support 14th, 13th, and 12th Gen Intel Core CPUs with PCIe® 4.0 for high-speed, high-performance builds.

Cooler by design: Prime H610 series feature comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.

💯 𝐅𝐑𝐄𝐄 𝐃𝐄𝐋𝐈𝐕𝐄𝐑𝐘 | 🚚 𝐐𝐔𝐈𝐂𝐊 𝐒𝐇𝐈𝐏 | ☎ 𝐆𝐑𝐄𝐀𝐓 𝐂𝐔𝐒𝐓𝐎𝐌𝐄𝐑'𝐒 𝐒𝐔𝐏𝐏𝐎𝐑𝐓

NEW

ASUS PRIME H610M-E-CSM Motherboard - Support 14th/13th/12th Gen Intel Processors, DIY Friendly With PCIe 4.0, 64GB DDR4 Max Memory, HDMI / Display Port

Regular price: $97.99
Sale price: $97.99
