Keychron Q5 HE QMK Wireless RGB Nebula Switch keyboard - Dynamic Rapid Trigger, Double-Gasket Mount Design With Hot-Swappable - (Q5H-M1)

About

Description

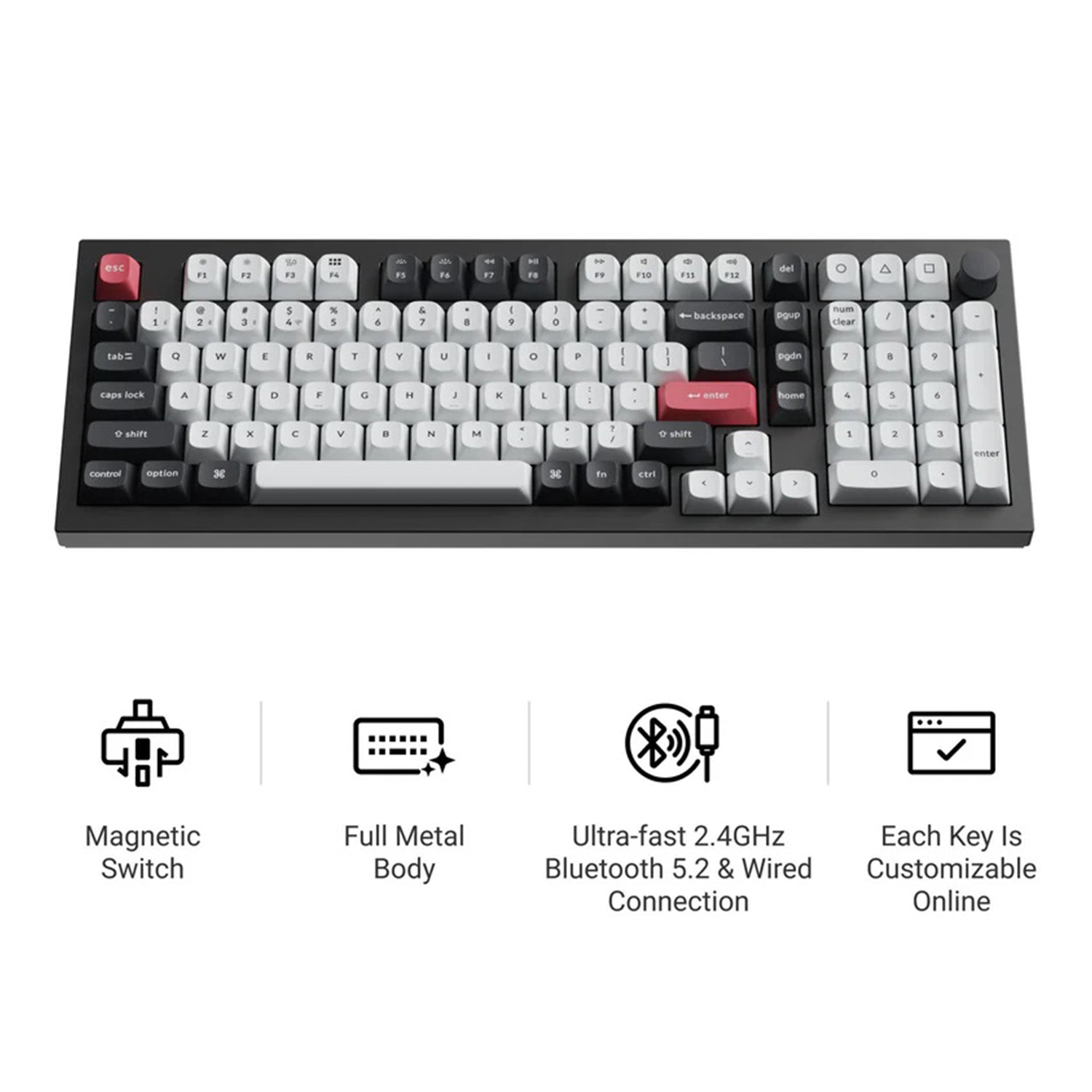

Keychron Q5 HE: Meet the Q5 HE, a 96% wireless QMK custom keyboard with Hall Effect Gateron double-rail magnetic switches. Enjoy faster feedback, rapid triggering, and adjustable actuation points for a personalized gaming experience.

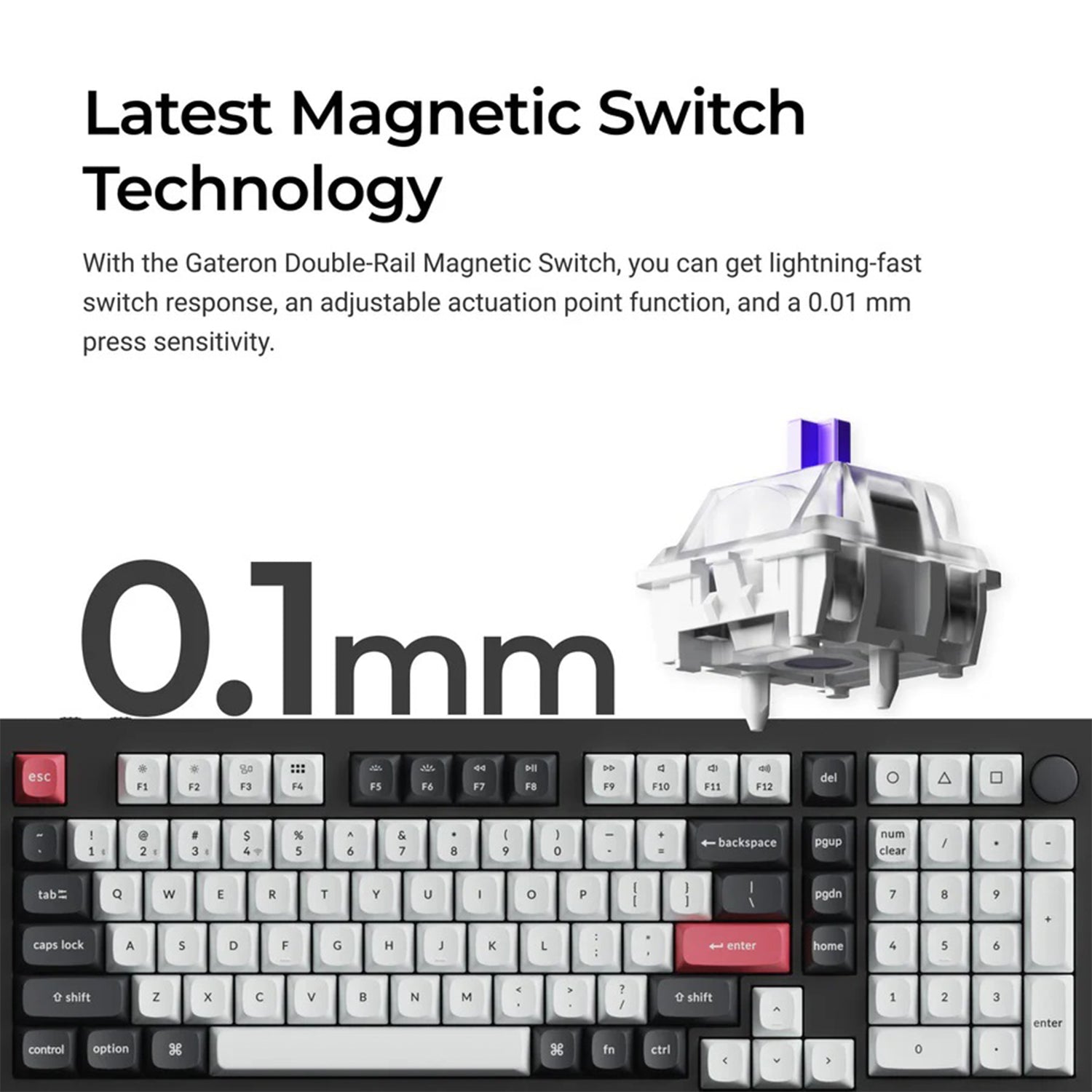

Gateron Double-Rail Magnetic Hall Effect Switches: With the first invented
dual-rail structure, and the special pre-lubed, these switches ensure unparalleled stability and smoothness like never before.

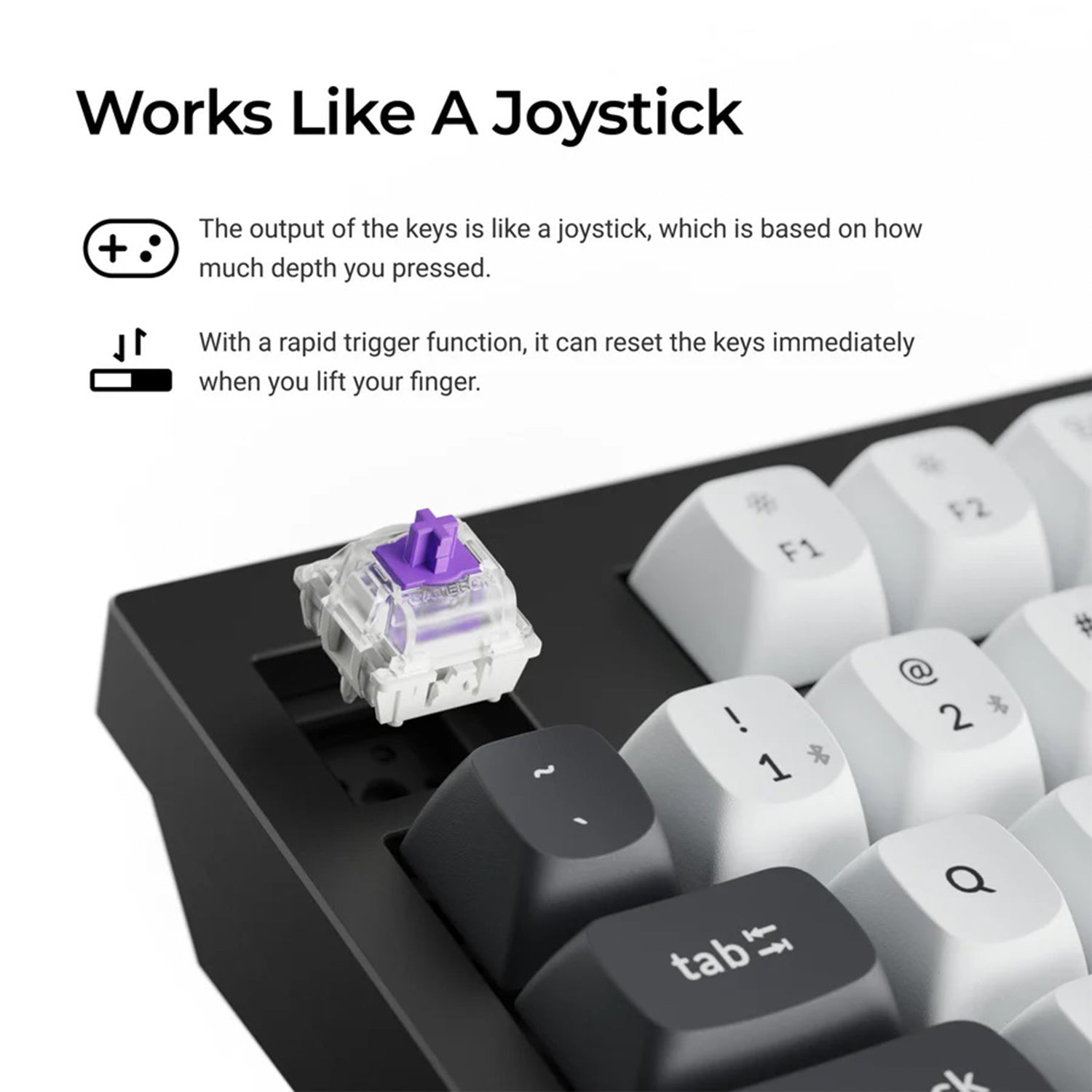

Dynamic Rapid Trigger: Keys activate by travel distance instead of fixed points, triggering on press and deactivating on release. This allows rapid keystroke repetition and quick action chains in gameplay.

Multiple Actions, One Keystroke: Assign up to four actions to one key based on press depth, from light to deep. With two-stage release settings, enjoy smoother, personalized controls for a competitive edge.

Double-Gasket Design: Silicone pads minimize resonance while preserving gasket flexibility for better acoustics. Layers of foam, PET film, and latex enhance sound quality and typing comfort.

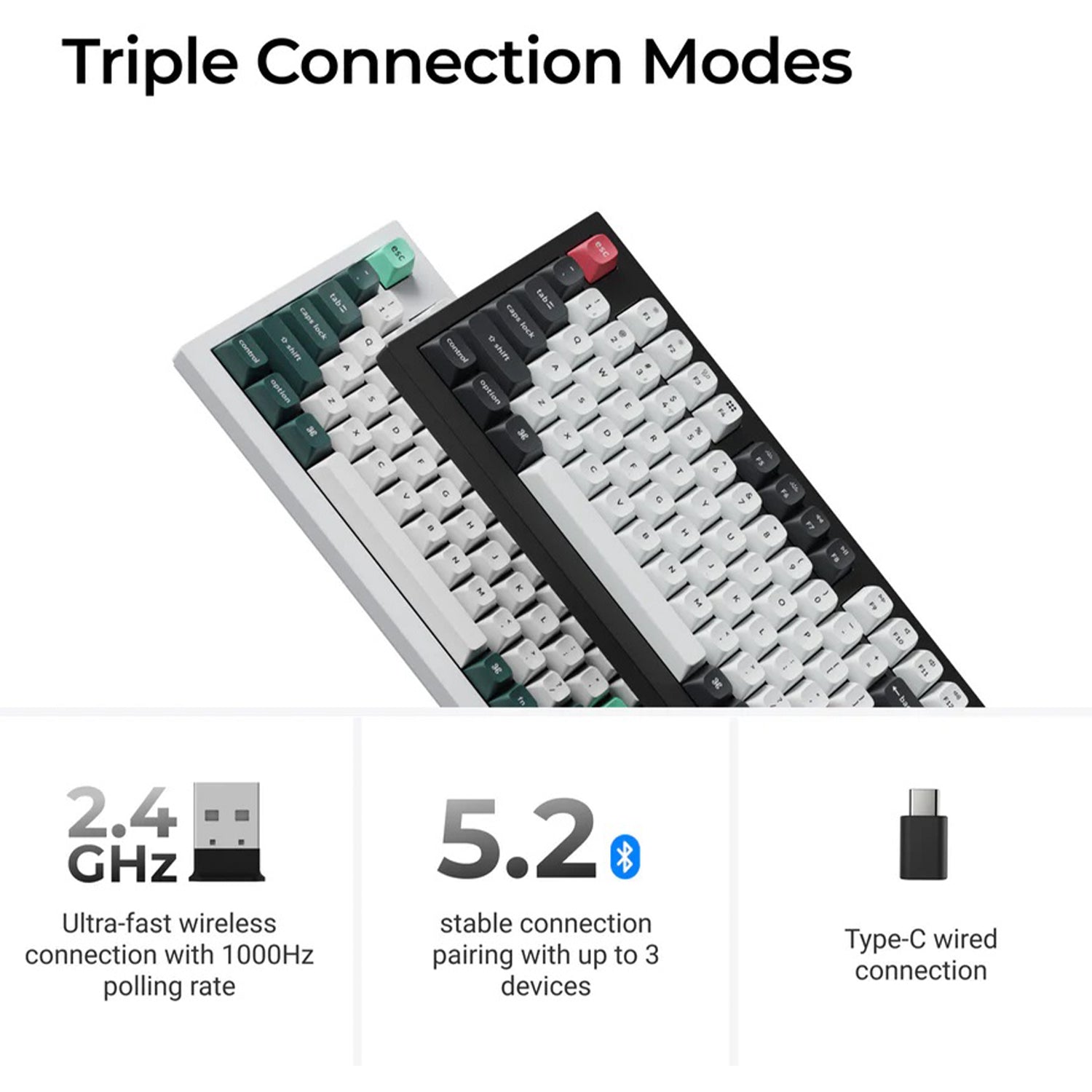

2.4 GHz & Bluetooth Connection: The Q5 HE delivers peak gaming with a 2.4 GHz wireless connection and 1000 Hz polling rate. Bluetooth 5.2 lets you seamlessly connect up to three devices for multitasking.

🚛 SHIP NEXT DAY | ☎️ 24/7 CUSTOMER'S SUPPORT

Characteristics

Brand Keychron

Model name Q5 HE QMK Wireless Custom Keyboard

Backlight South-facing RGB LED

Angle 5.3°

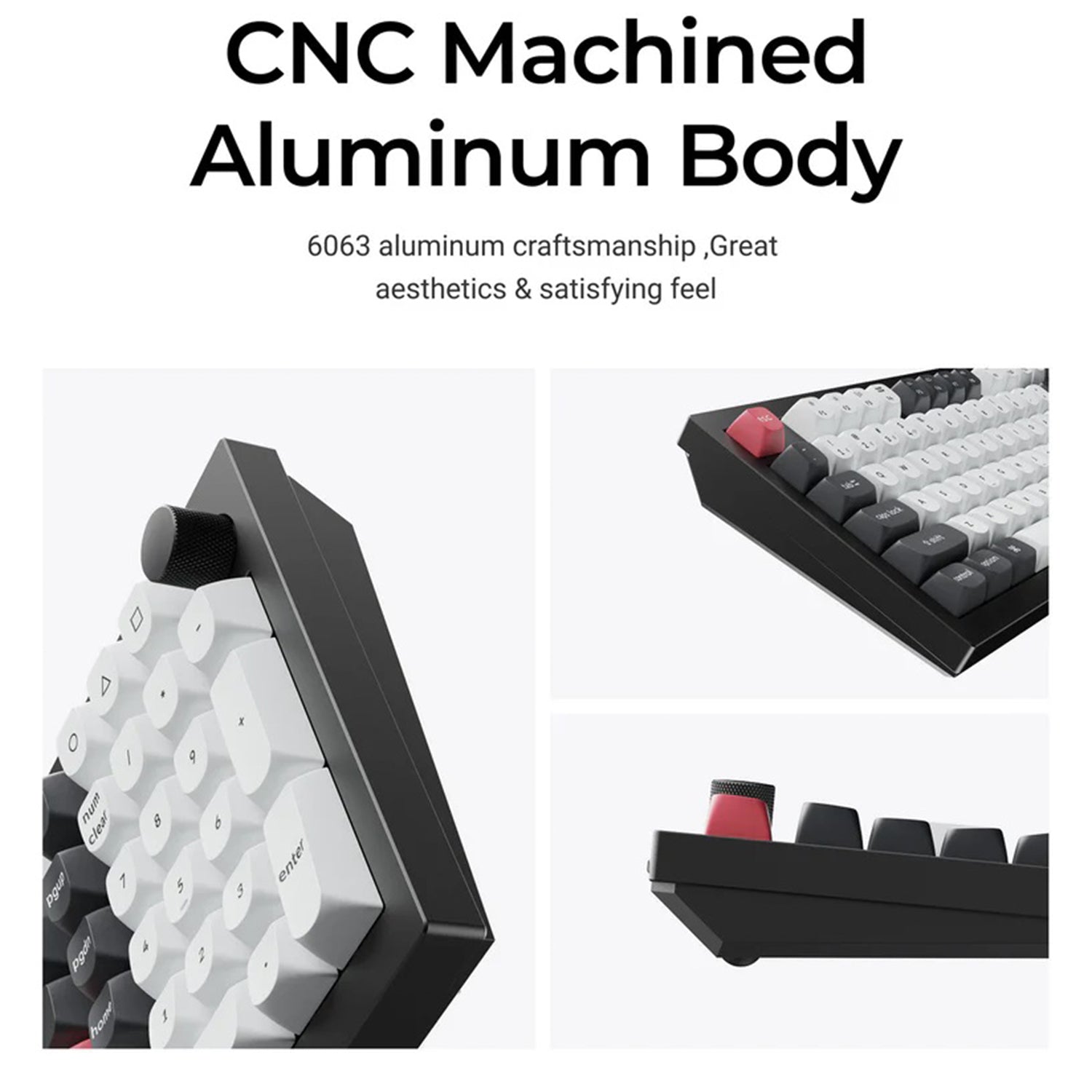

Body material Aluminum

Polling rate 1000 Hz (Wired and 2.4 GHz) / 90Hz (Bluetooth)

Rapid trigger Yes

Switch type Gateron double-rail magnetic switch

N-key rollover (nkro) Yes for both wireless and wired modes

Dynamic keystrokes 4-in-1 action keys

Adjustable actuation points 0.2 - 3.8 mm

Mcu ARM Cortex-M4 32-bit STM32F402RC (256KB Flash)

Keycap OSA Double-shot keycaps, not shine-through

Hot-swappable support Yes, compatible with Gateron double-rail magnetic switch only.

Stabilizer Screw-in PCB stabilizer

Cable Type-C cable (1.8 m) + Type-A to Type-C adapter

Bluetooth version 5.2

Connectivity 2.4 GHz / Bluetooth / Type-C wired

Battery 4000 mAh Rechargeable li-polymer battery

Operating environment -10 to 50℃

Wireless working time (backlit off) Up to 100 hours

Dimensions 144.8 mm x 408.05 mm x 20.73 mm

Product weight 2187 g

Description

Keychron Q5 HE: Meet the Q5 HE, a 96% wireless QMK custom keyboard with Hall Effect Gateron double-rail magnetic switches. Enjoy faster feedback, rapid triggering, and adjustable actuation points for a personalized gaming experience.

Gateron Double-Rail Magnetic Hall Effect Switches: With the first invented
dual-rail structure, and the special pre-lubed, these switches ensure unparalleled stability and smoothness like never before.

Dynamic Rapid Trigger: Keys activate by travel distance instead of fixed points, triggering on press and deactivating on release. This allows rapid keystroke repetition and quick action chains in gameplay.

Multiple Actions, One Keystroke: Assign up to four actions to one key based on press depth, from light to deep. With two-stage release settings, enjoy smoother, personalized controls for a competitive edge.

Double-Gasket Design: Silicone pads minimize resonance while preserving gasket flexibility for better acoustics. Layers of foam, PET film, and latex enhance sound quality and typing comfort.

2.4 GHz & Bluetooth Connection: The Q5 HE delivers peak gaming with a 2.4 GHz wireless connection and 1000 Hz polling rate. Bluetooth 5.2 lets you seamlessly connect up to three devices for multitasking.

🚛 SHIP NEXT DAY | ☎️ 24/7 CUSTOMER'S SUPPORT

NEW

Keychron Q5 HE QMK Wireless RGB Nebula Switch keyboard - Dynamic Rapid Trigger, Double-Gasket Mount Design With Hot-Swappable - (Q5H-M1)

Regular price: $235.99
Sale price: $235.99
