Description
- ASRock Z590M PRO4: Is a compact motherboard offering solid performance with support for Intel processors, PCIe 4.0, and advanced connectivity options.
- Clever Access Memory: Clever Access Memory eliminates GPU memory bottlenecks by expanding the data channel, unlocking full performance potential for improved system efficiency.
- 12 Phase Dr.MOS Power Design: Dr.MOS is an integrated power stage solution that optimizes synchronous buck applications, delivering higher current per phase for better thermal performance and superior efficiency compared to traditional MOSFETs.
- PolyChrome RGB: This motherboard enables customization of lighting effects by supporting onboard and addressable RGB headers, along with synchronization of Polychrome RGB Sync-certified devices.
- Premium 50A Power Choke: ASRock’s premium 50A power chokes offer up to three times better saturation current than traditional chokes, delivering improved Vcore voltage to the motherboard.
- Nahimic Audio: Nahimic Audio delivers an immersive and detailed listening experience, whether you're using headphones, a headset, speakers, or any connection type like USB, Wi-Fi, analog, or HDMI.
-
📦 SHIP NEXT DAY | ☎ 24/7 CUSTOMER'S SUPPORT
Characteristics
Brand
ASRock
Model number
Z590M PRO4
Socket
LGA 1200
Chipset
Intel Z590
Form factor
Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
Interface
2 x PCI Express x16 Slots, 2 x PCI Express 3.0 x1 Slots, 1 x M.2 Socket (Key E)
Storage
4x SATA3 6.0 Gb/s, 1x Hyper M.2 Socket, 1x Ultra M.2 Socket
Processor brand
Intel
Processor type
Intel Core Processors, Pentium Gold And Celeron Processors
Processor model
Support Intel Core 11th/10th Gen Processors, Intel Pentium Gold And Celeron Processors
Memory type
DDR4
Number of memory slots
4x DDR4 Memory Slots
Maximum memory supported
128GB
Operating system
Lan
Gigabit LAN 10/100/1000 Mb/s
Connector
1 x SPI TPM Header, 1 x Chassis Intrusion and Speaker Header, 2 x RGB LED Headers, 2 x Addressable LED Headers, 1 x CPU Fan Connector (4-pin), 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control), 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector (Hi-Density Power Connector), 1 x 4 pin 12V Power Connector (Hi-Density Power Connector), 1 x Front Panel Audio Connector, 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card), 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection), 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection), 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)
Accessories
Quick Installation Guide, Support CD, I/O Shield / 2 x SATA Data Cables / 3 x Screws for M.2 Sockets / 1 x Standoff for M.2 Socket
I/o ports

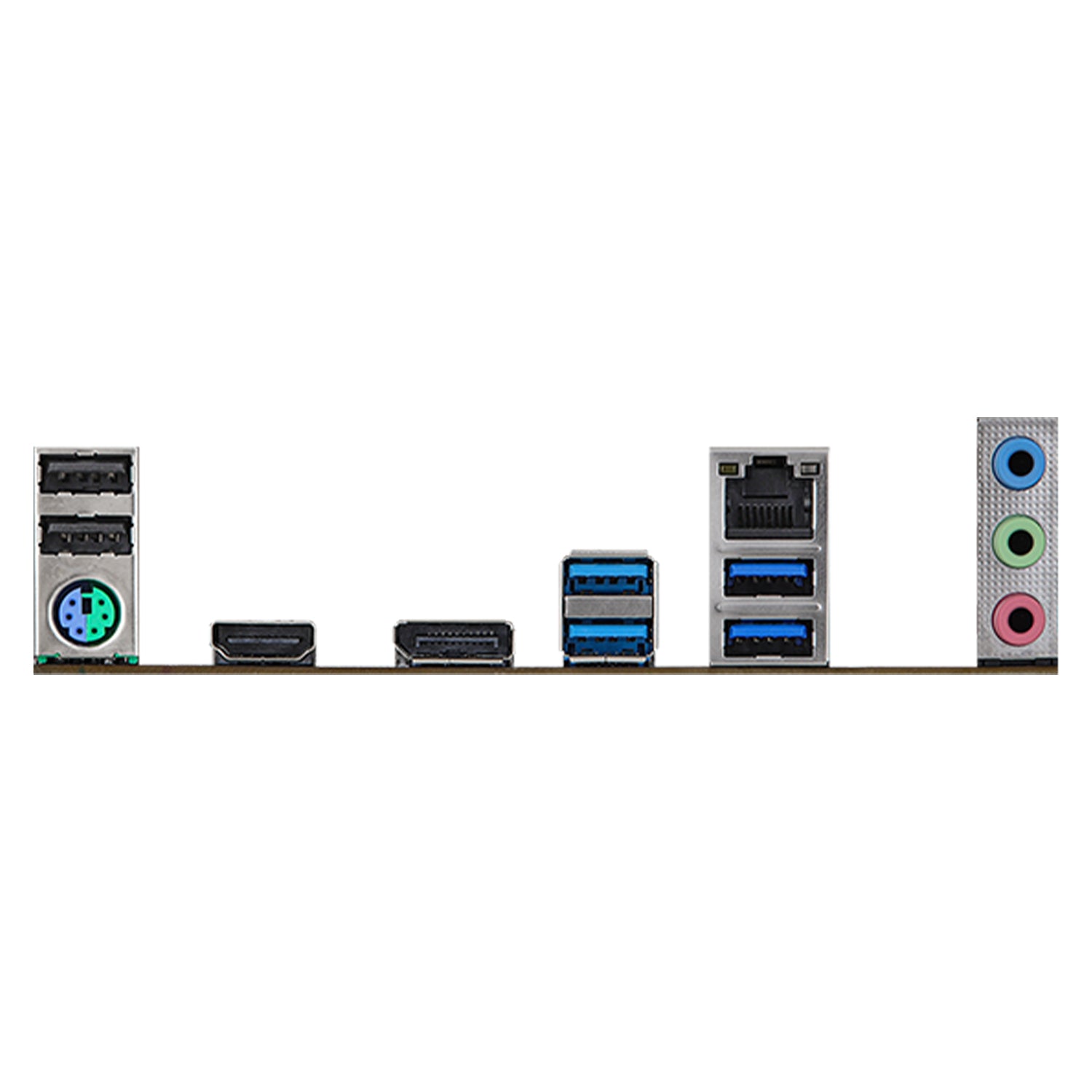

3 x Antenna Mounting Points, 1 x PS/2 Mouse/Keyboard Port, 1 x HDMI Port, 1 x DisplayPort 1.4, 2 x USB 3.2 Gen2 Ports (10 Gb/s) (ReDriver) (Supports ESD Protection), 2 x USB 3.2 Gen1 Ports (Supports ESD Protection), 2 x USB 2.0 Ports (Supports ESD Protection), 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), HD Audio Jacks: Line in / Front Speaker / Microphone
Video outputs
HDMI, DisplayPort
Limited manufacturer warranty
2Years
Description
- ASRock Z590M PRO4: Is a compact motherboard offering solid performance with support for Intel processors, PCIe 4.0, and advanced connectivity options.
- Clever Access Memory: Clever Access Memory eliminates GPU memory bottlenecks by expanding the data channel, unlocking full performance potential for improved system efficiency.
- 12 Phase Dr.MOS Power Design: Dr.MOS is an integrated power stage solution that optimizes synchronous buck applications, delivering higher current per phase for better thermal performance and superior efficiency compared to traditional MOSFETs.
- PolyChrome RGB: This motherboard enables customization of lighting effects by supporting onboard and addressable RGB headers, along with synchronization of Polychrome RGB Sync-certified devices.
- Premium 50A Power Choke: ASRock’s premium 50A power chokes offer up to three times better saturation current than traditional chokes, delivering improved Vcore voltage to the motherboard.
- Nahimic Audio: Nahimic Audio delivers an immersive and detailed listening experience, whether you're using headphones, a headset, speakers, or any connection type like USB, Wi-Fi, analog, or HDMI.
-
📦 SHIP NEXT DAY | ☎ 24/7 CUSTOMER'S SUPPORT
NEW

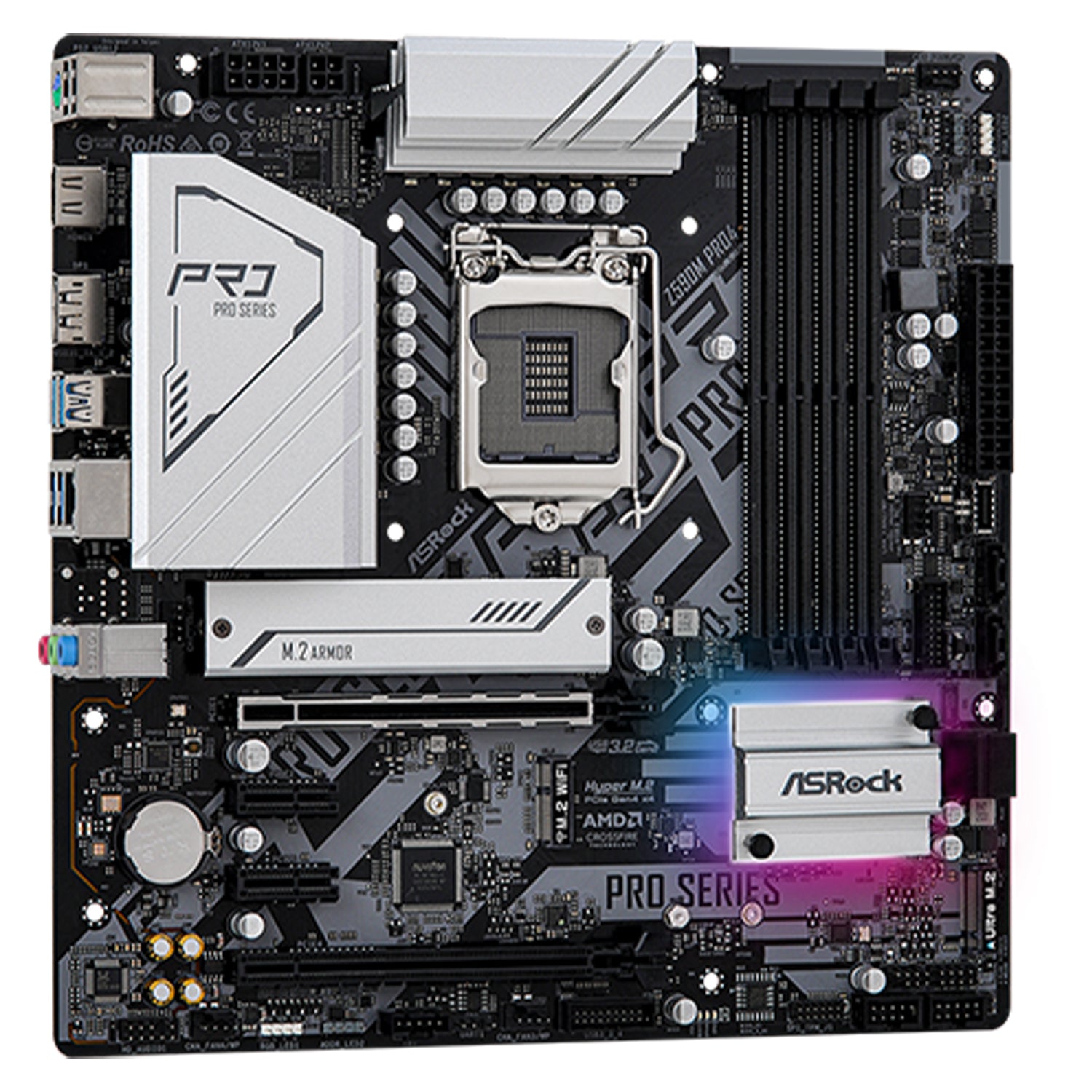

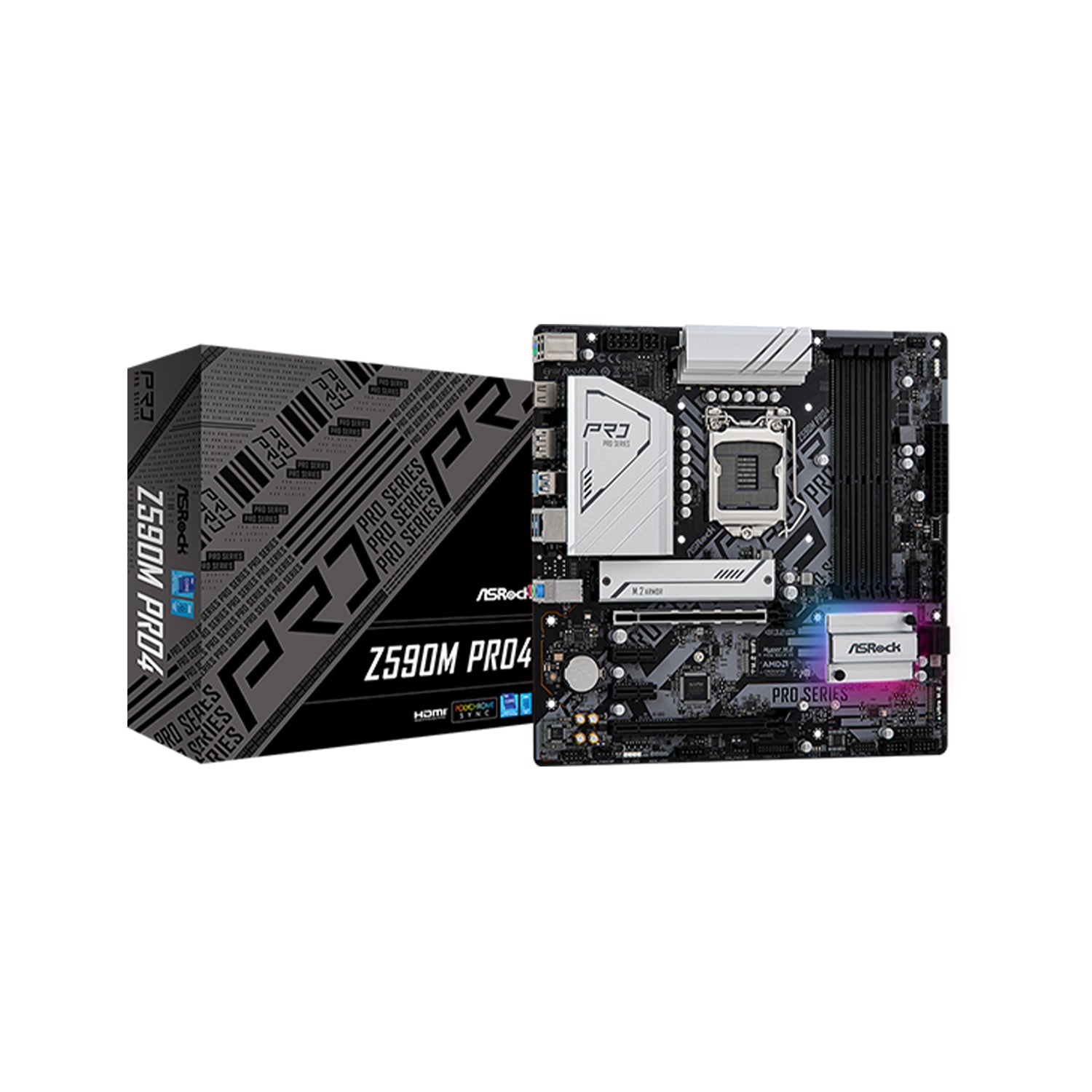

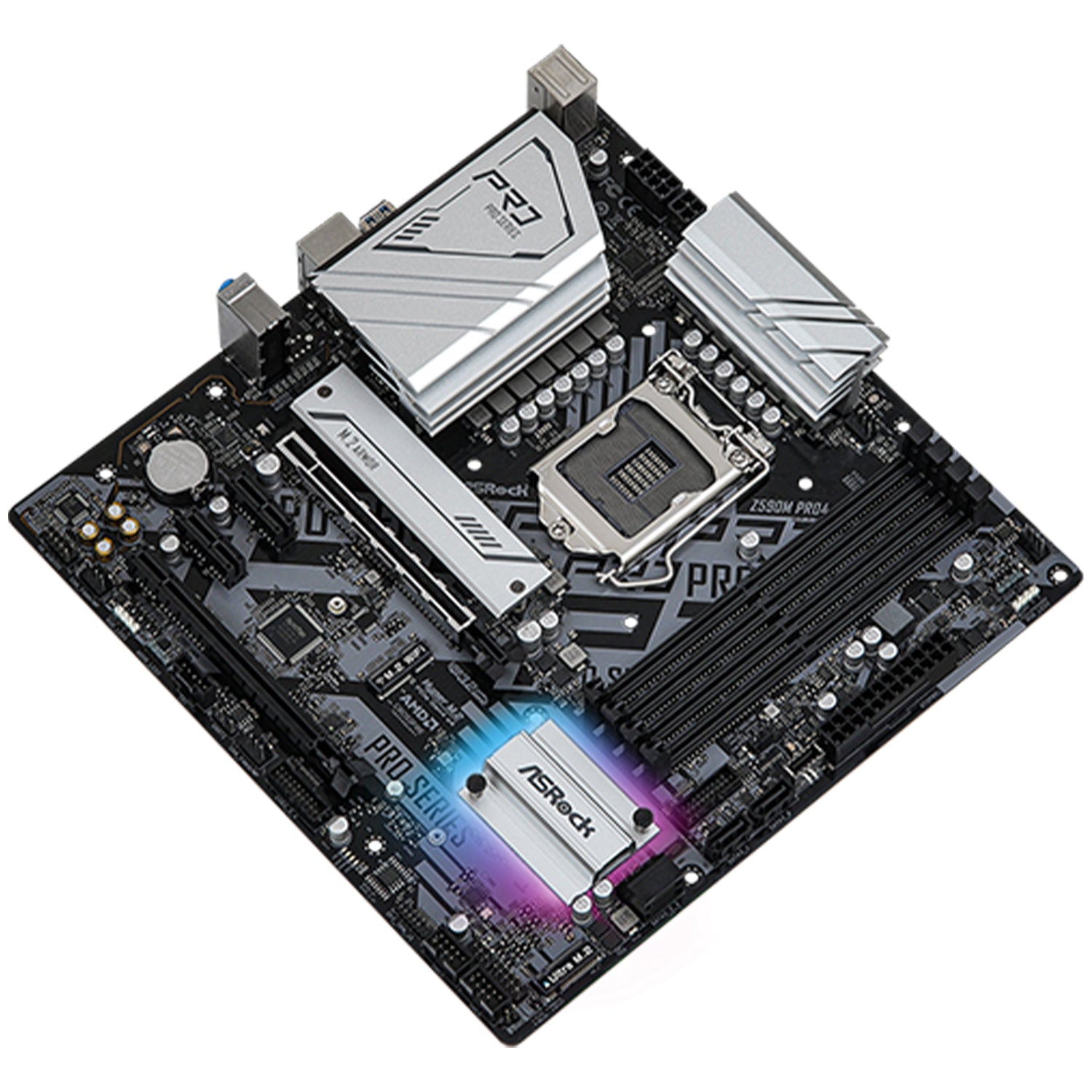

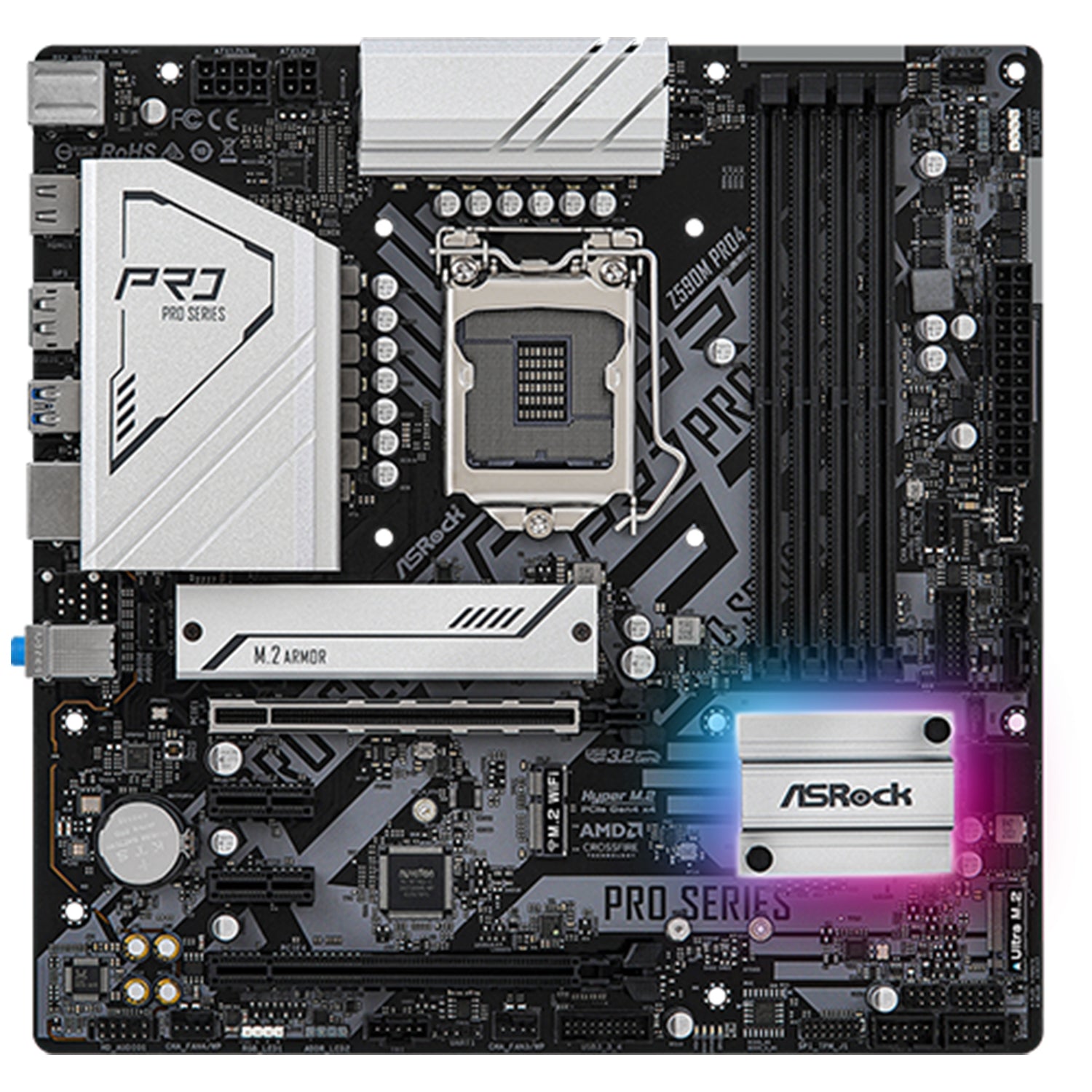

ASRock Z590M PRO4 Motherboard, ATX - Support 11th/10th Gen Intel Processors, 12 Phase Dr.MOS Power Design, PCIe 4.0 With 128GB DDR4 Max Memory, HDMI, Display Port
- Regular price
- $269.99
- Sale price
- $269.99
- Regular price
-
or 4 interest-free payments of $67.49 with
or 4 interest-free payments of $67.49 with
or 4 interest-free payments of $67.49 with
or 4 interest-free payments of $67.49 with
Couldn't load pickup availability
Finance options available.
Buy Now, Pay Later with Sezzle
Packaging Note
