About
Description

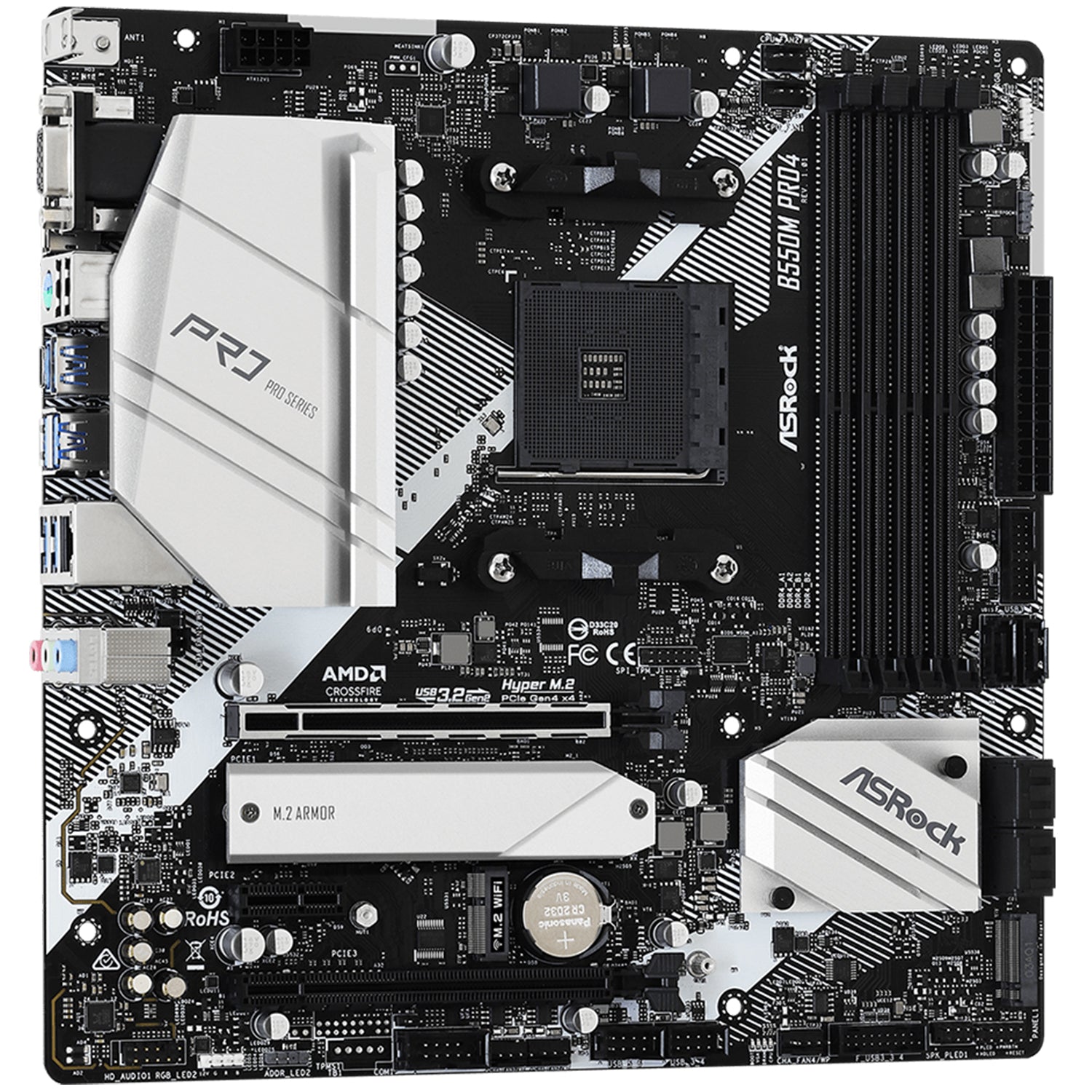

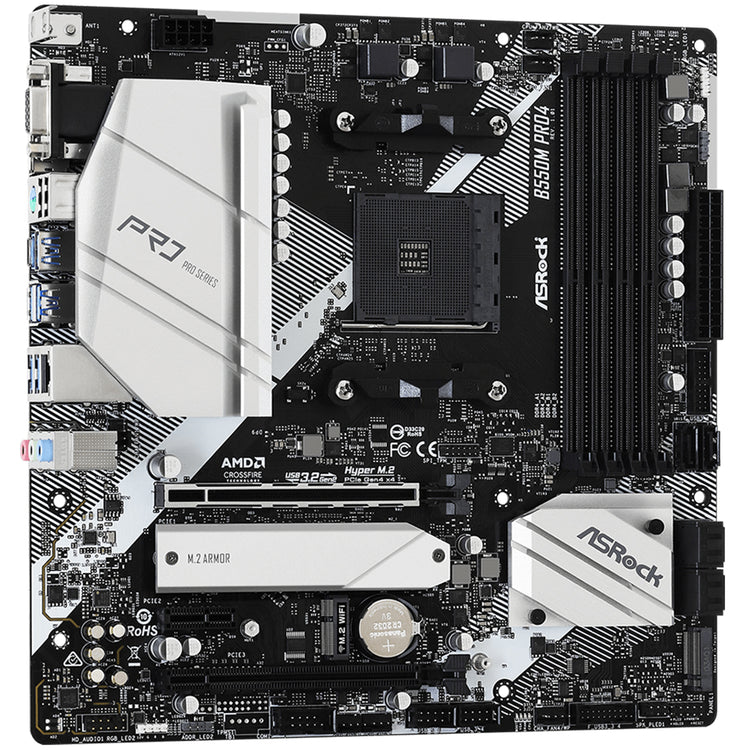

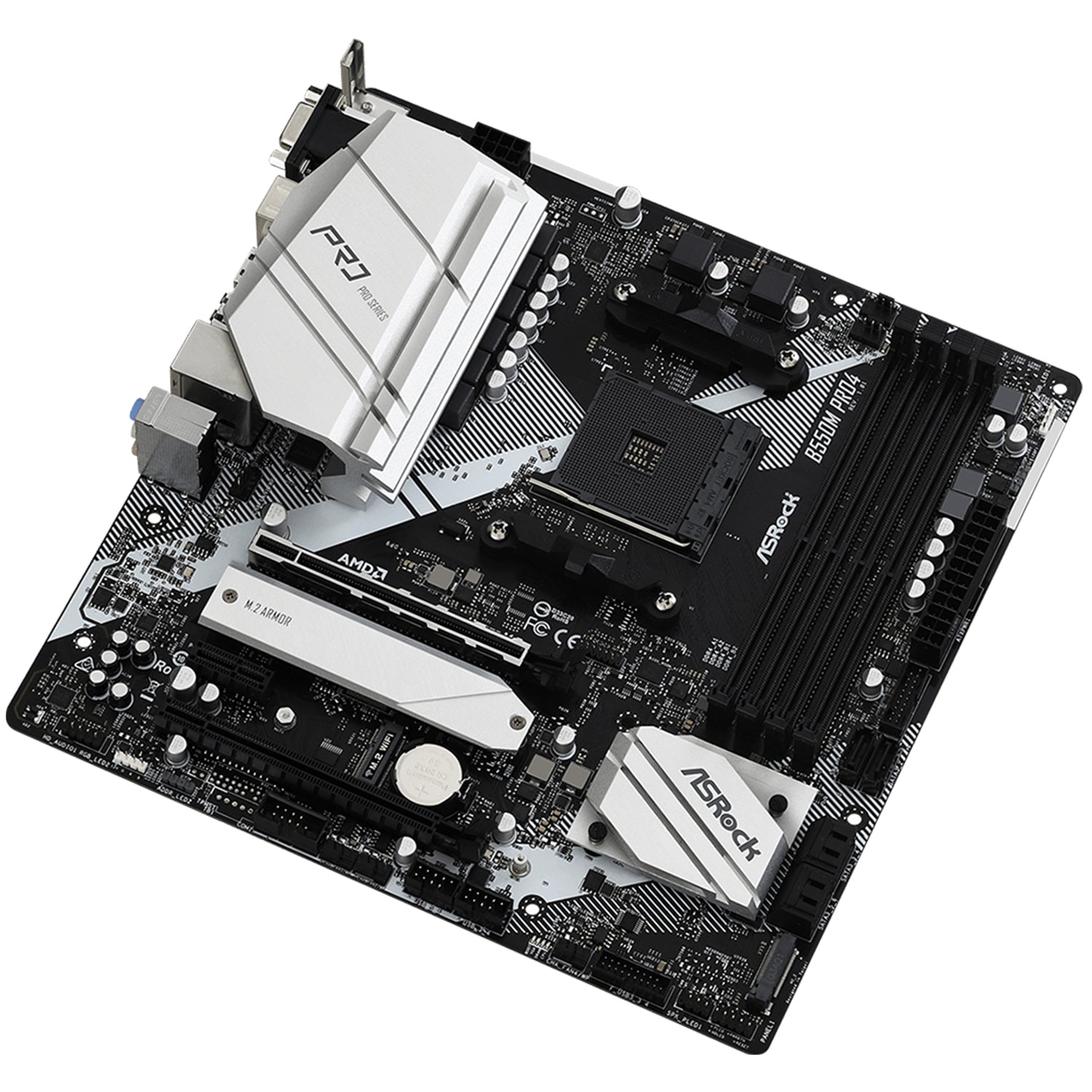

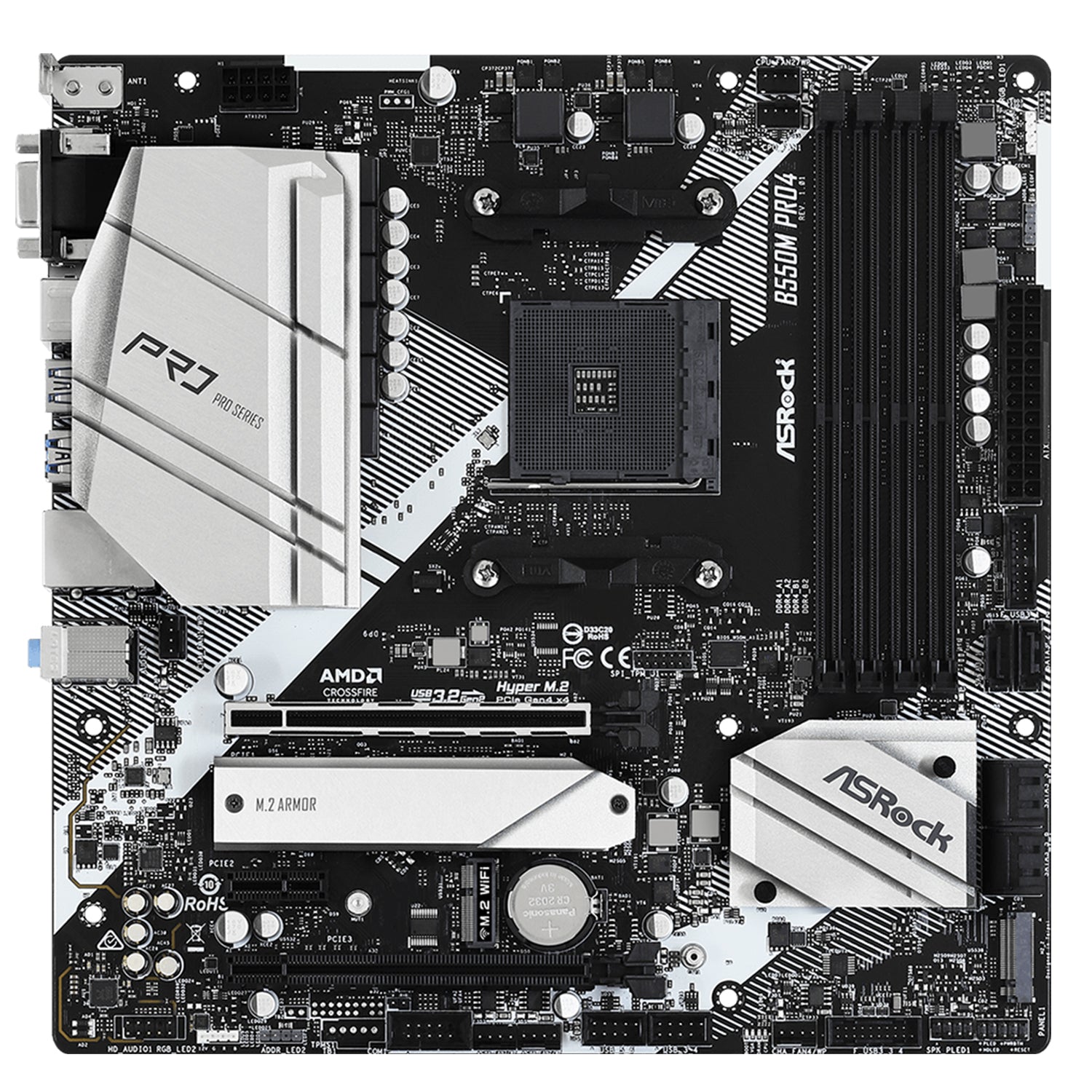

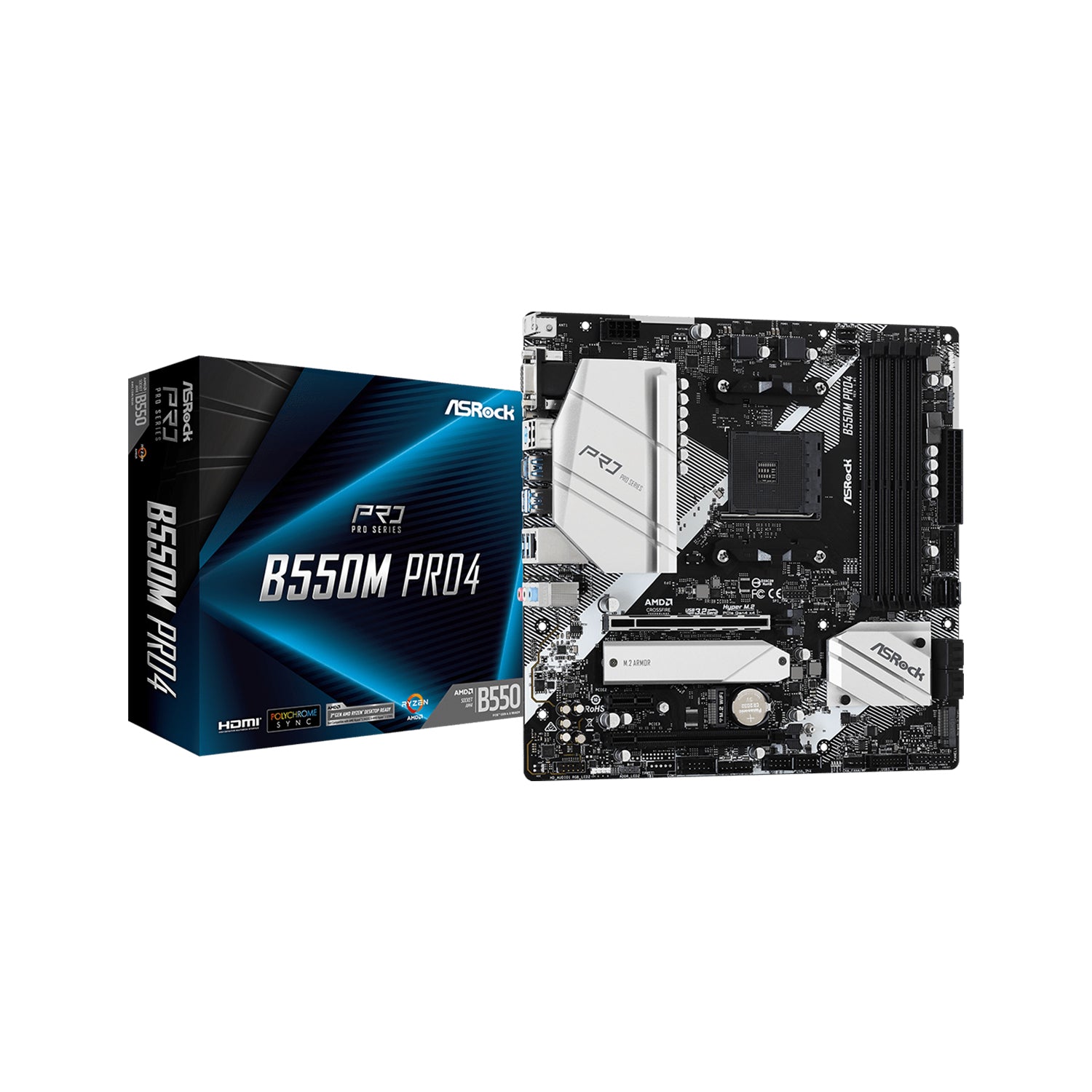

- ASRock B550M PRO4: Is a compact motherboard offering solid performance with support for AMD Ryzen processors, PCIe 4.0, and advanced connectivity options.
- AMD Smart Access Memory: AMD Smart Access Memory expands the data channel to unlock the full potential of GPU memory, eliminating bottlenecks and boosting system performance.
- 8 Power Phase Design: Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
- PolyChrome RGB: This motherboard enables customization of lighting effects by supporting onboard and addressable RGB headers, along with synchronization of Polychrome RGB Sync-certified devices.
- Premium 50A Power Choke: ASRock’s premium 50A power chokes offer up to three times better saturation current than traditional chokes, delivering improved Vcore voltage to the motherboard.
- Nahimic Audio: Nahimic Audio delivers an immersive and detailed listening experience, whether you're using headphones, a headset, speakers, or any connection type like USB, Wi-Fi, analog, or HDMI.
-
📦 SHIP NEXT DAY | ☎ 24/7 CUSTOMER'S SUPPORT
Characteristics
Brand
ASRock
Model number
B550M PRO4
Socket
AM4 Socket
Chipset
AMD B550
Form factor
Micro ATX Form Factor - 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
Interface
1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key E for WiFi
Storage
6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)
Processor brand
AMD
Processor type
AMD Ryzen
Processor model
AMD Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
Memory type
DDR4
Number of memory slots
4x DDR4 Memory Slots
Maximum memory supported
128GB
Operating system
Lan
PCIE x1 Gigabit LAN 10/100/1000 Mb/s
Connector
1 x COM Port Header, 1 x SPI TPM Header, 1 x Power LED and Speaker Header, 2 x RGB LED Headers, 2 x Addressable LED Headers, 1 x CPU Fan Connector (4-pin), 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control), 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector, 1 x Front Panel Audio Connector, 2 x USB 2.0 Headers (Support 4 USB 2.0 ports), 2 x USB 3.2 Gen1 Headers
Accessories
Quick Installation Guide, Support CD, I/O Shield, 2 x SATA Data Cables, 2 x Screws for M.2 Sockets
I/o ports

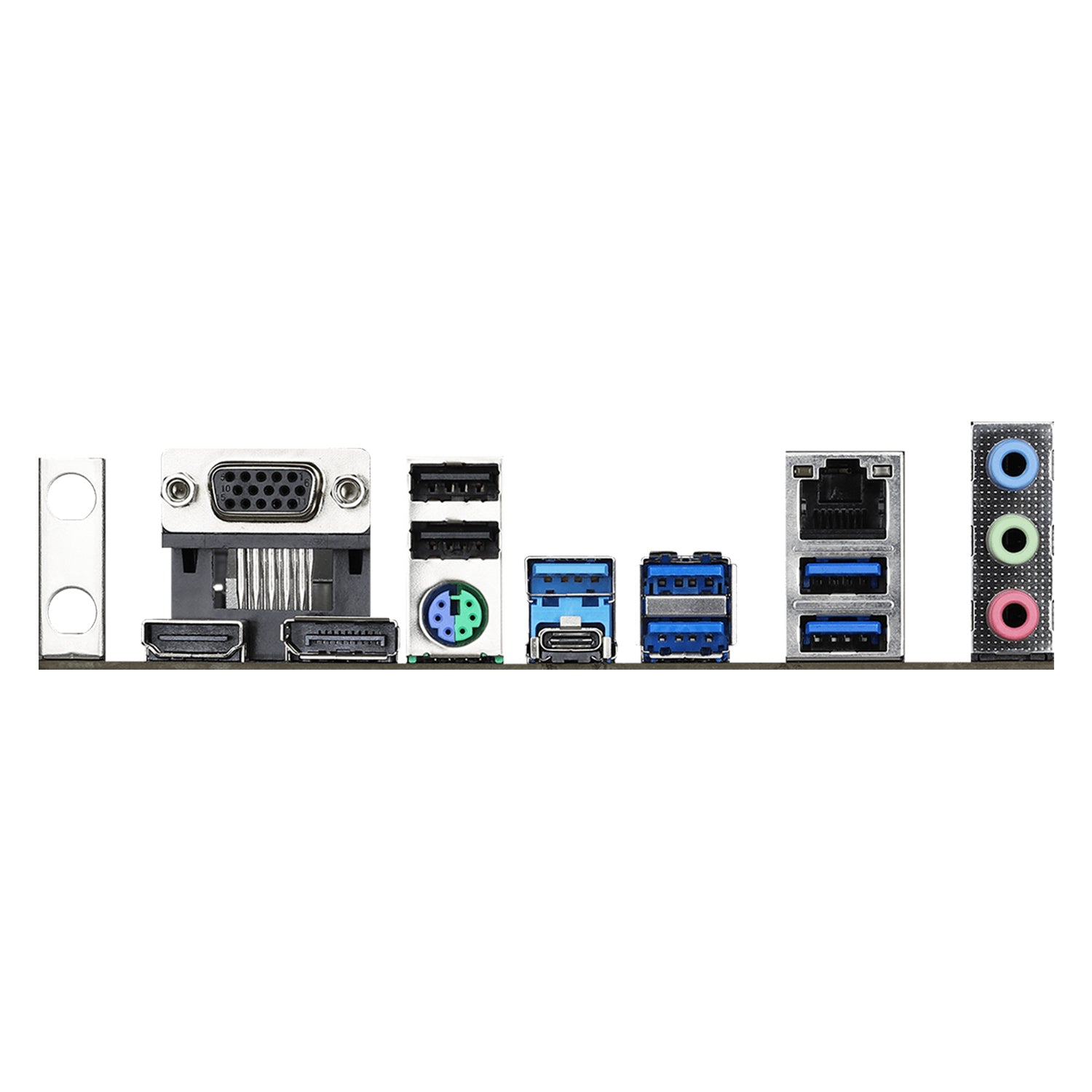

Antenna Bracket, 1 x PS/2 Mouse/Keyboard Port, 1 x HDMI Port, 1 xDisplayPort 1.4 Port, 1 x D-Sub Port, 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s), 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s), 4 x USB 3.2 Gen1 Ports, 2 x USB 2.0 Ports , 1 x RJ-45 LAN Port with LED, HD Audio Jacks: Line in / Front Speaker / Microphone
Video outputs
HDMI, DisplayPort, D-Sub
Limited manufacturer warranty
2Years
Description
- ASRock B550M PRO4: Is a compact motherboard offering solid performance with support for AMD Ryzen processors, PCIe 4.0, and advanced connectivity options.
- AMD Smart Access Memory: AMD Smart Access Memory expands the data channel to unlock the full potential of GPU memory, eliminating bottlenecks and boosting system performance.
- 8 Power Phase Design: Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
- PolyChrome RGB: This motherboard enables customization of lighting effects by supporting onboard and addressable RGB headers, along with synchronization of Polychrome RGB Sync-certified devices.
- Premium 50A Power Choke: ASRock’s premium 50A power chokes offer up to three times better saturation current than traditional chokes, delivering improved Vcore voltage to the motherboard.
- Nahimic Audio: Nahimic Audio delivers an immersive and detailed listening experience, whether you're using headphones, a headset, speakers, or any connection type like USB, Wi-Fi, analog, or HDMI.
-
📦 SHIP NEXT DAY | ☎ 24/7 CUSTOMER'S SUPPORT
NEW
ASRock B550M PRO4 AMD StoreMI Technology Motherboard, ATX - Support AMD Ryzen 3000G/ 4000G/ 5000G Series Desktop processors, 128GB DDR4 Max Memory, HDMI, DisplayPort
- Regular price
- $174.99
- Sale price
- $174.99
- Regular price
-
or 4 interest-free payments of $43.74 with
or 4 interest-free payments of $43.74 with
or 4 interest-free payments of $43.74 with
or 4 interest-free payments of $43.74 with
Couldn't load pickup availability
Finance options available.
Buy Now, Pay Later with Sezzle
Packaging Note
