About
Description
- AMD Socket AM5: Supports AMD Ryzen 7000 Series/ Ryzen 8000/ Ryzen 9000 Series Processors
- Dual Channel DDR5: 4x SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support.
- Comprehensive cooling: The extensive surface area of this heatsink covers the VRMs and chokes to improve heat dissipation.
- Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.
- Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card.
- Form Factor: Micro ATX (24.4cm x 24.4cm), offering ample space for components and expandability.
- Chipset: AMD B650, providing a robust foundation for gaming, overclocking, and general computing tasks.
-
💯 𝐅𝐑𝐄𝐄 𝐃𝐄𝐋𝐈𝐕𝐄𝐑𝐘 | 🚚 𝐐𝐔𝐈𝐂𝐊 𝐒𝐇𝐈𝐏 | ☎ 𝐆𝐑𝐄𝐀𝐓 𝐂𝐔𝐒𝐓𝐎𝐌𝐄𝐑'𝐒 𝐒𝐔𝐏𝐏𝐎𝐑𝐓
Characteristics
Brand
GIGABYTE
Model
B650M GAMING PLUS WIFI
Socket
AM5 Socket
Chipset
AMD B650
Form factor
Micro ATX 24.4cm x 24.4cm
Interface
1 x PCIe Express x16 slot
Storage
1 x M.2 slots and 4 x SATA 6Gb/s Connectors
Processor brand
AMD
Processor type
AMD Ryzen
Processor generation
AMD Ryzen 9000 Series/ 8000 Series/ 7000 Series Processors
Memory type
DDR5
Number of memory slots
4 X DIMM Slots
Maximum memory
Maximum 256GB
Wireless module
Wi-Fi 6E (a, b, g, n, ac, ax) supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 / Wi-Fi 6 : (a, b, g, n, ac, ax) supporting 2.4/5 GHz carrier frequency bands - BLUETOOTH 5.3
Operating system
Lan
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
I/o ports
1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 2 x system fan headers, 2 x addressable LED strip headers, 1 x RGB LED strip header, 2 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB Type-C header, with USB 3.2 Gen 1 support, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x Trusted Platform Module header, 1 x Q-Flash Plus button, 1 x reset jumper, 1 x Clear CMOS jumper
Expansion slots
1 x PCI Express x16 slot, 7000-PCIe 4.0 x16 mode, 8000 Phoenix 1 -PCIe 4.0 x8 mode, 8000 Phoenix 2 -PCIe 4.0 x4 mode

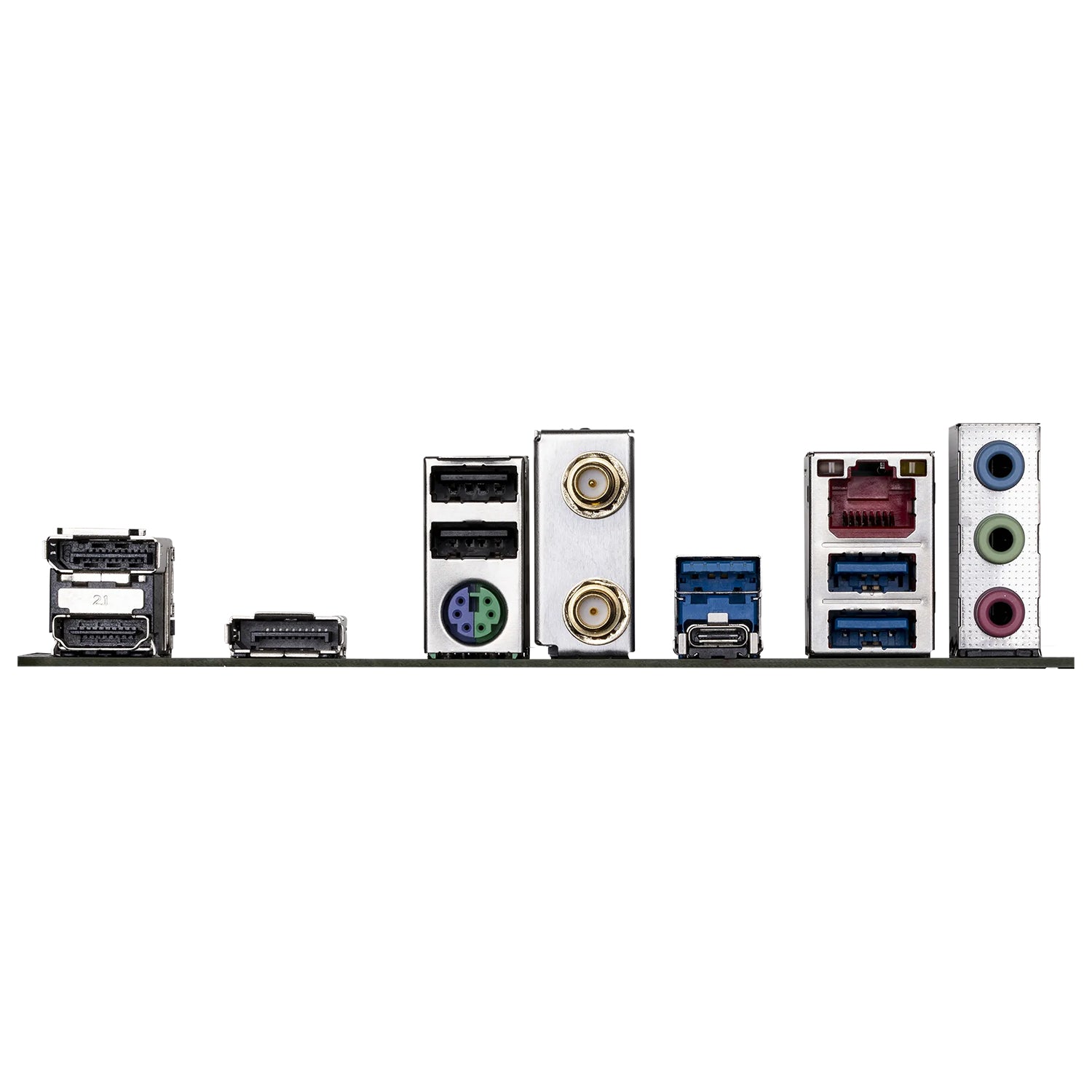

Back panel i/o ports
2 x DisplayPort, 1 x HDMI Port, 1 x PS/2 keyboard/mouse port, 2 x SMA antenna connectors (2T2R) (1T1R), 1 x RJ-45 port, 3 x audio jacks
Usb ports
CPU : 1 x USB Type-C port, with USB 3.2 Gen 1 support, 1 x USB 3.2 Gen 1 ports, 1 x USB 2.0/1.1 ports / CHIPSET : 2 x USB 3.2 Gen 1 ports, 1 x USB Type-C port with USB 3.2 Gen 1 support, 2 x USB 3.2 Gen 1 ports, 5 x USB 2.0/1.1 ports
Limited manufacturer warranty
2 Years
Description
- AMD Socket AM5: Supports AMD Ryzen 7000 Series/ Ryzen 8000/ Ryzen 9000 Series Processors
- Dual Channel DDR5: 4x SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support.
- Comprehensive cooling: The extensive surface area of this heatsink covers the VRMs and chokes to improve heat dissipation.
- Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.
- Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card.
- Form Factor: Micro ATX (24.4cm x 24.4cm), offering ample space for components and expandability.
- Chipset: AMD B650, providing a robust foundation for gaming, overclocking, and general computing tasks.
-
💯 𝐅𝐑𝐄𝐄 𝐃𝐄𝐋𝐈𝐕𝐄𝐑𝐘 | 🚚 𝐐𝐔𝐈𝐂𝐊 𝐒𝐇𝐈𝐏 | ☎ 𝐆𝐑𝐄𝐀𝐓 𝐂𝐔𝐒𝐓𝐎𝐌𝐄𝐑'𝐒 𝐒𝐔𝐏𝐏𝐎𝐑𝐓
NEW

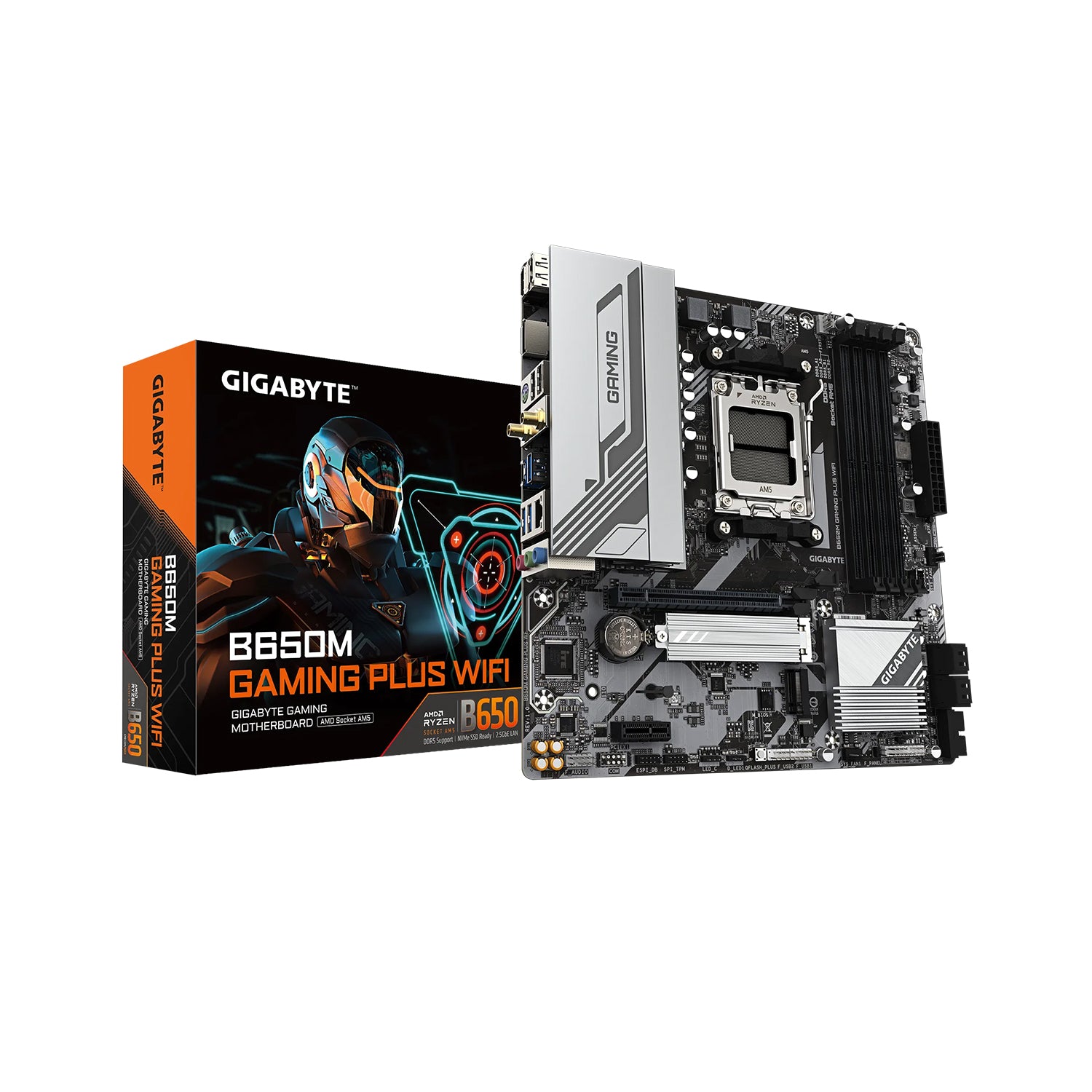

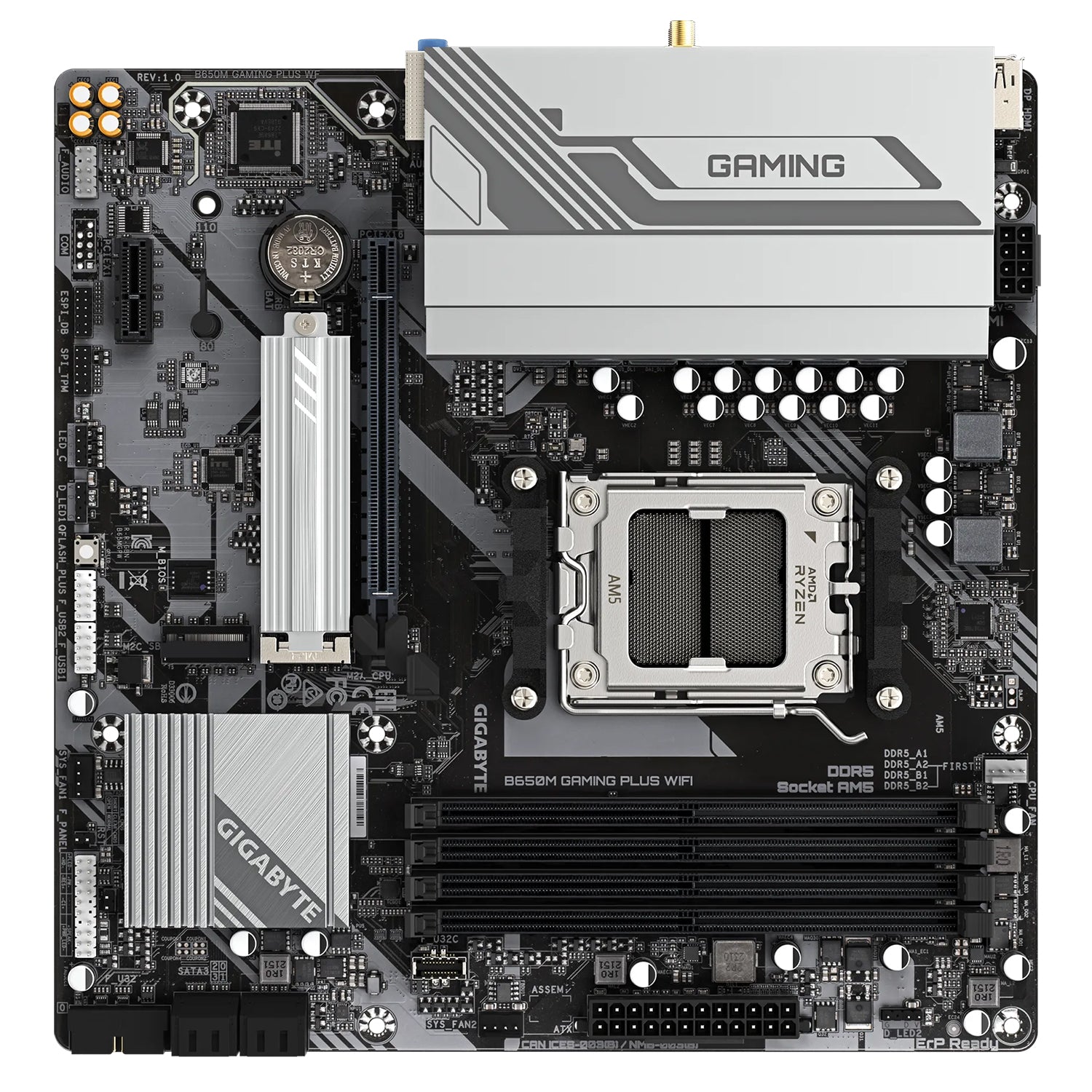

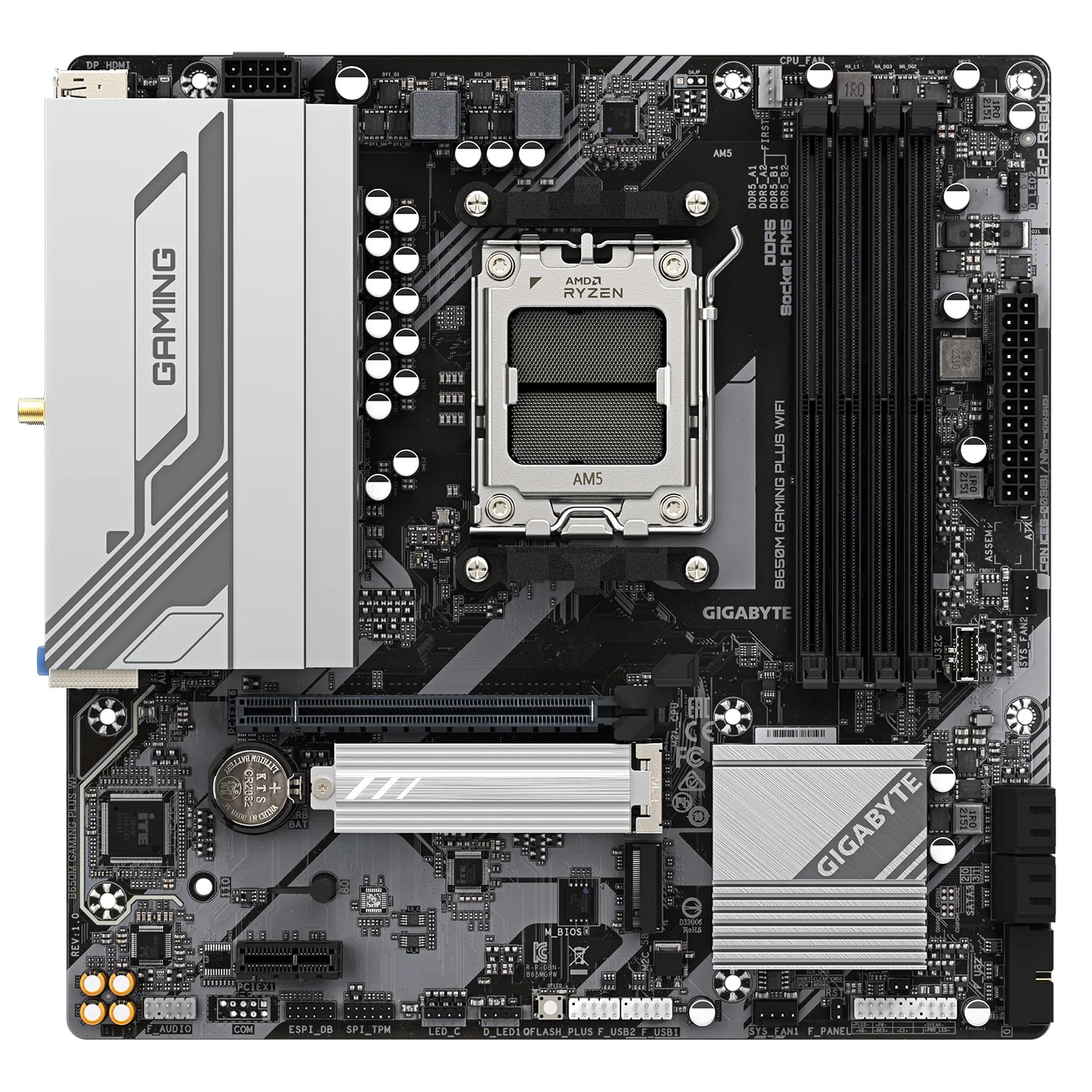

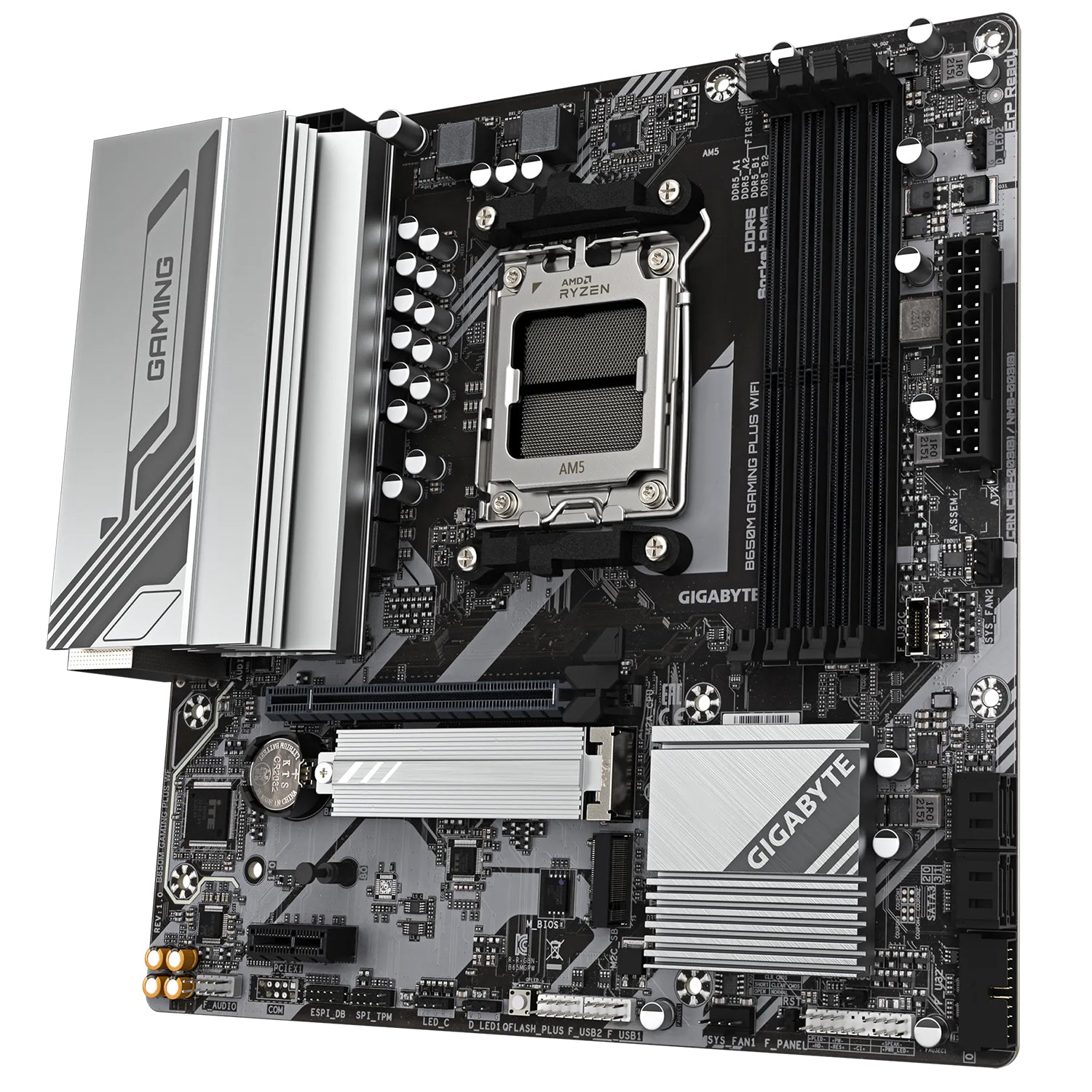

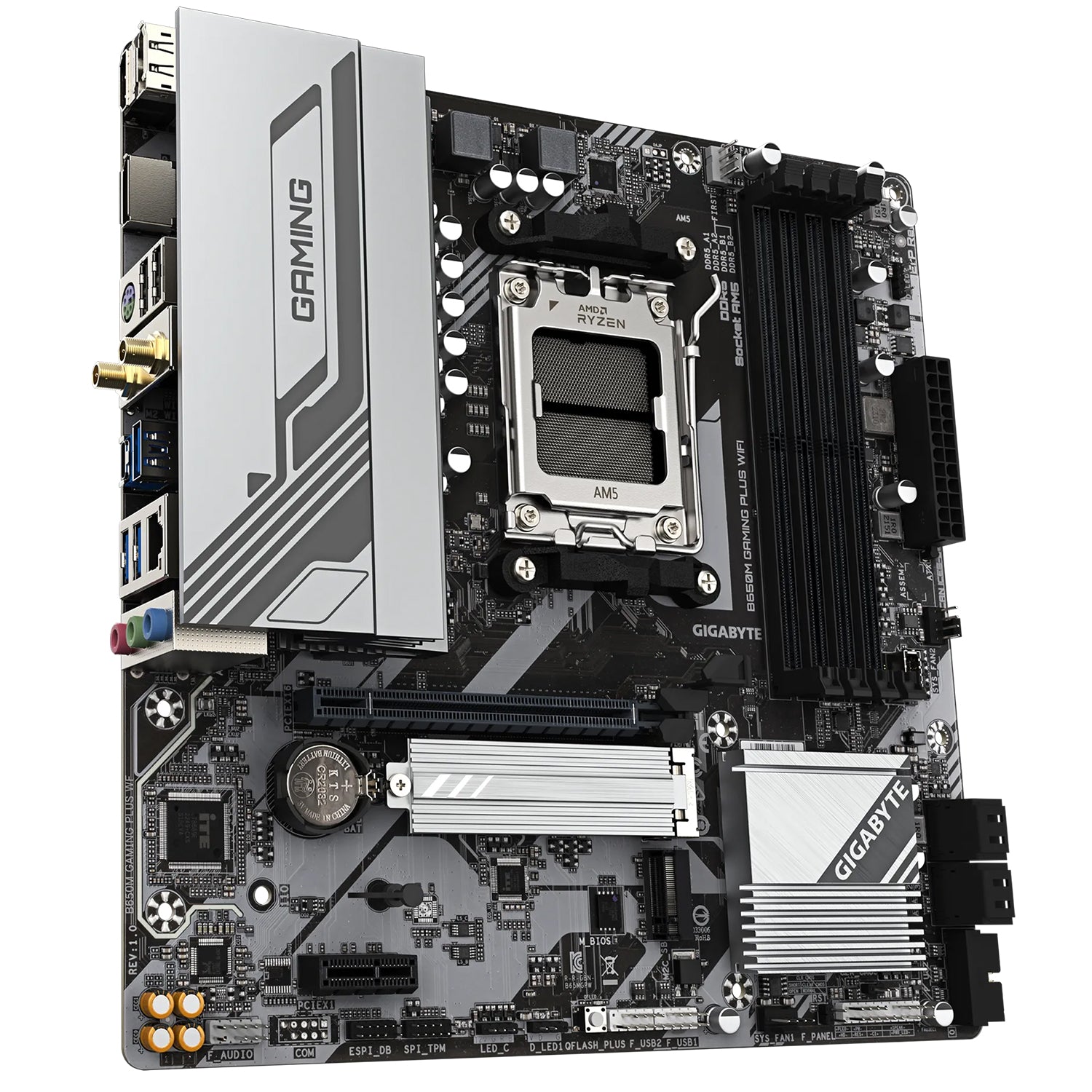

GIGABYTE B650M GAMING PLUS WIFI Motherboard | mATX - Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors, PCIe 4.0, DDR5, Wi-Fi 6E, HDMI / Display Port
