About
Description
-
ASRock B550 Phantom Gaming 4/ac: Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers!
-
2oz Copper PCB: 2-ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it's able to support the latest DDR4 memory modules with the most extreme memory performance!
- 8 Power Phase Design: Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
-
Hyper M.2 (PCLe Gen 4x4): Supports the next generation PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
- Premium 50A Power Choke: ASRock’s premium 50A power chokes offer up to three times better saturation current than traditional chokes, delivering improved Vcore voltage to the motherboard.
- Nahimic Audio: Nahimic Audio delivers an immersive and detailed listening experience, whether you're using headphones, a headset, speakers, or any connection type like USB, Wi-Fi, analog, or HDMI.
-
📦 SHIP NEXT DAY | ☎ 24/7 CUSTOMER'S SUPPORT
Characteristics
Brand
ASRock
Model number
B550 Phantom Gaming 4/ac
Socket
AM4 Socket
Chipset
AMD B550
Form factor
ATX Form Factor - 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
Interface
2 x PCI Express x16 Slots, 2 x PCI Express 3.0 x1 Slots
Storage
4 x SATA3 6.0 Gb/s Connectors, 1 x Hyper M.2 Socket (M2_1)
Processor brand
AMD
Processor type
AMD Ryzen
Processor model
AMD Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
Memory type
DDR4
Number of memory slots
4 x DDR4 DIMM Slots
Maximum memory supported
128GB
Operating system
Lan
Intel 802.11ac WiFi Module / Supports IEEE 802.11a/b/g/n/ac, Supports Dual-Band (2.4/5 GHz), Supports high speed wireless connections up to 433Mbps, Supports Bluetooth 4.2 + High speed class II
Connector
1 x COM Port Header, 1 x SPI TPM Header, 1 x Power LED and Speaker Header, 2 x RGB LED Headers, 2 x Addressable LED Headers, 1 x CPU Fan Connector (4-pin), 1 x CPU/Water Pump Fan Connector (4-pin) , 4 x Chassis/Water Pump Fan Connectors, 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector, 1 x 4 pin 12V Power Connector, 1 x Front Panel Audio Connector, 2 x USB 2.0 Headers (Support 4 USB 2.0 ports), 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
Usb ports
8 USB 3.2 Gen1 (2 Front, 6 Rear)

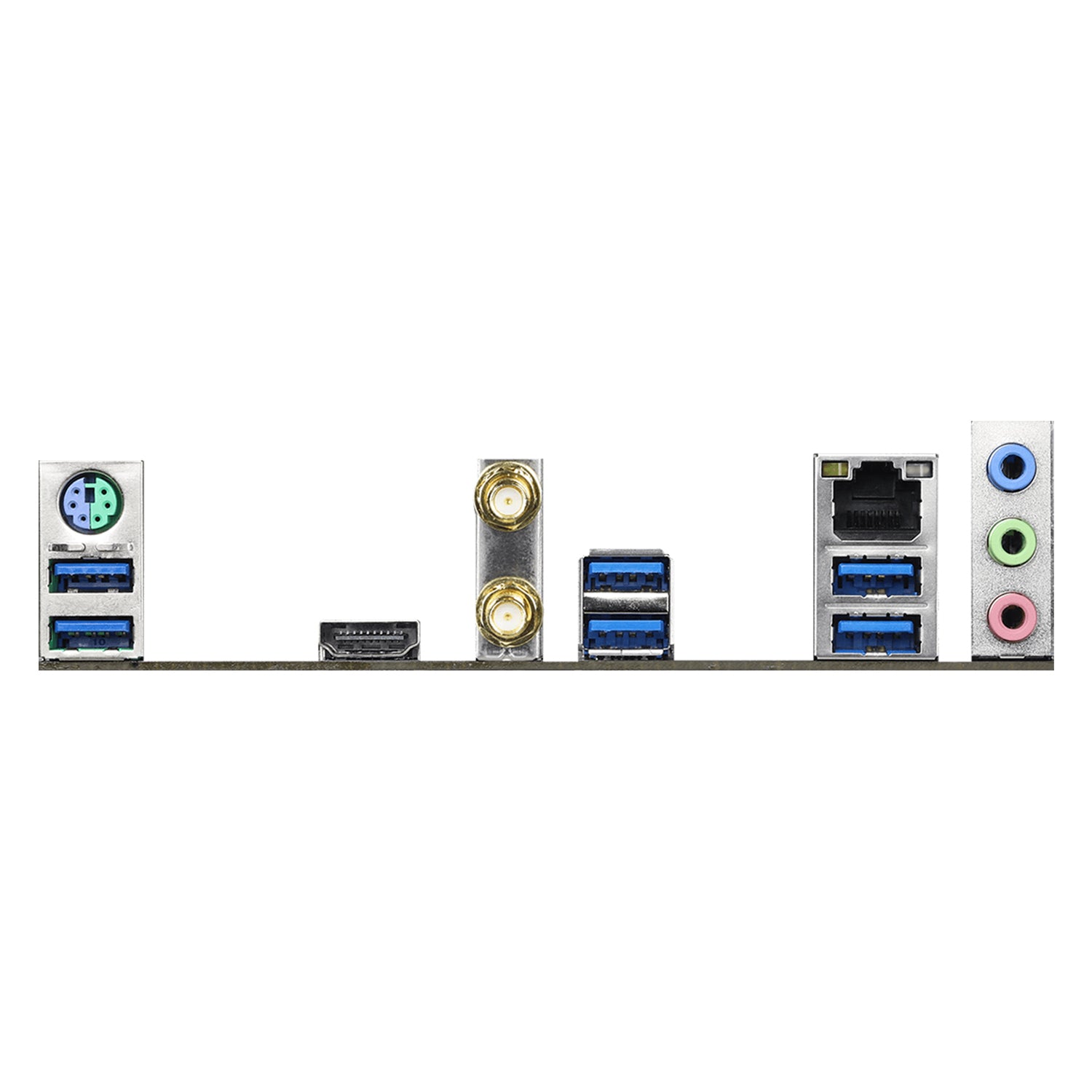

I/o ports
2 x Antenna Ports, 1 x PS/2 Mouse/Keyboard Port, 1 x HDMI Port, 6 x USB 3.2 Gen1 Ports (Supports ESD Protection), 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), HD Audio Jacks: Line in / Front Speaker / Microphone
Accessories
I/O Shield, 2 x SATA Data Cables, 2 x ASRock WiFi 2.4/5 GHz Antennas, 1 x Screw for M.2 Socket
Video outputs
HDMI
Limited manufacturer warranty
2Years
Description
-
ASRock B550 Phantom Gaming 4/ac: Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers!
-
2oz Copper PCB: 2-ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it's able to support the latest DDR4 memory modules with the most extreme memory performance!
- 8 Power Phase Design: Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
-
Hyper M.2 (PCLe Gen 4x4): Supports the next generation PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
- Premium 50A Power Choke: ASRock’s premium 50A power chokes offer up to three times better saturation current than traditional chokes, delivering improved Vcore voltage to the motherboard.
- Nahimic Audio: Nahimic Audio delivers an immersive and detailed listening experience, whether you're using headphones, a headset, speakers, or any connection type like USB, Wi-Fi, analog, or HDMI.
-
📦 SHIP NEXT DAY | ☎ 24/7 CUSTOMER'S SUPPORT
NEW
ASRock B550 Phantom Gaming 4/ac Motherboard - ATX - Support AMD Ryzen 3000G/ 4000G/ 5000G Series Desktop Processors,With DDR4 Up to 128GB Max Memory, HDMI
- Regular price
- $98.99
- Sale price
- $98.99
- Regular price
-
or 4 interest-free payments of $24.74 with
or 4 interest-free payments of $24.74 with
or 4 interest-free payments of $24.74 with
or 4 interest-free payments of $24.74 with
Couldn't load pickup availability
Finance options available.
Buy Now, Pay Later with Sezzle
Packaging Note
