MSI PRO Z890-S WIFI Motherboard - Support Intel Core Ultra Processors (Series 2), Ready For AIPC With Frozr Design, 256GB DDR5 Max Memory, HDMI / Display Port

About

Description

Support Intel Core Ultra Processors (Series 2) for LGA 1851 socket.

Enhanced Power Design: 12+1+1 DRPS with P-PAK, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer server-grade PCB.

Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience.

Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2.

2.5G LAN with Wi-Fi 7 Solution: Upgraded network solution for professional and multimedia use. Delivering secure, stable, and high-speed networking.

Audio Boost - Reward your ears with studio grade sound quality for the most immersive gaming experience.

💯 𝐅𝐑𝐄𝐄 𝐃𝐄𝐋𝐈𝐕𝐄𝐑𝐘 | 🚚 𝐐𝐔𝐈𝐂𝐊 𝐒𝐇𝐈𝐏 | ☎ 𝐆𝐑𝐄𝐀𝐓 𝐂𝐔𝐒𝐓𝐎𝐌𝐄𝐑'𝐒 𝐒𝐔𝐏𝐏𝐎𝐑𝐓

Characteristics

Brand MSI

Model number PRO Z890-S WIFI

Socket LGA 1851

Chipset INTEL Z890

Form factor ATX (243.84mmx304.8mm)

Interface 4x PCI-E x16 slot

Storage 3x M.2 Slot And 4x SATA 6G

Processor brand Intel

Processor model Intel Core Ultra Processors (Series 2)

Memory type DDR5

Number of memory slots 4x DDR5 Memory Slots

Maximum memory Maximum 256GB

Wireless lan - bluetooth Wi-Fi 7 (Supports 802.11 a/ b/ g/ n/ ac/ ax / be)- Bluetooth 5.4 (MLO, 4KQAM)

Operating system Support For Windows 11 64-Bit

Lan Realtek 8125D 2.5Gbps LAN

Internal i/o ports 1x Thunderbolt5 card connector(JTBT5, support RTD3), 1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x Power Connector(PCIE_PWR 8pin), 1x CPU Fan, 1x Combo Fan (Pump_Sys Fan), 4x System Fan, 1x EZ Conn-header (JAF_1), 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Tuning Controller connector(JDASH), 3x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector(JRGB), 1x TPM pin header(Support TPM 2.0), 4x USB 2.0 ports, 2x USB 5Gbps Type A ports, 1x USB 20Gbps Type C ports

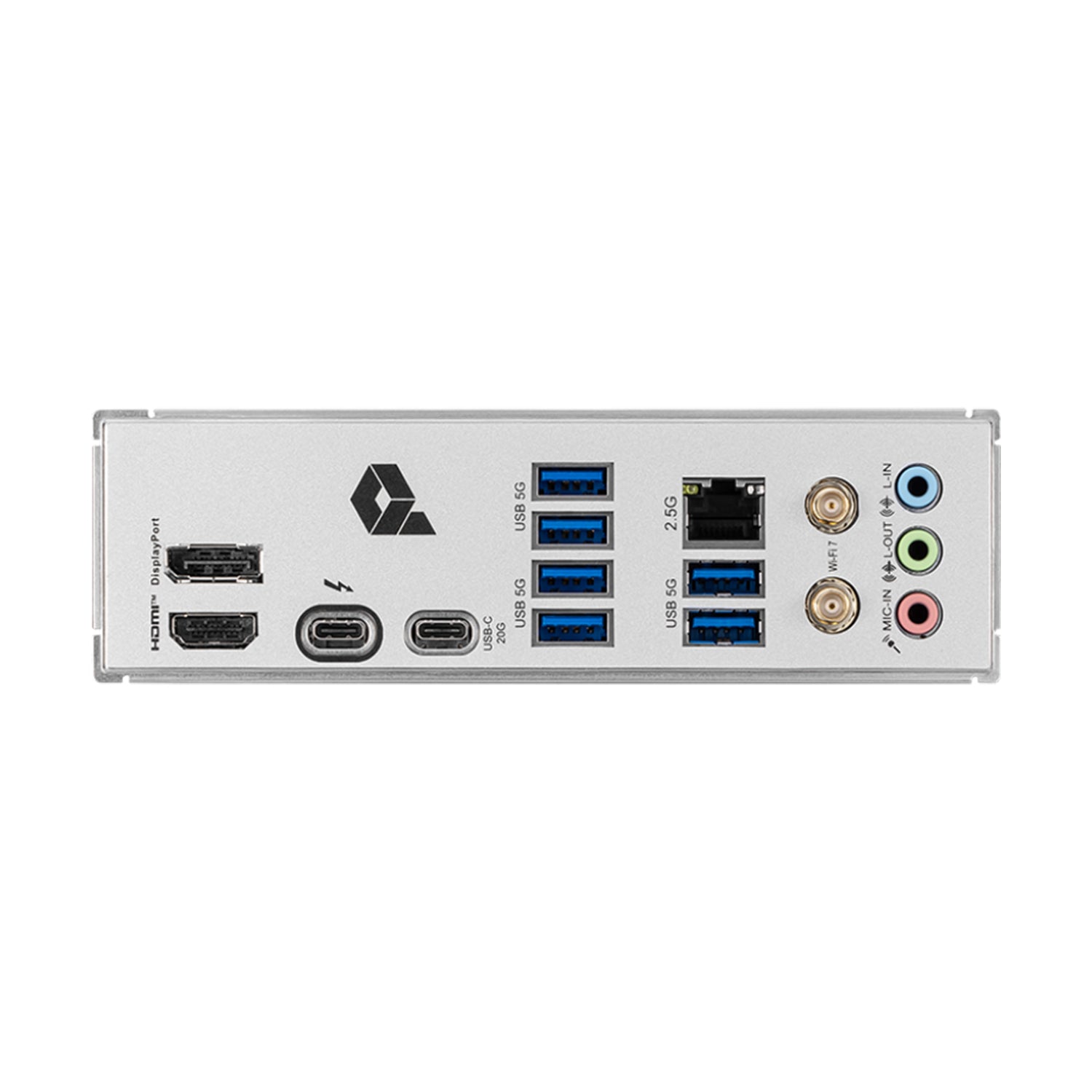

Back panel ports DisplayPort,USB 5Gbps Type-A, 2.5G LAN, Wi-Fi / Bluetooth, Audio Connectors, HDMI, Thunderbolt 4 40Gbps (Type-C), USB 20Gbps Type-C, USB 5Gbps Type-A

Audio 7.1-Channel High Definition Audio

Video output 1x Display Port, 1x HDMI, 1x Type-C DisplayPort

Usb 4x USB 2.0 (Front), 6x USB 5Gbps Type A (Rear), 2x USB 5Gbps Type A (Front), 1x USB 20Gbps Type C (Rear), 1x USB 20Gbps Type C (Front)

Limited manufacturer warranty 2 Years

Description

Support Intel Core Ultra Processors (Series 2) for LGA 1851 socket.

Enhanced Power Design: 12+1+1 DRPS with P-PAK, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer server-grade PCB.

Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience.

Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2.

2.5G LAN with Wi-Fi 7 Solution: Upgraded network solution for professional and multimedia use. Delivering secure, stable, and high-speed networking.

Audio Boost - Reward your ears with studio grade sound quality for the most immersive gaming experience.

💯 𝐅𝐑𝐄𝐄 𝐃𝐄𝐋𝐈𝐕𝐄𝐑𝐘 | 🚚 𝐐𝐔𝐈𝐂𝐊 𝐒𝐇𝐈𝐏 | ☎ 𝐆𝐑𝐄𝐀𝐓 𝐂𝐔𝐒𝐓𝐎𝐌𝐄𝐑'𝐒 𝐒𝐔𝐏𝐏𝐎𝐑𝐓
