- Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium, Gold and Celeron Processors for LGA 1700 socket.
- Enhanced Power Design: 12+1+1 DRPS with P-PAK, dual 8-pin CPU power connectors, Core Boost, Memory Boost.
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience.
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2.
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Audio Boost - Reward your ears with studio grade sound quality for the most immersive gaming experience.
-
💯 𝐅𝐑𝐄𝐄 𝐃𝐄𝐋𝐈𝐕𝐄𝐑𝐘 | 🚚 𝐐𝐔𝐈𝐂𝐊 𝐒𝐇𝐈𝐏 | ☎ 𝐆𝐑𝐄𝐀𝐓 𝐂𝐔𝐒𝐓𝐎𝐌𝐄𝐑'𝐒 𝐒𝐔𝐏𝐏𝐎𝐑𝐓
Characteristics
Brand
MSI
Model number
PRO Z790-S WIFI
Socket
LGA 1700
Chipset
INTEL Z790
Form factor
ATX (243.84mmx304.8mm)
Interface
2x PCI-E X16 slot, 3x PCI-E x1 slot
Storage
2x M.2 Slot And 4x SATA 6G
Processor brand
Intel
Processor model
Intel Core Processors, Pentium Gold And Celeron Processors
Processor generation
Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold And Celeron Processors
Memory type
DDR5
Number of memory slots
4x DDR5 Memory Slots
Maximum memory
Maximum 256GB
Wireless lan - bluetooth
Wi-Fi 6E (Supports 802.11 a/ b/ g/ n/ ac/ ax)- Bluetooth 5.3 (FIPS, FISMA)
Operating system
Lan
Realtek RTL8125BG 2.5Gbps LAN
Internal i/o ports
1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x CPU Fan, 1x Pump Fan, 4x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x RGB LED connector (JARGB), 1x TPM pin header(Support TPM 2.0), 4x USB 2.0 Ports, 4x USB 5Gbps Type A ports
Back panel ports

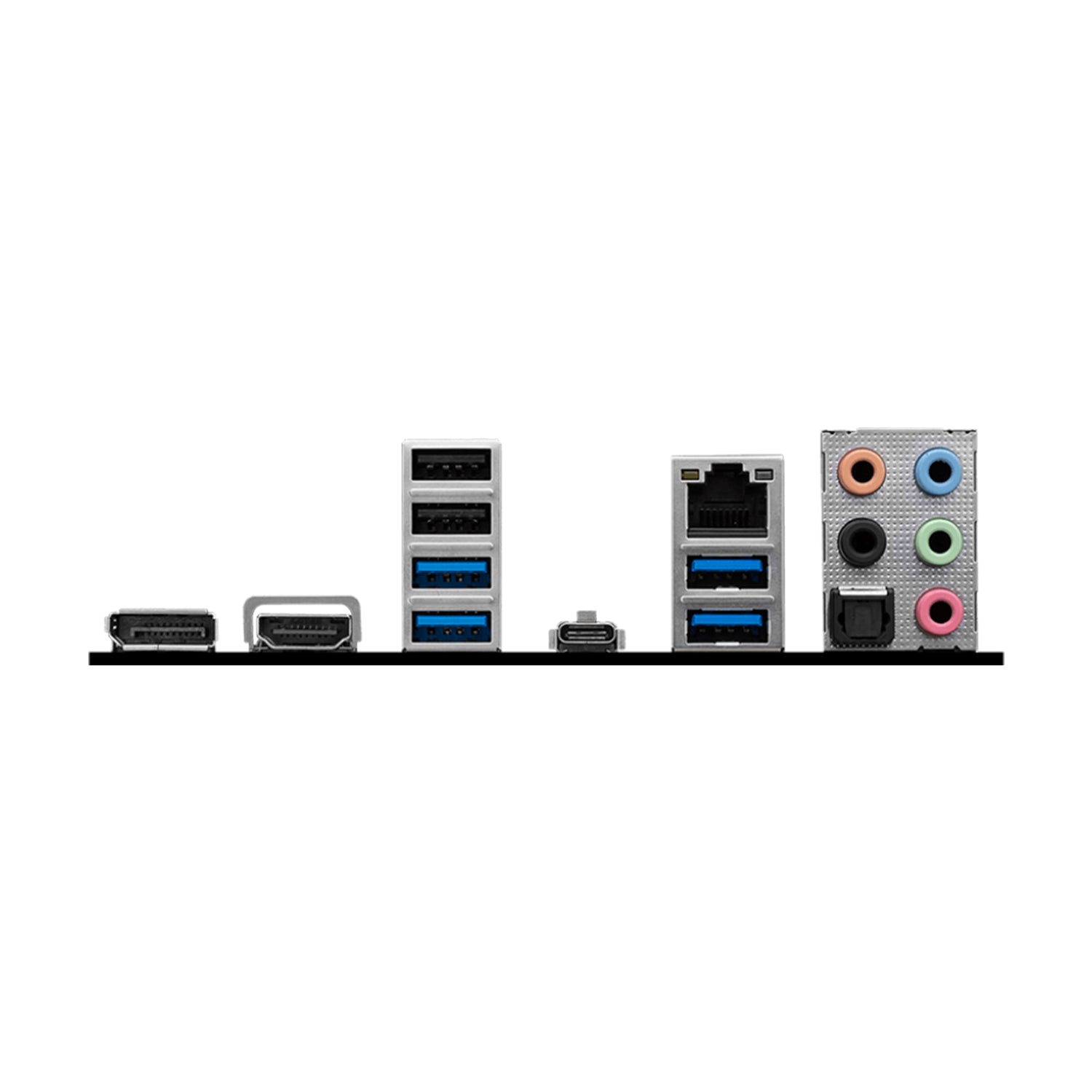

DisplayPort, HDMI, USB 2.0, USB 3.2 Gen 2x2 20Gbps (Type-C), 2.5G LAN, Audio Connectors, USB 3.2 Gen 1 5Gbps (Type-A), USB 3.2 Gen 1 5Gbps (Type-A), S/PDIF-OUT
Audio
7.1-Channel High Definition Audio, Supports S/PDIF output
Video output
1x Display Port, 1x HDMI
Usb
2x USB 2.0 (Rear), 4x USB 2.0 (Front), 4x USB 5Gbps Type A (Rear), 4x USB 5Gbps Type A (Front), 1x USB 20Gbps Type C (Rear)
Limited manufacturer warranty
2 Years
Description
- Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium, Gold and Celeron Processors for LGA 1700 socket.
- Enhanced Power Design: 12+1+1 DRPS with P-PAK, dual 8-pin CPU power connectors, Core Boost, Memory Boost.
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience.
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2.
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Audio Boost - Reward your ears with studio grade sound quality for the most immersive gaming experience.
-
💯 𝐅𝐑𝐄𝐄 𝐃𝐄𝐋𝐈𝐕𝐄𝐑𝐘 | 🚚 𝐐𝐔𝐈𝐂𝐊 𝐒𝐇𝐈𝐏 | ☎ 𝐆𝐑𝐄𝐀𝐓 𝐂𝐔𝐒𝐓𝐎𝐌𝐄𝐑'𝐒 𝐒𝐔𝐏𝐏𝐎𝐑𝐓
NEW

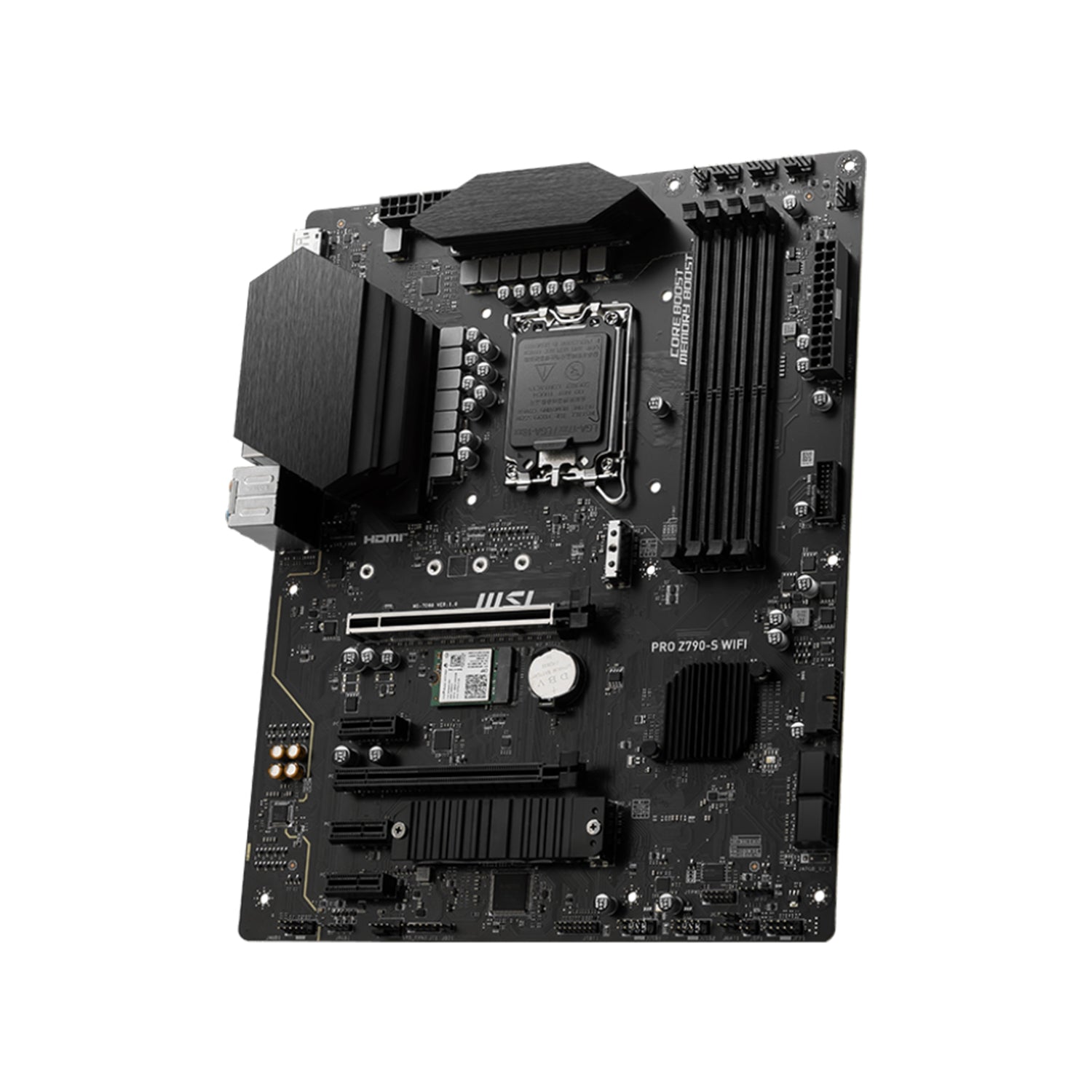

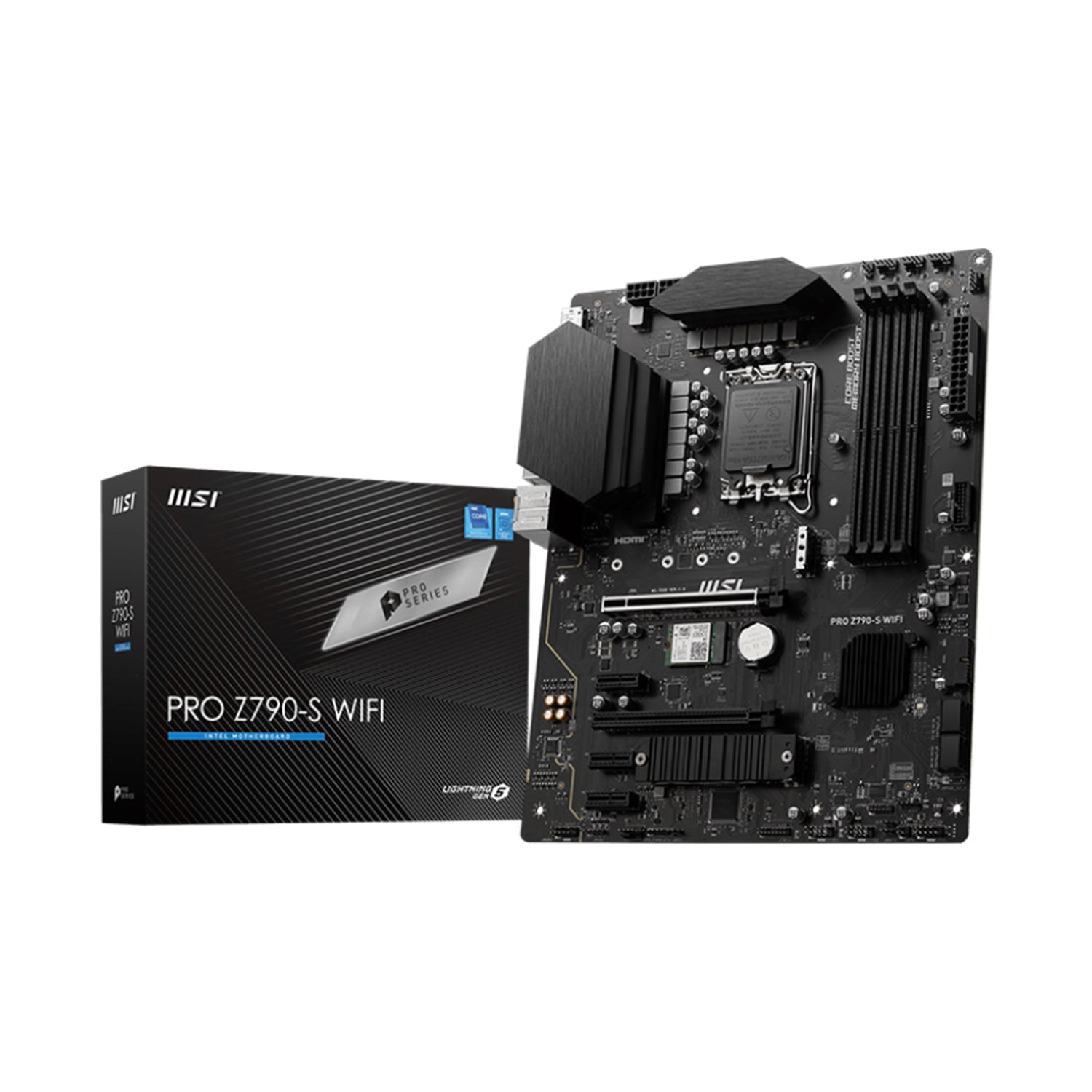

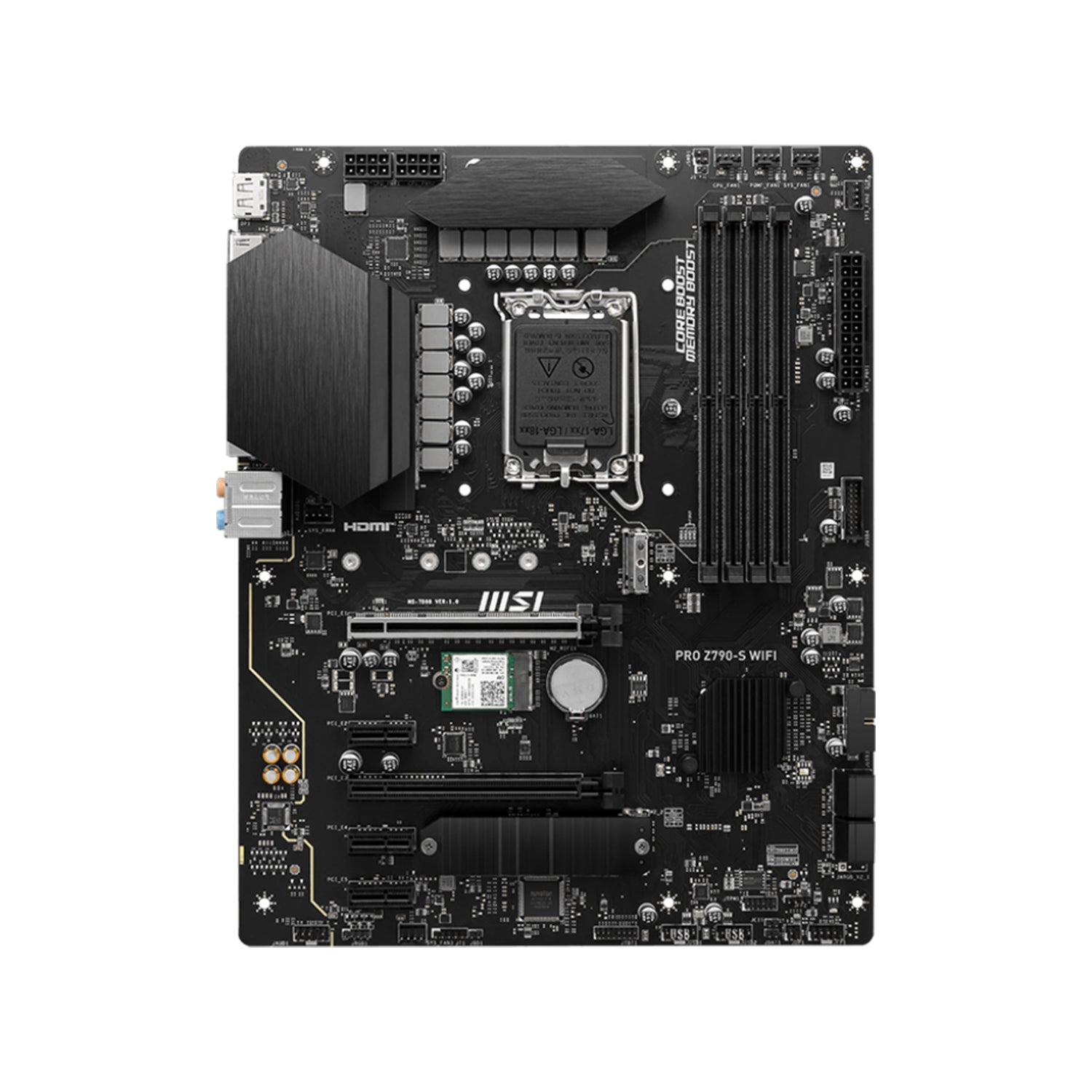

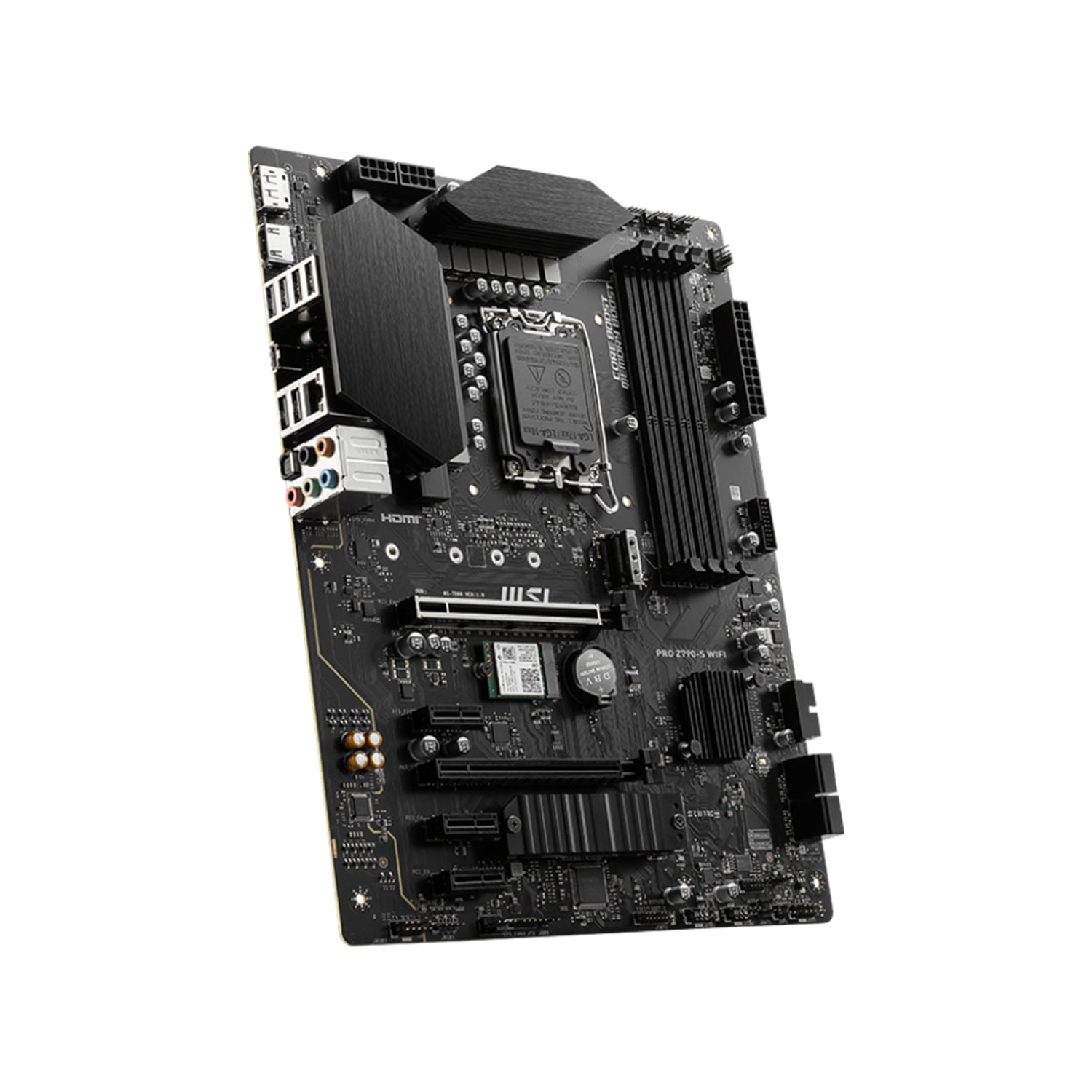

MSI PRO Z790-S WIFI ProSeries Motherboard - Support 14th/13th/12th Gen Intel Processors, Lightning Gen 5 PCI-E With Steel Armor, 256GB DDR5 Max Memory, HDMI / Display Port
