MSI PRO Z790-A MAX WIFI ProSeries Motherboard,128GB DDR5 Memory, ATX Form Factor, INTEL Z790 Chipset, Support Intel 14th/ 13th/ 12th Gen Core Processors

About

Description

Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium, Gold and Celeron Processors for LGA 1700 socket.

Enhanced Power Design: 16+1+1 DRPS with 80A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost.

Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience.

Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2.

2.5G LAN with Wi-Fi 7 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

Audio Boost 5 - Reward your ears with studio grade sound quality for the most immersive gaming experience.

💯 𝐅𝐑𝐄𝐄 𝐃𝐄𝐋𝐈𝐕𝐄𝐑𝐘 | 🚚 𝐐𝐔𝐈𝐂𝐊 𝐒𝐇𝐈𝐏 | ☎ 𝐆𝐑𝐄𝐀𝐓 𝐂𝐔𝐒𝐓𝐎𝐌𝐄𝐑'𝐒 𝐒𝐔𝐏𝐏𝐎𝐑𝐓

Characteristics

Brand MSI

Model number PRO Z790-A MAX WIFI

Socket LGA 1700

Chipset INTEL Z790

Form factor ATX (243.84mmx304.8mm)

Interface 3x PCI-E X16 slot, 1x PCI-E x1 slot

Storage 4x M.2 Slot And 6x SATA 6G

Processor brand Intel

Processor model Intel Core Processors, Pentium Gold And Celeron Processors

Processor generation Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold And Celeron Processors

Memory type DDR5

Number of memory slots 4x DDR5 Memory Slots

Maximum memory Maximum 256GB

Wireless lan - bluetooth Wi-Fi 7 (Supports 802.11 a/ b/ g/ n/ ac/ ax/ be)- Bluetooth 5.4 (MLO, 4KQAM)

Operating system Support For Windows 11 64-Bit

Lan Intel 2.5Gbps LAN

I/o ports 1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x CPU Fan, 1x Pump Fan, 6x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Tuning Controller connector(JDASH), 3x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector(JRGB), 1x TPM pin header(Support TPM 2.0), 1x USB4 card connector (JTBT_U4_1, supports RTD3), 4x USB 2.0 ports, 2x USB 5Gbps Type A ports, 1x USB 10Gbps Type C ports

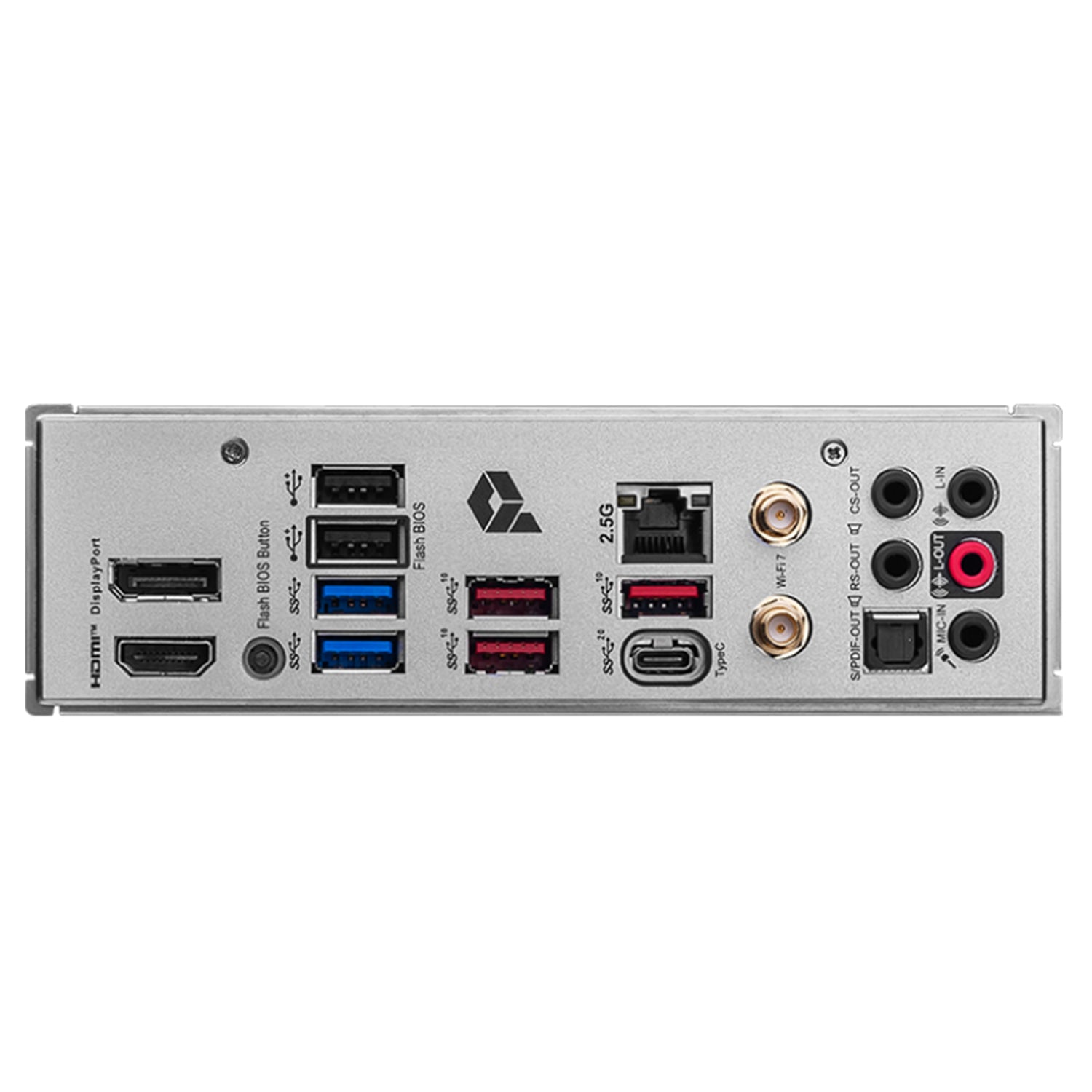

Video output 1x Display Port, 1x HDMI

Usb ports FRONT - 4x USB 2.0, 2x USB 5Gbps Type A, 1x USB 10Gbps Type C, REAR - 2x USB 2.0, 2x USB 5Gbps Type A, 3x USB 10Gbps Type A, 1x USB 10Gbps Type C

Weight 4 lbs

Limited manufacturer warranty 2 Years

Description

Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium, Gold and Celeron Processors for LGA 1700 socket.

Enhanced Power Design: 16+1+1 DRPS with 80A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost.

Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience.

Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2.

2.5G LAN with Wi-Fi 7 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

Audio Boost 5 - Reward your ears with studio grade sound quality for the most immersive gaming experience.

💯 𝐅𝐑𝐄𝐄 𝐃𝐄𝐋𝐈𝐕𝐄𝐑𝐘 | 🚚 𝐐𝐔𝐈𝐂𝐊 𝐒𝐇𝐈𝐏 | ☎ 𝐆𝐑𝐄𝐀𝐓 𝐂𝐔𝐒𝐓𝐎𝐌𝐄𝐑'𝐒 𝐒𝐔𝐏𝐏𝐎𝐑𝐓

NEW

MSI PRO Z790-A MAX WIFI ProSeries Motherboard,128GB DDR5 Memory, ATX Form Factor, INTEL Z790 Chipset, Support Intel 14th/ 13th/ 12th Gen Core Processors

Regular price: $384.99
Sale price: $384.99
Regular price: ~~$429.99~~
