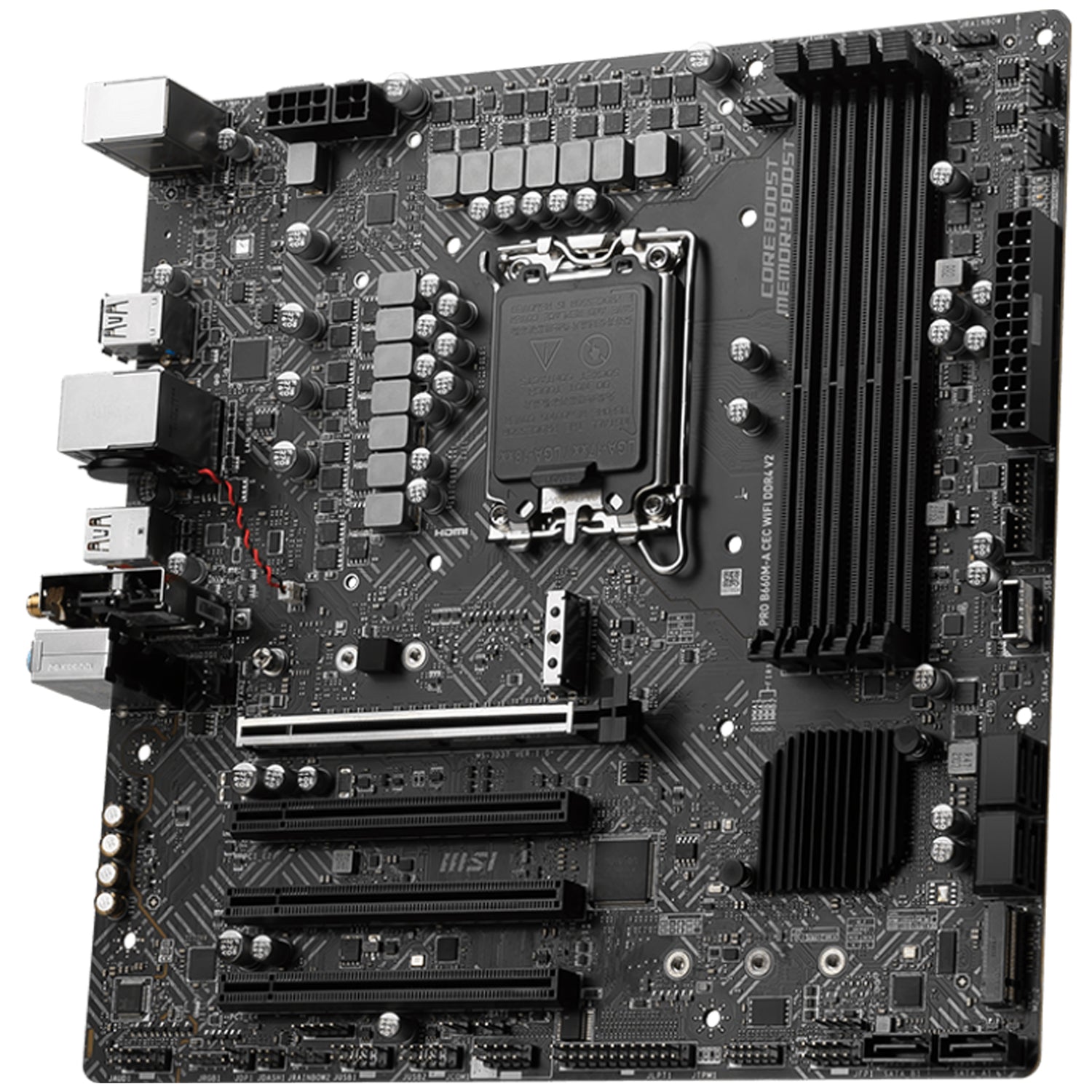

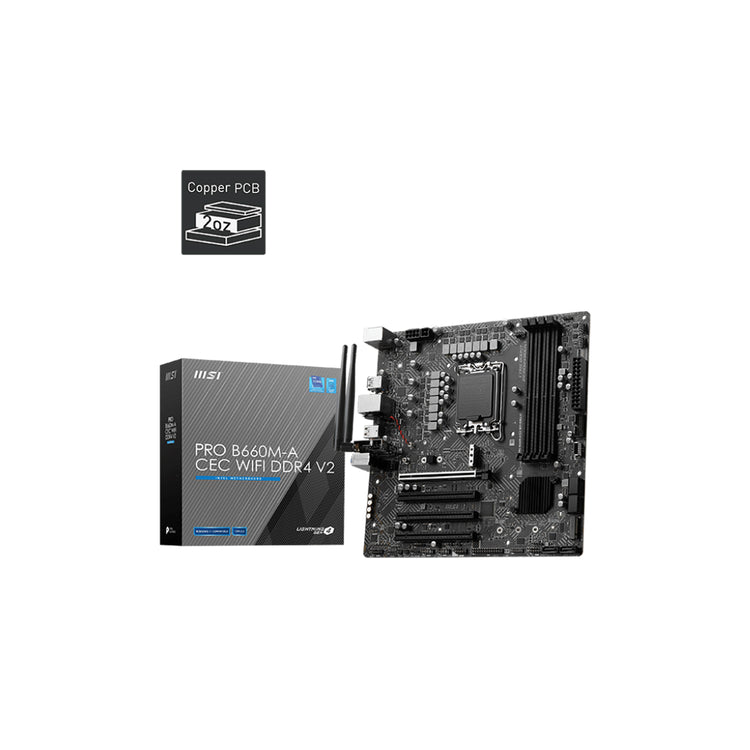

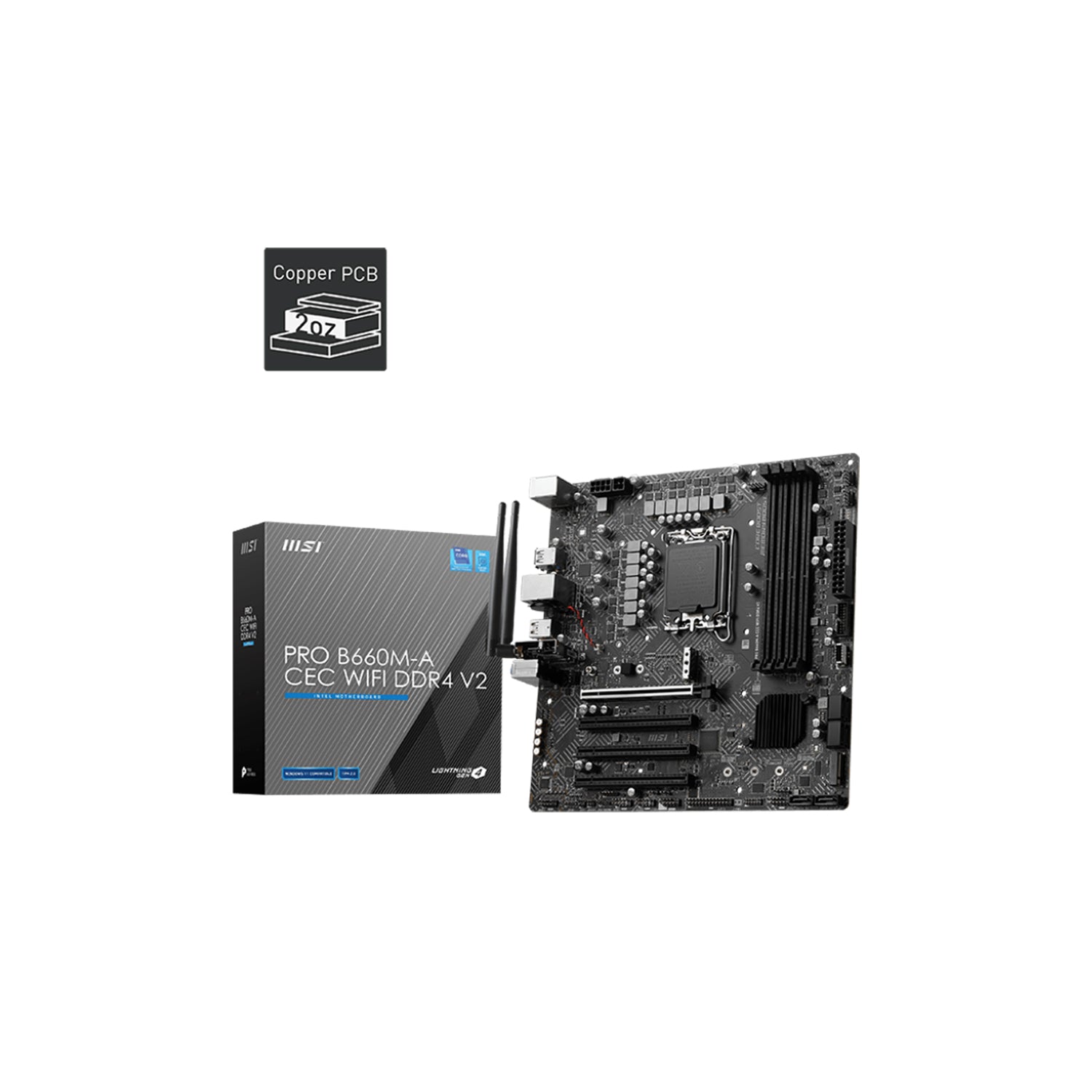

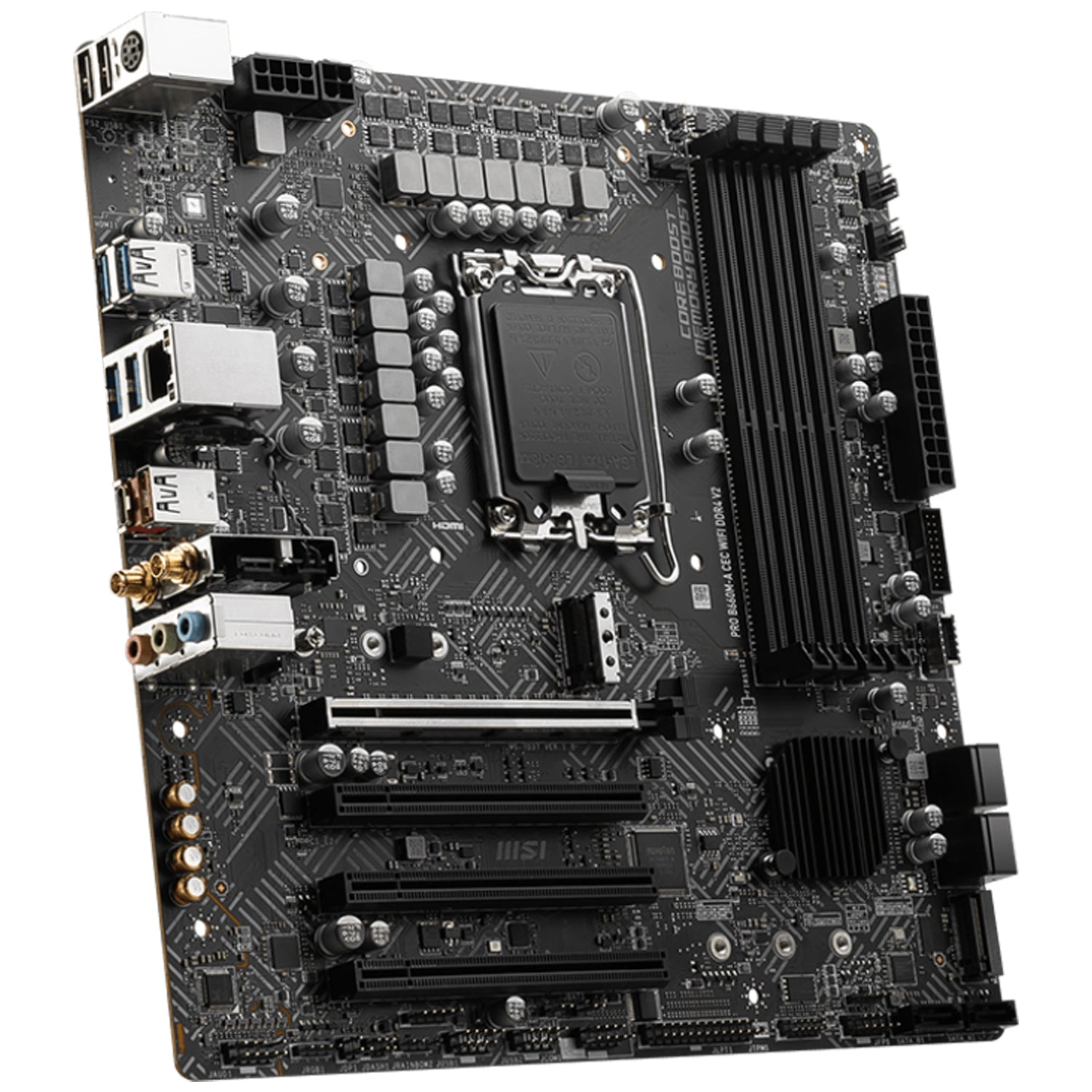

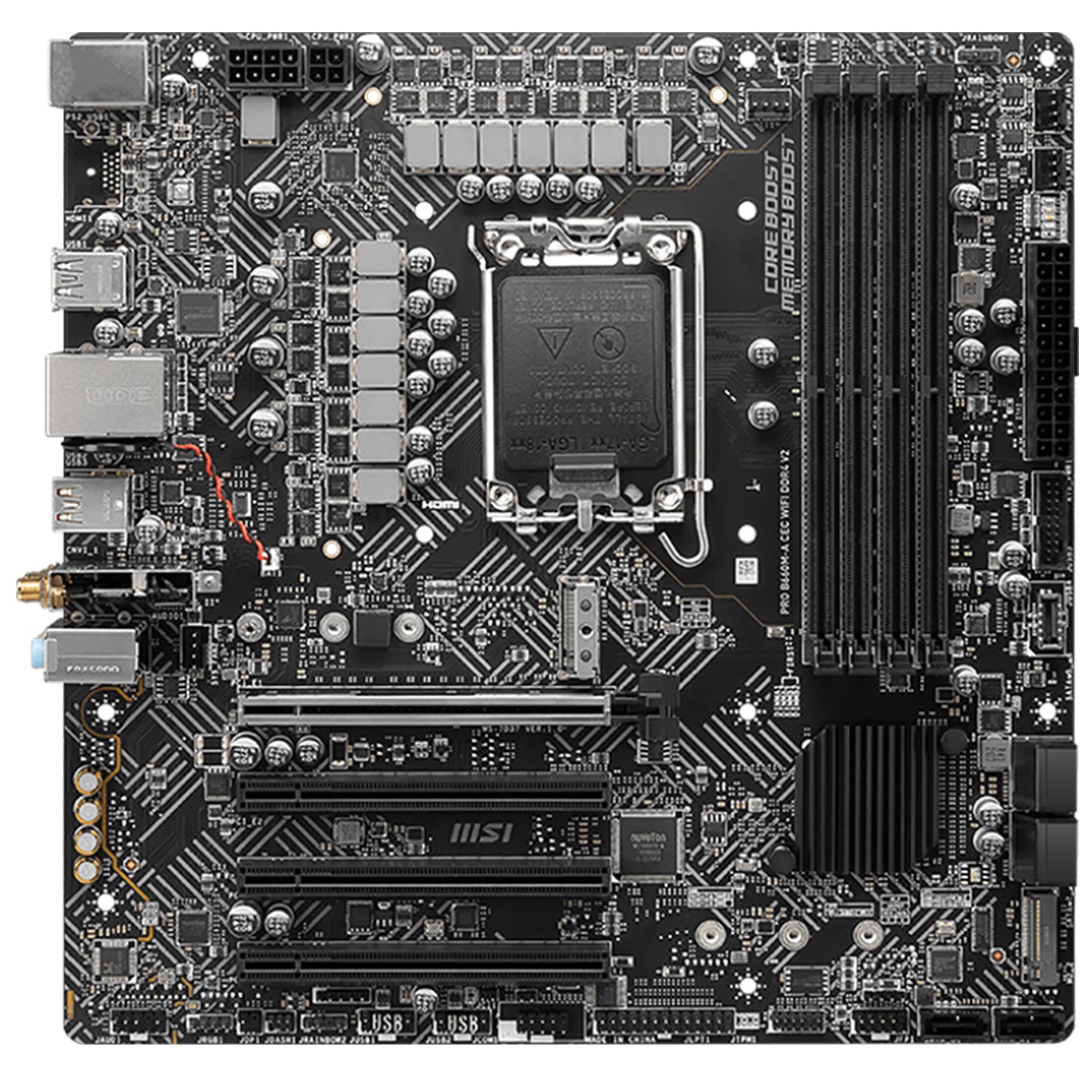

MSI PRO B660M-A CEC WIFI DDR4 V2 Motherboard | LGA 1700 Socket | Support 14th/ 13th/ 12th Gen | mATX Form Factor

About

Description

CPU Type : Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700.

Memory Support : Supports DDR4 Memory, Dual Channel DDR4 4800+MHz (OC).

Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds.

Lightning Fast Game experience : PCIe 4.0 slot, Lightning Gen 4 x4 M.2, 6-layer PCB made by 2oz thickened copper and server grade level material.

Wireless LAN & Bluetooth : Intel Wi-Fi 6E - The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps, Supports Bluetooth 5.3, FIPS, FISMA.

AUDIO BOOST : Realtek ALC897 Codec - 7.1-Channel High Definition Audio Reward your ears with studio grade sound quality for the most immersive gaming experience.

🚚 𝐐𝐔𝐈𝐂𝐊 𝐒𝐇𝐈𝐏 | ☎ 𝐆𝐑𝐄𝐀𝐓 𝐂𝐔𝐒𝐓𝐎𝐌𝐄𝐑'𝐒 𝐒𝐔𝐏𝐏𝐎𝐑𝐓

Characteristics

Brand MSI

Model number PRO B660M-A CEC WIFI DDR4 V2

Socket LGA 1700

Chipset INTEL B660

Form factor mATX

Interface PCLe 4.0 X16

Storage 2 X M.2 Slot And 6x SATA 6Gb/S

Processor brand Intel

Processor model Intel Core Processors, Pentium Gold And Celeron Processors

Processor generation Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold And Celeron Processors

Memory type DDR4

Number of memory slots 4x DDR4 memory slots

Maximum memory Maximum 128GB

Operating system Support For Windows 11 64-Bit / Windows 10 64-Bit

Expansion slots 4x PCIe 4.0 X16 Slot, 1x PCIe 3.0 X1 Slot

I/o ports 1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x CPU Fan, 1x Pump Fan, 2x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Printer Port (JLPT), 1x Com Port (JCOM), 1x Tuning Controller connector(JDASH), 2x Addressable RGB LED connector(JRAINBOW), 1x RGB LED connector(JRGB), 1x TPM pin header(Support TPM 2.0), 4x USB 2.0 ports, 2x USB 5Gbps Type A ports, 1x USB 5Gbps Type C ports

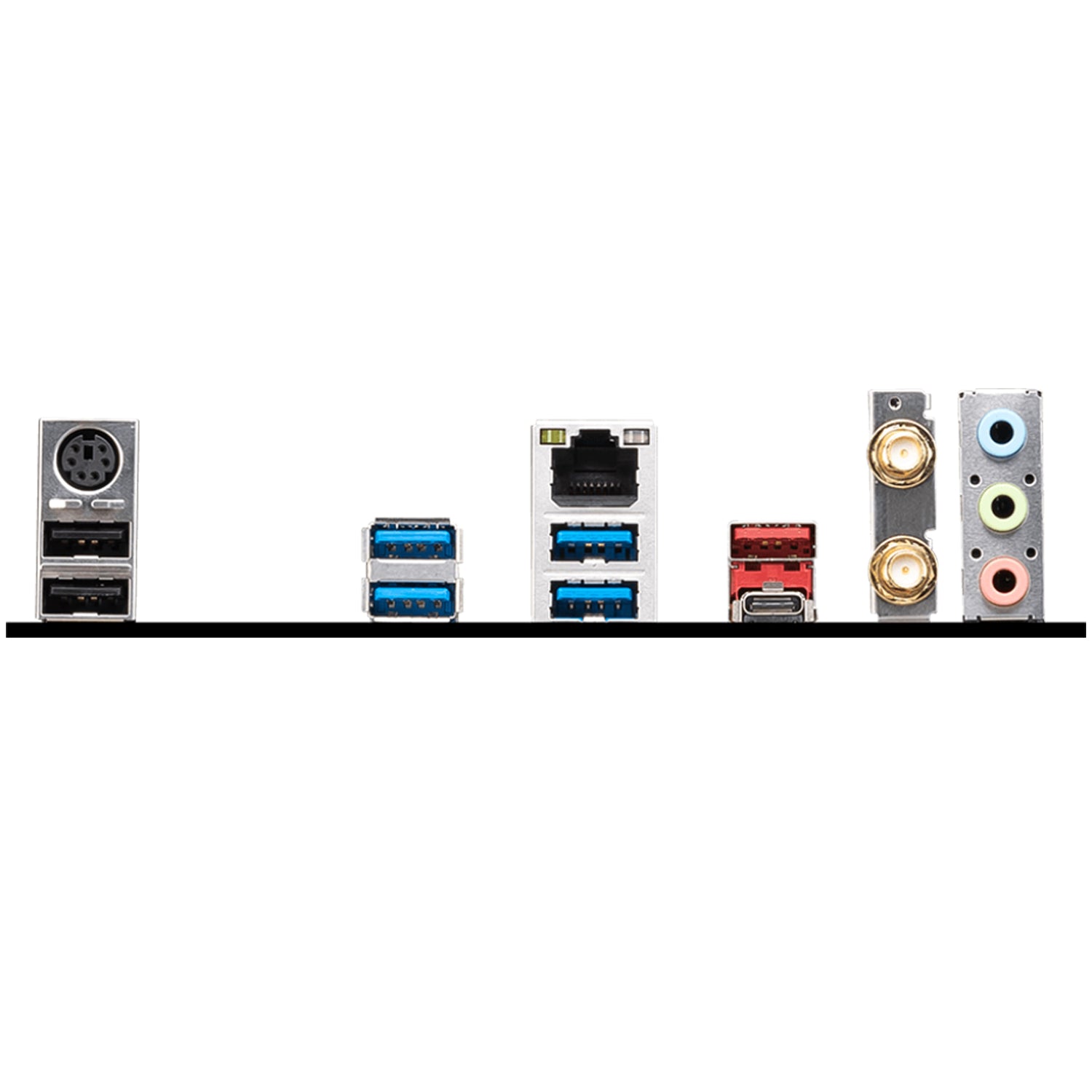

Usb ports (Front) - 1x USB 5Gbps Type C, 2x USB 5Gbps Type A, 4x USB 2.0 / (Back) - 1x USB 10Gbps Type C, 1x USB 10Gbps Type A, 4x USB 5Gbps Type A, 2x USB 2.0

Manufacturer warranty 2 Years

Description

CPU Type : Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700.

Memory Support : Supports DDR4 Memory, Dual Channel DDR4 4800+MHz (OC).

Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds.

Lightning Fast Game experience : PCIe 4.0 slot, Lightning Gen 4 x4 M.2, 6-layer PCB made by 2oz thickened copper and server grade level material.

Wireless LAN & Bluetooth : Intel Wi-Fi 6E - The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps, Supports Bluetooth 5.3, FIPS, FISMA.

AUDIO BOOST : Realtek ALC897 Codec - 7.1-Channel High Definition Audio Reward your ears with studio grade sound quality for the most immersive gaming experience.

🚚 𝐐𝐔𝐈𝐂𝐊 𝐒𝐇𝐈𝐏 | ☎ 𝐆𝐑𝐄𝐀𝐓 𝐂𝐔𝐒𝐓𝐎𝐌𝐄𝐑'𝐒 𝐒𝐔𝐏𝐏𝐎𝐑𝐓

NEW

MSI PRO B660M-A CEC WIFI DDR4 V2 Motherboard | LGA 1700 Socket | Support 14th/ 13th/ 12th Gen | mATX Form Factor

Regular price: $134.99
Sale price: $134.99
Regular price: ~~$194.99~~
