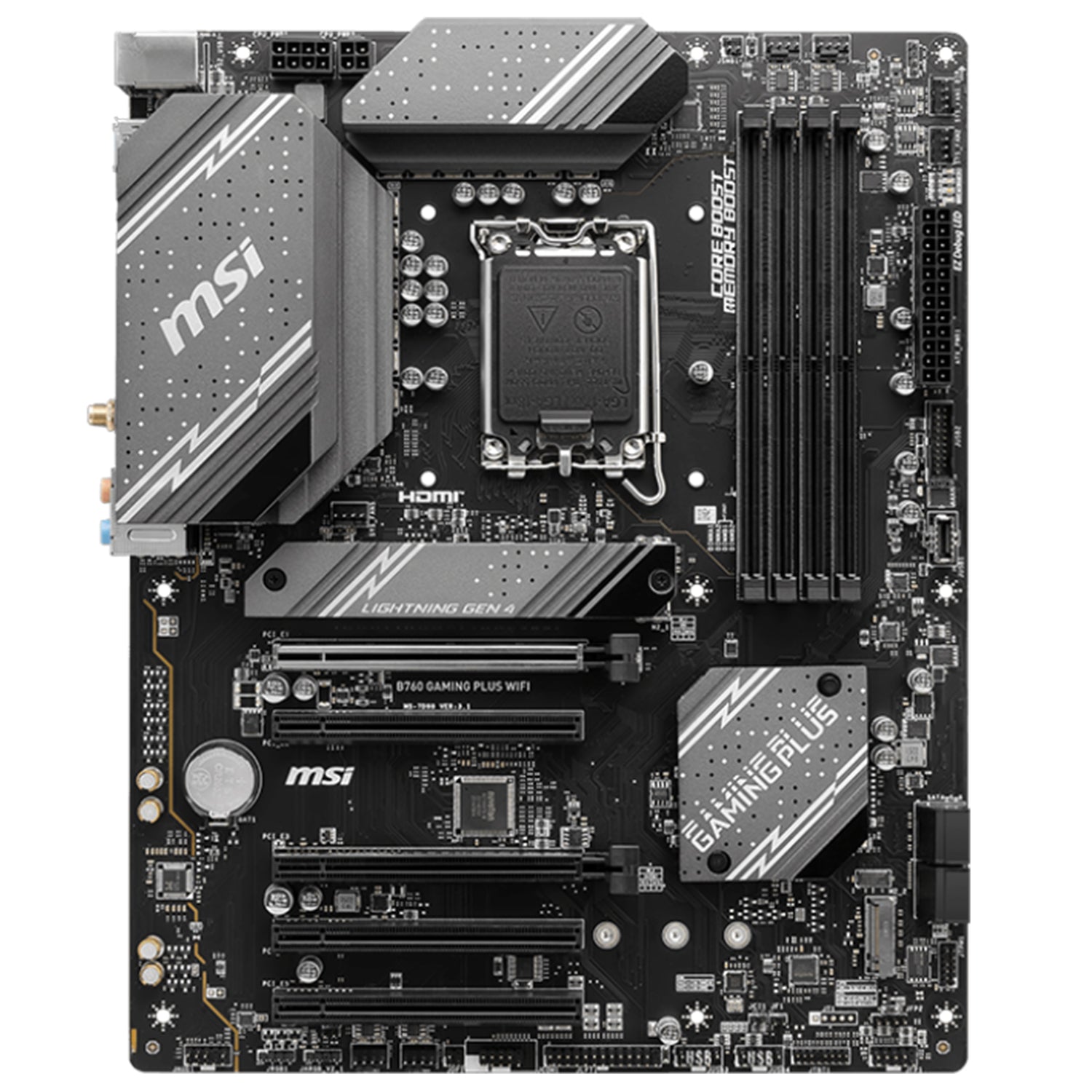

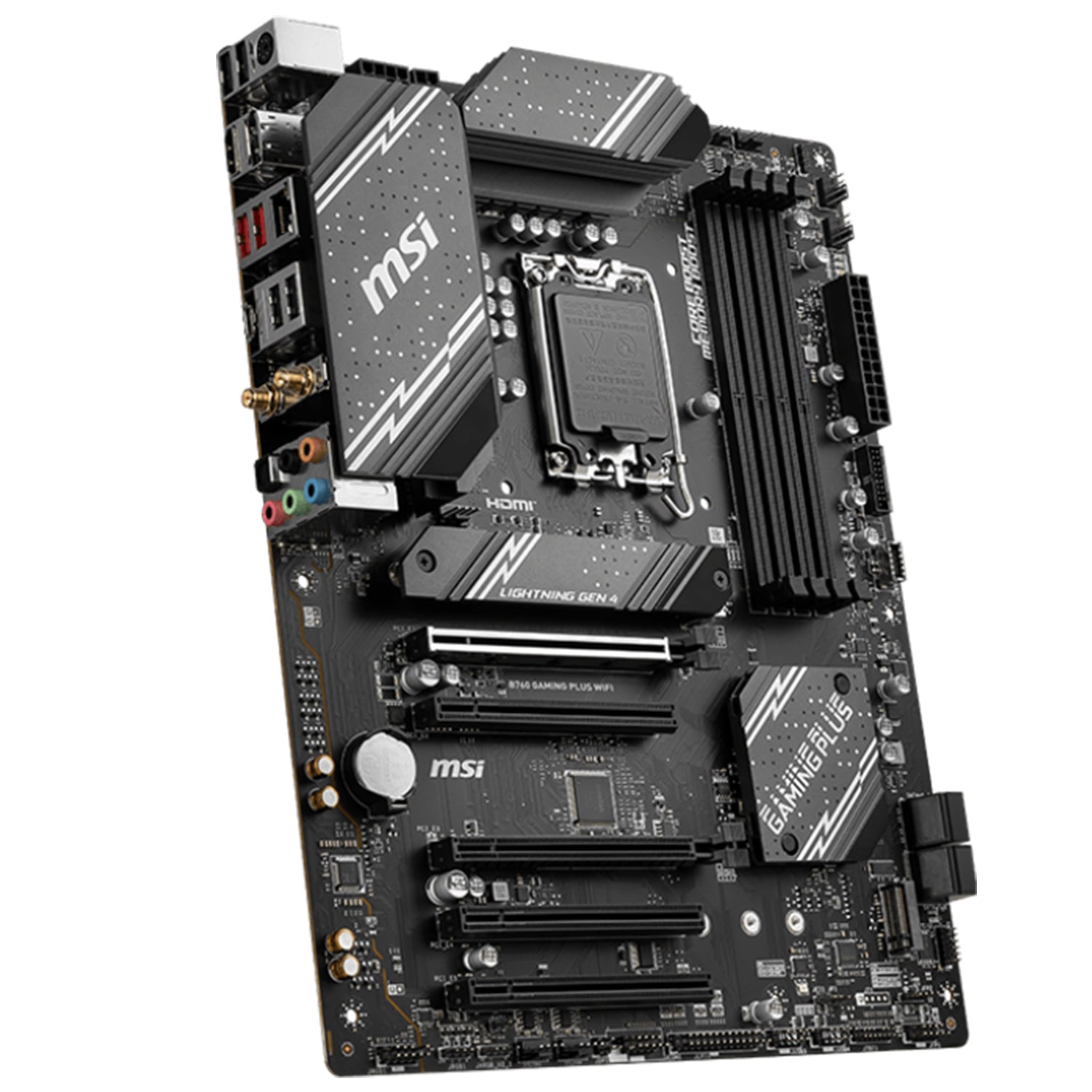

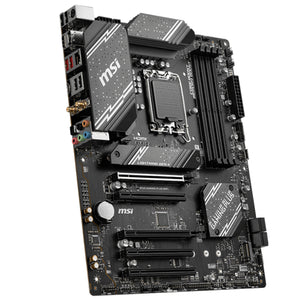

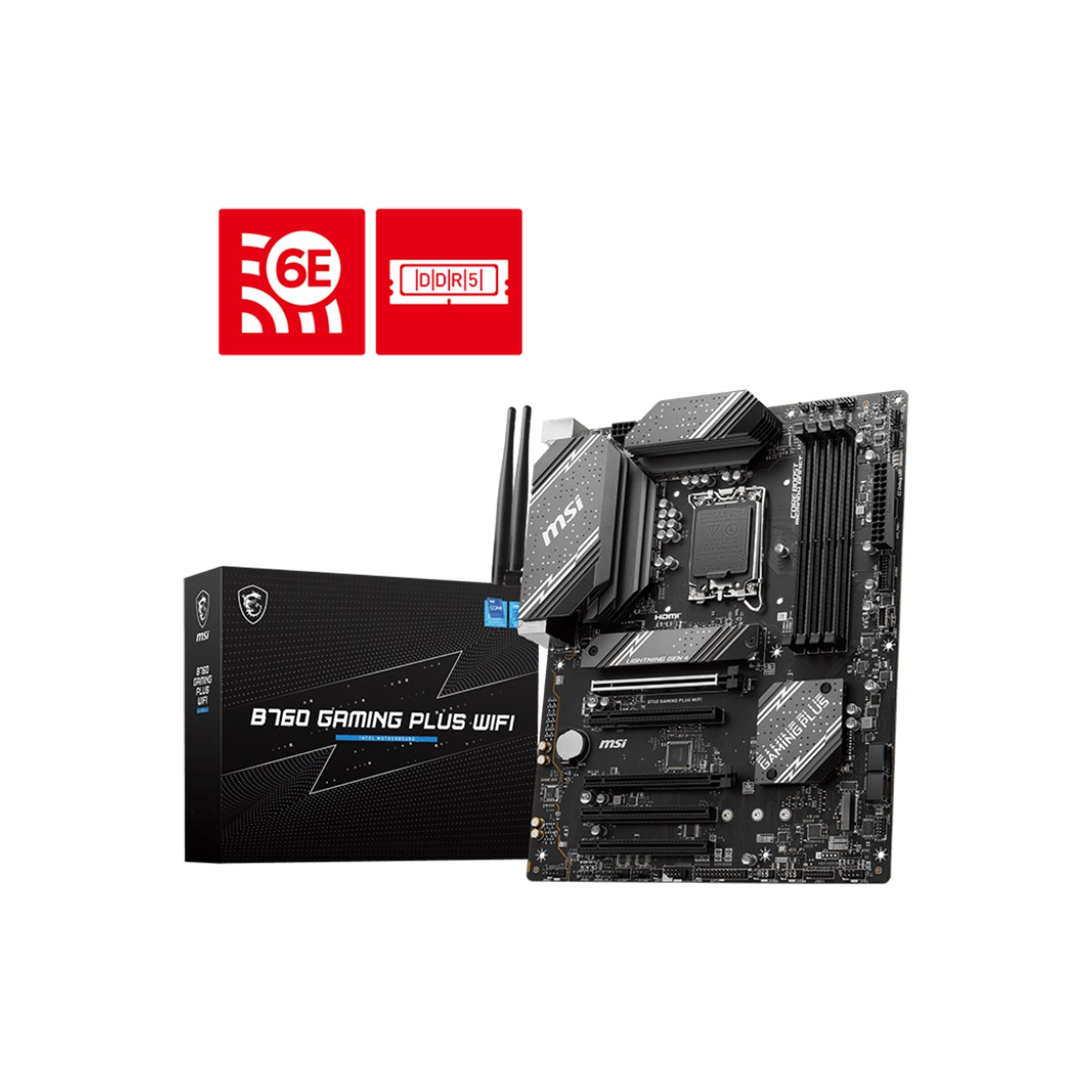

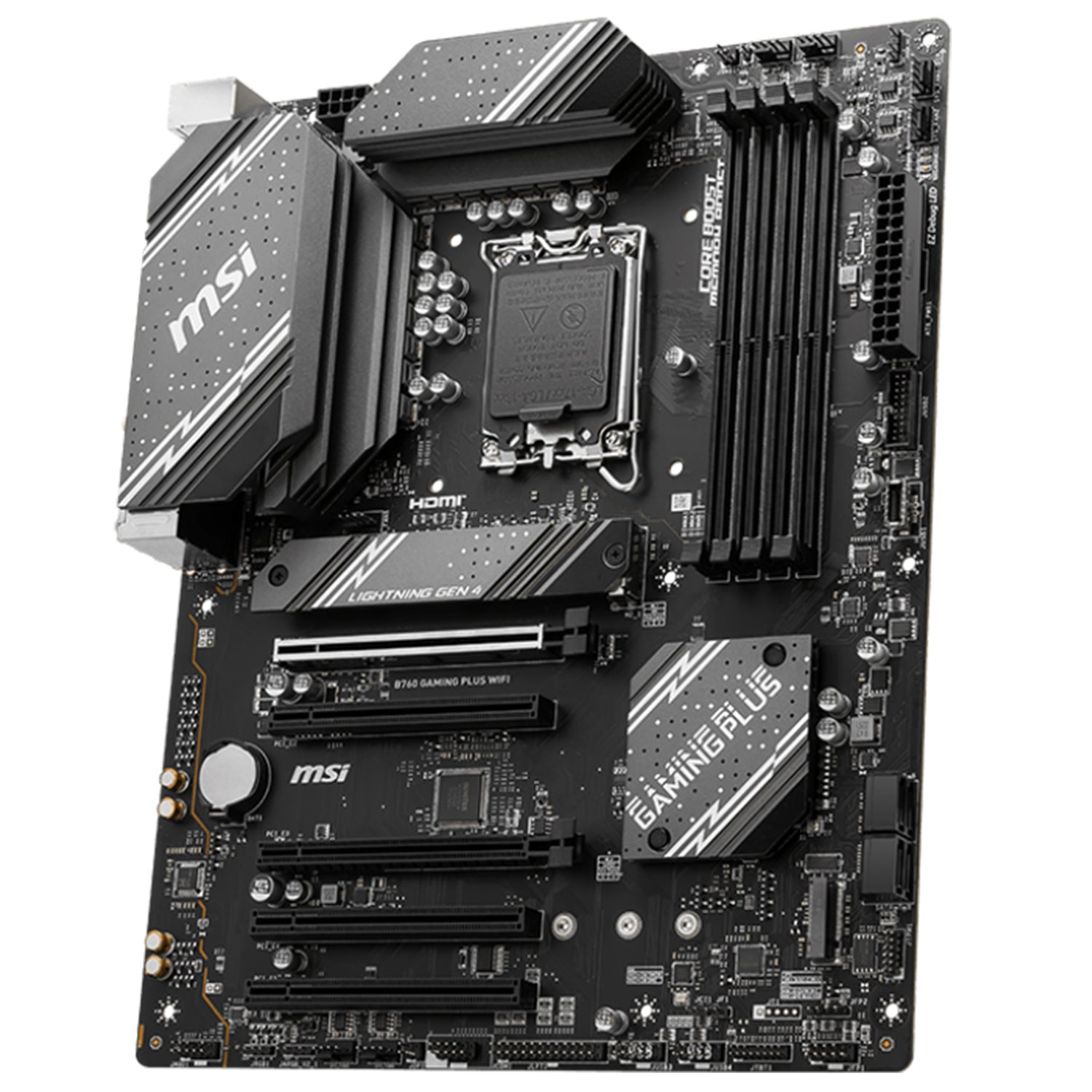

MSI B760 Gaming Plus Wi-Fi Gaming Motherboard - LGA 1700, DDR5 | HDMI / Display Port | Supports 12th/13th/14th Gen Intel Processors

About

Description

Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium, Gold and Celeron Processors for LGA 1700 socket.

Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost.

Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience.

Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, Turbo USB 3.2 Gen 2 10G.

2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.

Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.

💯 𝐅𝐑𝐄𝐄 𝐃𝐄𝐋𝐈𝐕𝐄𝐑𝐘 | 🚚 𝐐𝐔𝐈𝐂𝐊 𝐒𝐇𝐈𝐏 | ☎ 𝐆𝐑𝐄𝐀𝐓 𝐂𝐔𝐒𝐓𝐎𝐌𝐄𝐑'𝐒 𝐒𝐔𝐏𝐏𝐎𝐑𝐓

Characteristics

Brand MSI

Model number B760 GAMING PLUS WIFI

Socket LGA 1700

Chipset INTEL B760

Form factor ATX (243.84mmx304.8mm)

Interface 5x PCL-E X16 slot

Storage 2 X M.2 Slot And 4x SATA 6G

Processor brand Intel

Processor model Intel Core Processors, Pentium Gold And Celeron Processors

Processor generation Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold And Celeron Processors

Memory type DDR5

Number of memory slots 4x DDR5 Memory Slots

Maximum memory Maximum 256GB

Wireless lan - bluetooth Wi-Fi 6E (Supports 802.11 a/ b/ g/ n/ ac/ ax) - Bluetooth 5.3 (FIPS, FISMA)

Operating system Support For Windows 11 64-Bit / Windows 10 64-Bit

Lan Realtek RTL8125BG 2.5G LAN

I/o ports 1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x CPU Fan, 1x Pump Fan, 5x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Printer Port (JLPT), 1x Com Port (JCOM), 2x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector(JRGB), 1x TPM pin header(Support TPM 2.0), 4x USB 2.0 ports, 2x USB 5Gbps Type A ports, 1x USB 5Gbps Type C ports

Audio ports Realtek ALC897 Codec, 7.1-Channel High Definition Audio, Supports S/PDIF output

Video output 1x Display Port, 1x HDMI

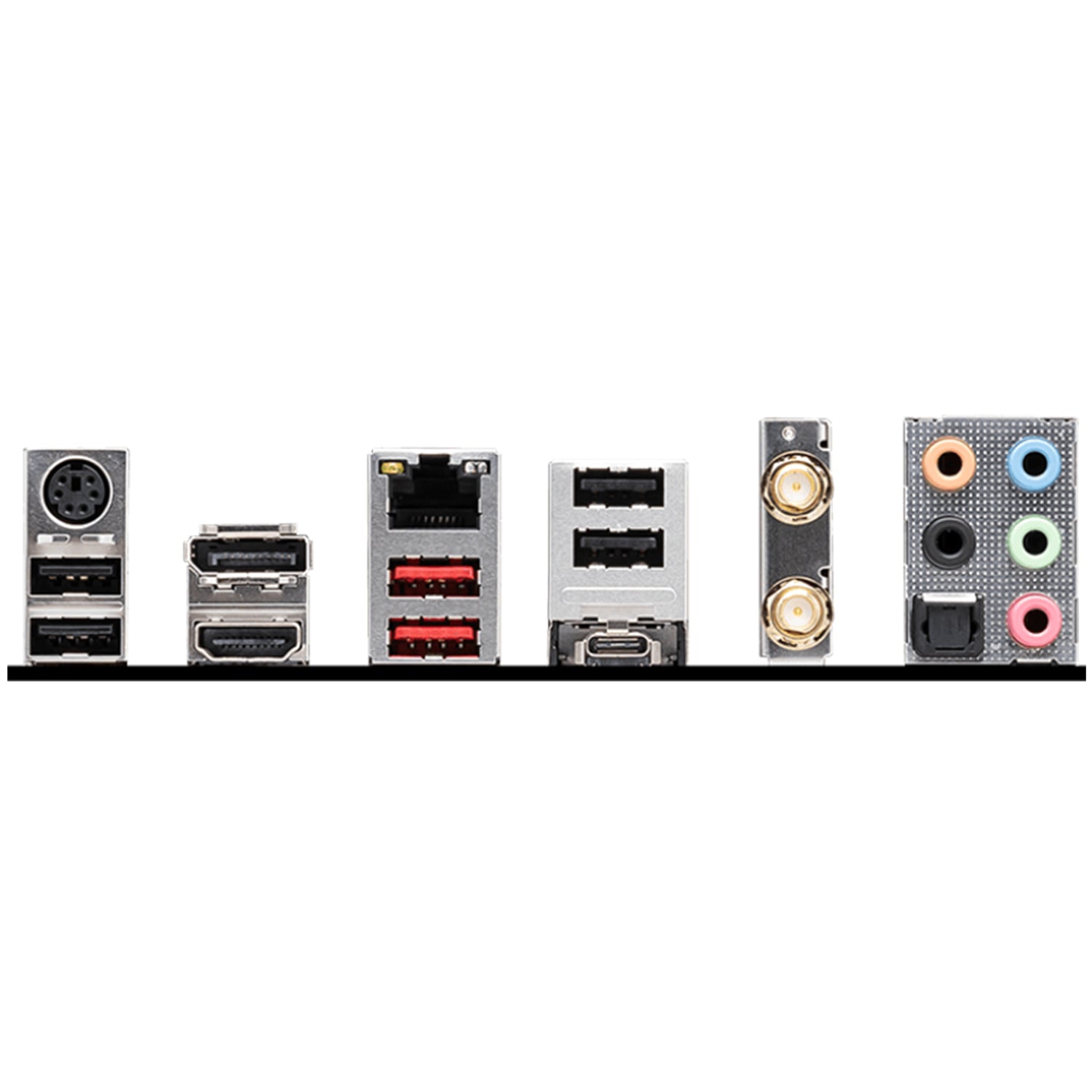

Usb ports FRONT - 4x USB 2.0, 2x USB 5Gbps Type A, 1x USB 5Gbps Type C, REAR - 4x USB 2.0, 2x USB 10Gbps Type A, 1x USB 10Gbps Type C

Weight 5lbs

Limited manufacturer warranty 2 Years

Description

Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium, Gold and Celeron Processors for LGA 1700 socket.

Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost.

Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience.

Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, Turbo USB 3.2 Gen 2 10G.

2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.

Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.

💯 𝐅𝐑𝐄𝐄 𝐃𝐄𝐋𝐈𝐕𝐄𝐑𝐘 | 🚚 𝐐𝐔𝐈𝐂𝐊 𝐒𝐇𝐈𝐏 | ☎ 𝐆𝐑𝐄𝐀𝐓 𝐂𝐔𝐒𝐓𝐎𝐌𝐄𝐑'𝐒 𝐒𝐔𝐏𝐏𝐎𝐑𝐓

NEW

MSI B760 Gaming Plus Wi-Fi Gaming Motherboard - LGA 1700, DDR5 | HDMI / Display Port | Supports 12th/13th/14th Gen Intel Processors

Regular price: $254.99
Sale price: $254.99
Regular price: ~~$304.99~~
