About
Description
- Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors.
- Enhanced Power Design: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost.
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop work.
- Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2x2 20G.
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.
-
💯 𝐅𝐑𝐄𝐄 𝐃𝐄𝐋𝐈𝐕𝐄𝐑𝐘 | 🚚 𝐐𝐔𝐈𝐂𝐊 𝐒𝐇𝐈𝐏 | ☎ 𝐆𝐑𝐄𝐀𝐓 𝐂𝐔𝐒𝐓𝐎𝐌𝐄𝐑'𝐒 𝐒𝐔𝐏𝐏𝐎𝐑𝐓
Characteristics
Brand
MSI
Model
B650 GAMING PLUS WIFI
Socket
AM5 Socket
Chipset
AMD B650
Form factor
ATX (243.84mmx304.8mm)
Interface
2 x PCI-E x16 slot, 1x PCI-E x1 slot
Storage
2 x M.2 slots and 4 x SATA 6G
Processor brand
AMD
Processor type
AMD Ryzen
Processor generation
AMD Ryzen 9000 Series/ 8000 Series/ 7000 Series Processors
Memory type
DDR5
Number of memory slots
4 X DDR5 Memory Slots
Maximum memory
Maximum 256GB
Wireless lan - bluetooth
AMD Wi-Fi 6E (Supports 802.11 a, b, g, n, ac, ax) - BLUETOOTH 5.3
Operating system
Lan
Realtek 8125BG 2.5G LAN
I/o ports
1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x CPU Fan, 1x Pump Fan, 4x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Com Port (JCOM), 1x Tuning Controller connector(JDASH), 2x Addressable V2 RGB LED connector (JARGB_V2), 2x RGB LED connector(JRGB), 1x TPM pin header(Support TPM 2.0), 4x USB 2.0 ports, 2x USB 5Gbps Type A ports, 1x USB 10Gbps Type C ports

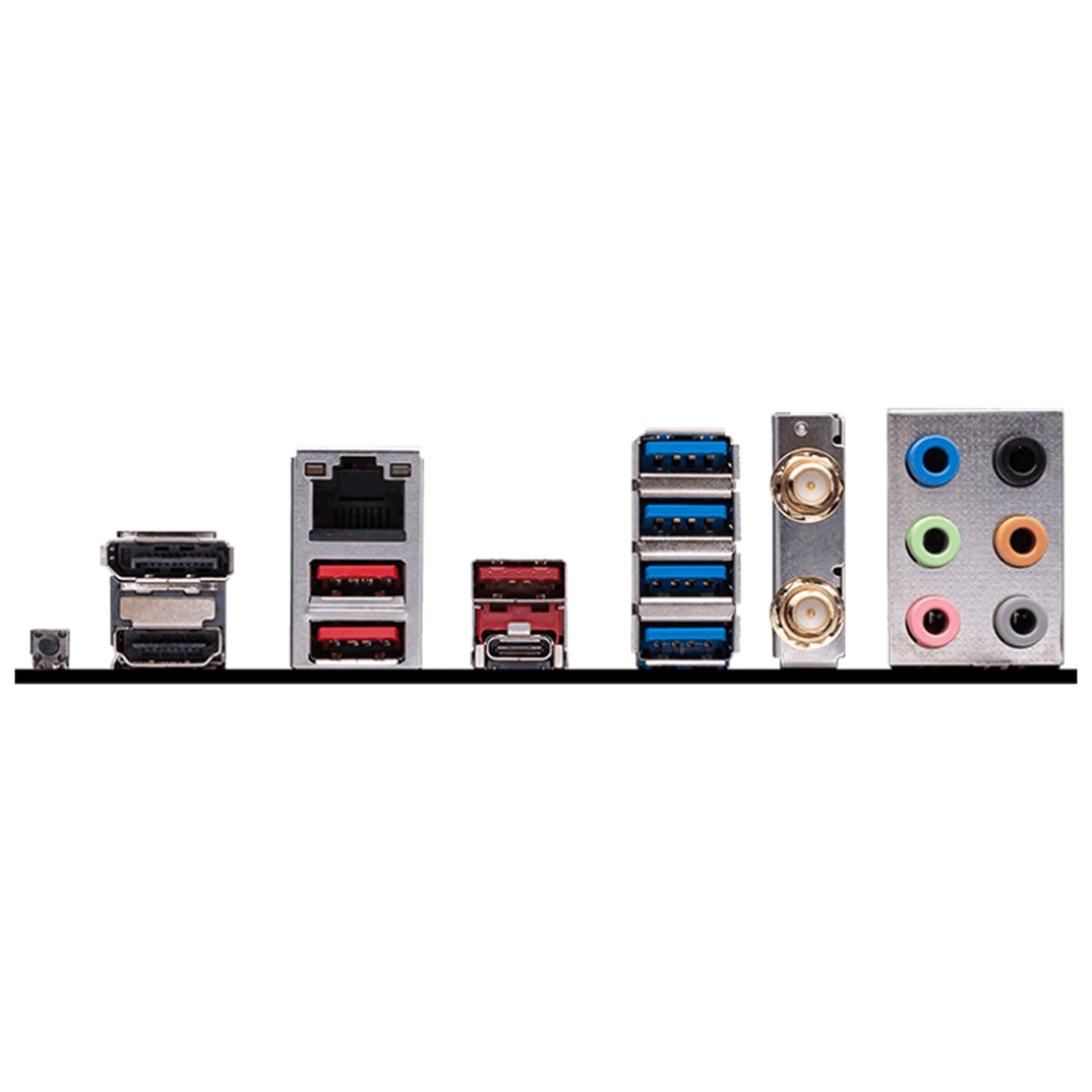

Back panel ports
1 x DisplayPort, 1 x HDMI Port, 2.5G LAN, Wi-Fi / Bluetooth, Audio connectors, Flash BIOS Button, USB 3.2 Gen 2 10Gbps (Type-A), USB 3.2 Gen 1 5Gbps (Type-A), USB 3.2 Gen 2 10Gbps (Type-A), USB 3.2 Gen 2x2 20Gbps (Type-C)
Usb ports
FRONT : 4x USB 2.0, 2x USB 5Gbps Type A, 1x USB 10Gbps Type C / REAR : 4x USB 5Gbps Type A, 3x USB 10Gbps Type A, 1x USB 20Gbps Type C
Weight
4lbs
Limited manufacturer warranty
2 Years
Description
- Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors.
- Enhanced Power Design: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost.
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop work.
- Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2x2 20G.
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.
-
💯 𝐅𝐑𝐄𝐄 𝐃𝐄𝐋𝐈𝐕𝐄𝐑𝐘 | 🚚 𝐐𝐔𝐈𝐂𝐊 𝐒𝐇𝐈𝐏 | ☎ 𝐆𝐑𝐄𝐀𝐓 𝐂𝐔𝐒𝐓𝐎𝐌𝐄𝐑'𝐒 𝐒𝐔𝐏𝐏𝐎𝐑𝐓
NEW

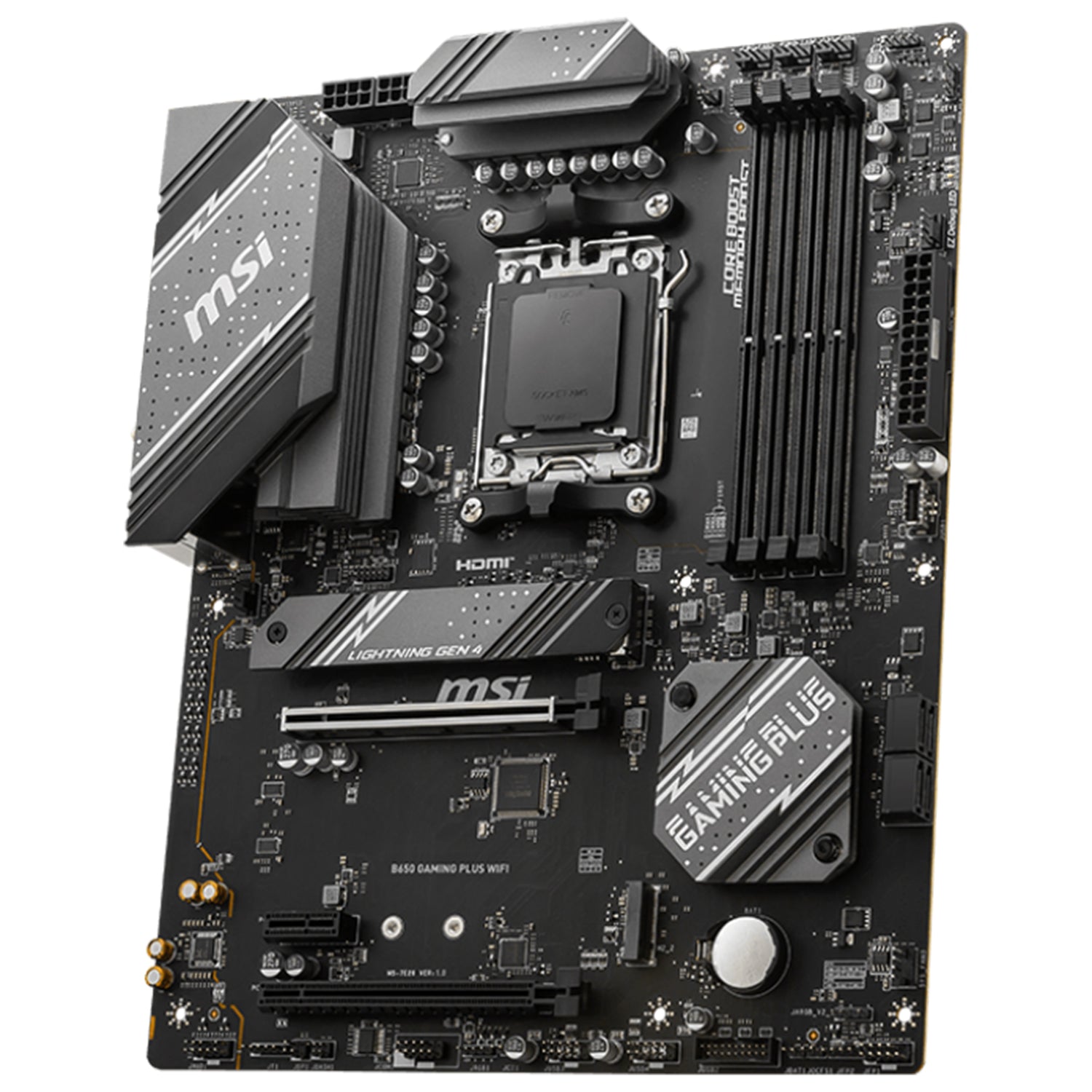

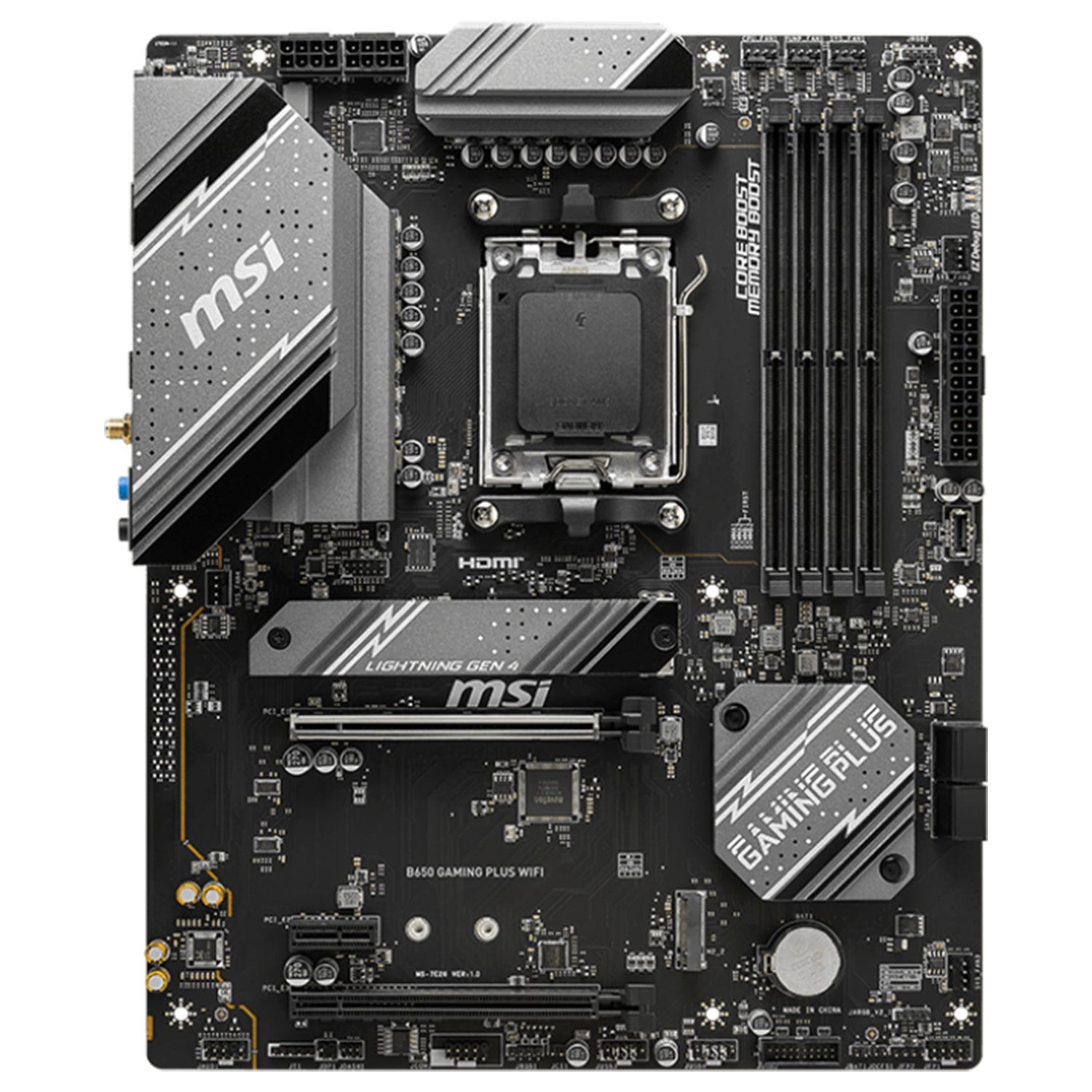

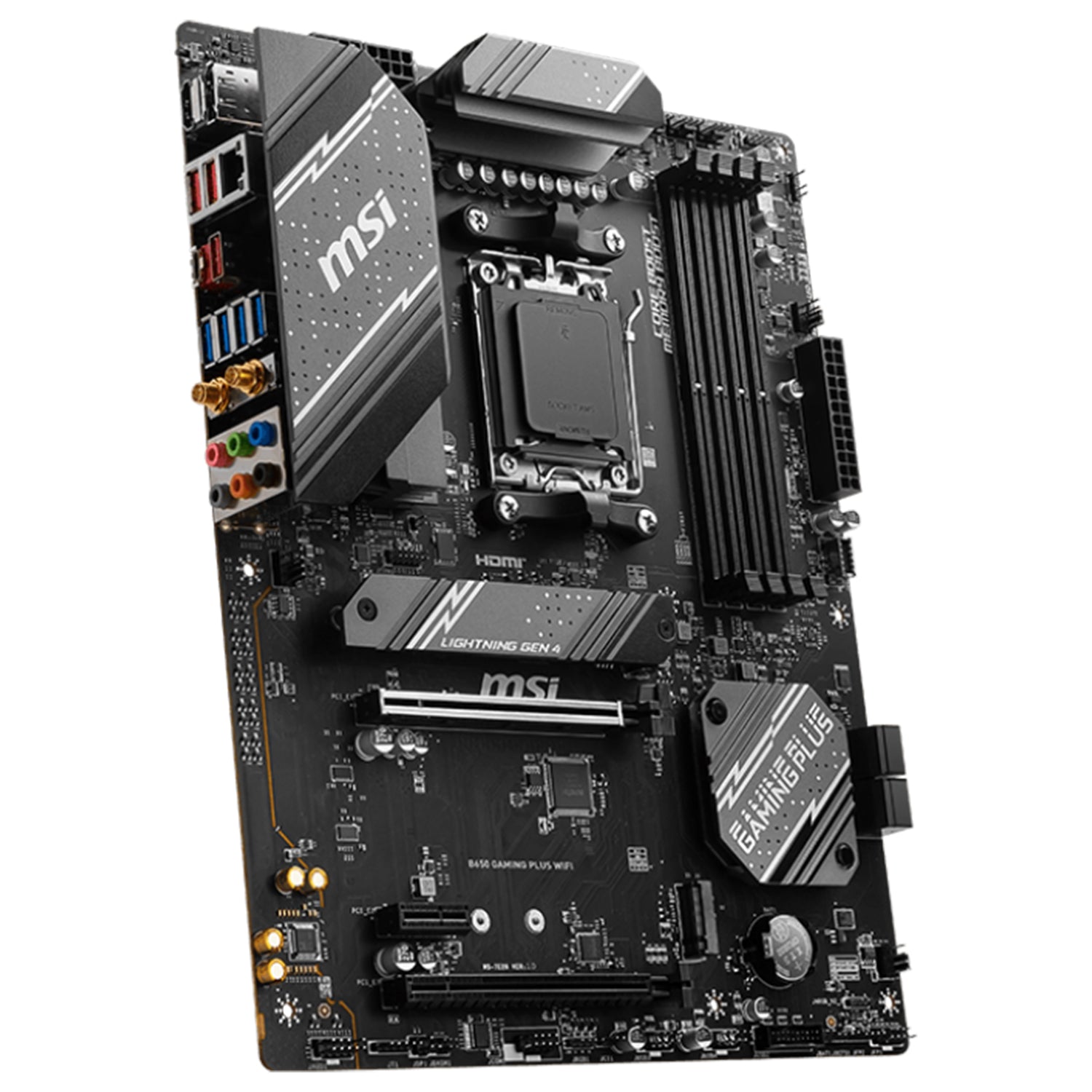

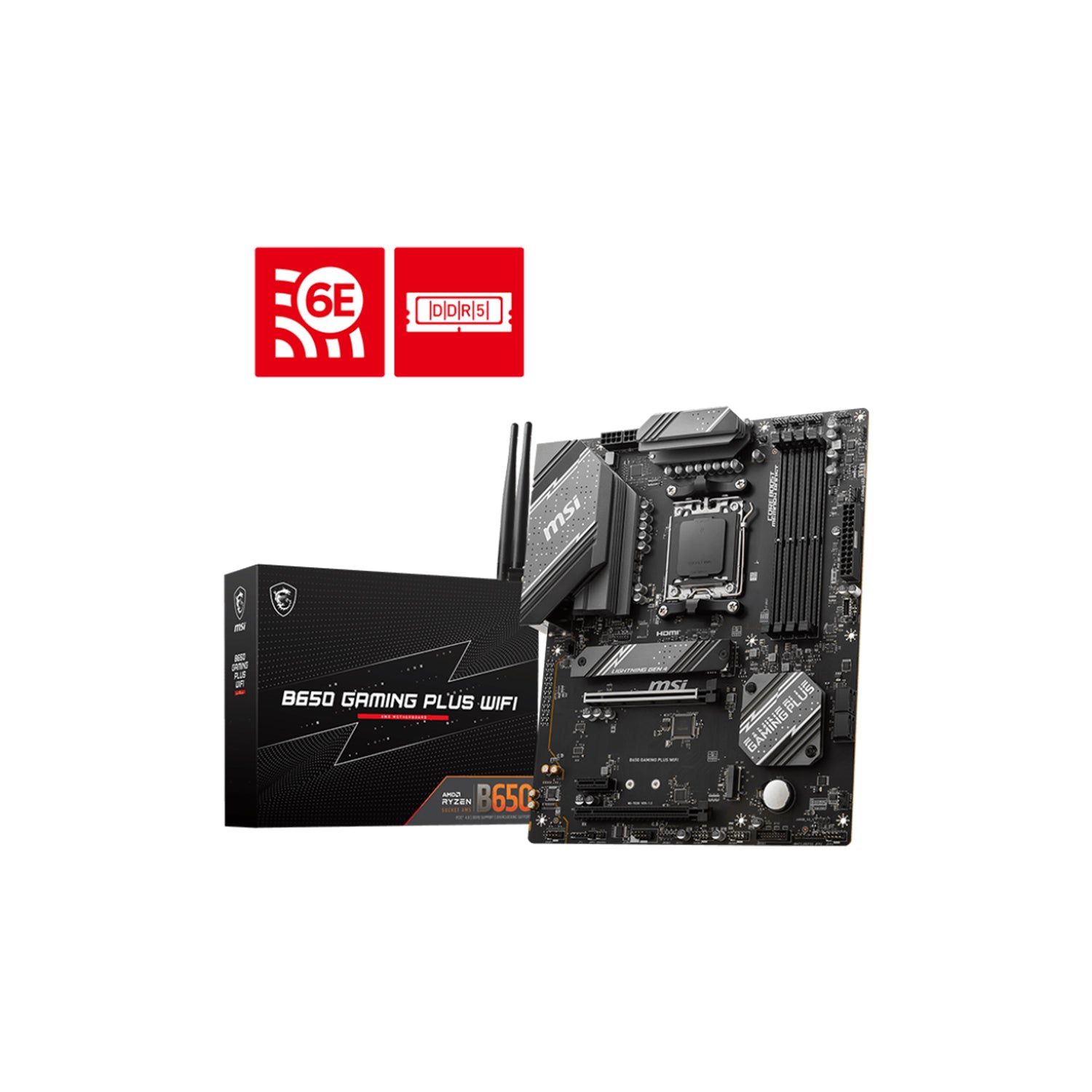

MSI B650 Gaming Plus WIFI Motherboard, ATX - Supports AMD Ryzen 9000/ 8000/ 7000 Series Processors, 256GB DDR5 Max Memory, AM5 Socket, HDMI | DisplayPort
