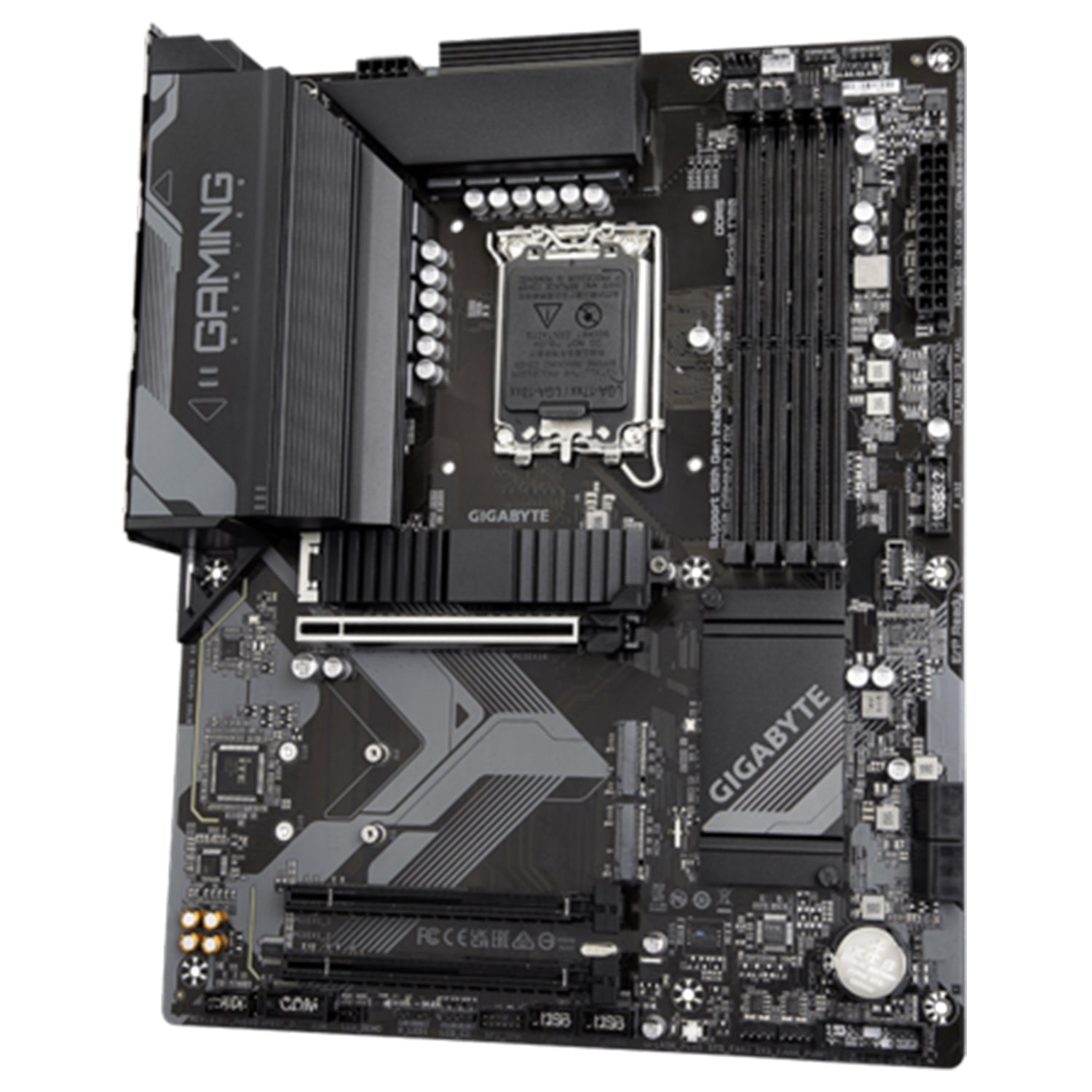

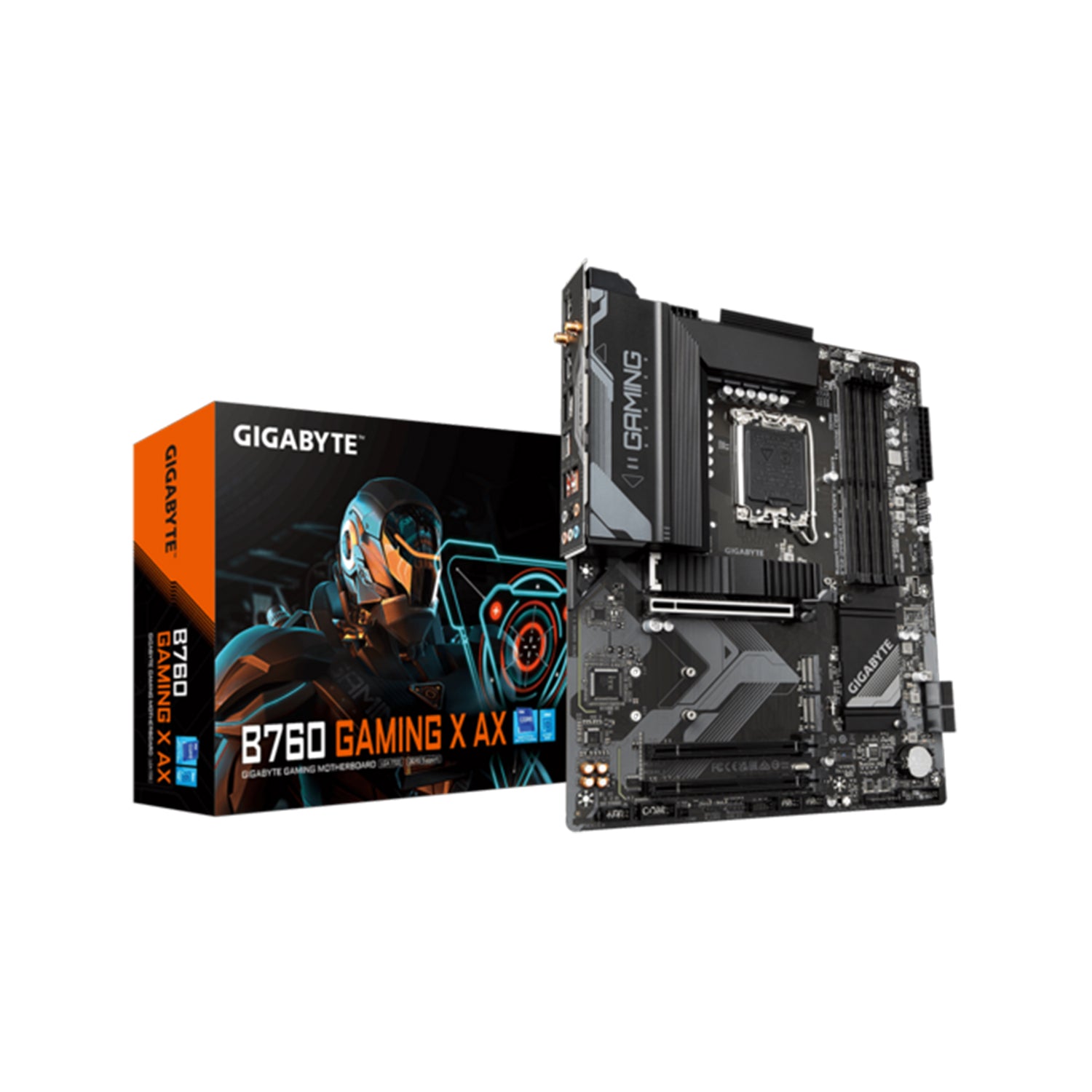

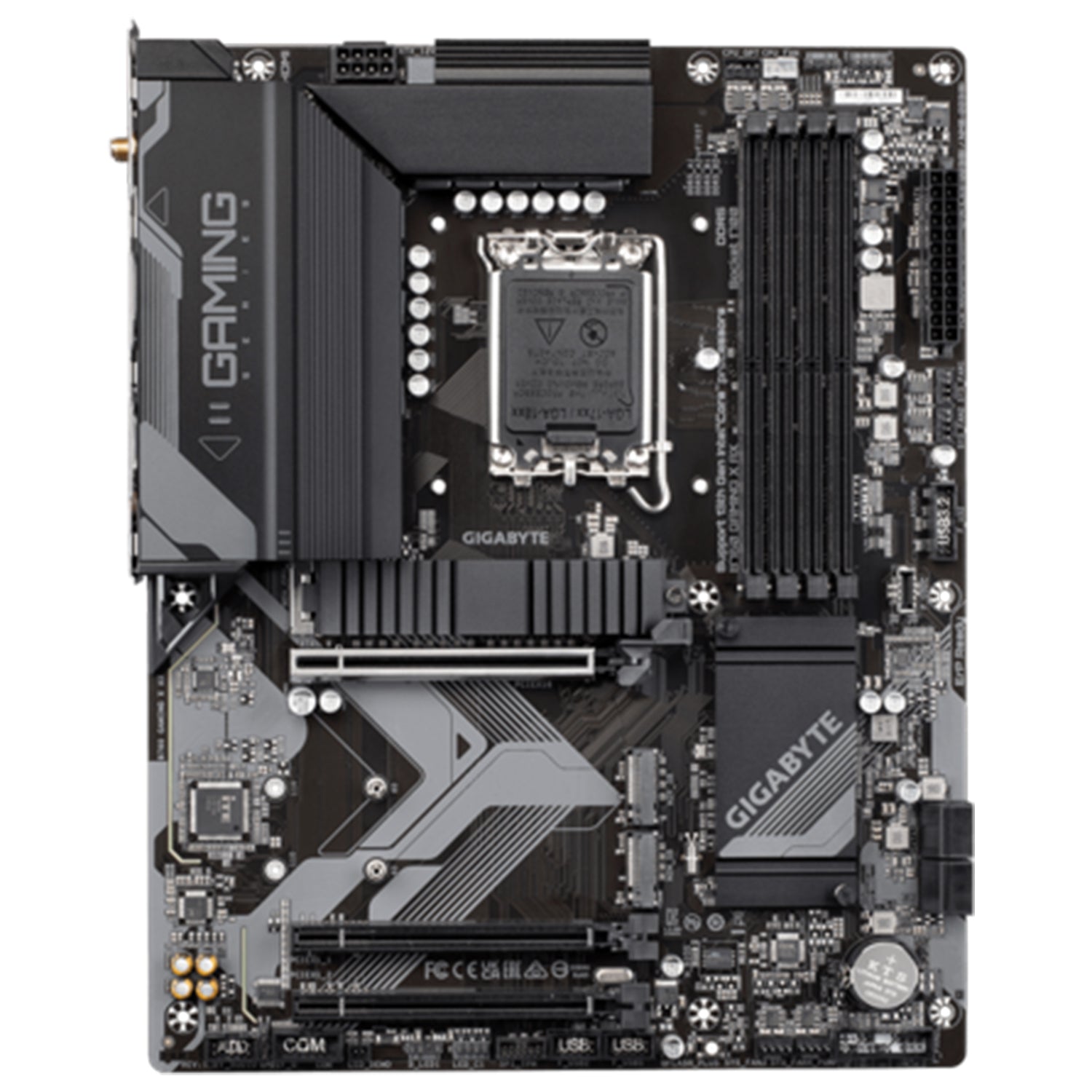

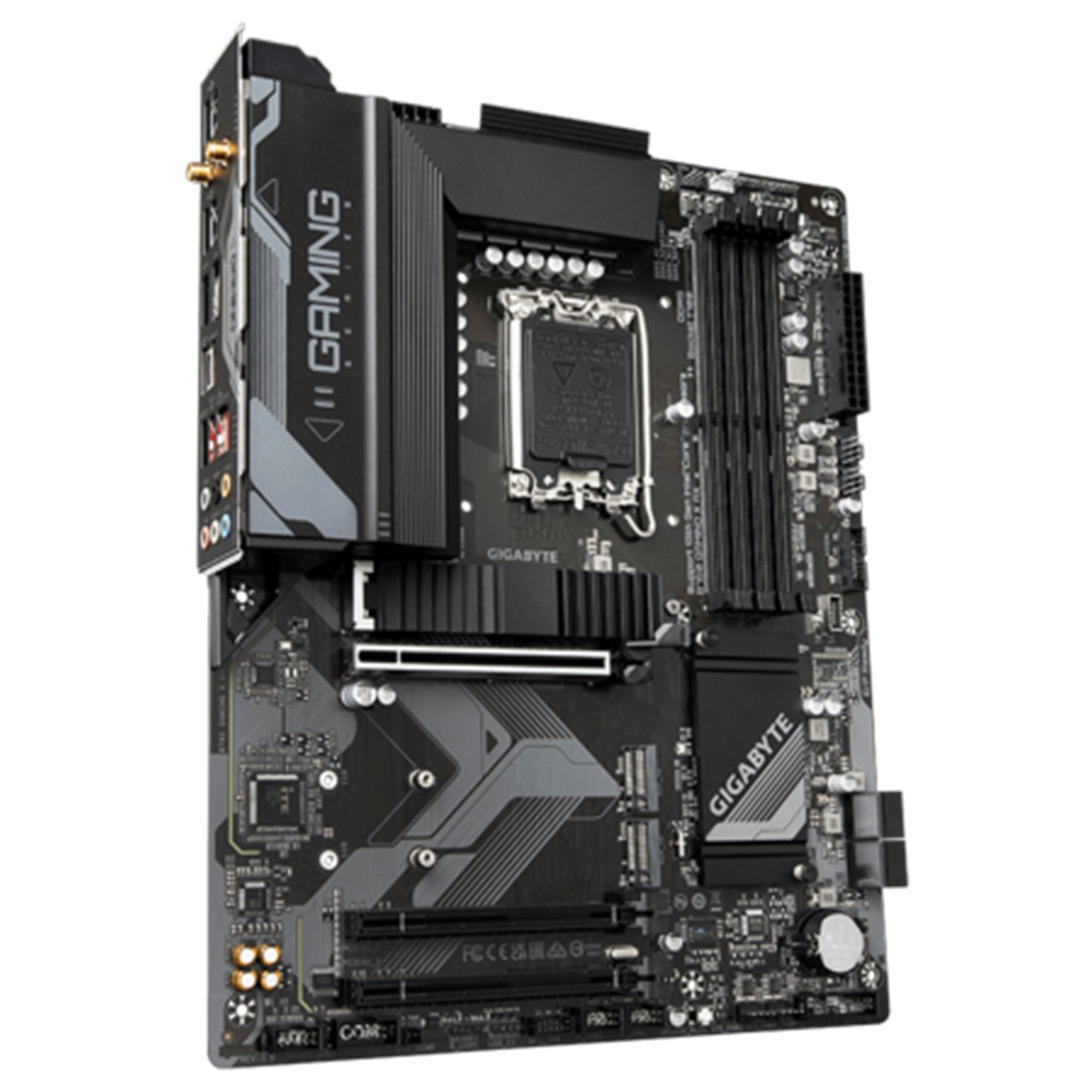

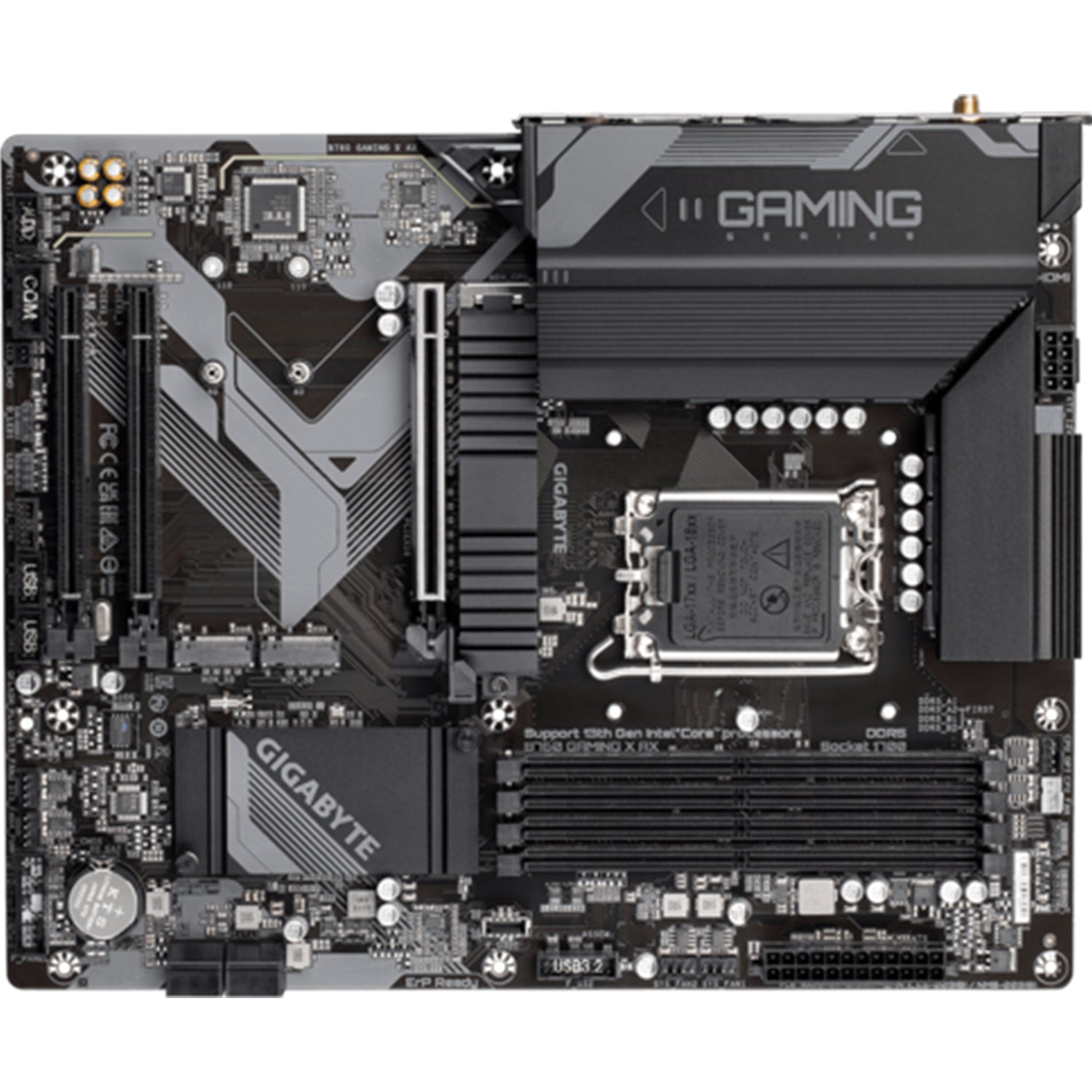

GIGABYTE B760 Gaming X AX Motherboard, ATX - Supports 14th/13th/12th Gen Intel Processors, 256GB DDR5 Max Memory, PCLe 4.0 With Wi-Fi 6E, HDMI / Display Port

About

Description

GIGABYTE B760 GAMING X AX: Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium, Gold and Celeron Processors for LGA 1700 socket.

Dual Channel DDR5: 4x DIMMs & Intel XMP Memory Module Support.

Outstanding Thermal Design: GIGABYTE motherboards ensure unthrottled performance and stability with an advanced thermal design that maintains low temperatures during full-load applications and gaming.

Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.

Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card.

Form Factor: ATX (30.5cm x 24.4cm), offering ample space for components and expandability.

Chipset: Intel B760, providing a robust foundation for gaming, overclocking, and general computing tasks.

💯 𝐅𝐑𝐄𝐄 𝐃𝐄𝐋𝐈𝐕𝐄𝐑𝐘 | 🚚 𝐐𝐔𝐈𝐂𝐊 𝐒𝐇𝐈𝐏 | ☎ 𝐆𝐑𝐄𝐀𝐓 𝐂𝐔𝐒𝐓𝐎𝐌𝐄𝐑'𝐒 𝐒𝐔𝐏𝐏𝐎𝐑𝐓

Characteristics

Brand GIGABYTE

Model B760M GAMING X AX

Socket LGA 1700

Chipset ‎ INTEL B760 Express

Form factor ATX 30.5cm x 24.4cm

Interface 1 x PCIe Express x16 slot

Storage CPU - 1 x M.2 Connectors / Chipset - 2 x M.2 Connectors, 4 x SATA 6Gb/s Connectors

Processor brand Intel

Processor model Intel Core Processors, Pentium Gold And Celeron Processors

Processor generation Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold And Celeron Processors

Memory type DDR5

Number of memory slots 4 X DIMM Slots

Maximum memory Maximum 256GB

Wireless module Wi-Fi 6E (a, b, g, n, ac, ax) supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 / Support for 11ax 160MHz wireless standard

Operating system Support For Windows 11 64-Bit / Windows 10 64-Bit

Lan Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

I/o ports 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header,1 x CPU fan/water cooling pump header, 3 x system fan headers, 1 x system fan/water cooling pump header, 2 x addressable LED strip headers, 2x RGB LED strip header, 3 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header, 1 x USB Type-C header, with USB 3.2 Gen 2 support, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x Trusted Platform Module header, 1 x serial port header, 1 x Q-Flash Plus button, 1 x reset jumper, 1 x Clear CMOS jumper

Expansion slots CPU - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) / Chipset - 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)

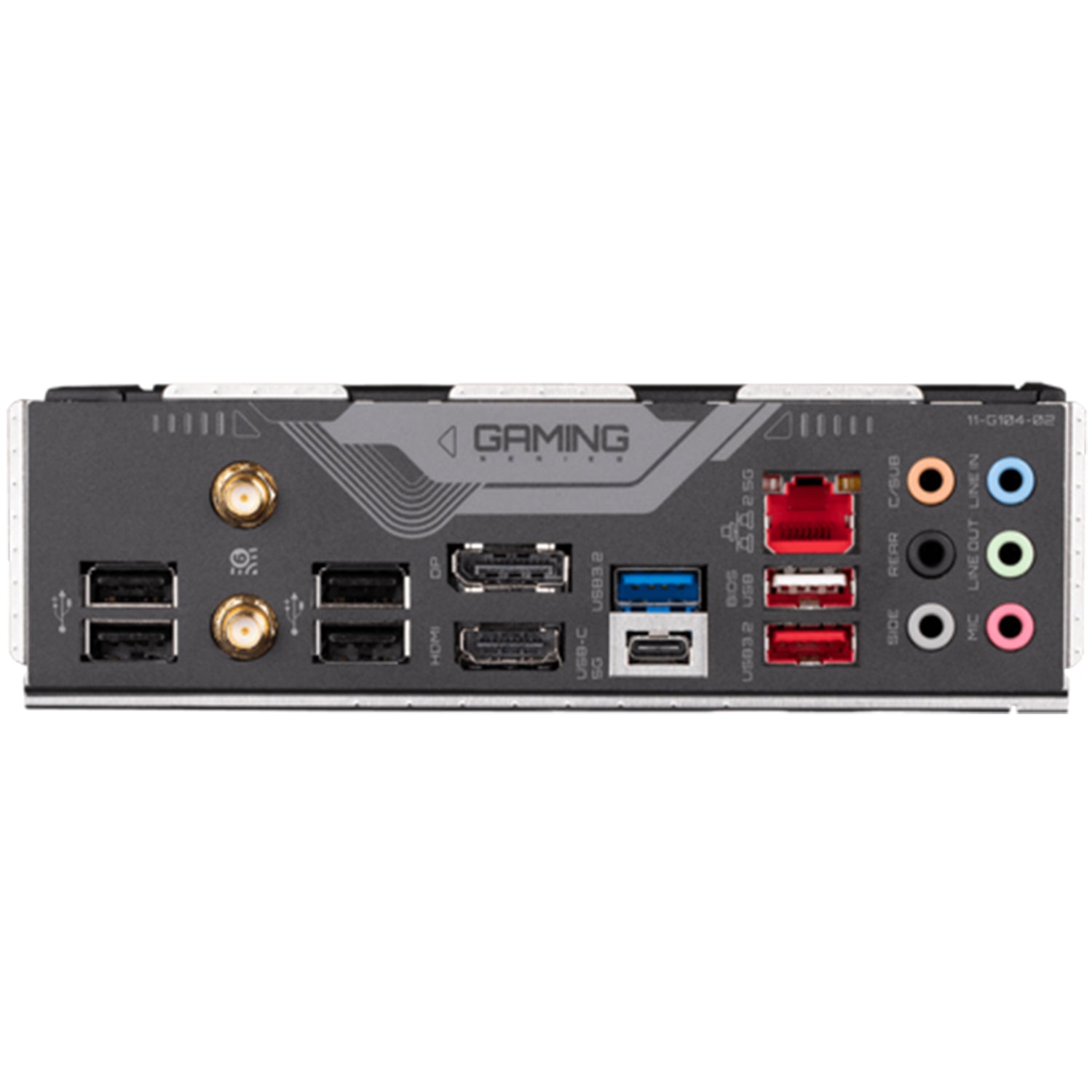

Back panel i/o ports 1 x USB 3.2 Gen 2 Type-A port (red), 1 x USB Type-C port, with USB 3.2 Gen 1 support, 1 x USB 3.2 Gen 1 port, 5 x USB 2.0/1.1 ports, 2 x SMA antenna connectors (2T2R), 1 x DisplayPort, 1 x HDMI port, 1 x RJ-45 port, 6 x audio jacks

Usb ports Chipset - 1 x USB Type-C port with USB 3.2 Gen 2 support, 1 x USB 3.2 Gen 2 Type-A port, 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support, 3 x USB 3.2 Gen 1 ports, 1 x USB 2.0/1.1 port on the back panel / Chipset+2 USB 2.0 Hubs - 8 x USB 2.0/1.1 ports

Limited manufacturer warranty 2 Years

Description

GIGABYTE B760 GAMING X AX: Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium, Gold and Celeron Processors for LGA 1700 socket.

Dual Channel DDR5: 4x DIMMs & Intel XMP Memory Module Support.

Outstanding Thermal Design: GIGABYTE motherboards ensure unthrottled performance and stability with an advanced thermal design that maintains low temperatures during full-load applications and gaming.

Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.

Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card.

Form Factor: ATX (30.5cm x 24.4cm), offering ample space for components and expandability.

Chipset: Intel B760, providing a robust foundation for gaming, overclocking, and general computing tasks.

💯 𝐅𝐑𝐄𝐄 𝐃𝐄𝐋𝐈𝐕𝐄𝐑𝐘 | 🚚 𝐐𝐔𝐈𝐂𝐊 𝐒𝐇𝐈𝐏 | ☎ 𝐆𝐑𝐄𝐀𝐓 𝐂𝐔𝐒𝐓𝐎𝐌𝐄𝐑'𝐒 𝐒𝐔𝐏𝐏𝐎𝐑𝐓

NEW

GIGABYTE B760 Gaming X AX Motherboard, ATX - Supports 14th/13th/12th Gen Intel Processors, 256GB DDR5 Max Memory, PCLe 4.0 With Wi-Fi 6E, HDMI / Display Port

Regular price: $154.99
Sale price: $154.99
Regular price: ~~$199.99~~
