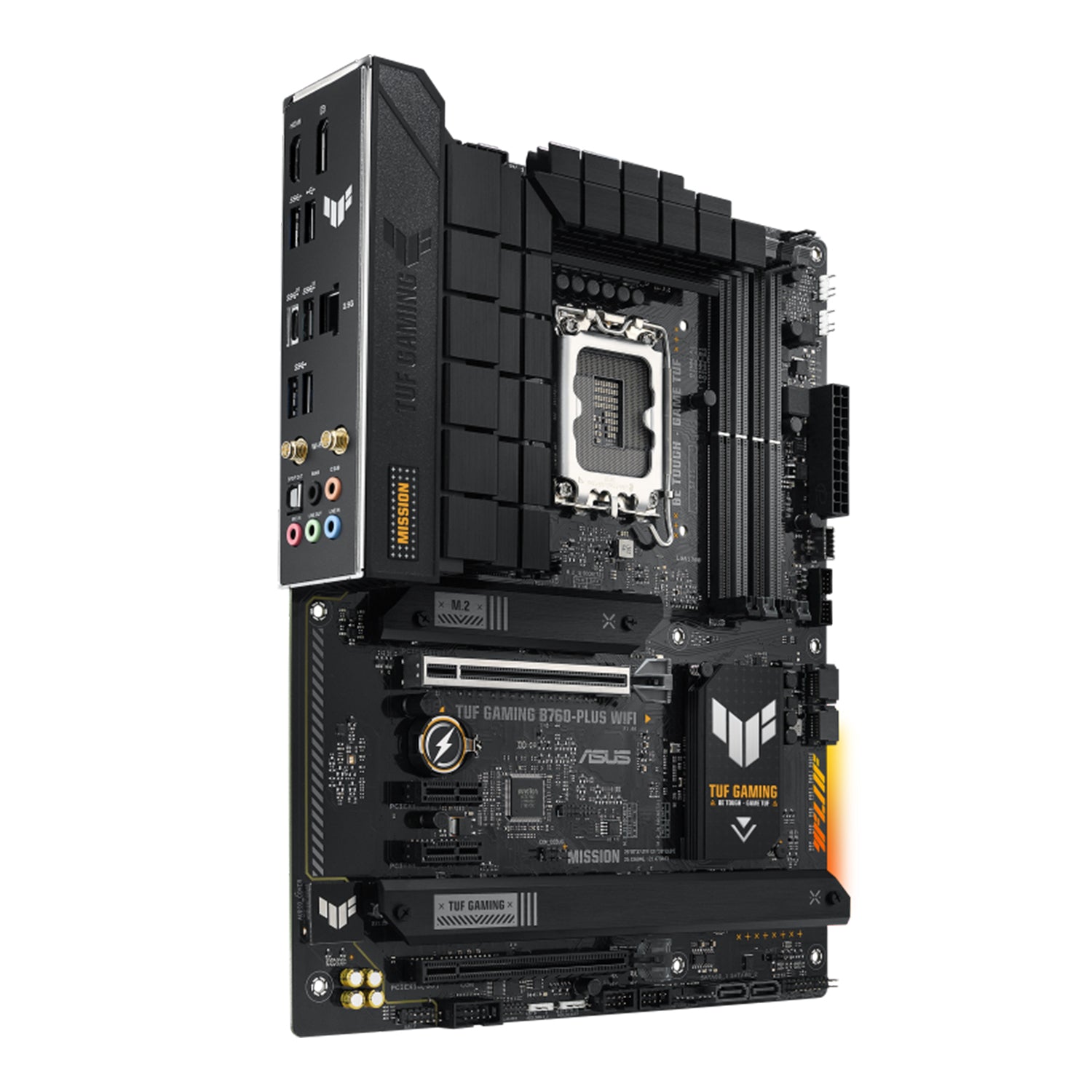

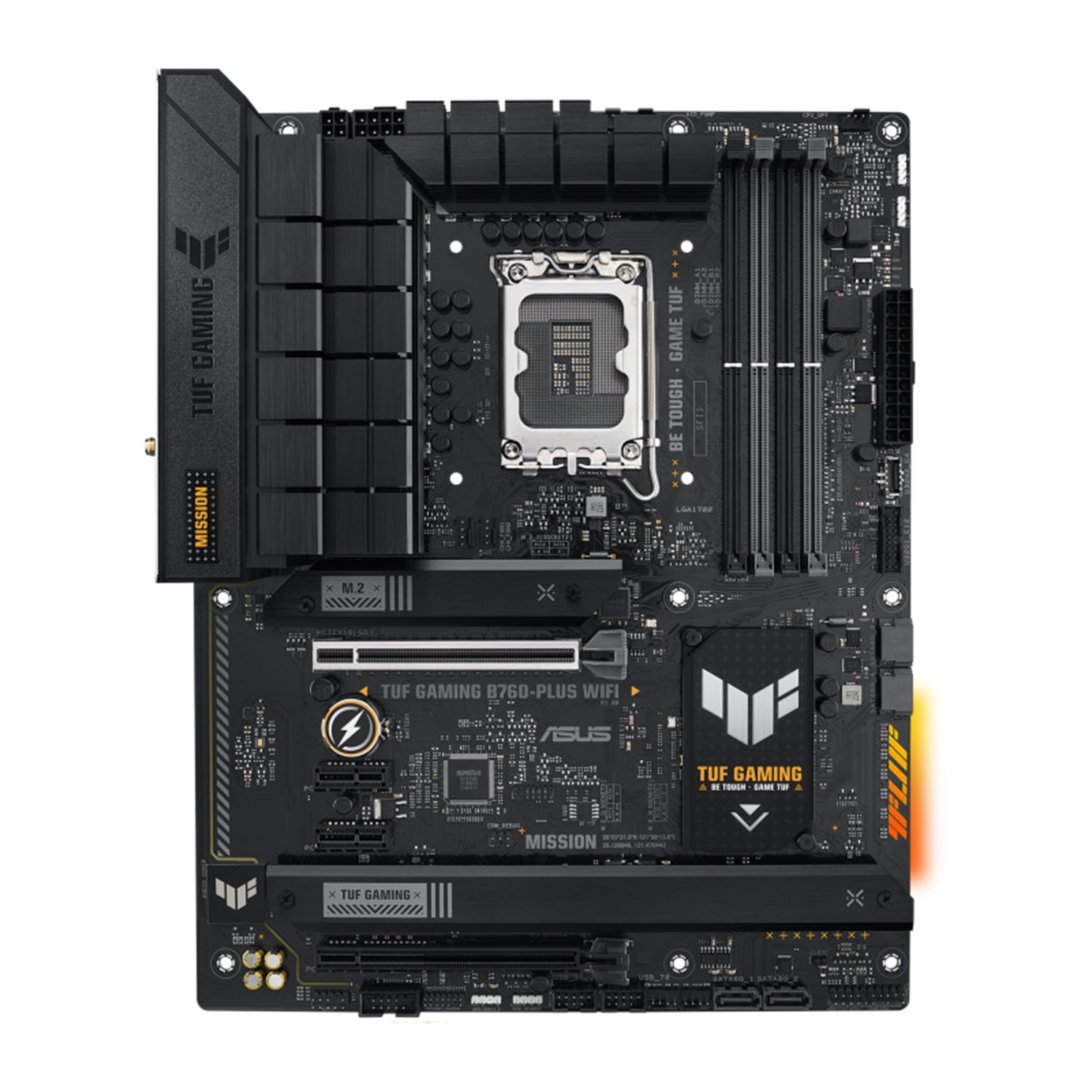

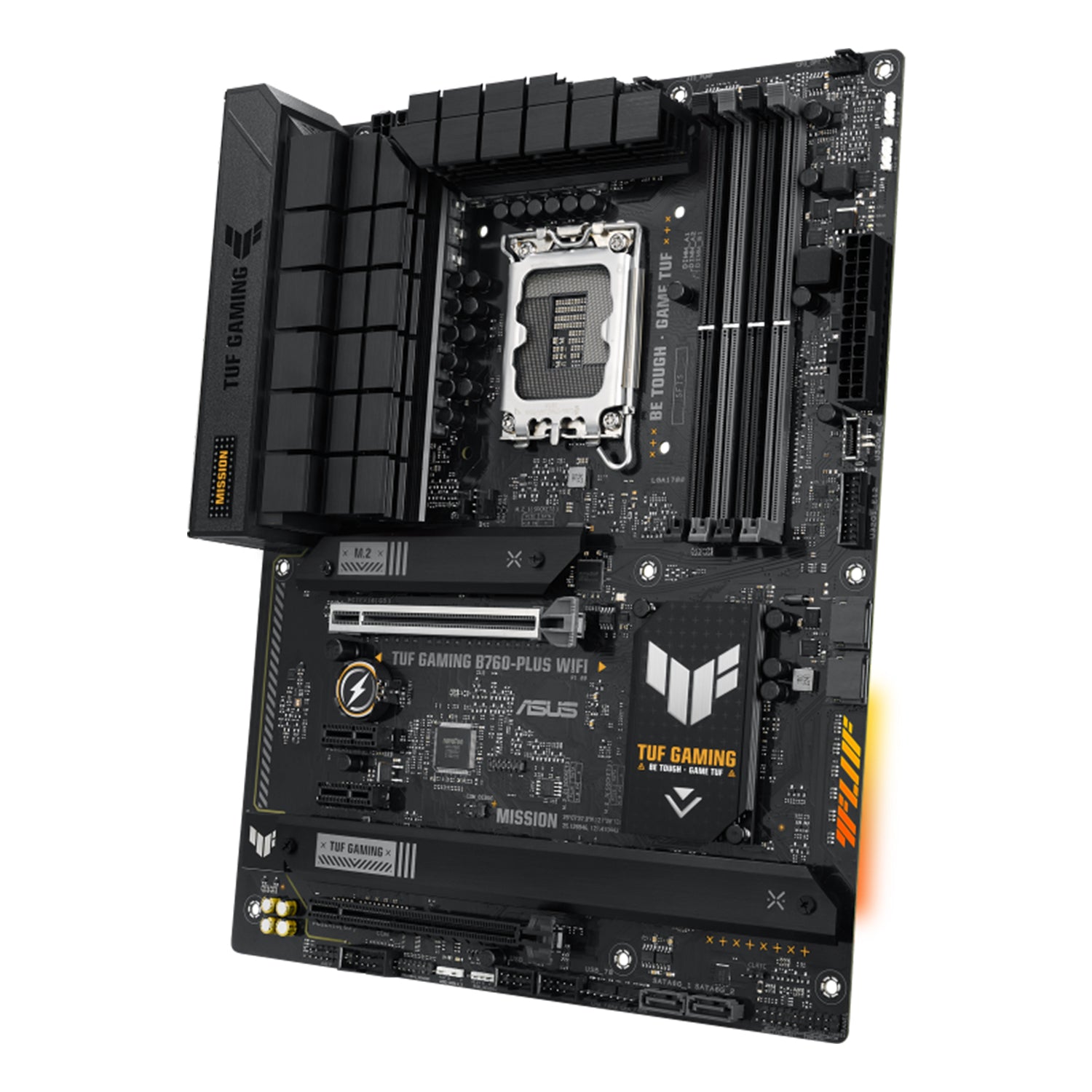

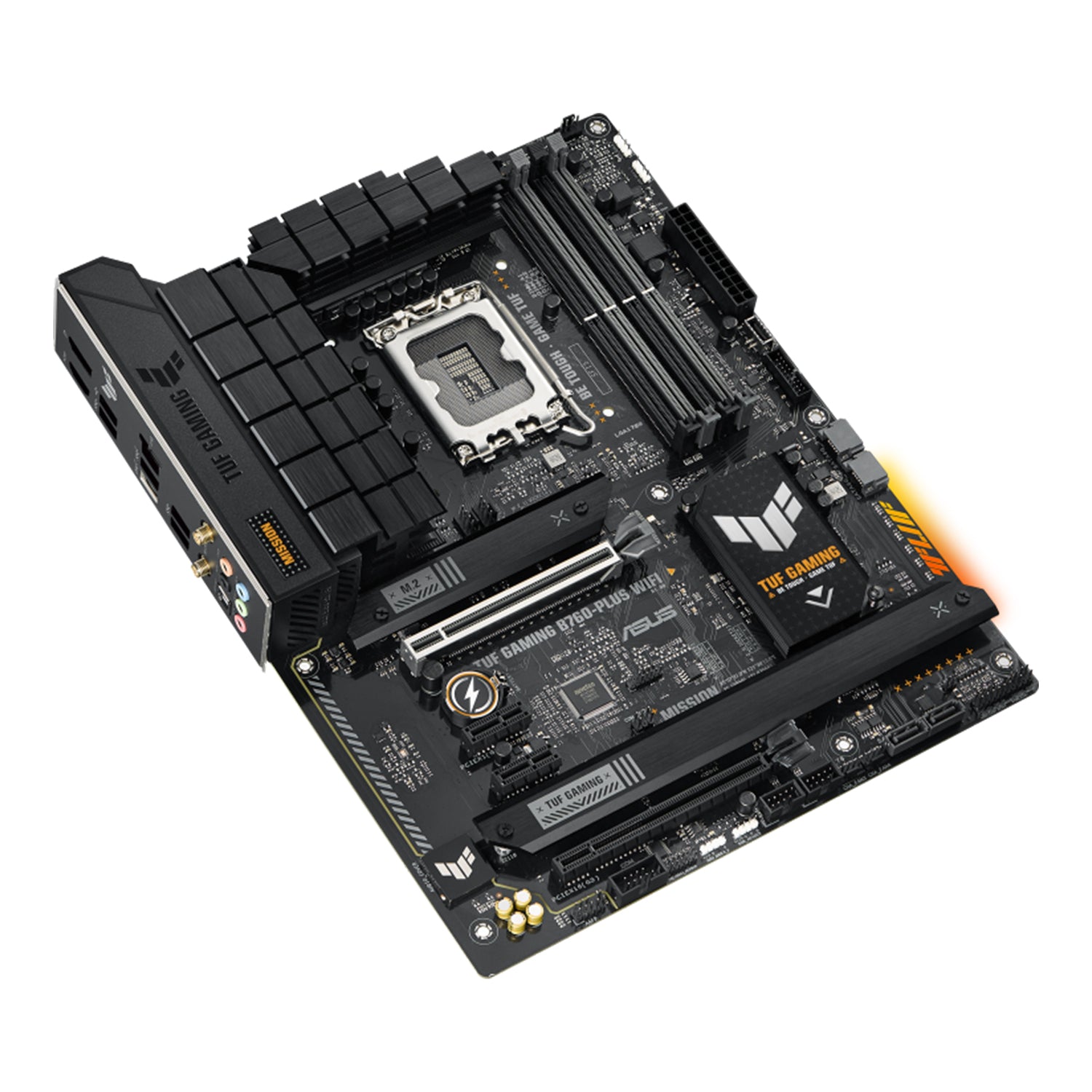

ASUS TUF GAMING B760-PLUS WiFi Gaming Motherboard With PCle 5.0, Intel LGA 1700 Socket, ATX Form Factor, Max Memory 192GB DDR5, Display Port / HDMI

About

Description

TUF GAMING B760-PLUS WIFI: TUF GAMING B760-PLUS WIFI is a durable, high-performance motherboard with military-grade components, enhanced cooling, and game-ready features for reliable marathon gaming.

Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium, Gold and Celeron Processors for LGA 1700 socket.

Intelligent Control: The TUF GAMING B760 motherboards pack flexible tools to tune every aspect of your system, enabling performance tweaks to expertly match the way you play.
All-Around Energy Efficiency: The Power Saving function optimizes power use by adjusting CPU limits, lighting, fan profiles, and enabling the Windows Power Saver plan.

Rock-Solid Performance: TUF GAMING B760-PLUS WIFI offers enhanced power, cooling, DDR5 support, and PCIe 4.0 for a high-performance Intel gaming setup.

2.5Gb Ethernet with Wi-Fi 6 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.

💯 𝐅𝐑𝐄𝐄 𝐃𝐄𝐋𝐈𝐕𝐄𝐑𝐘 | 🚛 𝐐𝐔𝐈𝐂𝐊 𝐒𝐇𝐈𝐏 | ☎️ 𝐆𝐑𝐄𝐀𝐓 𝐂𝐔𝐒𝐓𝐎𝐌𝐄𝐑'𝐒 𝐒𝐔𝐏𝐏𝐎𝐑𝐓

Characteristics

Brand ASUS

Model number TUF GAMING B760-PLUS WIFI

Socket LGA 1700

Chipset Intel B760 Chipset

Form factor ATX - 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Interface 1 x PCIe 5.0 x16 slot

Storage 3 X M.2 Slot And 4x SATA 6Gb/s Ports

Processor brand Intel

Processor model Intel Core Processors, Pentium Gold And Celeron Processors

Processor generation Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold And Celeron Processors

Memory type DDR5

Number of memory slots 4x DIMM Memory Slots

Maximum memory Maximum 192GB

Wireless & bluetooth 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band - Bluetooth v5.2

Operating system Support For Windows 11 / Windows 10 64-Bit

Ethernet 1 x Realtek 2.5Gb Ethernet

Expansion slots Intel B760 - 1 x PCIe 3.0 x16 slot (supports x4 mode), 2 x PCIe 3.0 x1 slots

Internal i/o connectors FAN AND COOLING RELATED - 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 4 x 4-pin Chassis Fan headers / POWER RELATED - 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 1 x 4-pin +12V Power connector / MISCELLANEOUS - 3 x Addressable Gen 2 headers, 1 x Aura RGB headers, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x 20-3pin System Panel header, 1 x Thunderbolt (USB4) Header / Storage related - 3 x M.2 slots (Key M), 4 x SATA 6Gb/s ports

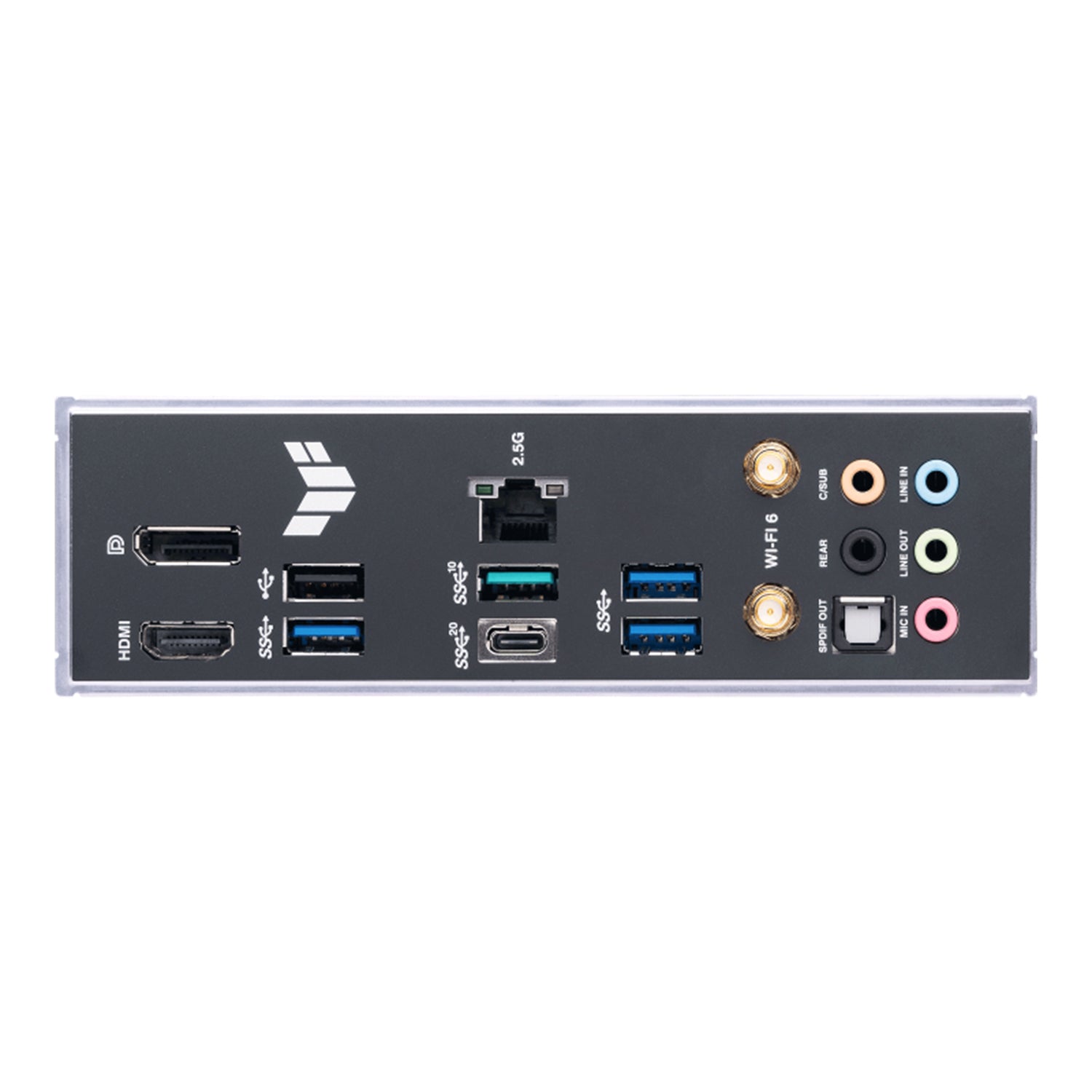

Back panel i/o ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C), 1 x USB 3.2 Gen 2 port (1 x Type-A), 3 x USB 3.2 Gen 1 ports (3 x Type-A), 1 x USB 2.0 ports (1 x Type-A), 1 x DisplayPort, 1 x HDMI port, 1 x Wi-Fi Module, 1 x Realtek 2.5Gb Ethernet port, 5 x Audio jacks, 1 x Optical S/PDIF out port

Audio features Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers, Supports up to 24-Bit/192 kHz playback, Audio cover

Video output 1x Display Port, 1x HDMI

Usb ports FRONT - 1 x USB 3.2 Gen 2 connector (supports USB Type-C), 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports / BACK - 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C), 1 x USB 3.2 Gen 2 port (1 x Type-A), 3 x USB 3.2 Gen 1 ports (3 x Type-A), 1 x USB 2.0 port (1 x Type-A)

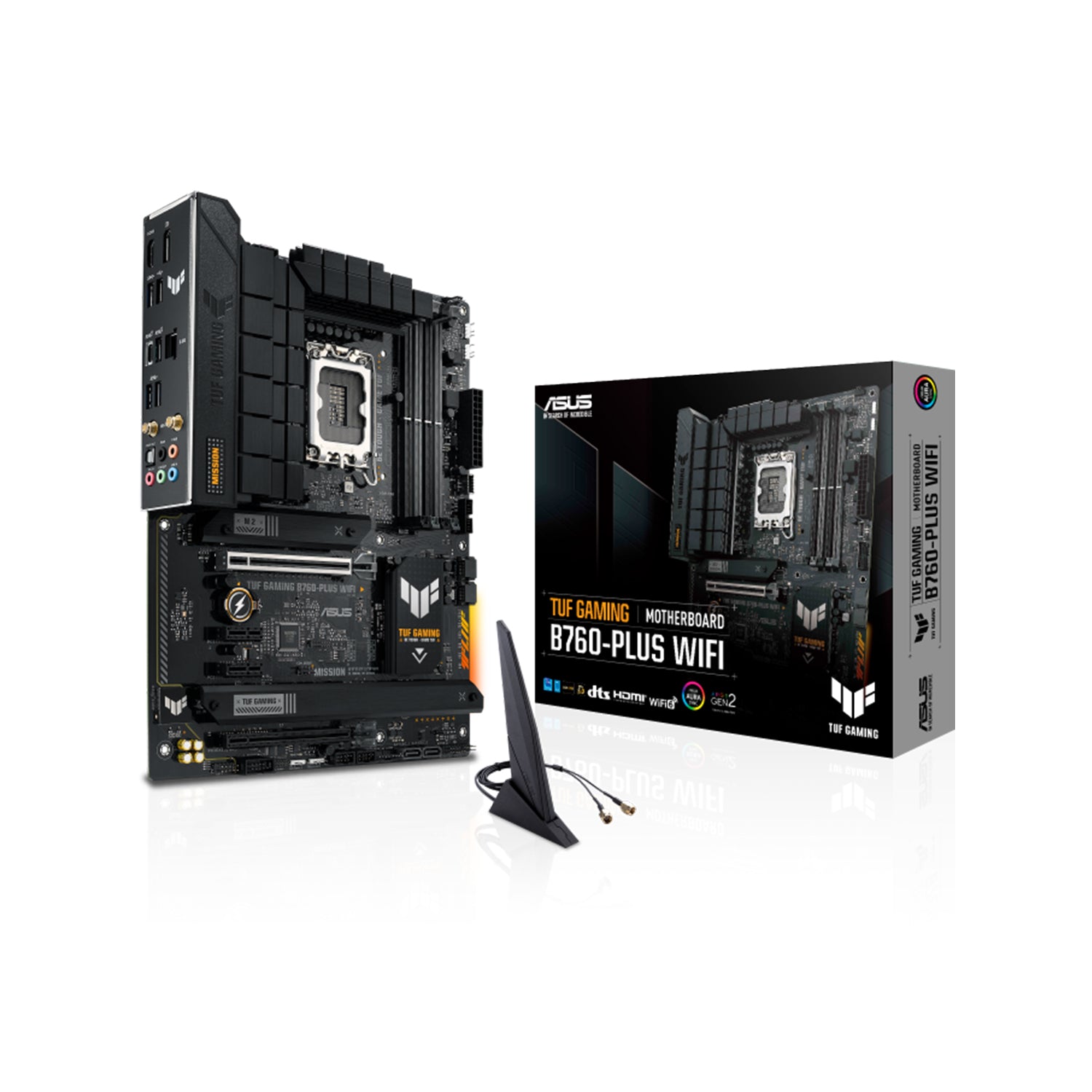

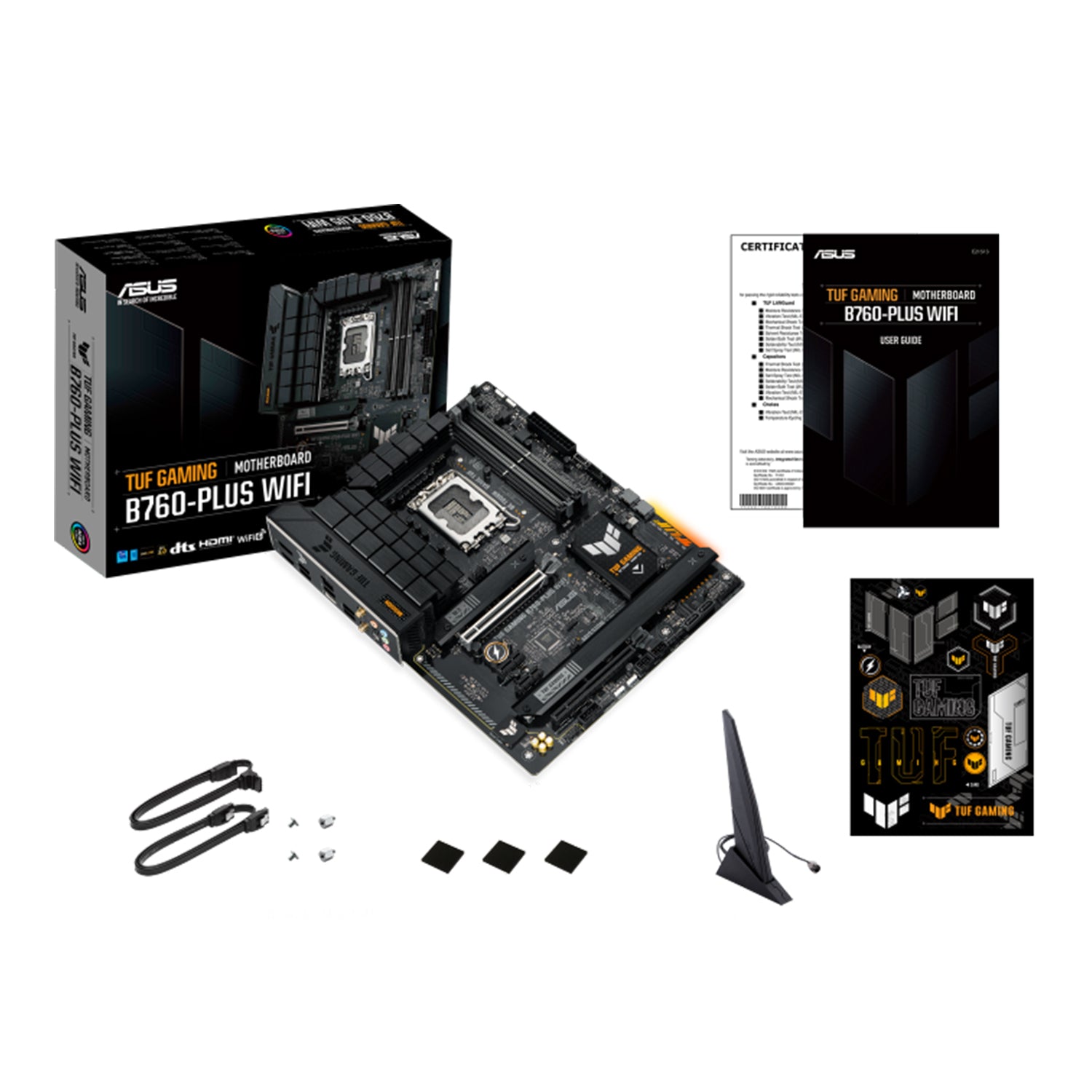

Accessories Cables - 2 x SATA 6Gb/s cables / Miscellaneous - 1 x ASUS Wi-Fi moving antenna, 1 x TUF Gaming sticker, 2 x M.2 Rubber Packages, 1 x Screw package for M.2 SSD / Documentation - 1 x TUF Certification card, 1 x User guide

Special features ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS), ESD Guards, TUF LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless-Steel Back I/O / ASUS Q-Design - M.2 Q-Latch, Q-DIMM, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), Q-Slot / ASUS Thermal Solution - M.2 heatsink, VRM heatsink design / ASUS EZ DIY - CPU Socket lever protector, ProCool, Pre-mounted I/O shield, SafeSlot Core+, SafeDIMM / Aura Sync - Aura RGB header, Addressable Gen 2 headers

Limited manufacturer warranty 2 Years

Description

TUF GAMING B760-PLUS WIFI: TUF GAMING B760-PLUS WIFI is a durable, high-performance motherboard with military-grade components, enhanced cooling, and game-ready features for reliable marathon gaming.

Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium, Gold and Celeron Processors for LGA 1700 socket.

Intelligent Control: The TUF GAMING B760 motherboards pack flexible tools to tune every aspect of your system, enabling performance tweaks to expertly match the way you play.
All-Around Energy Efficiency: The Power Saving function optimizes power use by adjusting CPU limits, lighting, fan profiles, and enabling the Windows Power Saver plan.

Rock-Solid Performance: TUF GAMING B760-PLUS WIFI offers enhanced power, cooling, DDR5 support, and PCIe 4.0 for a high-performance Intel gaming setup.

2.5Gb Ethernet with Wi-Fi 6 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.

💯 𝐅𝐑𝐄𝐄 𝐃𝐄𝐋𝐈𝐕𝐄𝐑𝐘 | 🚛 𝐐𝐔𝐈𝐂𝐊 𝐒𝐇𝐈𝐏 | ☎️ 𝐆𝐑𝐄𝐀𝐓 𝐂𝐔𝐒𝐓𝐎𝐌𝐄𝐑'𝐒 𝐒𝐔𝐏𝐏𝐎𝐑𝐓
