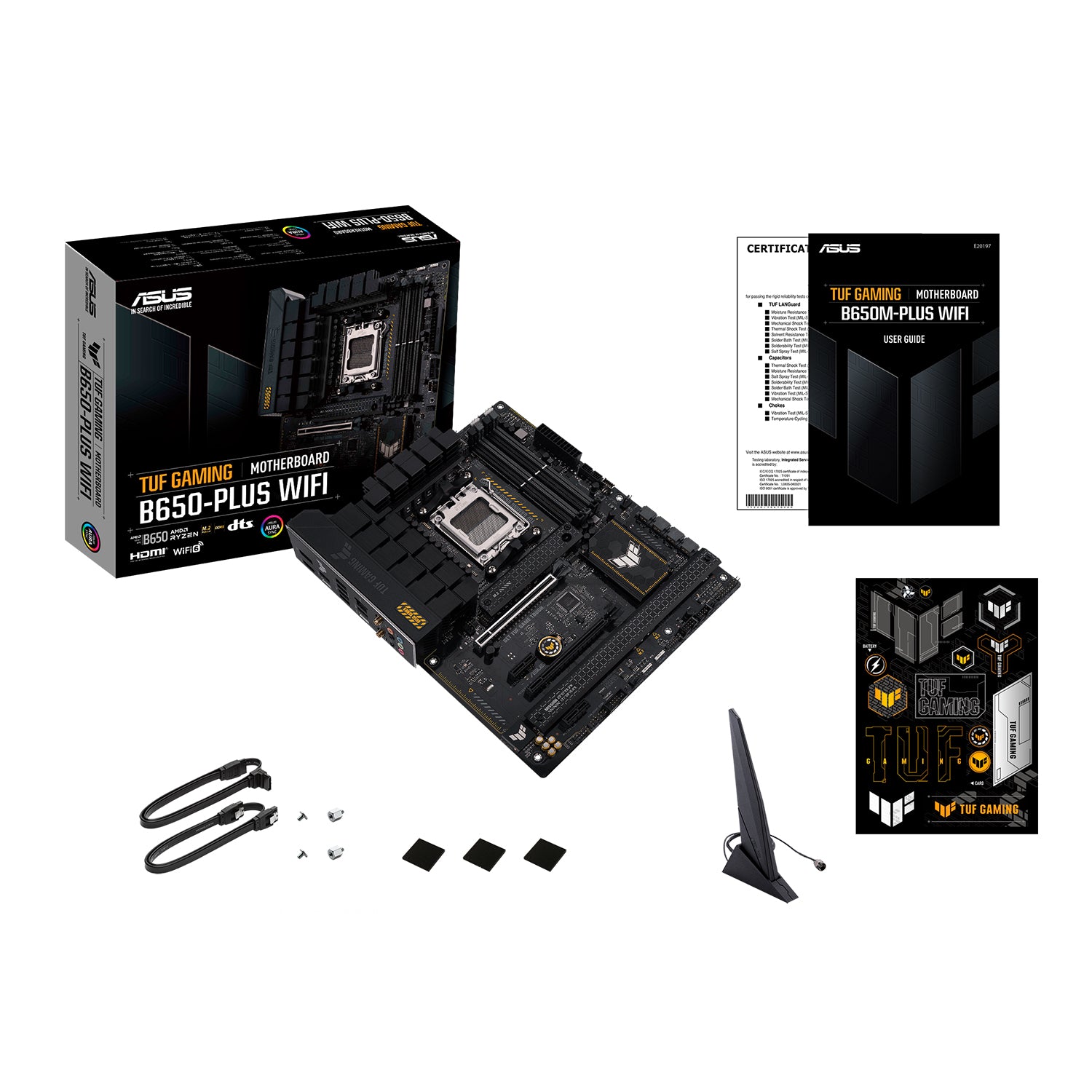

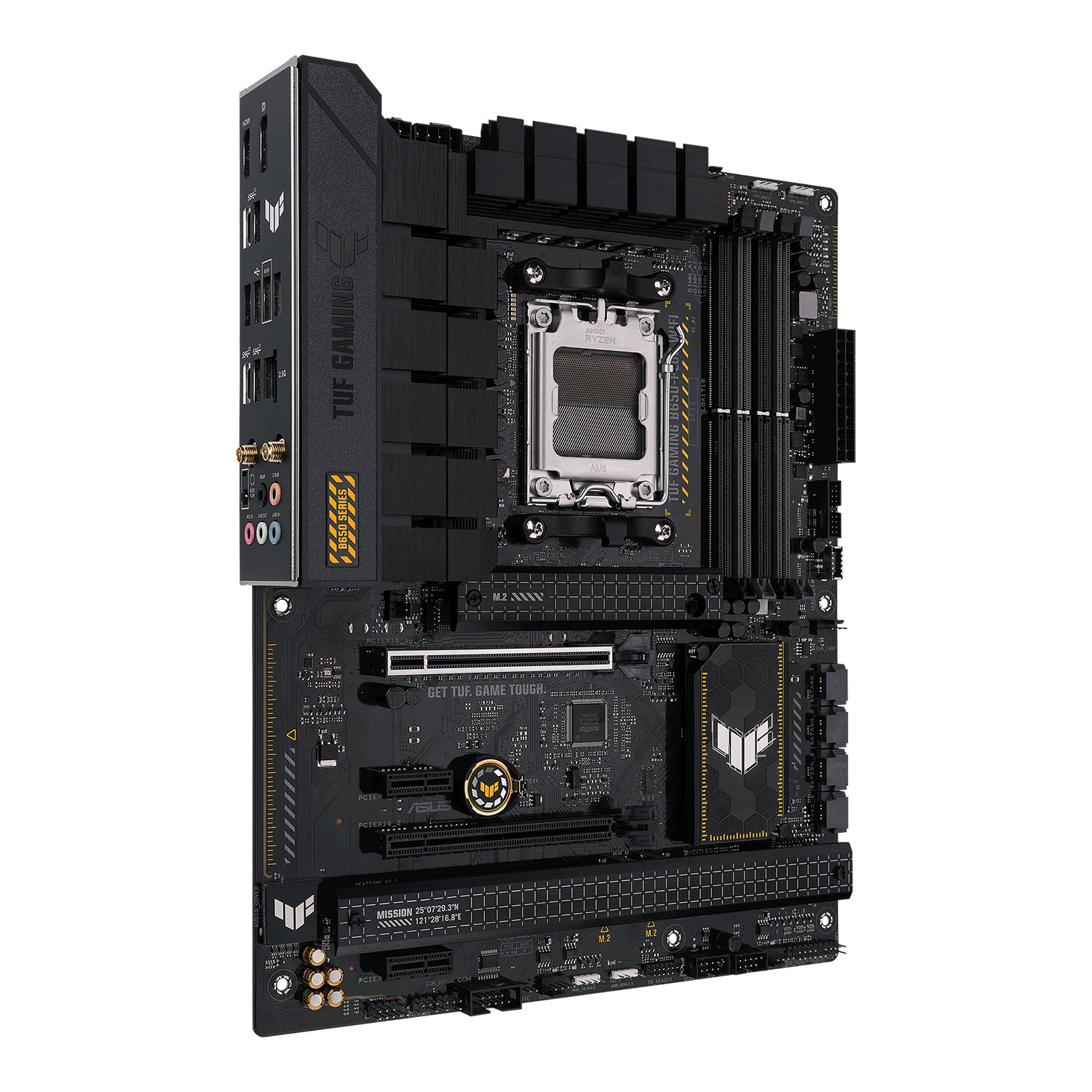

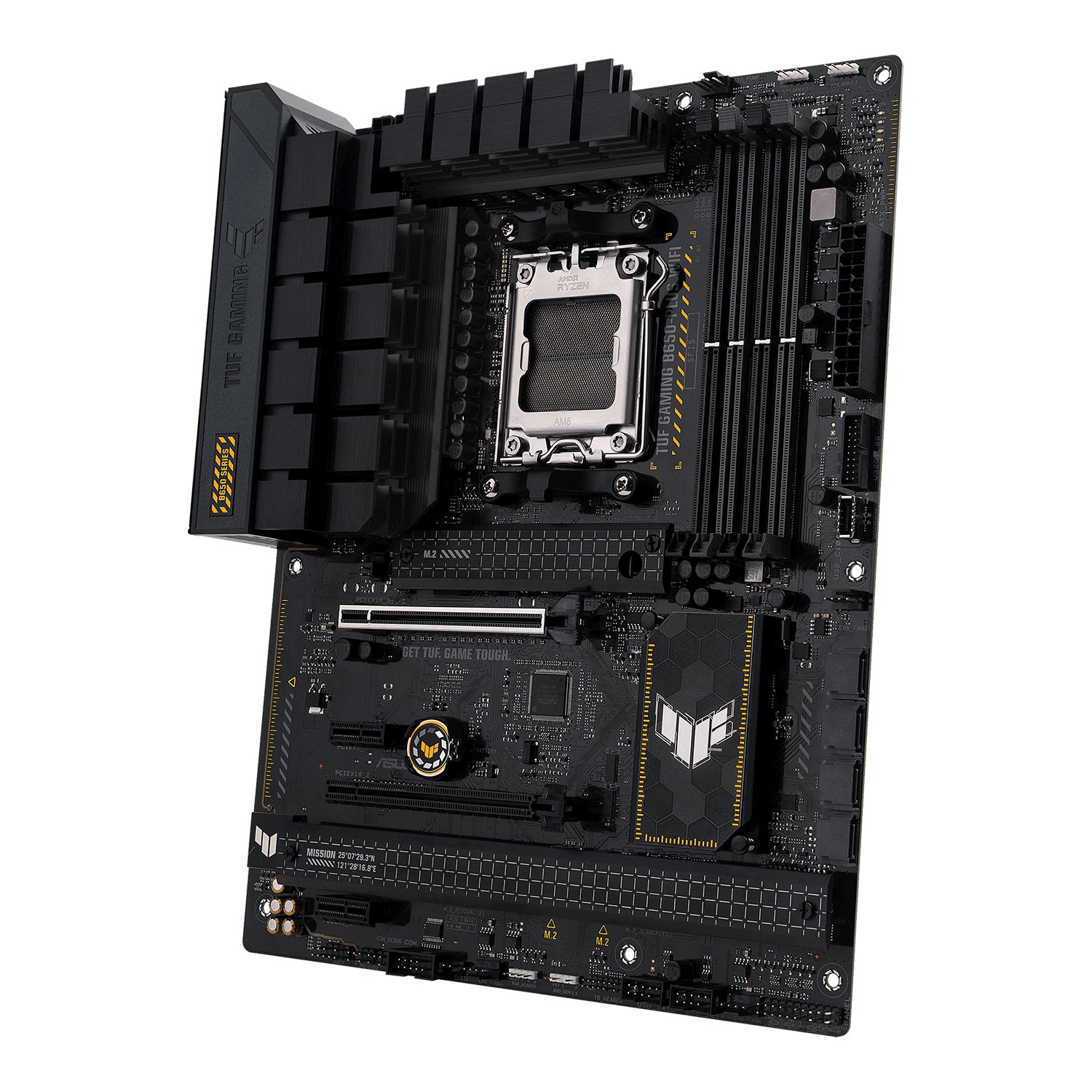

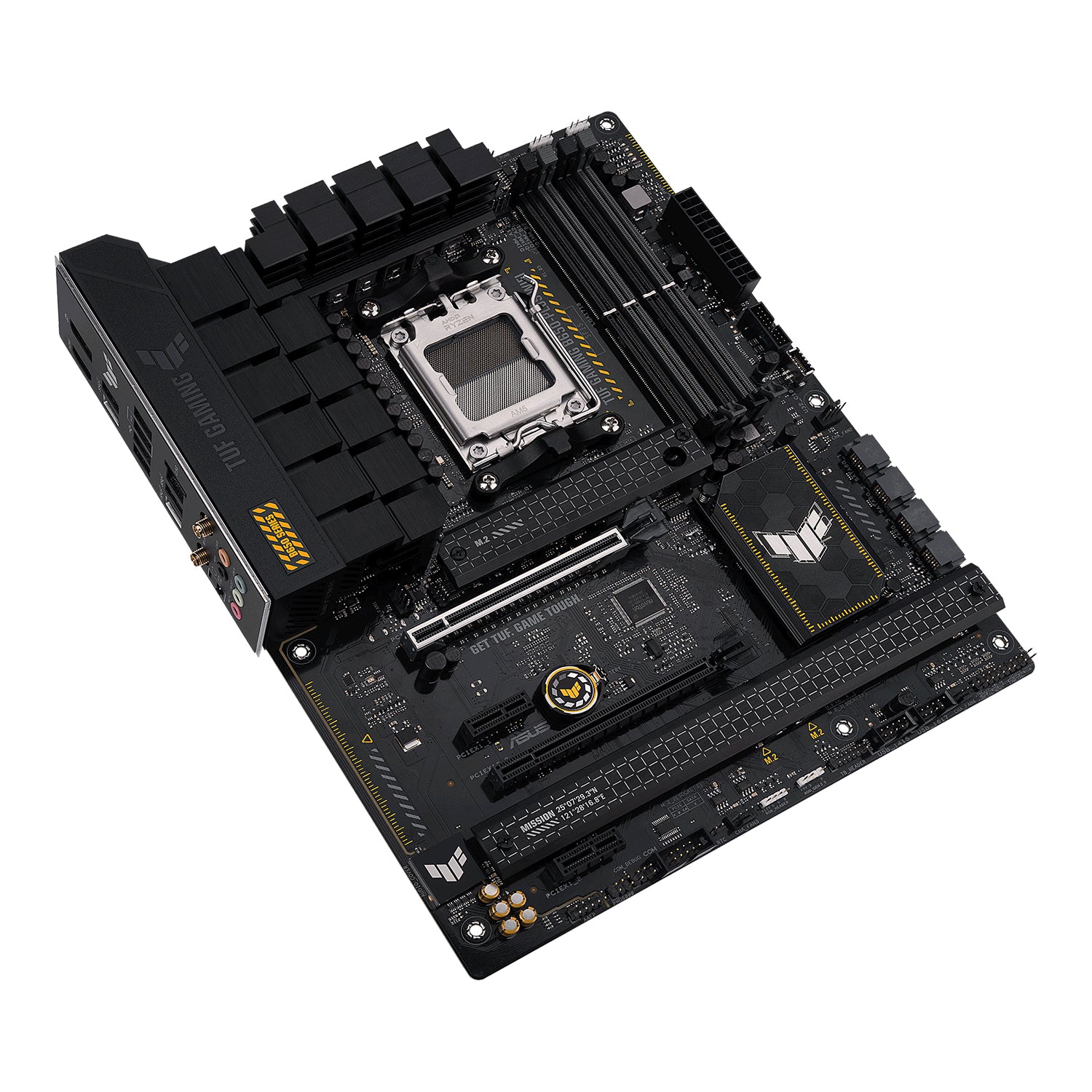

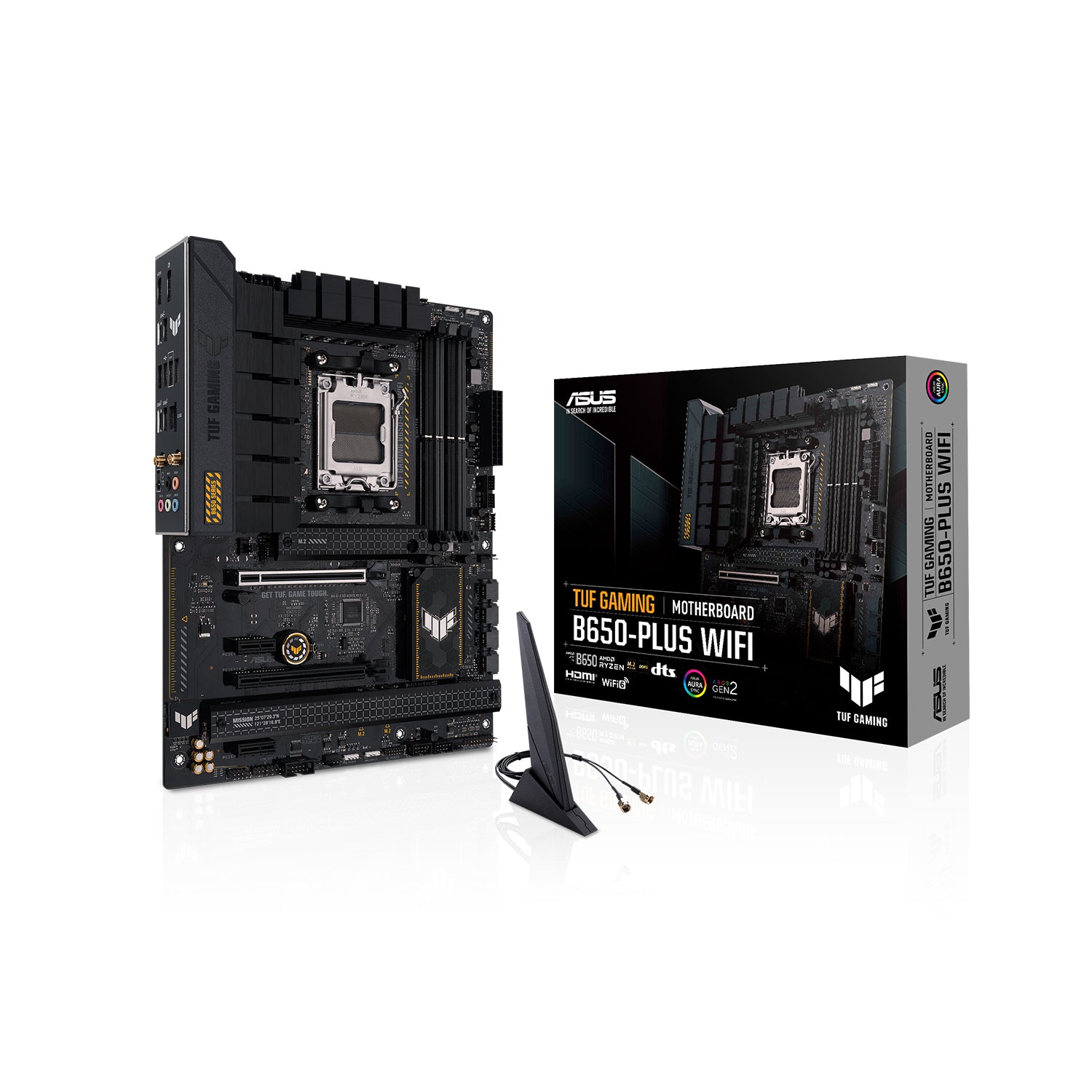

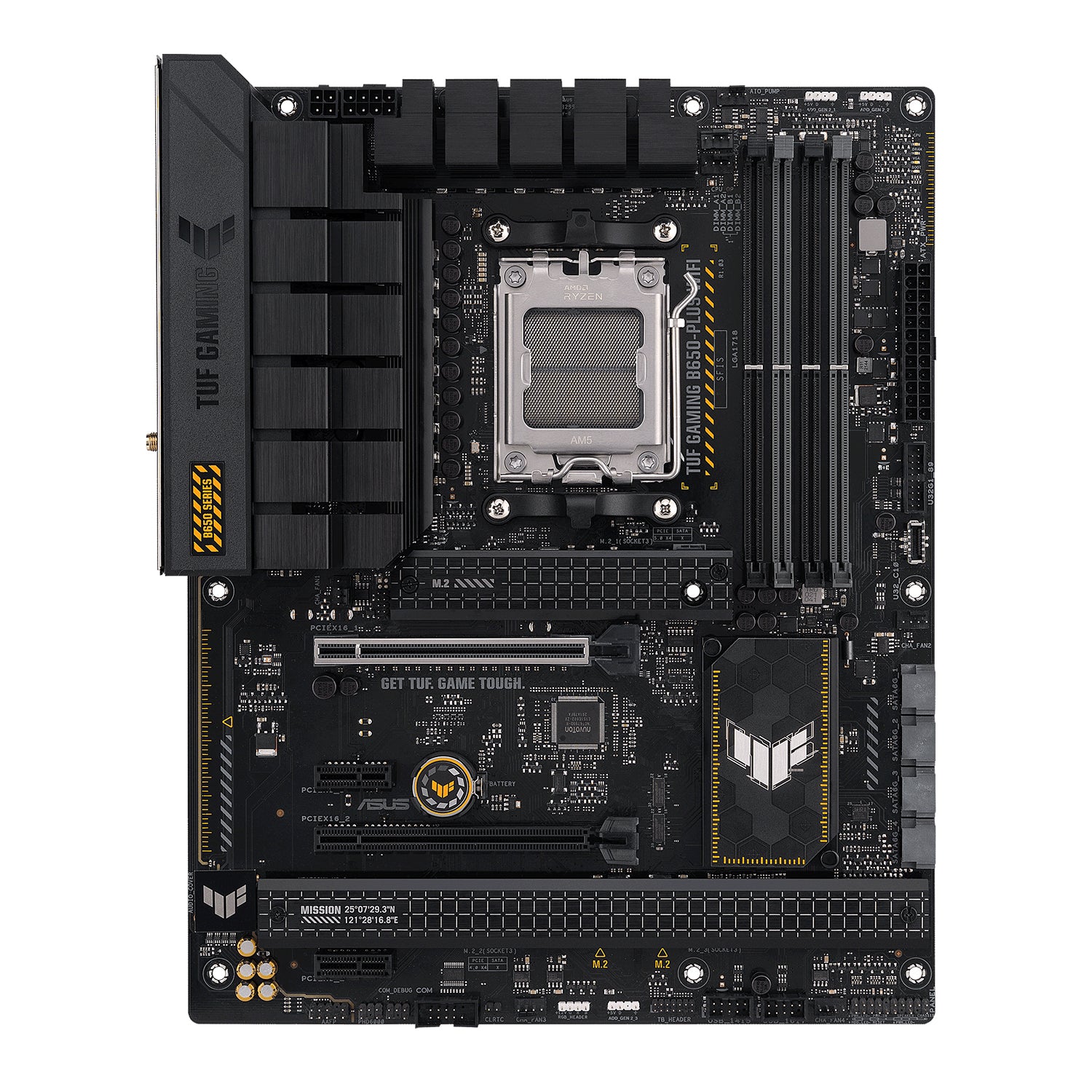

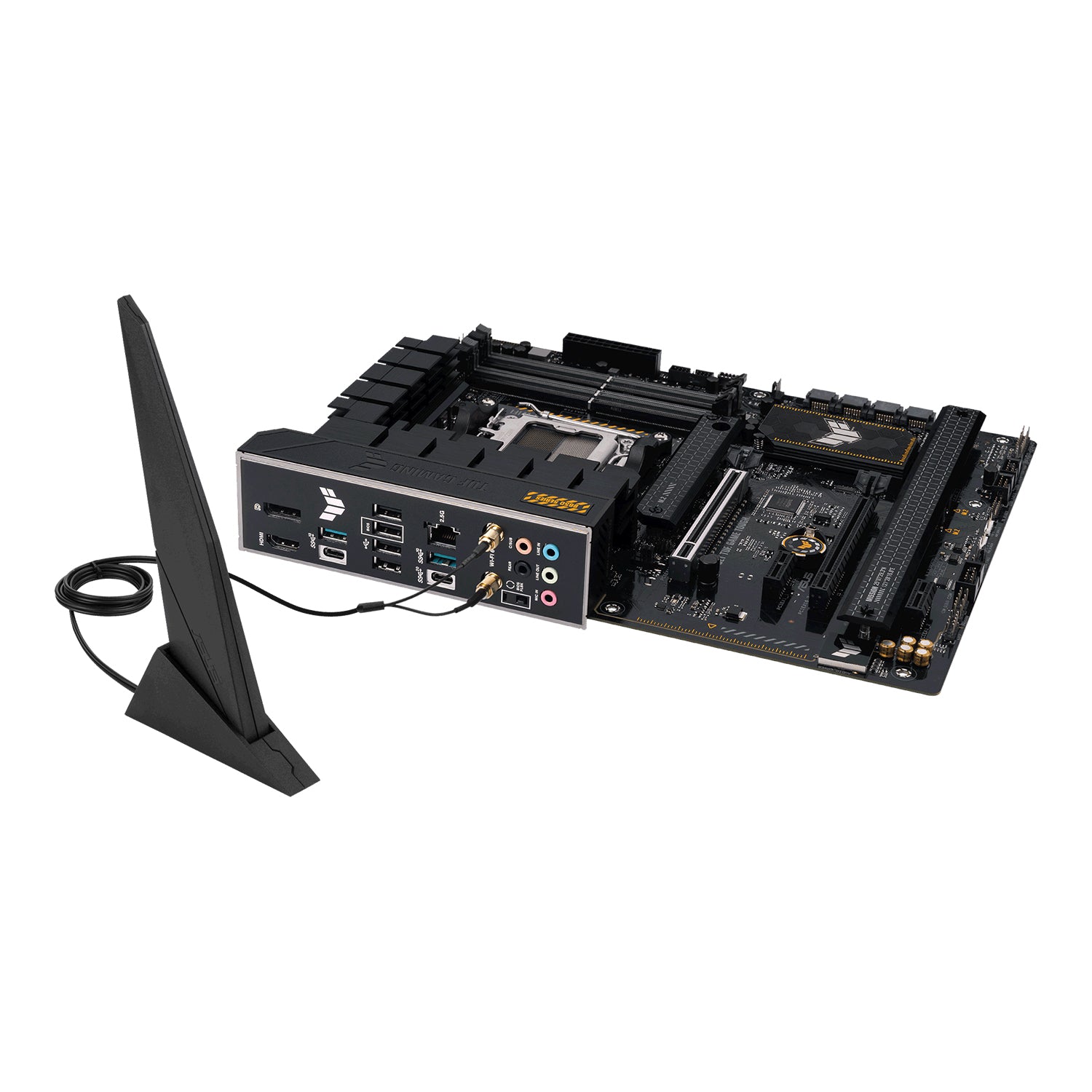

ASUS TUF Gaming B650-Plus WiFi ATX Motherboard - Support AMD Ryzen 9000/8000/7000 Series Desktop Processor, With DDR5 Up to 128GB Max Memory, Display Port / HDMI

About

Description

Rock-Solid-Performance: TUF GAMING B650 motherboards offer robust power delivery, advanced cooling, and support for high-speed memory and storage, making them ideal for AMD's latest high-core-count CPUs.

Easy PC Diy: TUF GAMING ensures easy setup with broad compatibility through the TUF GAMING Alliance ecosystem. Armoury Crate adds Fan Xpert 4, AI Noise Cancelation, RGB, and more for a fully optimized and customizable rig.

Build With Confidence: TUF GAMING Alliance is a collaboration between ASUS and top PC component brands to ensure seamless compatibility across cases, coolers, memory, and more. With continuous partnerships, it keeps expanding for stronger, more reliable builds.

Immersive Gaming: TUF GAMING B650 motherboards deliver a high-performance gaming experience with ultra-fast networking, immersive audio for FPS, and customizable RGB lighting for a personalized setup.

Safeslot Core + SafeDIMM: SafeSlot Core+ reinforces PCIe slots with a metal sheath to secure graphics cards firmly. ASUS SafeDIMM adds protective support for memory modules, ensuring safe, accurate, and confident installation.

Two-Way AI Noise Cancelation: ASUS's exclusive utility uses deep-learning technology to eliminate background noise, ensuring crystal-clear voice communication during gaming and calls.

💯 𝐅𝐑𝐄𝐄 𝐃𝐄𝐋𝐈𝐕𝐄𝐑𝐘 | 🚚 𝐐𝐔𝐈𝐂𝐊 𝐒𝐇𝐈𝐏 | ☎ 𝐆𝐑𝐄𝐀𝐓 𝐂𝐔𝐒𝐓𝐎𝐌𝐄𝐑'𝐒 𝐒𝐔𝐏𝐏𝐎𝐑𝐓

Characteristics

Brand ASUS

Model TUF GAMING B650-PLUS WIFI

Socket AM5 Socket

Chipset ‎ AMD B650

Form factor ATX 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Interface 1 x PCIe 4.0/3.0 x16 slot(s), 1 x PCIe 4.0 x16 slot (supports x8/x4 mode), 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) / 2 x PCIe 4.0/3.0 x1 slots

Storage 3 x M.2 slots and 4 x SATA 6Gb/s

Processor brand AMD

Processor type AMD Ryzen

Processor generation AMD Ryzen 9000 Series/ 8000 Series/ 7000 Series Processors

Memory type DDR5

Number of dimm memory slots 4 X DIMM Memory Slots

Maximum memory Maximum 128GB

Wireless - bluetooth Wi-Fi 6, 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Supports 2.4/5GHz frequency band, Bluetooth v5.2

Operating system Support For Windows 11 / Windows 10 64-Bit

Ethernet 1 x Realtek 2.5Gb Ethernet (TUF LANGuard)

Graphics 1 x DisplayPort, 1 x HDMI port

I/o ports Fan and Cooling related- 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 4 x 4-pin Chassis Fan headers / Power Related- 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 1 x 4-pin +12V Power connector / Storage Related-3 x M.2 slots (Key M), 4 x SATA 6Gb/s ports / USB- 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C), 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports / Miscellaneous- 3 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x 20-3 pin System Panel header with Chassis intrude function, 1 x Thunderbolt (USB4) header

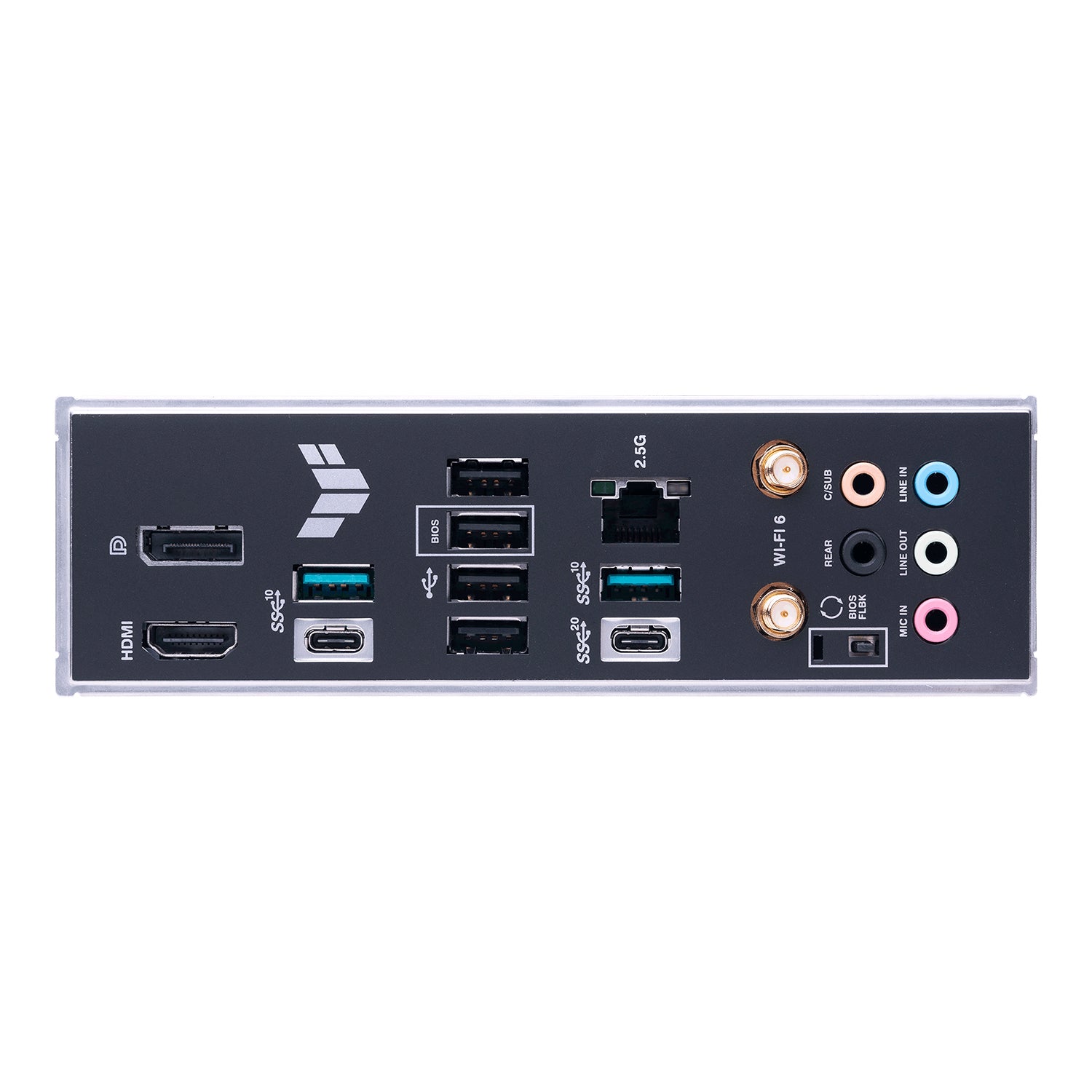

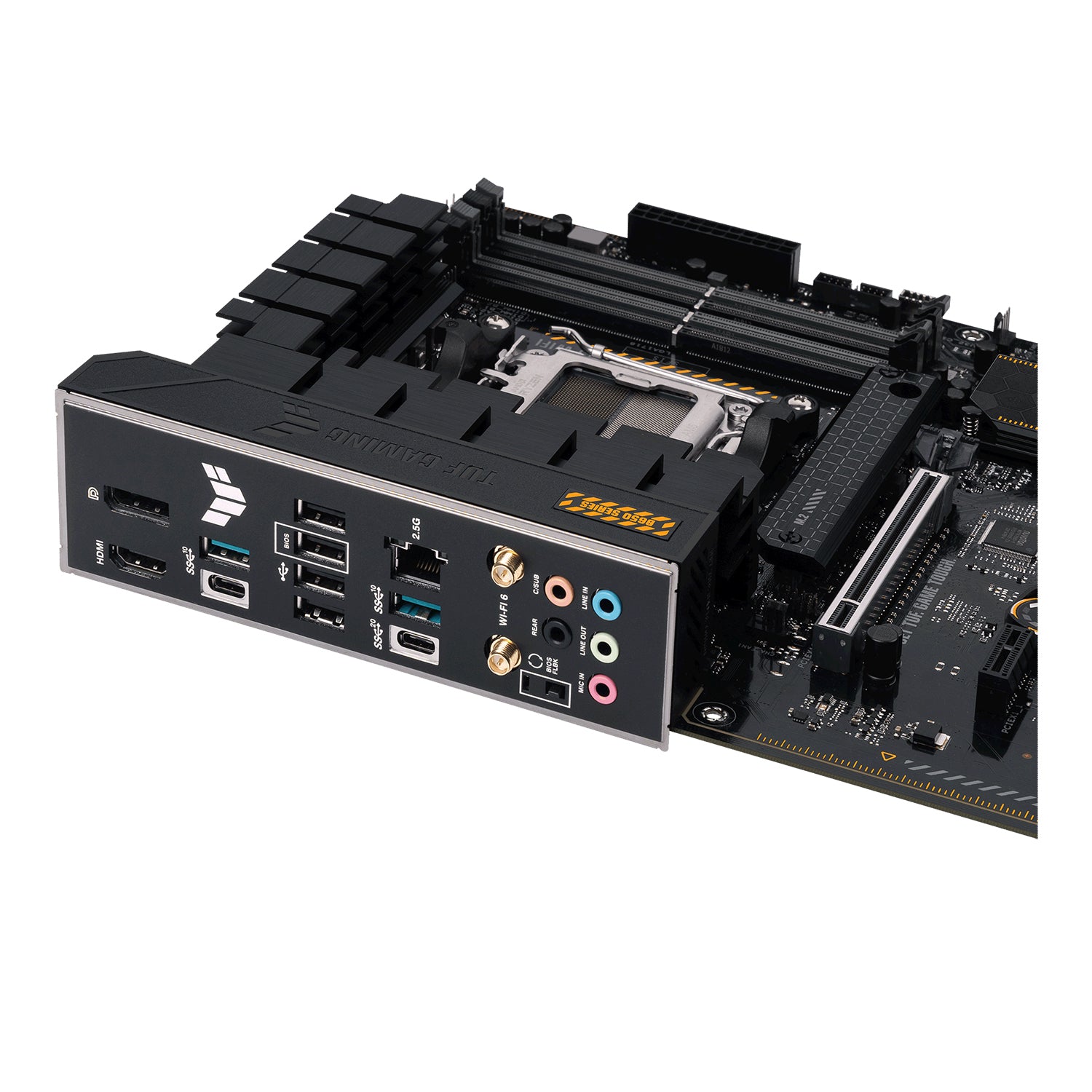

Back panel i/o ports 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C), 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C), 4 x USB 2.0 port(s) (4 x Type-A), 1 x DisplayPort, 1 x HDMI port, 1 x Wi-Fi Module, 1 x Realtek 2.5Gb Ethernet port, 5 x Audio jacks, 1 x BIOS FlashBack button

Special features ASUS TUF PROTECTION : DIGI+ VRM (- Digital power design with DrMOS), Enhanced DRAM Overcurrent Protection, ESD Guards, TUF LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless-Steel Back I/O / ASUS Q-Design : M.2 Q-Latch, Q-DIMM, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), Q-Slot / ASUS Thermal Solution : M.2 heatsink, VRM heatsink design / ASUS EZ DIY: BIOS FlashBack button, BIOS FlashBack LED, ProCool, Pre-mounted I/O shield, SafeDIMM / Aura Sync : Aura RGB header(s), Addressable Gen 2 header(s)

Usb ports FRONT USB : 1 x USB 3.2Gen 1 connector (supports USB Type-C), 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports / REAR USB : 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C), 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C)

Limited manufacturer warranty 2 Years

Description

Rock-Solid-Performance: TUF GAMING B650 motherboards offer robust power delivery, advanced cooling, and support for high-speed memory and storage, making them ideal for AMD's latest high-core-count CPUs.

Easy PC Diy: TUF GAMING ensures easy setup with broad compatibility through the TUF GAMING Alliance ecosystem. Armoury Crate adds Fan Xpert 4, AI Noise Cancelation, RGB, and more for a fully optimized and customizable rig.

Build With Confidence: TUF GAMING Alliance is a collaboration between ASUS and top PC component brands to ensure seamless compatibility across cases, coolers, memory, and more. With continuous partnerships, it keeps expanding for stronger, more reliable builds.

Immersive Gaming: TUF GAMING B650 motherboards deliver a high-performance gaming experience with ultra-fast networking, immersive audio for FPS, and customizable RGB lighting for a personalized setup.

Safeslot Core + SafeDIMM: SafeSlot Core+ reinforces PCIe slots with a metal sheath to secure graphics cards firmly. ASUS SafeDIMM adds protective support for memory modules, ensuring safe, accurate, and confident installation.

Two-Way AI Noise Cancelation: ASUS's exclusive utility uses deep-learning technology to eliminate background noise, ensuring crystal-clear voice communication during gaming and calls.

💯 𝐅𝐑𝐄𝐄 𝐃𝐄𝐋𝐈𝐕𝐄𝐑𝐘 | 🚚 𝐐𝐔𝐈𝐂𝐊 𝐒𝐇𝐈𝐏 | ☎ 𝐆𝐑𝐄𝐀𝐓 𝐂𝐔𝐒𝐓𝐎𝐌𝐄𝐑'𝐒 𝐒𝐔𝐏𝐏𝐎𝐑𝐓

NEW

ASUS TUF Gaming B650-Plus WiFi ATX Motherboard - Support AMD Ryzen 9000/8000/7000 Series Desktop Processor, With DDR5 Up to 128GB Max Memory, Display Port / HDMI

Regular price: $249.99
Sale price: $249.99
Regular price: ~~$387.99~~
