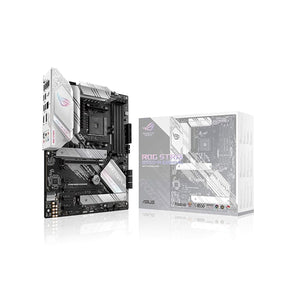

ASUS ROG STRIX B550-A Gaming Motherboard, AMD B550 Chipset, AMD AM4 Socket, 4 x DIMM, Max Memory 128GB, DDR4, ATX Form Factor, Support Windows 10 64-Bit,HDMI and Display Port

About

Description

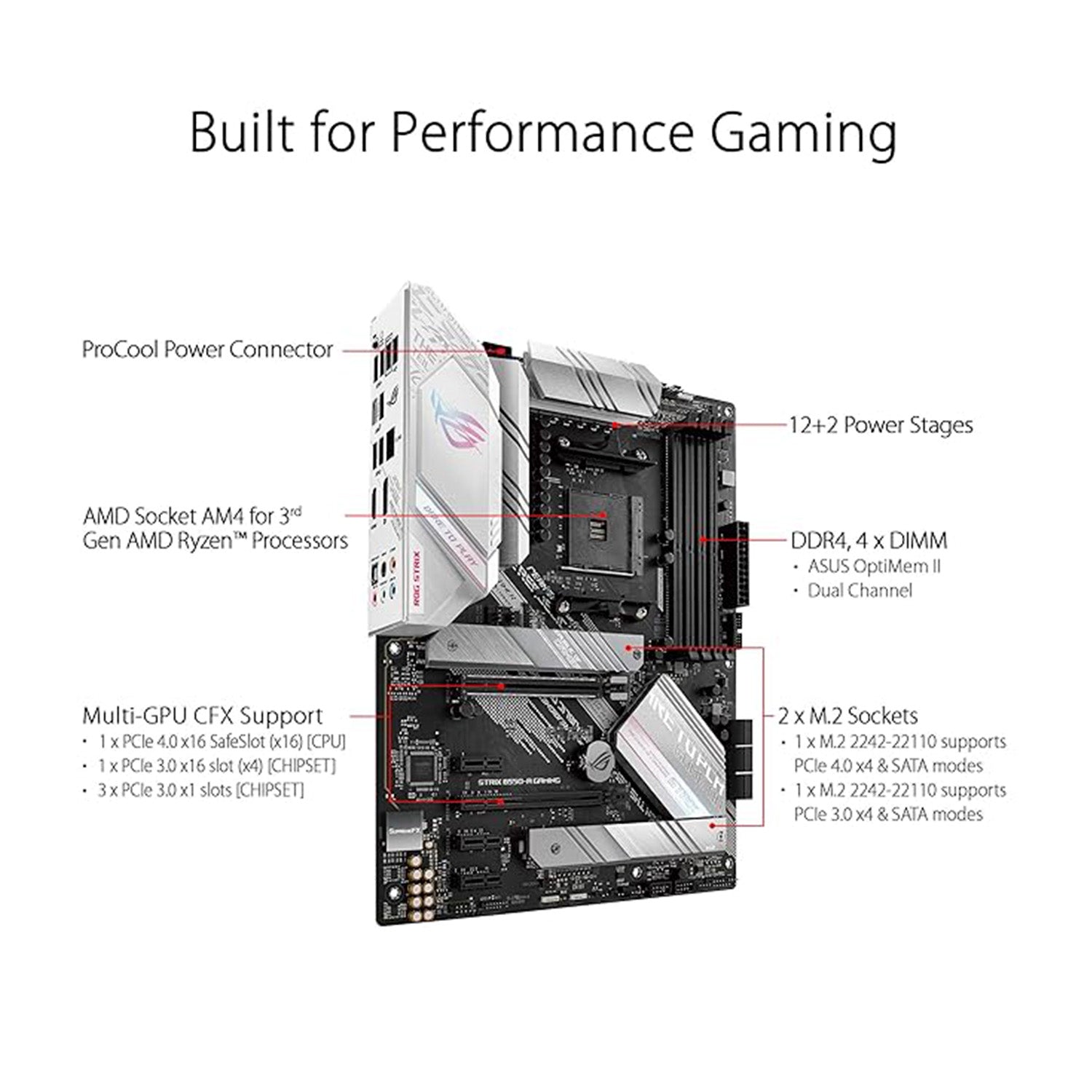

Socket Type: AM4, compatible with AMD Ryzen processors, including the latest Ryzen 5000 series (may require a BIOS update).

Chipset: AMD B550, providing a robust foundation for gaming, overclocking, and general computing tasks.

Form Factor: ATX (12 in. x 9.6 in. or 30.5 cm x 24.4 cm), offering ample space for components and expandability.

Memory Support:
- 4 x DDR4 DIMM slots, supporting up to 128GB of RAM.
- Dual-channel memory architecture.
- Supports DDR4 memory with speeds up to 5100MHz (OC).

Expansion Slots:
- 1 x PCIe 4.0 x16 slot for a high-performance graphics card.
- 1 x PCIe 3.0 x16 slot (operates at x4) for additional expansion cards.
- 3 x PCIe 3.0 x1 slots for further expansion options.

Storage:
- 6 x SATA III 6Gb/s ports for connecting traditional hard drives and SSDs.
- 2 x M.2 slots for NVMe SSDs, allowing for high-speed storage solutions.

Video Output:
- 1 x HDMI 2.1 port (4K resolution support).
- 1 x DisplayPort 1.4 port (4K resolution support).

💯 𝐅𝐑𝐄𝐄 𝐃𝐄𝐋𝐈𝐕𝐄𝐑𝐘 | 🚚 𝐐𝐔𝐈𝐂𝐊 𝐒𝐇𝐈𝐏 | ☎ 𝐆𝐑𝐄𝐀𝐓 𝐂𝐔𝐒𝐓𝐎𝐌𝐄𝐑'𝐒 𝐒𝐔𝐏𝐏𝐎𝐑𝐓

Characteristics

Brand ‎ASUS

Model ‎ROG STRIX B550-A GAMING

Socket AMD AM4 Socket

Chipset AMD B550

Form factor ATX Form Factor

Interface 1 x PCIe 3.0 x16 / 1 x PCIe 4.0 x16

Storage 2 x M.2 slot(s) and 6 x SATA 6Gb/s

Processor brand AMD

Processor type AMD Ryzen

Processor model AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors

Processor generation AMD Ryzen 3rd generation, AMD Ryzen 4th generation, AMD Ryzen 5th generation

Memory type DDR4

Number of memory slots 4 X DIMM Slots

Maximum memory supported ‎128 GB

Operating system Support For Windows 10 64-Bit

Expansion slots 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x16, 3 x PCIe 3.0 x1

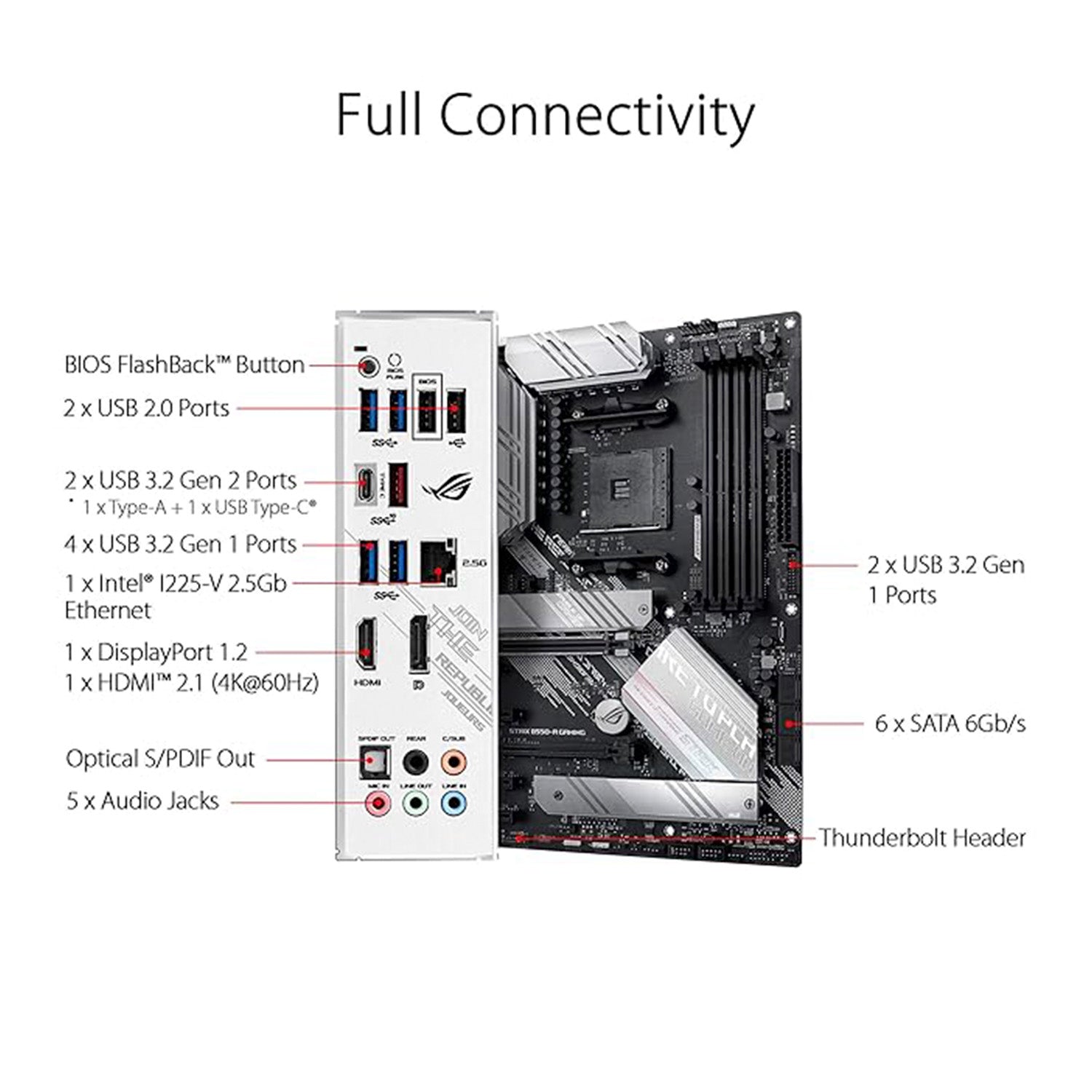

Back panel i/o ports 1 x Intel I225-V 2.5Gb Ethernet, 1 x DisplayPort, 1 x HDMI, 2 x USB 3.2 Gen 2, 4 x USB 3.2 Gen 1, 2 x USB 2.0, 1 x Optical S/PDIF out, 1 x BIOS Flashback Button(s), 5 x Gold-plated audio jacks

Usb 2 x USB 3.2 Gen 2 port, 4 x USB 3.2 Gen 1 port, 2 x USB 2.0 port, 2 x USB 3.2 Gen 1 port, 4 x USB 2.0 port

Video outputs Integrated Graphics Processor 1 x DisplayPort 1.2 1 x HDMI 2.1(4K@60HZ)

Description

Socket Type: AM4, compatible with AMD Ryzen processors, including the latest Ryzen 5000 series (may require a BIOS update).

Chipset: AMD B550, providing a robust foundation for gaming, overclocking, and general computing tasks.

Form Factor: ATX (12 in. x 9.6 in. or 30.5 cm x 24.4 cm), offering ample space for components and expandability.

Memory Support:
- 4 x DDR4 DIMM slots, supporting up to 128GB of RAM.
- Dual-channel memory architecture.
- Supports DDR4 memory with speeds up to 5100MHz (OC).

Expansion Slots:
- 1 x PCIe 4.0 x16 slot for a high-performance graphics card.
- 1 x PCIe 3.0 x16 slot (operates at x4) for additional expansion cards.
- 3 x PCIe 3.0 x1 slots for further expansion options.

Storage:
- 6 x SATA III 6Gb/s ports for connecting traditional hard drives and SSDs.
- 2 x M.2 slots for NVMe SSDs, allowing for high-speed storage solutions.

Video Output:
- 1 x HDMI 2.1 port (4K resolution support).
- 1 x DisplayPort 1.4 port (4K resolution support).

💯 𝐅𝐑𝐄𝐄 𝐃𝐄𝐋𝐈𝐕𝐄𝐑𝐘 | 🚚 𝐐𝐔𝐈𝐂𝐊 𝐒𝐇𝐈𝐏 | ☎ 𝐆𝐑𝐄𝐀𝐓 𝐂𝐔𝐒𝐓𝐎𝐌𝐄𝐑'𝐒 𝐒𝐔𝐏𝐏𝐎𝐑𝐓

NEW

ASUS ROG STRIX B550-A Gaming Motherboard, AMD B550 Chipset, AMD AM4 Socket, 4 x DIMM, Max Memory 128GB, DDR4, ATX Form Factor, Support Windows 10 64-Bit,HDMI and Display Port

Regular price: $229.99
Sale price: $229.99
Regular price: ~~$299.99~~
