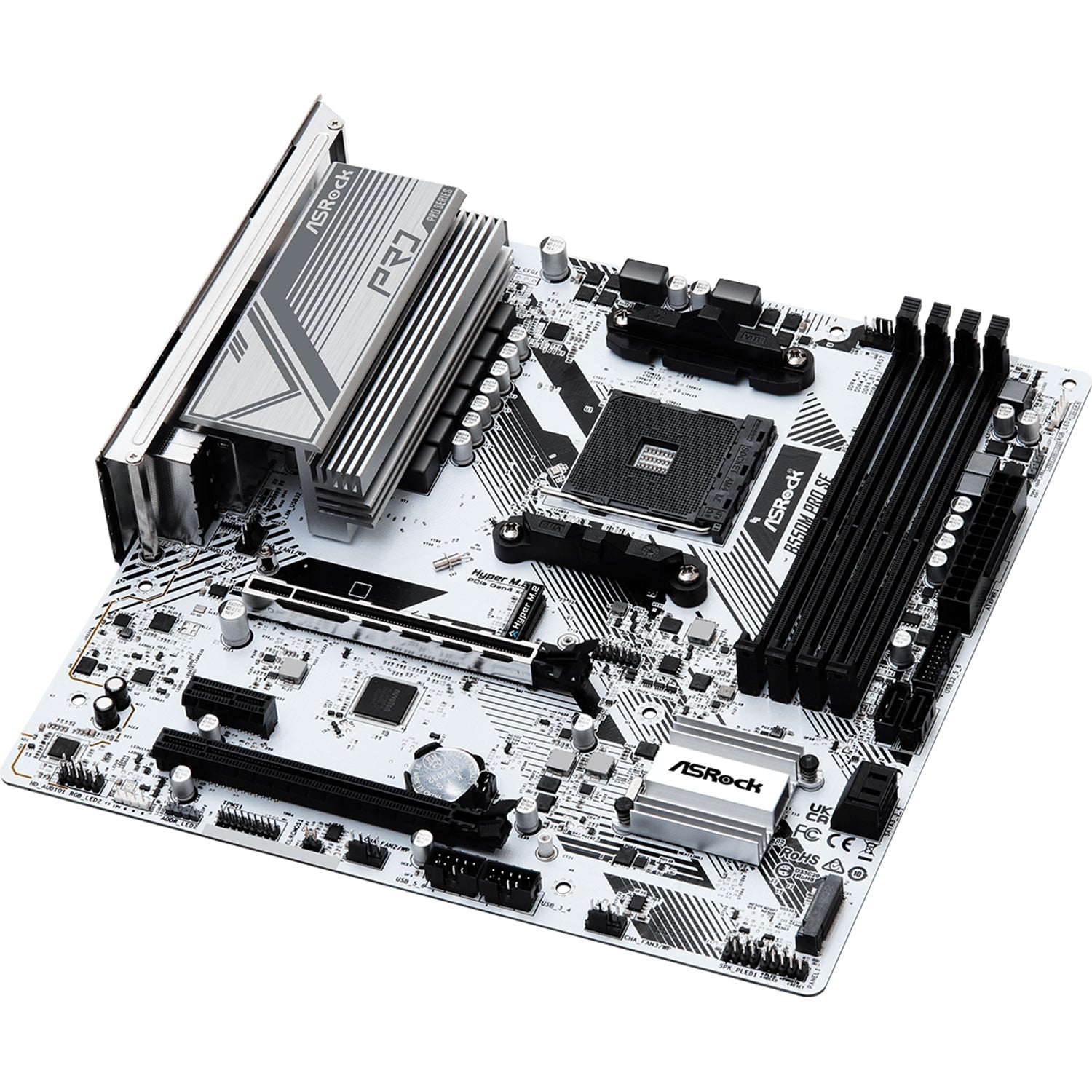

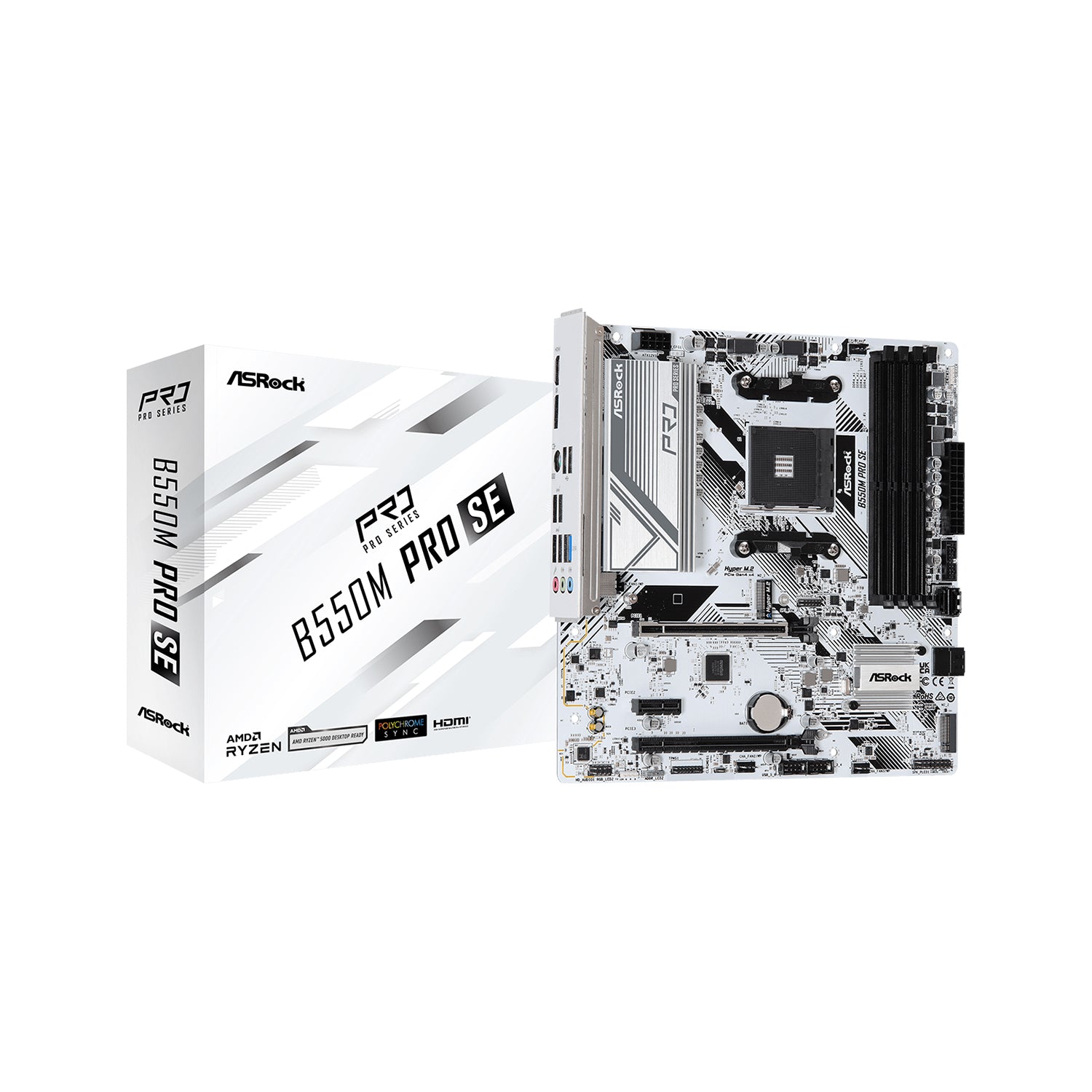

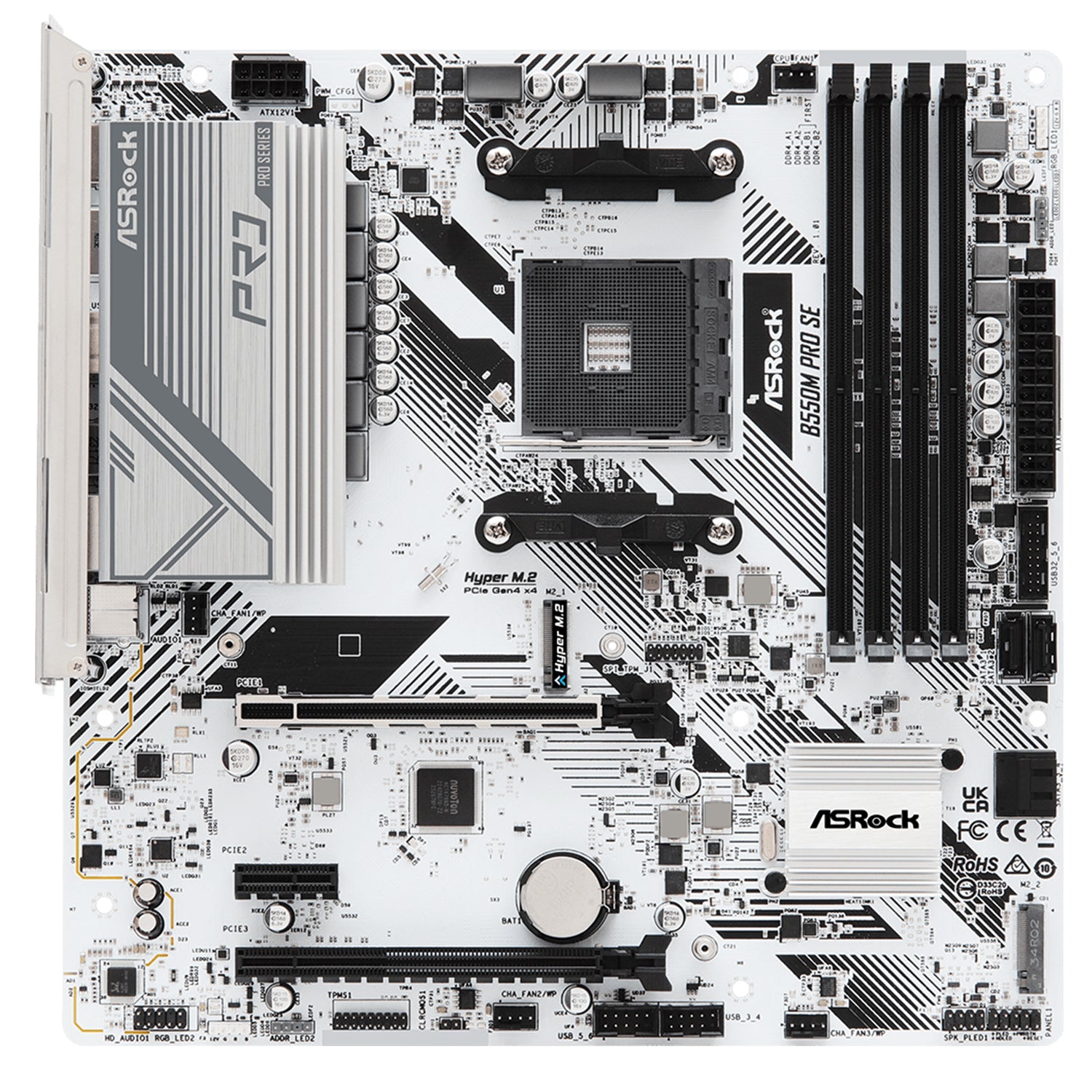

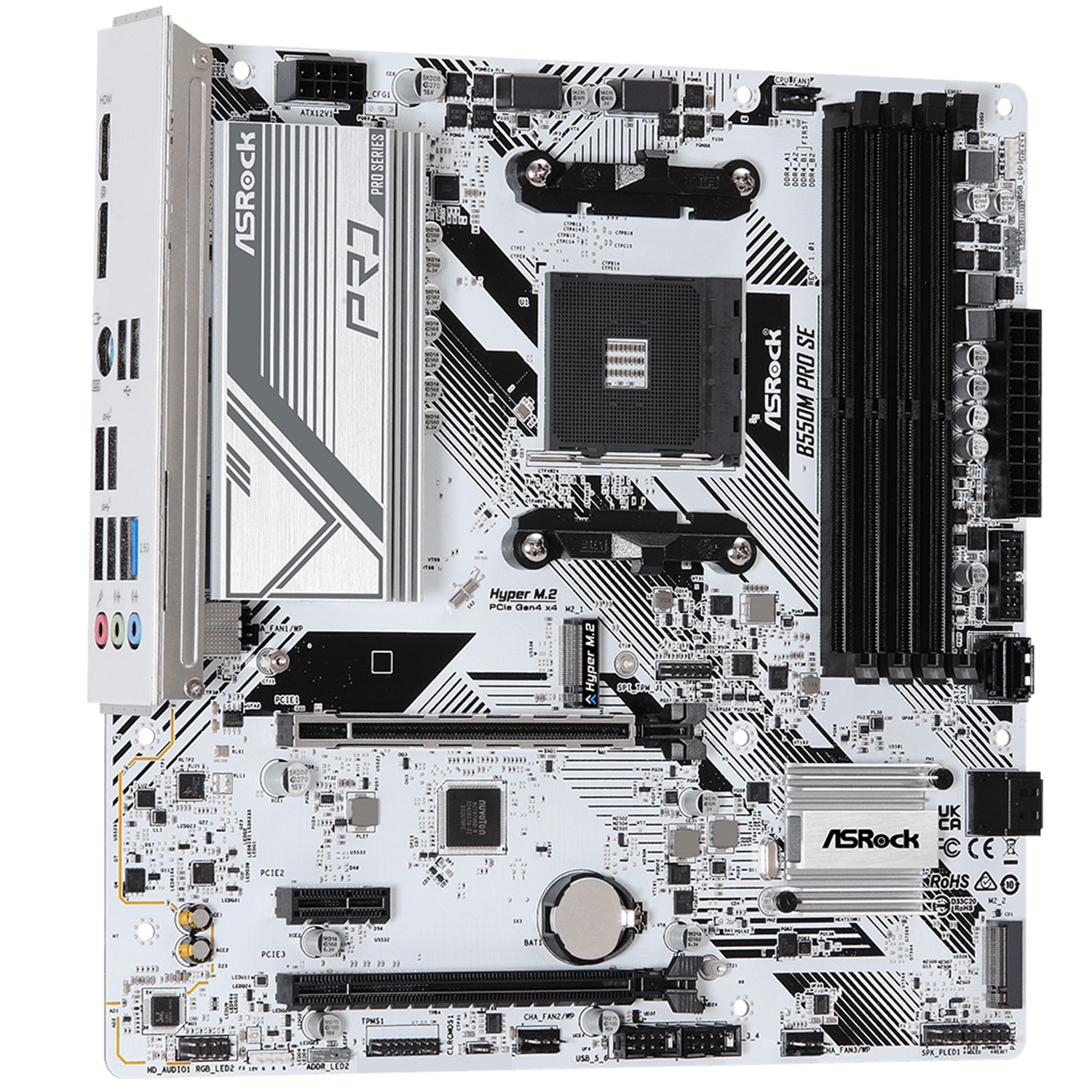

ASRock B550M Pro SE Motherboard - AMD PRO565 Chipset, AM4 Socket, SATA3 6Gbps ATX With DDR4 Up to 128GB Max Memory, Dual M.2 For SSD, HDMI, DisplayPort

About

Description

ASRock B550M Pro SE: Is a compact motherboard offering solid performance with support for AMD Ryzen processors, PCIe 4.0, and advanced connectivity options.

AMD Smart Access Memory: AMD Smart Access Memory expands the data channel to unlock the full potential of GPU memory, eliminating bottlenecks and boosting system performance.

8 Power Phase Design: Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

PolyChrome RGB: This motherboard enables customization of lighting effects by supporting onboard and addressable RGB headers, along with synchronization of Polychrome RGB Sync-certified devices.

Dragon 2.5 Gb/s LAN: The 2.5Gb/s LAN platform delivers up to 2.5X faster networking performance, ensuring superior connectivity for gaming, content creation, file transfers, and high-quality streaming.

Pre-Installed IO Shield: ASRock features cutting-edge technology with a user-friendly design, including a pre-installed I/O shield for precise installation and faster setup.

📦 SHIP NEXT DAY | ☎ 24/7 CUSTOMER'S SUPPORT

Characteristics

Brand ASRock

Model number B550M Pro SE

Socket AM4 Socket

Chipset AMD PRO565

Form factor Micro ATX Form Factor - 9.6-in x 9.6-in, 24.4 cm x 24.4 cm

Interface 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1

Storage 4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)

Processor brand AMD

Processor type AMD Ryzen

Processor model AMD Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors

Memory type DDR4

Number of memory slots 4x DDR4 Memory Slots

Maximum memory supported 128GB

Operating system Support For Windows 10 64-Bit /Windows 11 64-Bit

Lan 2.5 Gigabit LAN 10/100/1000/2500 Mb/s

Connector 1 x SPI TPM Header, 1 x Power LED and Speaker Header, 2 x RGB LED Headers, 2 x Addressable LED Headers, 1 x CPU Fan Connector (4-pin), 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control), 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector, 1 x Front Panel Audio Connector, 2 x USB 2.0 Headers (Support 4 USB 2.0 ports), 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

Accessories 1 x User Manual, 2 x SATA Data Cables, 2 x Screws for M.2 Sockets

I/o ports 1 x PS/2 Mouse/Keyboard Port, 1 x HDMI Port, 1 xDisplayPort 1.4 Port, 4 x USB 3.2 Gen1 Ports, 2 x USB 2.0 Ports, 1 x RJ-45 LAN Port with LED

Usb ports 6 x USB 3.2 Gen1 Type-A (4 Rear, 2 Front), 6 x USB 2.0 (2 Rear, 4 Front)

Video outputs HDMI, DisplayPort

Limited manufacturer warranty 2Years

Description

ASRock B550M Pro SE: Is a compact motherboard offering solid performance with support for AMD Ryzen processors, PCIe 4.0, and advanced connectivity options.

AMD Smart Access Memory: AMD Smart Access Memory expands the data channel to unlock the full potential of GPU memory, eliminating bottlenecks and boosting system performance.

8 Power Phase Design: Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

PolyChrome RGB: This motherboard enables customization of lighting effects by supporting onboard and addressable RGB headers, along with synchronization of Polychrome RGB Sync-certified devices.

Dragon 2.5 Gb/s LAN: The 2.5Gb/s LAN platform delivers up to 2.5X faster networking performance, ensuring superior connectivity for gaming, content creation, file transfers, and high-quality streaming.

Pre-Installed IO Shield: ASRock features cutting-edge technology with a user-friendly design, including a pre-installed I/O shield for precise installation and faster setup.

📦 SHIP NEXT DAY | ☎ 24/7 CUSTOMER'S SUPPORT

NEW

ASRock B550M Pro SE Motherboard - AMD PRO565 Chipset, AM4 Socket, SATA3 6Gbps ATX With DDR4 Up to 128GB Max Memory, Dual M.2 For SSD, HDMI, DisplayPort

Regular price: $199.99
Sale price: $199.99
Regular price: ~~$239.99~~
