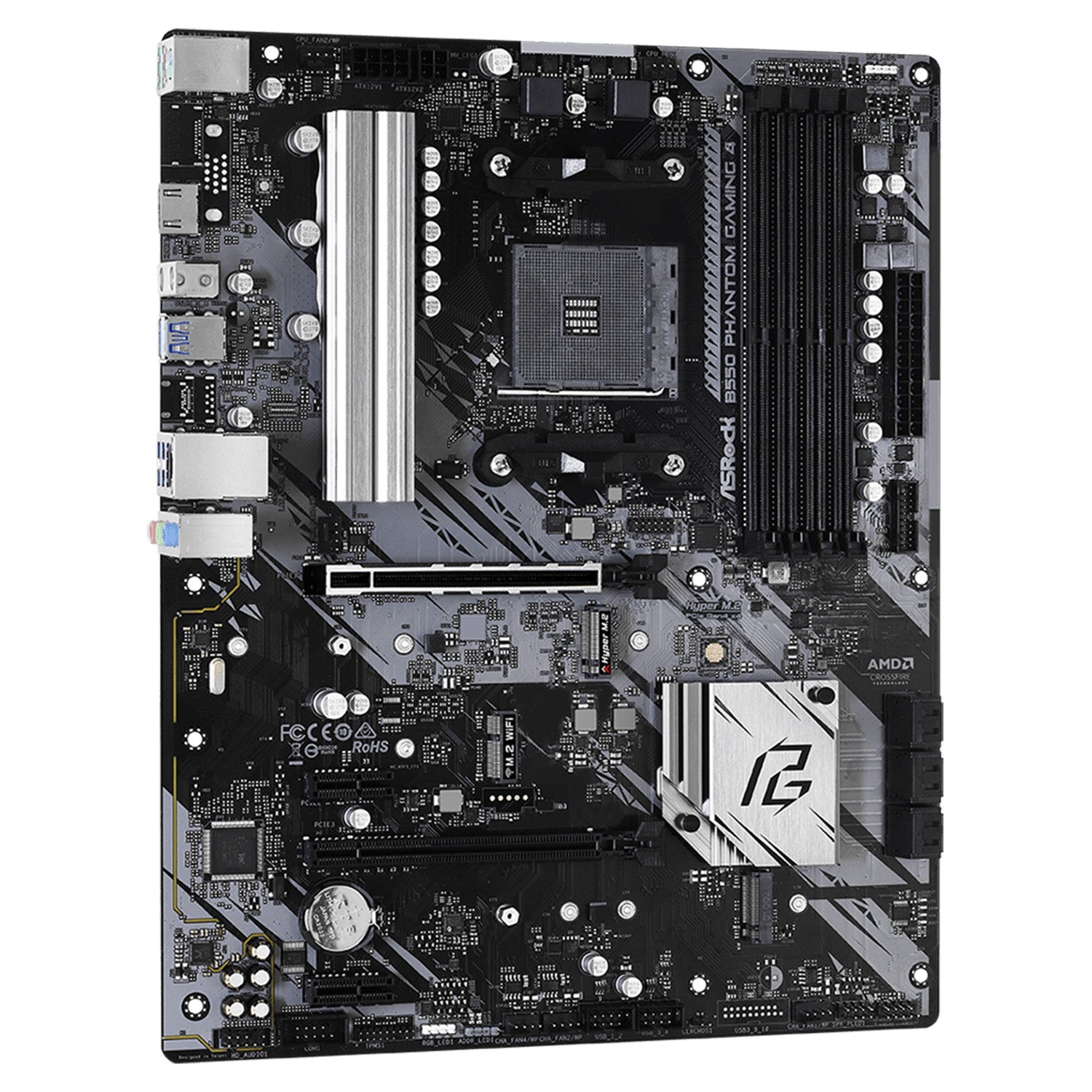

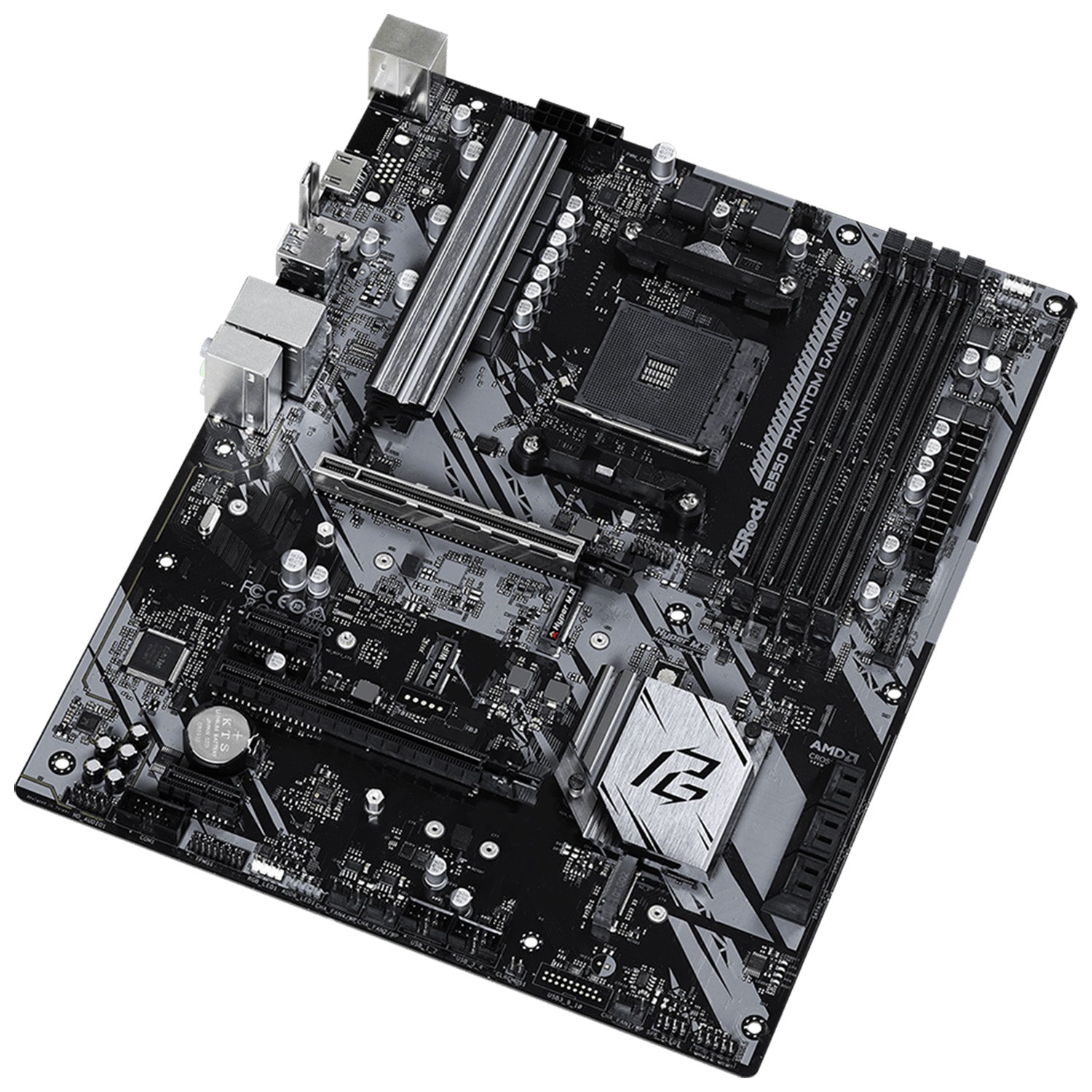

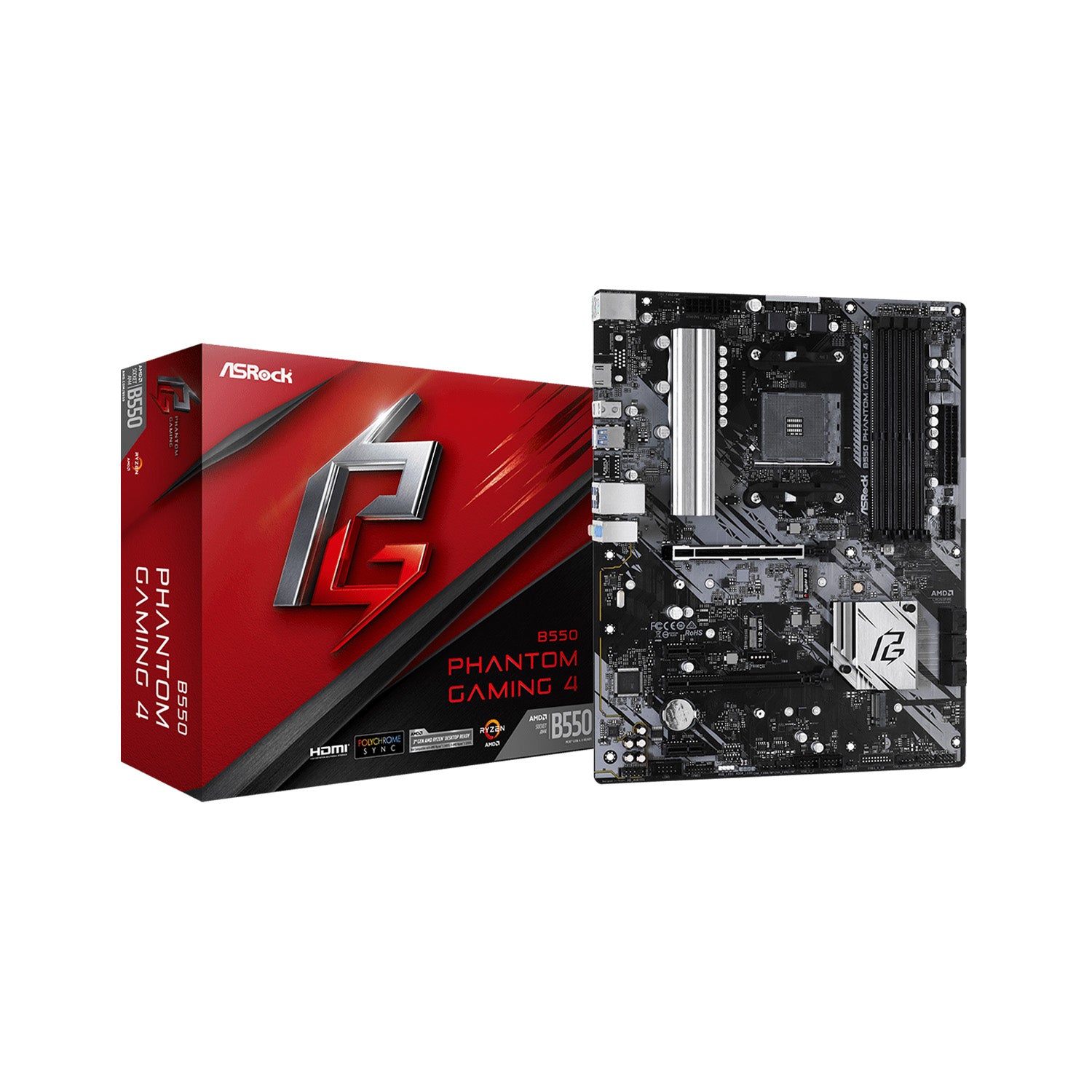

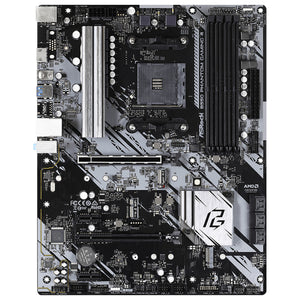

ASRock B550 Phantom Gaming 4 Motherboard, AMD StoreMI Technology Motherboard, ATX - Support AMD Ryzen 3000G/ 4000G/ 5000G Series Desktop processors,With DDR4 Up to 128GB Max Memory, HDMI

About

Description

ASRock B550 Phantom Gaming 4: Is a compact motherboard offering solid performance with support for AMD Ryzen processors, PCIe 4.0, and advanced connectivity options.

AMD Smart Access Memory: AMD Smart Access Memory expands the data channel to unlock the full potential of GPU memory, eliminating bottlenecks and boosting system performance.

8 Power Phase Design: Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

PolyChrome RGB: This motherboard enables customization of lighting effects by supporting onboard and addressable RGB headers, along with synchronization of Polychrome RGB Sync-certified devices.

Premium 50A Power Choke: ASRock’s premium 50A power chokes offer up to three times better saturation current than traditional chokes, delivering improved Vcore voltage to the motherboard.

Nahimic Audio: Nahimic Audio delivers an immersive and detailed listening experience, whether you're using headphones, a headset, speakers, or any connection type like USB, Wi-Fi, analog, or HDMI.

📦 SHIP NEXT DAY | ☎ 24/7 CUSTOMER'S SUPPORT

Characteristics

Brand ASRock

Model number B550 Phantom Gaming 4

Socket AM4 Socket

Chipset AMD B550

Form factor Micro ATX Form Factor - 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

Interface 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi

Storage 6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)

Processor brand AMD

Processor type AMD Ryzen

Processor model AMD Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors

Memory type DDR4

Number of memory slots 4x DDR4 Memory Slots

Maximum memory supported 128GB

Operating system Support For Windows 10 64-Bit /Windows 11 64-Bit

Lan PCIE x1 Gigabit LAN 10/100/1000 Mb/s

Connector 1 x COM Port Header, 1 x SPI TPM Header, 1 x Power LED and Speaker Header, 2 x RGB LED Headers, 2 x Addressable LED Headers, 1 x CPU Fan Connector (4-pin), 1 x CPU/Water Pump Fan Connector (4-pin) , 4 x Chassis/Water Pump Fan Connectors, 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector, 1 x 4 pin 12V Power Connector, 1 x Front Panel Audio Connector, 2 x USB 2.0 Headers (Support 4 USB 2.0 ports), 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

Accessories Quick Installation Guide, Support CD, I/O Shield, 2 x SATA Data Cables, 3 x Screw for M.2 Socket

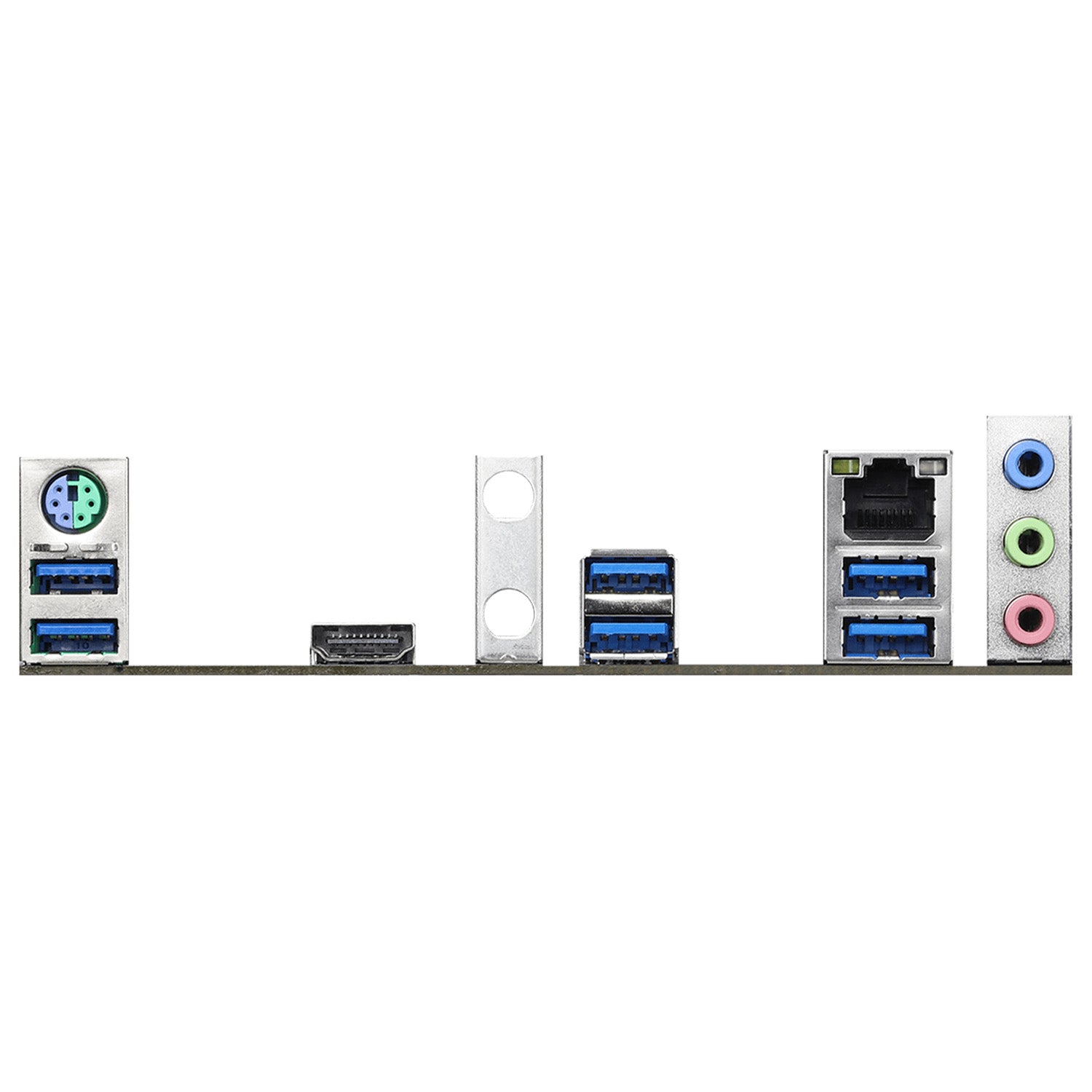

I/o ports Antenna Bracket, 1 x PS/2 Mouse/Keyboard Port, 1 x HDMI Port, 6 x USB 3.2 Gen1 Ports, 1 x RJ-45 LAN Port with LED, HD Audio Jacks: Line in / Front Speaker / Microphone

Video outputs HDMI

Limited manufacturer warranty 2Years

Description

ASRock B550 Phantom Gaming 4: Is a compact motherboard offering solid performance with support for AMD Ryzen processors, PCIe 4.0, and advanced connectivity options.

AMD Smart Access Memory: AMD Smart Access Memory expands the data channel to unlock the full potential of GPU memory, eliminating bottlenecks and boosting system performance.

8 Power Phase Design: Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

PolyChrome RGB: This motherboard enables customization of lighting effects by supporting onboard and addressable RGB headers, along with synchronization of Polychrome RGB Sync-certified devices.

Premium 50A Power Choke: ASRock’s premium 50A power chokes offer up to three times better saturation current than traditional chokes, delivering improved Vcore voltage to the motherboard.

Nahimic Audio: Nahimic Audio delivers an immersive and detailed listening experience, whether you're using headphones, a headset, speakers, or any connection type like USB, Wi-Fi, analog, or HDMI.

📦 SHIP NEXT DAY | ☎ 24/7 CUSTOMER'S SUPPORT

NEW

ASRock B550 Phantom Gaming 4 Motherboard, AMD StoreMI Technology Motherboard, ATX - Support AMD Ryzen 3000G/ 4000G/ 5000G Series Desktop processors,With DDR4 Up to 128GB Max Memory, HDMI

Regular price: $264.99
Sale price: $264.99
Regular price: ~~$299.99~~
